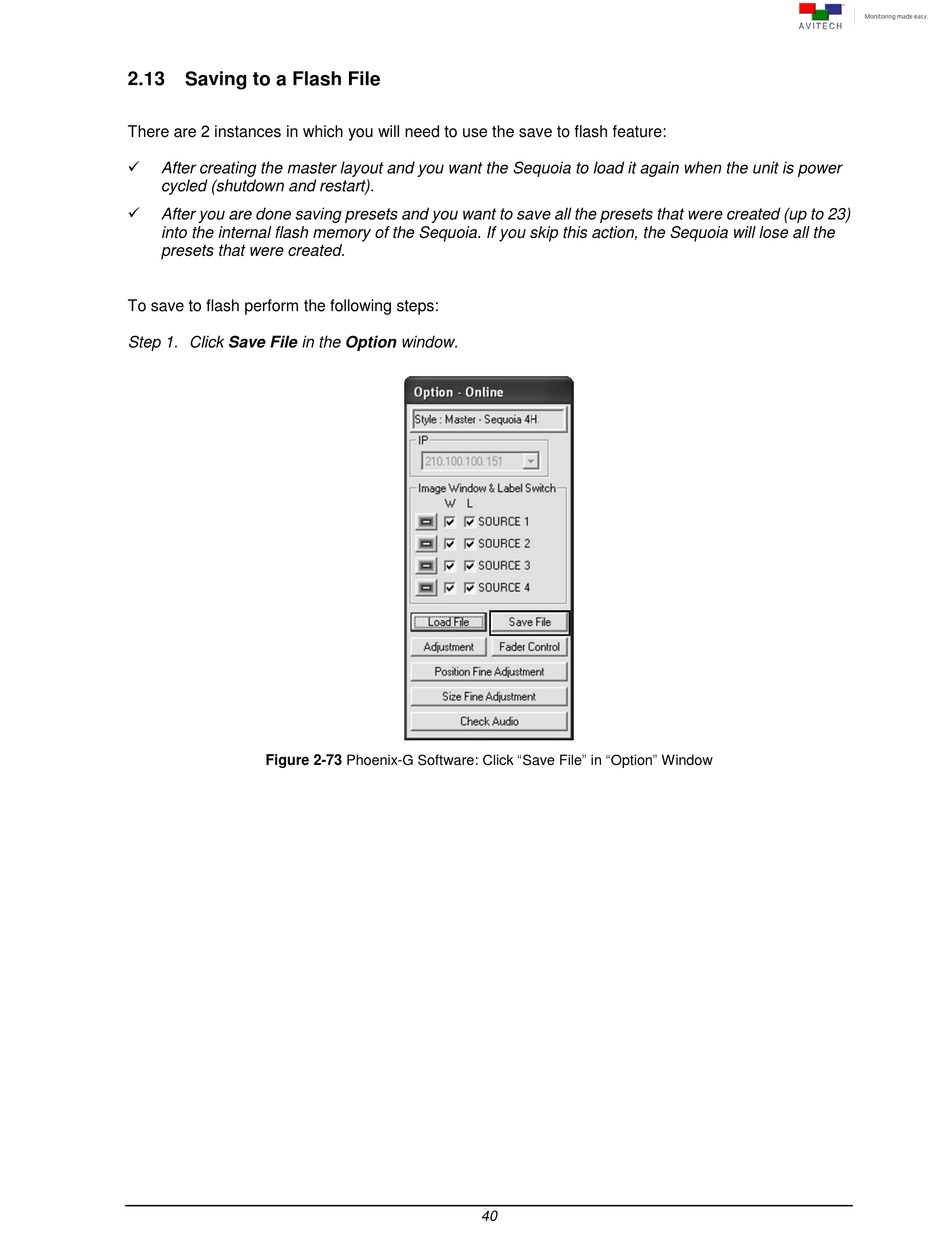

2.13 Saving to a Flash File

There are 2 instances in which you will need to use the save to flash feature:

After creating the master layout and you want the Sequoia to load it again when the unit is power
cycled (shutdown and restart).

After you are done saving presets and you want to save all the presets that were created (up to 23)
into the internal flash memory of the Sequoia. If you skip this action, the Sequoia will lose all the
presets that were created.
To save to flash perform the following steps:
Step 1. Click Save File in the Option window.
Figure 2-73 Phoenix-G Software: Click "Save File" in "Option" Window
40
