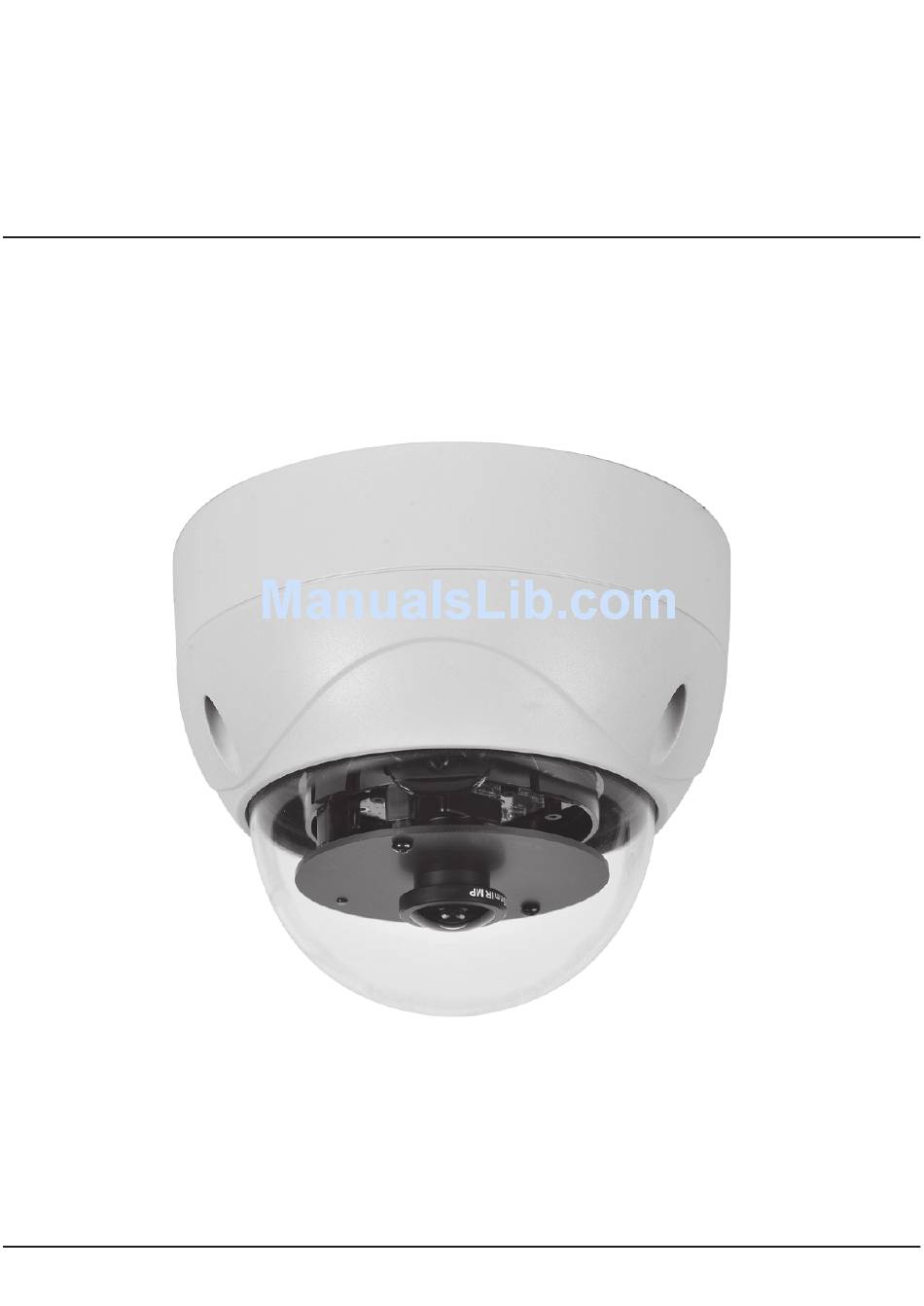

- Page 1 M159-HDV120F-001 HD CCTV Digital Video Panoramic View Camera OPERATION MANUAL Thank you for choosing our high quality camera. Before attempting to connect operate this unit, please read and follow these instructions.
-
Page 2: Important Safety Instructions
C O NT E NT S 1. CAUTIONS 2. IMPORTANT SAFETY INSTRUCTIONS 3. FEATURES 4. EQUIPMENT AND ACCESSORIES 5. CAMERA COMPONENT DESCRIPTIONS 6. INSTALLATION 7. DIMENSIONS 8. SPECIFICATIONS 9. OSD MANUAL • Menu Structure • Function Description CAU T ION These servicing instructions are for use by qualified service personnel only. - Page 3 1 . C AUT IO N S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Risk Of Electric Shock Do Not Open
1 . C AUT IO N S WEEE (Waste Electrical & Electronic Equipment) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. -
Page 5: Important Safety Instruction
2 . IMP O R TA NT S A FE T Y I N ST R U C T I O N 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. - Page 6 3 . F E AT U R E S • High Resolution. SONY 1 / 3” Progressive Color CMOS Image Sensor. ( 3 Mega Pixel ). • Support Various Digital Video Output. 1080p30, 1080p25 • Video Outputs. Primary HD-SDI (BNC) Test/Setup TV Out (Test Point-adapter to BNC included), NTSC/PAL selectable •...
- Page 7 4 . EQ UI P ME N T AN D A C CE SS O R I ES Camera Template Manual Screws / Plastic anchors / Wrench Service Video Output Test Cable When using Wall Mount Bracket...
- Page 8 5 . C AME R A CO M P O N EN T D ES C R IP T I O N S Service Video Connector OSD Joystick • CONTROL FUNCTION (OSD JOYSTICK) R I GHT LE F T MENU D O W N *PRESS INWARD FOR MENU...
-
Page 9: Installation
6 . INS TAL LATI O N Template Plastic Anchors(3ea) Screws(3ea) Cover Screws(3ea): are “captive and will normally be retained in cover. They are shown here for illustration purposes. -
Page 10: Monitor Connection
6 . INS TAL LATI O N • MONITOR CONNECTION HD SDI IN DC12V / AC24V REGULATED POWER SUPPLY RS485(+) RS485(-) When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera from the humidity problems. Service Video Connector TEST CABLE... - Page 11 7 . D IM EN S I O N S Unit(mm) Ø112.8 Ø107 Ø151 Ø124...
-
Page 12: Output Mode
8 . SP ECI F I CAT I ON S S O N Y 1 / 3 ” P ro g re s s i v e Co l o r CM O S I m a g e S e n s o r Image Device ( 3 M e g a P ix e l , 1 5 f p s ) Effective Pixels... -
Page 13: Os D M An Ua L
9 . OS D M AN UA L • Menu structure - Panorama Mode Select Main Sub Menu Sub Menu WINDOW SELECT 1 ~ 2 FILP ON / OFF 180° PANORAMA 360° PANORAMA MIRROR ON / OFF POSITION INITIALIZE PANORAMA WINDOW SELECT 1 ~ 4 MODE... -
Page 14: White Balance Menu
9 . OS D M AN UA L - WHITE BALANCE Menu Main Sub Menu Sub Menu ATW MODE INDOOR / OUTDOOR R GAIN 0 ~ 255 MANUAL B GAIN 0 ~ 255 1500K / 1567K / 1641K / 1721K / 1810K / WHITE WB MODE 1909K / 2019K / 2143K / 2283K / 2242K /... -
Page 15: Panorama Mode
9 . OS D M AN UA L • Function Description MAIN MENU MAIN MENU - PANORAMA MODE SELECT + PANORAMA MODE SELCET : Panorama Mode Select. + CAMERA SETTING - WHITE BALANCE : Basic CAMERA FUNCTION Setting. * EXIT PANORAMA MODE SELECT PANORAMA MODE + 180 PANORAMA... -
Page 16: Zoom Control
9 . OS D M AN UA L PTZ & ZOOM MODE (Sub Menu) PTZ & ZOOM MODE * WINDOW SELECT: + FLIP + MIRROR + PAN & TILT CONTROL + POSITION INITIALIZE * ESC * EXIT - WINDOW SELECT: Use the LEFT/RIGHT button to select the PTZ Control Window. Control Available Window Mode Window Number. -
Page 17: Camera Setting
9 . OS D M AN UA L • Function Description CAMERA SETTING CAMERA SETTING + EXPOSURE + WHITE BAMANCE + DAY & NIGHT + IMAGE + SYSTEM + RESET DATA * ESC * EXIT - EXPOSURE: Adjust exposure control - WHITE BALANCE: Adjust white balance control - DAY &... -
Page 18: Shutter Mode
9 . OS D M AN UA L SHUTTER (Sub Menu) SHUTTER SHUTTER + SHUTTER MODE NORMAL AE + SHUTTER MODE NORMAL AE + AE PRIORITY NORMAL + AE PRIORITY GAIN + GAIN LEVEL 0 DB * ESC * ESC * EXIT * EXIT SHUTTER... -
Page 19: White Balance
9 . OS D M AN UA L WHITE BALANCE WHITE BALANCE WHITE BALANCE + WB MODE + WB MODE SPECIFIC COLOR + ATW MODE INDOOR + TARGET TEMP 3387K * ESC * ESC * EXIT * EXIT WHITE BALANCE WHITE BALANCE + WB MODE MANUAL... -
Page 20: Day & Night
9 . OS D M AN UA L DAY & NIGHT DAY & NIGHT + DAY & NIGHT AUTO + DELAY TIME 3 SEC + DAY THRESHOLD + NIGHT THRESHOLD * ESC * EXIT DAY & NIGHT DAY & NIGHT + DAY &... - Page 21 9 . OS D M AN UA L IMAGE IMAGE + GAMMA + SHARPNESS + CONTRAST + SATURATION + DNR * ESC * EXIT - GAMMA : Use the SET button to go to the GAMMA sub menu. - SHARPNESS : Use the LEFT/RIGHT button to adjust the sharpness value.
- Page 22 9 . OS D M AN UA L COMMUNICATION (Sub Manu) COMMUNICATION * CAMERA ID GROUP. 1 + BAUD RATE 9.6K * COMM APPLY * ESC * EXIT - CAMERA ID : Use the LEFT/RIGHT button to select the RS485 ID Address Group. ID Group : 1 ~ 51 GROUP 1 Window 1 (ID 1)
-
Page 23: Save And Exit Setup
9 . OS D M AN UA L EXIT SAVE & EXIT SETUP EXIT WITHOUT SAVING This menu can be accessed when use the EXIT action in all menu pages. - SAVE & EXIT SETUP : Save all current setting and Close OSD menu. These setting are loaded and applied automatically when the Camera is power on.
