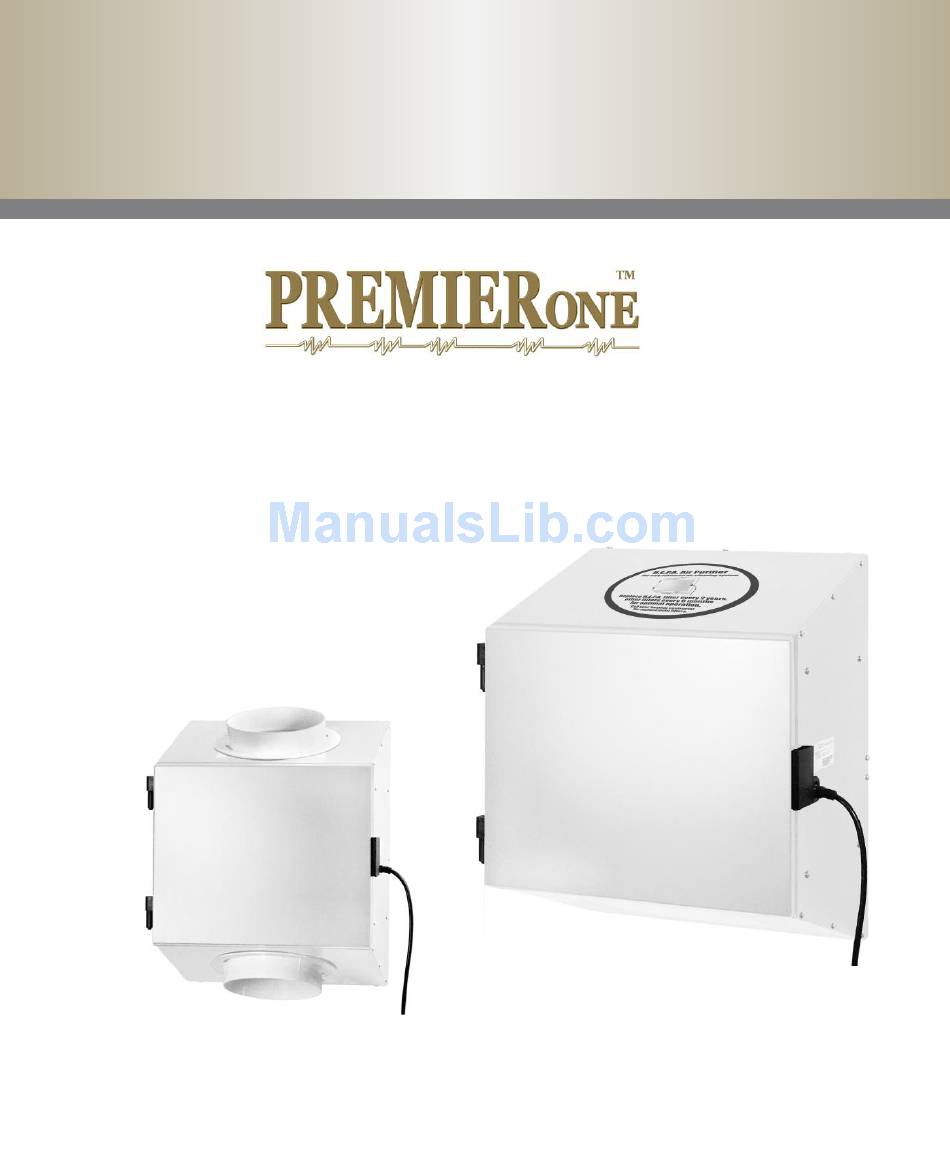

- Page 1 GUIDE Installation • Operation • Maintenance WHOLE HOUSE HEP A FIL TRA TION SYSTEMS H.E.P.A. Air Cleaner WHOLE HOUSE HEPA FILTRATION SYSTEM MODEL HP500 Pictured here with the optional collar mount kit For residential installation only...
-
Page 2: Table Of Contents
Table of contents 1.Getting Started years GENERAL INFORMA TION P AGE 1.1 Unpacking and inspection L i m i t e d W a r r a n t y 1.2 Technical data Manufacturer 2.Installation Guide Warranty INFORMA TION FOR INST ALLERS P AGE You benefit from a limited 7 year warranty on the motorized impeller and a 5 year... -
Page 3: Technical Data
1.2. Technical Data Dimensions and Clearance installation Specifications Return Air Plenum Installation Back View Front View Side View - Clearance Model HP500 Filtration Stage 1 Prefilter with Carbon (RPCF677) & Filtration Stage 3 HEPA filter (RHF562) Weight 28 lbs (12.7 kg) Plenum Mount Port Openings 16”... -
Page 4: Installation Guide
Installation GUIDE 2. Information for the Installer 2.1 Planning the Installation Special Consideration For integrated system installation The Whole House HEPA unit is a versatile appliance with multiple installations configuration. It is recommended to take your time in planning the installation. •... -
Page 5: Type Of Installation: Stand-Alone
Installation GUIDE 2.3 Types of Installation: Stand-Alone Stand Alone Attic Installation Ideal for homes without a forced air heating / cooling system. Allows for air filtration and circulation throughout the home. HEPA system must be operated continuously whenever a part or all the system is located in an unconditioned space to avoid condensation in the ductwork below freezing (0°C, 32°F). -
Page 6: Installing The Unit
Installation GUIDE 2.4 Installing the unit T ools required Step by step Installation Steps involved in the preparation of the plenum mount system are • Phillips #2 or Robertson #1 as followed: screwdriver • 3/32” drill bit Step 1: Step 2: •... - Page 7 Installation GUIDE 2.4 Installing the unit (Continued) Tips Step 2:(Continued) Step 2:(Continued) to installer Cut the four metal tabs to release the Interlocking the HEPA filtration unit with the mounting flairs for the inlet and outlet ports. forced air heating / cooling system is possi- ble using an auxiliary relay.
- Page 8 Installation GUIDE 2.4 Installing the unit (Continued) Tips Step 3: Mount Hepa Step 3: (Continued) to installer It is recommended that the filtration unit have a devoted receptacle with 115V. It is not rec- ommended to connect unit with an extension cord.
-
Page 9: Owner's Operation Guide
Owner’s Operation GUIDE 3. General Operating Information Function Door Switch The Whole House HEPA system is comprised of a ventilator, speed selection switch, 3 stages of filtration and the cabinet enclosure system. The ventilator pulls air through the pre-filter and pushes the same air threw the impregnat- ed carbon pad for odor control and finally the last stage of filtration is the HEPA filter which removes 99.97% of particles 0.3µm in size. -
Page 10: Maintenance Guide
Maintenance GUIDE 4. General Maintenance Information When should 4.1 Changing Filters I Service After opening the unit’s door, grasp both edges of filter my Unit? and pull with equal force to slide out the filter. service and accessories 4.2 Cleaning Detailed maintenance information is located on the front decal on motor plate. - Page 11 Contact Wiring the HP500 Air Cleaner For T echnical Support to an ICP 80% or 90 % +%Furnace • Toll Free: 1-800-982-1840 The wiring together of the HP 500 Air cleaner onto an ICP electronic fan control (EFC) board is as simple as 1-2-3. Control boards on different brands of furnaces vary but in principal are all quite similar.
- Page 12 1-800-982-1840 www.premieroneproducts.com...
