Summary of Contents for GRD STYLE-2

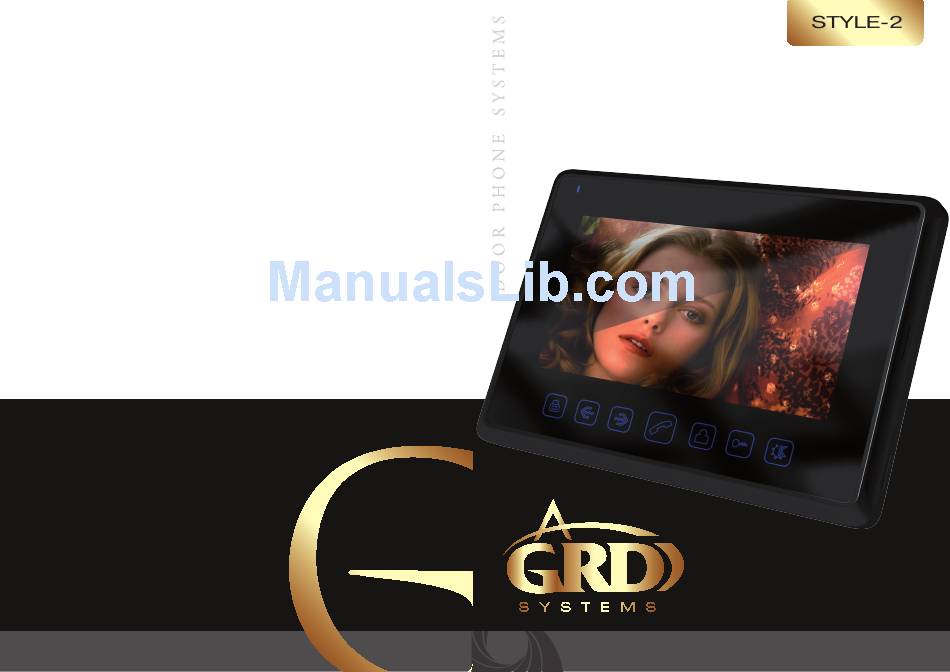

- Page 1 Thank you for choosing GRD products STYLE-2 User's Manual...
-
Page 2: Speci Cation
Package Monitor – 1pc. Wall mounting bracket with screws– 1pc. Power supply – 1pc. Characteristics: Door panel cords – 2pcs. Sub monitor cord – 1pc. • up to 4 monitors in one system with address intercom User's manual – 1pc. microSD card - 1pc. -
Page 3: Wiring Diagram
Maximum current for door panel power is 300mA. connected to VD - video and GND - ground wires. Choose the right device you use in settings menu. Two door panels and two locks connection to the Style-2 monitors system User’s manual... -
Page 4: System Settings
Multimedia manager System settings Shortly press button in standby mode to enter Multimedia Manager. Use Press and hold button for two seconds to enter SYSTEM SETTINGS: button to move through the menu. Shortly press button to enter current menu. Same way you can enter any sub menu. Press button to exit current menu or SYSTEM SETTINGS multimedia manager. -
Page 5: Incoming Calls Answer
Incoming calls answer Unlocking door while viewing When a visitor prsses door panel buttton, all the indoor monitors will chime simultane- Some time, when you are talking with DOOR1, you will see the sign on the screen “SOMEONE IS VISITING DOOR 2”. ously. -
Page 6: Dvr Function
Auto leaving message This function let your visitors to leave a video message for you while nobody is at home. You should activate AUTO LEAVING MESSAGE function in the SYSTEM SETTINGS of your monitor before leaving Manual photo and video capturing home to activate this function. -
Page 7: Voice Messages
Voice messages If you want to leave a message for your family, choose menu in MULTIMEDIA MANAGER and press button to enter it. Then press button again After all settings being made press ACT to con rm all the changes or CANCEL to exit without saving. to start voice recording. -
Page 8: Address Intercom
SET ALARM CLOCK 1 STATE Address setting CYCLE TYPE WEEK Before starting to work with the monitor, you should correctly set DEVICE ADDRESS. To set DEVICE ADDRESS, WEEK SELECT enter system settings by press and hold buton for two seconds in standby mode. Then go to the DEVICE ADDRESS setting, using button. -
Page 9: System Settings Options
Video capturing function Frame rate microSD card volume Video resolution System settings options 320*240 pixels 2 fps 1 Gb CHIME TIME can be seted as (in seconds): 05S/10 S/20 S/30 S/40 S/50 S/ 60 S. 5 fps 2 Gb 320*240 pixels CHIME VOLUME can be changed as: 10%/20%/30%/40%/50%/60%/70%/60%/90%/100% 320*240 pixels... -
Page 10: Safety Instructions
Safety Instructions Index 1. Do not install near other electronic equipment such as computers, TV, video recorder as this may cause radiated interference to the unit. Package........................................1 2. Do not disassemble the unit. Keys..........................................1 3. Do not spray water on the indoor unit. Do not keep the outdoor unit where it will be Characteristics....................................2 exposed to extreme moisture.
