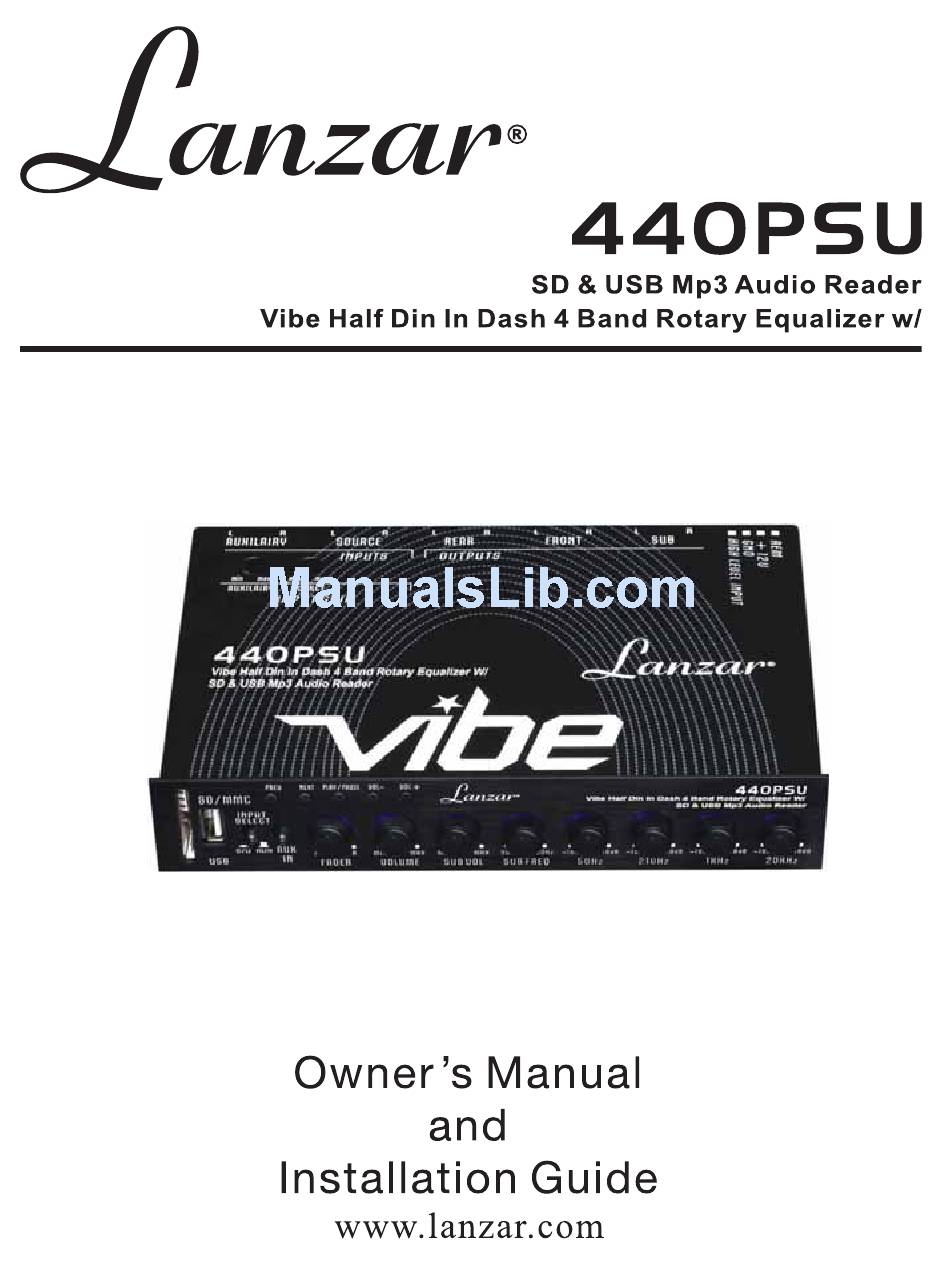

- Page 2 Congratulation! You are now own the Vibe 440PSU parametric equalizer, the product of an uncompromising design and engineering philosophy. Your Vibe 440PSU parametric equalizer will perform any other parametric equalizer in the world. To maximize the performance of your system, we recommend that you thoroughly acquaint yourself with its capabilities and features.
-
Page 3: Specifications
With 18dB boost or cut on its four bands, it can compensate for acoustic anomalies unique to the automotive environment. The Vibe 440PSU easily becomes the Control Center of any high-end mobile entertainment system. - Page 4 Controls (front panel) 1. PREAMP FADER CONTROL: This control adjusts the volume between the front and rear output in 4-channel system. 2. MASTER VOUME CONTROL: This is the main control to adjust the output level. 3. SUBWOOFER VOLUME CONTROL: This adjusts the level of the subwoofer output.
- Page 5 Controls (Top Cover) 11. Independently adjust the left and right channel input sensitivity for each input (Source and Auxilairy) Turn the knob clockwise to increase the input level. Turn the knob counter clockwise to reduce the input level.
- Page 6 It should be connected to the (+)12V remote turn on output of the system head unit. The Vibe 440PSU has a built in turn off delay to prevent turn-off pops. When the remote turn on signal from the head unit shuts off, the amplifiers will turn off immediately and the Vibe 440PSU will stay on for five seconds before turning off.
-
Page 7: Installation Instructions
Installation Instructions 1.Read this manual carefully and in its entirety before installing this equalizer. 2.Always disconnect the battery or remove the fuses for circuits you will be working on. 3.Check for clearance of any hazards such as wiring harnesses or heater core before mounting the equalizer to any panels in the vehicle. - Page 8 LOW with a source unit that provides a higher pre-amp voltage. This can create unwanted levels of distortion and possible damage to your Vibe 440PSU. 5.Set the Subwoofer Frequency Selector switch to the desired low-pass filter. Generally, the low-pass filter is set to 128Hz, and then the subwoofer amplifier's low-pass filter is fine tuned for the desired response.
