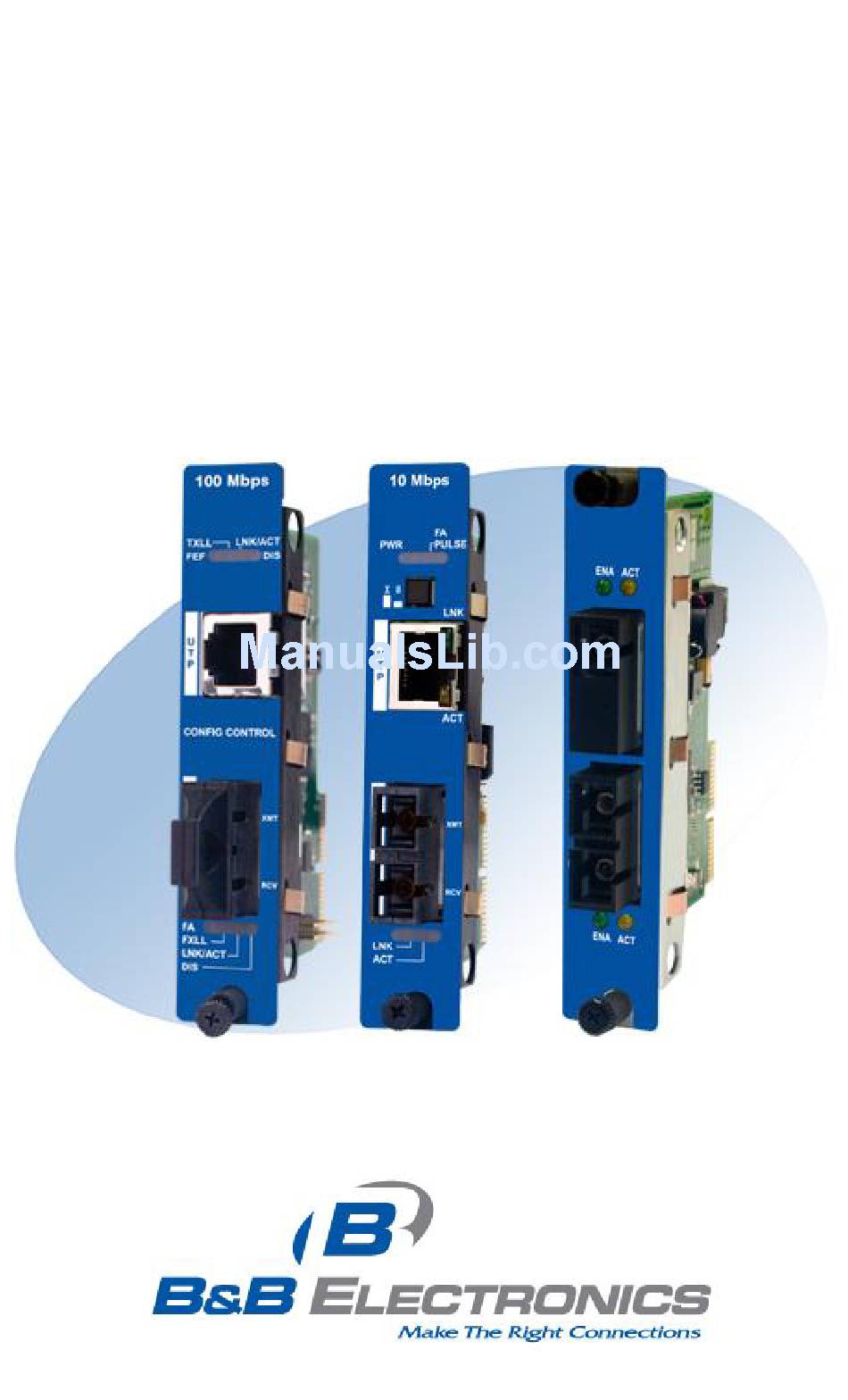

- Page 1 iMcV-Modules Operation Manual Above illustrations are representative; some minor differences may be present in actual product...
-
Page 2: Fcc Radio Frequency Interference Statement
A prescrites dans le Règlement sur le brouillage radioélectrique publié par le ministère des Communications du Canada. iMcV-LIM, iMcV-PIM, iMcV-S2MM/155, iMcV-M2MM/155 and iMcV-S2SM/155 This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of the FCC Rules. -
Page 3: Limited Lifetime Warranty
Limited Lifetime Warranty Effective for products of B&B Electronics shipped on or after May 1, 2013, B&B Electronics warrants that each such product shall be free from defects in material and workmanship for its lifetime. This limited lifetime warranty is applicable solely to the original user and is not transferable. -
Page 4: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ..........ii Limited Lifetime Warranty ................iii About the iMcV-Modules ................1 Installation ..................... 1 LED Operation ....................1 Configuration Instructions ................4 Installation Troubleshooting ................9 Specifications ....................9 B&B Electronics Technical Support ............. 10 Fiber Optic Cleaning Guidelines .............. -
Page 5: About The Imcv-Modules
(1310 nm and 1550 nm) – doubling the capacity of fiber. Includes one RJ-45 connector and one SC fiber connector. iMcV-S2MM/ Protocol-independent modules provide a single conversion between single-mode and multi-mode (S2MM*) fiber, 1310 nm to 1550 nm M2MM/S2SM single-mode (S2SM), or 850 nm to 1300 nm multi-mode (M2MM). - Page 6 LEDs on iMcV-PIM (-10) The LED functions are as follows: Glows green when unit has power. LNK (RJ-45) Glows green if link is established on the twisted pair port (located on RJ-45). ACT (RJ-45) Glows amber when data is being passed on the twisted pair (located on RJ-45).
- Page 7 Glows green when FiberAlert is enabled. *FiberAlert is not available/applicable on single-strand versions of iMcV-LIM. LEDs on iMcV-S2MM/S2SM/M2MM The LED functions on iMcV-S2MM/S2SM/M2MM are as follows: Glows green when port is enabled. Glows yellow in normal operation, indicating that fiber is connected and the receiver is seeing light pulses.
-
Page 8: Configuration Instructions
The board diagrams later in this manual show the jumper/switch locations on the modules. Since there are no user- configurable features on the iMcV-S2MM/S2SM/M2MM modules, they can be installed straight from the box. After configuring the jumpers/switches for the desired settings, install the module and connect the appropriate cables (refer to the Installation section for more information). - Page 9 iMcV-PIM TP/FO 10 Board iMcV-LIM TX/FX and TX/SSFX -30 Board About LinkLoss, FiberAlert, and Pulsing FiberAlert...
- Page 10 Some iMcV-Modules include advanced troubleshooting features that help locate silent failures on the network. Troubleshooting features include: FO/FX LinkLoss (a.k.a. Fiber LinkLoss or LinkLoss) TP/TX LinkLoss (a.k.a. Twisted Pair LinkLoss or Reverse LinkLoss) FiberAlert Pulsing FiberAlert It is important to understand how FiberAlert and LinkLoss work, and how they will react in a specific network configuration, before attempting to install the enclosed module(s).
- Page 11 TP/TX LinkLoss is another troubleshooting feature. When a fault occurs on the twisted pair segment of a conversion, TP/TX LinkLoss detects the fault and passes this information to the fiber segment. If a media converter is not receiving a twisted pair link, TP/TX LinkLoss disables the transmitter on the media converter's fiber port.
- Page 12 TX LinkLoss Remote Site Only Twisted Pair Fiber FX LinkLoss Home Site (or both) Fiber Twisted Pair If unsure of how best to implement these features in a specific configuration, please contact B&B Electronics technical support at (800) 346-3119 (U.S./Canada), +353 91 792444 (Europe) or via e-mail at: support@bb-elec.com U.S.
-
Page 13: Installation Troubleshooting
Force mode. Specifications Power Consumption (Typical @ 5V): iMcV-PIM (-10): 600 mA IMcV-LIM: 800 mA iMcV-S2MM/M2MM/S2SM: 620 mA Operating Temperature 32° to 122° F (0° to 50° C) Storage Temperature 0° to 160° F (-20° to +70° C) -
Page 14: B&B Electronics Technical Support
5 to 95% (non-condensing); 0 to 10,000 ft. altitude Dimensions Single Slot iMcV-Module B&B Electronics Technical Support Tel: (800) 346-3119 (in the U.S. and Canada) Monday-Friday, 7:00am-7”00pm CST +353 91 792444 (Europe) Monday through Friday 8:00am - 5:00pm GMT Fax: (815) 433-5109 U.S. and Canada +353 91-79244S5 Europe E-Mail: support@bb-elec.com... -
Page 15: Fiber Optic Cleaning Guidelines
Fiber Optic Cleaning Guidelines Fiber Optic transmitters and receivers are extremely susceptible to contamination by particles of dirt or dust, which can obstruct the optic path and cause performance degradation. Good system performance requires clean optics and connector ferrules. Use fiber patch cords (or connectors, if you terminate your own fiber) only from a reputable supplier;... -
Page 16: Certifications
Certifications CE: The products described herein comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC) For further details, contact B&B Electronics. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1 European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. - Page 17 International Headquarters B&B Electronics 707 Dayton Road Ottawa, IL 61350 USA Phone (815) 433-5100 — General Fax (815) 433-5105 Email: support@bb-elec.com Website: www.bb-elec.com European Headquarters B&B Electronics Westlink Commercial Park Oranmore, Co. Galway, Ireland Phone +353 91-792444 — Fax +353 91-79244S5 Email: techSupport@bb-elec.com Website:...
