Summary of Contents for Crypto ReDi 100
-

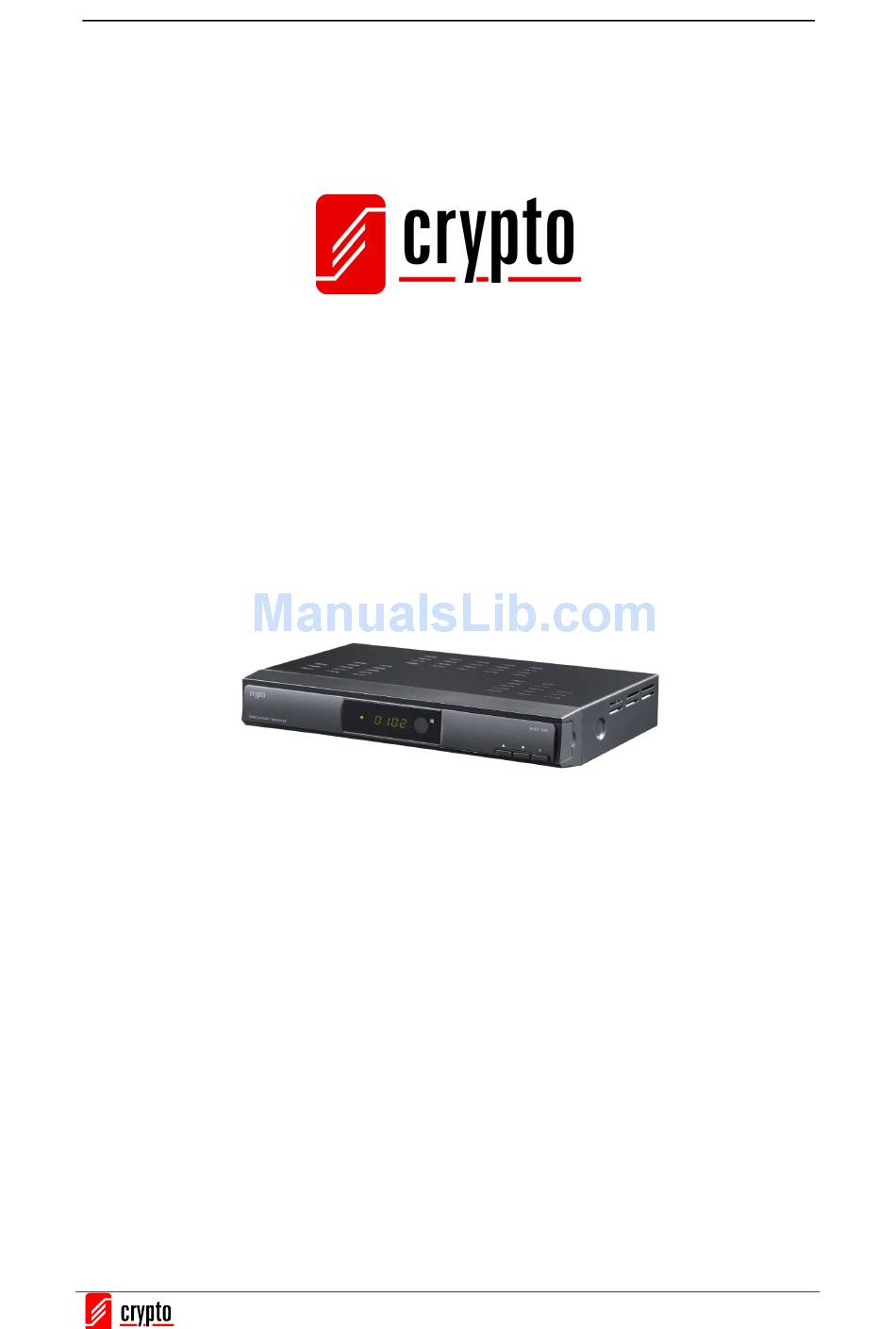

Page 1: User Manual

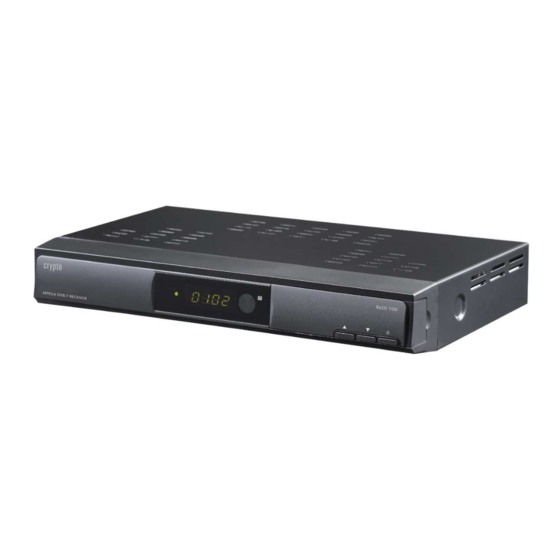

ReDi 100 User Manual SD DVB-T MPEG-4 RECEIVER ReDi 100 User Manual V. Ipirou 45, 15125 Marousi, Τel: 210-8098700, Fax: 210-6122512 Site: www.crypto.gr, Email: crypto@crypto.gr... -
Page 2: Safety Information
ReDi 100 User Manual 1. SAFETY INFORMATION This sheet lists important safety information that will help to assure proper use of the product. Please read them carefully before operation of your product. TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. -
Page 3: Table Of Contents
ReDi 100 User Manual 2. CONTENTS 1. SAFETY INFORMATION 2. CONTENTS 3. INTRODUCTION 3.1 About ReDi 100 3.1.1 Front panel 3.1.2 Rear panel 3.2 Remote control 4. SYSTEM CONNECTION 4.1 General 4.2 Connection to the TV and video recorder 4.3 Connecting a HiFi System 5. - Page 4 ReDi 100 User Manual 9. TOOLS 9.1 Tools main menu 9.2 Receiver Information 9.3 Load Factory Default 9.4 Software Upgrade 9.5 Remove USB device safely 10. GAMES 10.1 Games 11. REC & MEDIA 11.1 REC main menu 11.2 Media+ 11.3 Record Manager 11.4 DVR HDD Information...
-
Page 5: Introduction
ReDi 100 User Manual 3. INTRODUCTION About ReDi 100 3.1.1 Front panel 1. Remote sensor 2. Channel up/ Down 3. Display 4. Standby button 3.1.2 Rear panel 1. TV aerial for an external TV antenna 2. USB port 3. TV Scart for connection to the TV 4. -
Page 6: Remote Control
ReDi 100 User Manual Remote control 1. STANDBY (switch the device on and standby) 2. INFO (Press for current channel information/ Operation guide ) 3. PLAY 4. Previous/Next 5. PAUSE (Pause/Activate time shift function) 6. Menu (Open and close the menu screen) 7. - Page 7 ReDi 100 User Manual 19. STOP (Stop program playback or recording) 20. EPG (Open up Electronic Program Guide Menu) 21. BACK (Switch to previous channel) 22. TV/RADIO (Switch between TV and Radio) 23. AUDIO (Select audio mode and audio track) 24.
-
Page 8: General
ReDi 100 User Manual 4. SYSTEM & TV CONNECTION General There are many different types of TV and other equipment that you can connect to the device. In this manual you will see some of the most common ways to connect your equipment. -
Page 9: Getting Started
5. GETTING STARTED Welcome Srceen If you use ReDi 100 for the first time, the "Welcome" menu appears. Press cursor button to setup the Region, Language, Display Mode and Aspect Mode. Highlight "OK" and press the "OK" button to start channel search. -
Page 10: Channel Scan
ReDi 100 User Manual 5.2.2 Channel Scan 1. Select "Channel Scan", press the "OK" button to enter the Channel Scan menu. 2. Press cursor button to set Scan mode, Scan Band, Channel No., Frequency and Bandwidth, then highlight "Search", press "OK" button to start channel scan . -
Page 11: Operation
ReDi 100 User Manual 6. OPERATION Changing Channels There are three ways of channel selection - stepping through the channel list, selection by number and from the on-screen channel list. 1. Stepping through the channel list: To move through the channel list, press the upward arrow or downward arrow key on the remote control. -
Page 12: Edit Channel
ReDi 100 User Manual EDIT CHANNEL Edit Channel menu 1. Press the "MENU" button to enter main menu. 2. Press "UP" or "DOWN " button to highlight "Edit Channel", press "RIGHT" button to enter the Edit Channel menu. 3. Press "UP" or "DOWN" cursor button to highlight the desired item and press "OK" button to enter the sub-menu . -
Page 13: Delete All
ReDi 100 User Manual NOTE: Basically, the operation of "Radio Channel List" is the same as "TV Channel List", but there is one point different: In "Radio Channel List" mode, there is no video information, so it will always display Radio's logo in the right side preview window. -
Page 14: Tv System
ReDi 100 User Manual TV System This menu allows us to set Display Mode, Aspect Mode, Video Output and Digital Audio Output. Display Mode: PAL/NTSC/AUTO Aspect Mode: Auto/4:3/16:9 Video Output:: CVBS/RGB Digital Audio Output:: Bitstream/LPCM Local Time Setting This menu allows you to set the region and time. -
Page 15: Parental Lock
ReDi 100 User Manual Parental Lock This menu allows you to protect the installation menu and channel, and change the Password. 1. In "System Setup" menu, select "Parental Lock" and press "OK" button, you are asked to input a password (the default password is"0000"). -
Page 16: Favorite
ReDi 100 User Manual Favorite This menu allows you to rename the favorite group. 1. In Channel menu, select "Favorite", press "OK" button to enter Favorite menu. 2. Select desired group, press "OK" button to open the screen keypad. Input a letter and a number one by one by pressing the cursor button and press "OK"... -
Page 17: Load Factory Default
ReDi 100 User Manual Load Factory Default This menu allows you to re-set the device back to factory settings and clear all existed channels. 1. In the "Tools" menu, select "Load Factory Default" and press "OK" button. 2. A confirmation window will be displayed. Select "Yes" to activate a reset back to the factory settings and clear all channels. -
Page 18: Remove Usb Device Safely
ReDi 100 User Manual Remove USB device safely In "Tools" menu, select "Remove USB device safely", Press "OK" button to confirm. Then a window is displayed. Press "OK" button again. 10. GAME 10.1 Game This menu allows you to play games. -
Page 19: Rec & Media
ReDi 100 User Manual 11. REC & MEDIA 11.1 REC & Media main menu 1. Press the "MENU" button to enter main menu. 2. Press "UP" or "DOWN" button to highlight "REC & Media", press "RIGHT" button to enter the REC & Media menu. -
Page 20: Dvr Hdd Information
ReDi 100 User Manual 11.4 DVR HDD Information This menu can display some parameters of the Removable Disk. 1. In "REC" menu, select "DVR HDD Information", press "OK" button to open DVR HDD information window. 2. Press "EXIT" button to exit. -
Page 21: Dvr Configuration
ReDi 100 User Manual 11.6 DVR Configuration This menu allows us to set the DVR Configuration. Press "UP" or "DOWN" cursor button to select desired item, press "LEFT" or "RIGHT" cursor button to change the setting. TimeShift time(min): On/Off Record Type: TS/PS TS: Transportation stream which includes information like teletext, subtitle, epg etc. -
Page 22: Time Shift
12.1 Time shift The digital receiver ReDi 100 gives you the ability to record and watch one program interfacing with the viewing time. All you have to do is to connect an external hard drive or a USB stick in the usb port of the device. -
Page 23: Personal Video Recording (Pvr)
ReDi 100 User Manual During TIME SHIFT, it is possible to do the following. - Press "PAUSE" to pause the program and <PLAY> to continue watching later. - Press "STEP FORWARD" or "FORWARD" to fast forward the recorded program at specified time steps according to “Jump”... - Page 24 ReDi 100 User Manual -Press and the <Menu> button and select <settings>, <Timer Settings> This menu lets you set the timer for a recording. Time Mode: Off/Once/Daily Time service: Record Wakeup Channel: Set the channel you want to record. Wakeup Date: Press OK and then the numbers to enter the date of recording.
-
Page 25: Troubleshooting
ReDi 100 User Manual 13. TROUBLESHOOTING In some region, the digital terrestrial signal may be weak. So you'd better use an antenna with builtin signal booster. Problem Possible cause What to do Mains lead unplugged. Check mains lead Standby light not lit Mains fuse blown. - Page 26 ReDi 100 User Manual 14. TECHNICALSPECIFICATIONS Power Voltage AC 100V / 240V 50-60Hz Power Consumption < 10 W MPEG-1 / MPEG-2 MP@ML / Video decoder MPEG-4 AVC / H.264 HP @L3 MPEG-1 Layer 1,2 Audio decoder PCM / AC3 / HE-AAC V1.0...
