Spa Electrics SE3M Installation Manual

UNDERWATER
POOL & SPA LIGHT
Australian Patents
U.S.A. Patent
No. 5122936
LIGHT - Degree of Protection IPX8 to
1.2m. Complies with AS 1939.
TRANSFORMER TO SUIT: - Degree of
Protection IP24. Complies with AS 3108.
CAUTION:
LIGHT MUST BE WATER COOLED
AT ALL TIMES. DO NOT SWITCH
LIGHT ON UNTIL INSTALLATION
IS COMPLETE AND LIGHT SUB-
MERGED FULLY IN WATER.
S S p p a a E E l l e e c c t t r r i i c c s s
4/9 Monterey Rd, Dandenong Victoria 3175 Australia Telephone: (03) 9793 2299 Facsimile: (03) 9793 1799
7 cm
Spa Electrics Pty Ltd is the proprietor of the registered Trade Mark "Spa Electrics"
ABN 96 416 805 239
www.spaelectrics.com.au

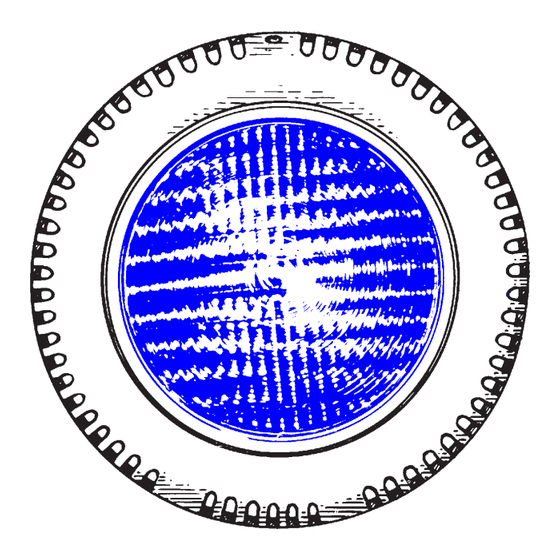

Model SE3M

Suitable for concrete, fibreglass and vinyl lined pools.
Kits for vinyl lined pools and fibreglass pools avail-
able.

Slotted rim allows water flow to eliminate stagnant
water and to aid cooling.

Can be used as a suction point, complying with
AS2610.

Choice of rim colours including: Black, Brown, Grey,
Ivory or White.

Interchangeable coloured lenses available in blue,
green, red, magenta and clear.

Simple installation and one screw mounting for ease
of service.

18 metres of heavy duty 2.5mm
age drop and ensure maximum light output.

Unique electrical connection, so power cable does
not intrude into light cavity - eliminates possible
source of water entry.

Large lens seal.

Extra low voltage
12 volts, 100watts
24 volts, 150watts (for replacement of existing lights
or export orders)

Designed and manufactured in Australia.

Spa Electrics Pty Ltd is a fully Australian owned com-
pany.
®
cable to reduce volt-
2
