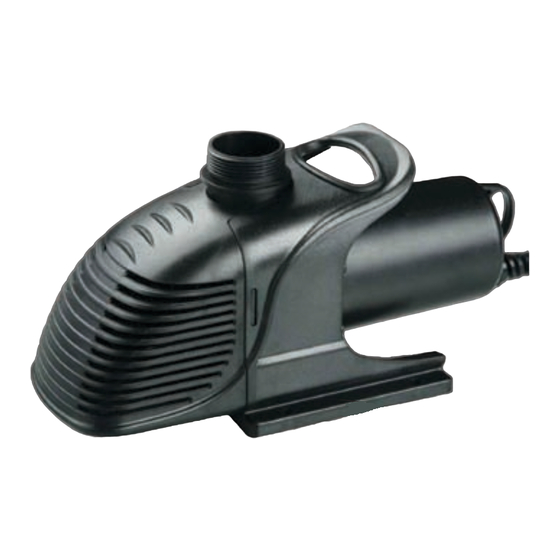

Aquagarden Barracuda Instruction Manual

Thank you for purchasing an Aquagarden Waterfall, Filtration and Pond
Pump. It features ceramic bearings for long life and an energy saving
asynchronous motor that makes it economical to run. For optimum
performance and safety please read these instructions carefully and
completely before installing and operating this pump.
1. Water inlet cover 5. Front cover
2. Water chamber 6. Rotor
3. Seal ring 7. Handle
4. Impeller 8. Motor (main body)

Guarantee

This pump has been manufactured using only quality materials and accurate manufacturing
processes to provide the highest satisfaction and long life. We provide a guarantee of 24 months
from date of purchase on the pump motor. This guarantee does not cover parts subjected to
natural wear and tear, such as impellers, or any damages that result from misuse, tampering
(including shortening of the cable), negligence, damage and technical modification, or from not
observing the General and Electrical Safety Instructions above.
We reserve the right to repair or replace the unit. No repairs or replacement will be undertaken
for pumps that have not been properly maintained. The guarantee will be honored only if the unit
is returned to your supplier complete, with your receipt or proof of purchase of the product.
9. Stainless steel
screw
10. Connector
11. 3-step water
outlet
www.aquagarden.com.au
Aquagarden,
4 Kingscote Street, Kewdale,
Western Australia, 6105.
www.aquagarden.co.nz

Waterfall, Filtration And Pond Pump

Instruction Manual
Models 6000, 10000,
15000 & 23000
Before installing and operating your pump, please read this
Instruction Manual thoroughly and retain it for future reference.
