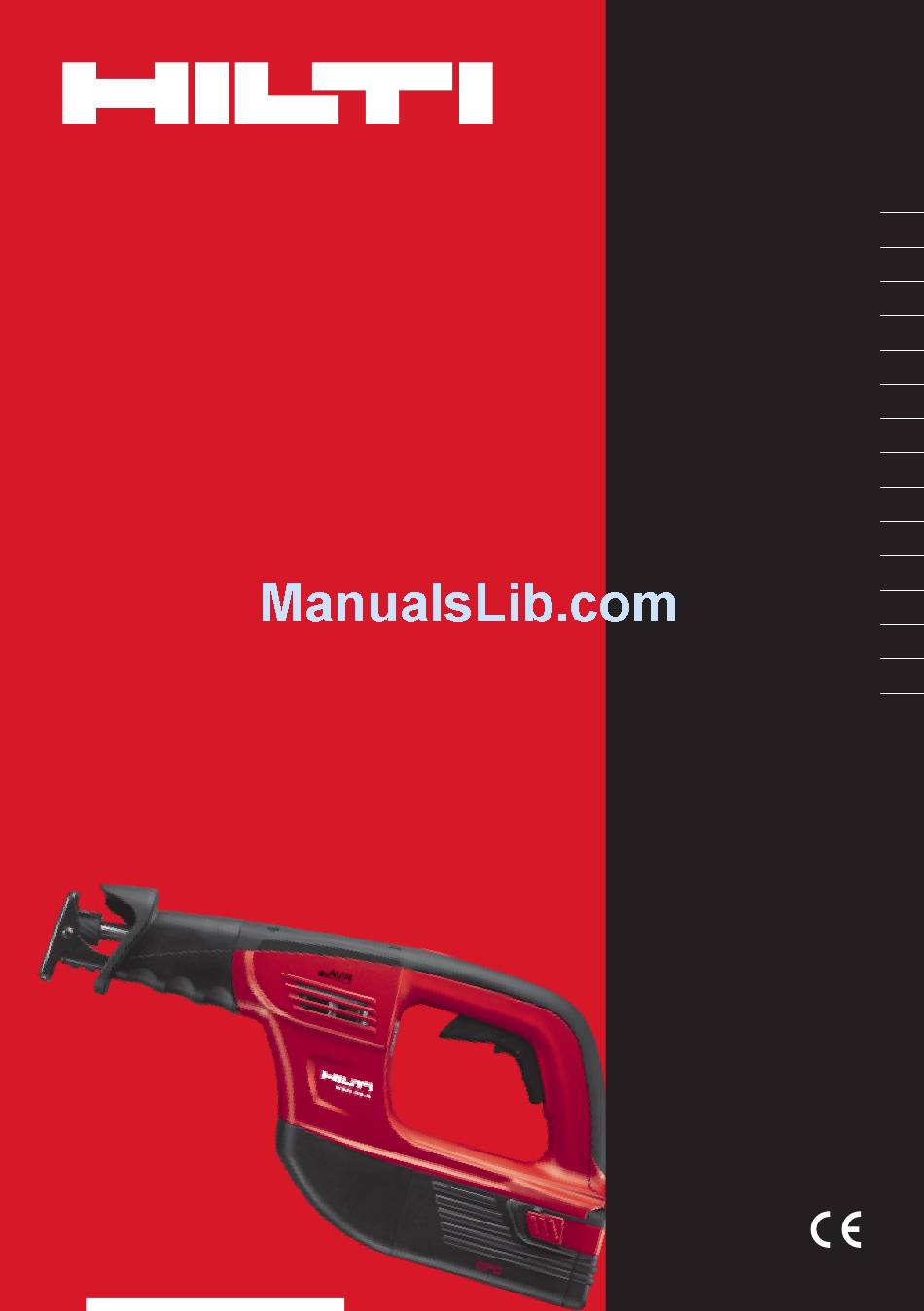

  • Page 1 WSR 36-A Bedienungsanleitung Operating instructions Mode d’emploi Istruzioni d’uso Manual de instrucciones Manual de instruções Gebruiksaanwijzing Brugsanvisning Bruksanvisning Bruksanvisning Käyttöohje Οδηγιες χρησεως Instrukcja obsługi Návod k obsluze Kulllanma Talimatı Printed: 08.07.2013 | Doc-Nr: PUB / 5071383 / 000 / 04...
  • Page 2 Printed: 08.07.2013 | Doc-Nr: PUB / 5071383 / 000 / 04...
  • Page 3 min.6mm Printed: 08.07.2013 | Doc-Nr: PUB / 5071383 / 000 / 04...
  • Page 4 min.40mm Printed: 08.07.2013 | Doc-Nr: PUB / 5071383 / 000 / 04...
  • Page 5 Printed: 08.07.2013 | Doc-Nr: PUB / 5071383 / 000 / 04...
  • Page 6: Table Of Contents

    In these operating instructions, the designation “the Always keep these operating instructions to- power tool” always refers to the WSR 36-A cordless gether with the power tool. reciprocating saw. Ensure that the operating instructions are...
  • Page 7: Description

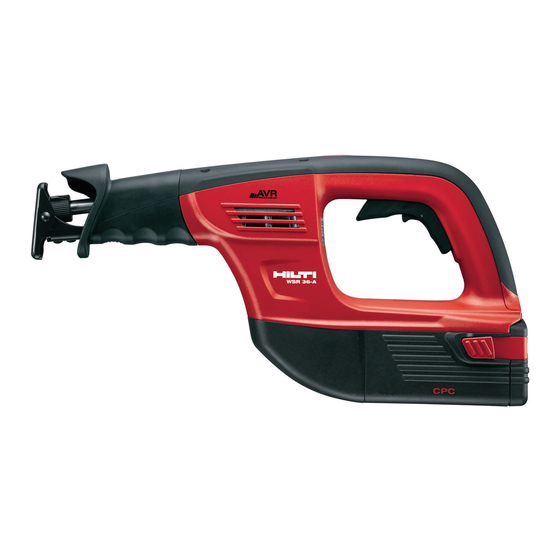

    2.1 Use of the product as directed The WSR 36-A is a cordless reciprocating saw for professional use. It is designed to be used for cutting wood, wood-like materials, metals and plastics. The power tool is suitable for use by right or left-handed persons. An ergonomically designed grip with synthetic rubber covering provides a comfortable, secure hold and makes the power tool less tiring to use.
  • Page 8: Accessories

    2…3 Aluminium 2…3 Stainless steel 2.5 Items supplied as standard Power tool Saw blade Operating instructions Hilti toolbox 2.6 Li‑ion battery charge status LEDs light constantly LEDs blink Charge status C LED 1,2,3,4 C ≧ 75 % LED 1,2,3 50 % ≦ C < 75 % LED 1,2 25 % ≦...
  • Page 9: Technical Data

    4 Technical data Right of technical changes reserved. Power tool WSR 36‑A Rated voltage (DC voltage) 36 V Weight in accordance with EPTA procedure 01/2003 4.37 kg Dimensions (L x W x H) 455 mm x 92 mm x 228 mm Stroke rate 0…2,850/min Stroke...
  • Page 10: Safety Instructions

    5 Safety instructions NOTE not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A The safety rules in section 5.1 contain all general safety moment of inattention while operating power tools rules for power tools which, in accordance with the may result in serious personal injury.
  • Page 11 Under abusive conditions, liquid may be ejected of the type recommended by Hilti for wood dust from the battery; avoid contact. If contact acci- and/or mineral dust together with this tool. Ensure dentally occurs, flush with water.
  • Page 12: Before Use

    WARNING!When cutting through pipes, e.g. when Contact Hilti Service after the battery has been carrying out demolition or installation work, check allowed to cool.
  • Page 13 6.2 Adjusting the contact shoe 5 DANGER CAUTION Use only the Hilti batteries and Hilti chargers listed Do not adjust the contact shoe while the power tool under “Accessories”. is in operation. 6.5.1 Charging a new battery for the first time...
  • Page 14: Operation

    7 Operation 7.1 Safe operation 10 11 12 DANGER The power tool must be pressed against the work- piece until the contact shoe makes firm contact. This helps ensure maximum safety and good performance. NOTE To ensure good cutting performance and minimize stress DANGER on the power tool, use only saw blades that are in good Always use saw blades that project at least 40 mm...
  • Page 15: Care And Maintenance

    8.1 Care and maintenance Charge the battery with the Hilti charger approved for use with Li-ion batteries. Keep the blades clean, especially their connection ends, NOTE in order to ensure trouble-free operation of the blade - A conditioning charge (as is required with NiCd or holder.
  • Page 16: Troubleshooting

    Dispose of the batteries in accordance with national regulations or return them to Hilti. Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling.
  • Page 17: Manufacturer's Warranty - Tools

    11 Manufacturer’s warranty - tools Hilti warrants that the tool supplied is free of defects in Additional claims are excluded, unless stringent na- material and workmanship. This warranty is valid so long tional rules prohibit such exclusion. In particular, Hilti...
  • Page 18 Tel.: +423 / 234 21 11 Fax:+423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 3476 | 0613 | 00-Pos. 1 | 1 Printed in Germany © 2013 Right of technical and programme changes reserved S. E. & O 214009 / A4 Printed: 08.07.2013 | Doc-Nr: PUB / 5071383 / 000 / 04...
