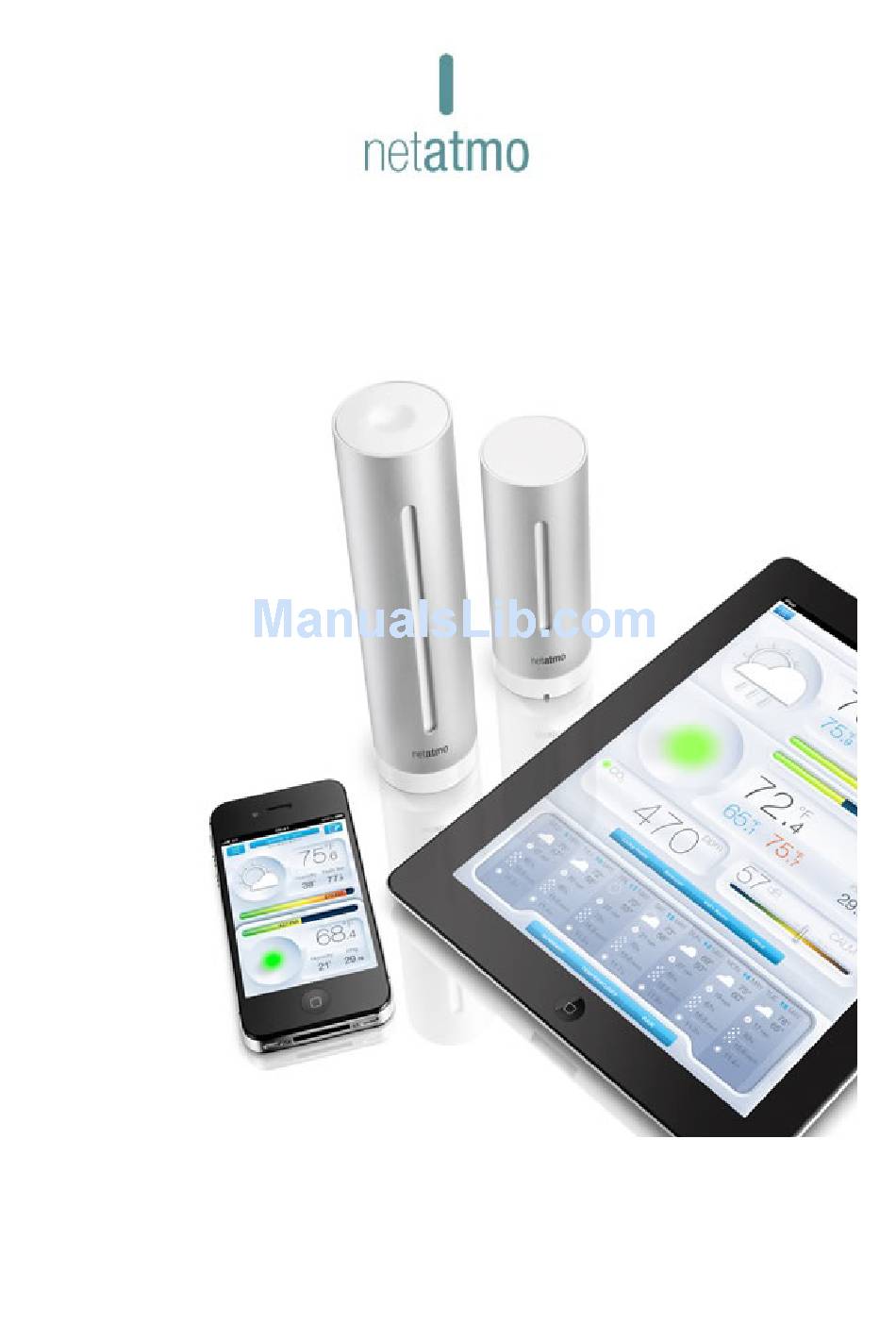

Netatmo User Manual
Version 1 / S eptember 2012
An interactive version of this manual is
embedded in your Netatmo
iPhone/iPad/Android application.
It is also available at http://my.netatmo.com
on your personal account.

   Related Manuals for Netatmo Weather Station

No related manuals

   Summary of Contents for Netatmo Weather Station

  • Page 1

    Netatmo User Manual Version 1 / S eptember 2012 An interactive version of this manual is embedded in your Netatmo iPhone/iPad/Android application. It is also available at http://my.netatmo.com on your personal account.

  • Page 2

    When you configure your Netatmo Weather Station with a computer, the weather station is not connected to the wall adapter. The weather station is only connected to the computer using its provided USB cable (USB to micro-USB). No additional cable is needed.

  • Page 3

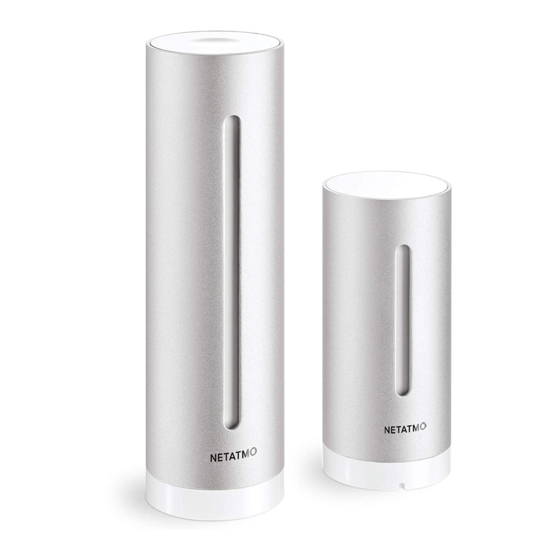

    Power supply Power supply Outdoor module The outdoor module is power supplied by 4 AAA batteries. Upon introducing the batteries, a green led on top of the module should light up. Indoor module The indoor module is power supplied by the USB wall adapter and its USB cable. When pluged-in, the indoor module should light up in blue.

  • Page 4

    Outdoor data are not displayed ? I f your outdoor module data are not displayed in the Netatmo dashboard, although indoor measurements are still visible, the link between the two modules might not be working. This may occur because of one of the...

  • Page 5

    No data at all? No data at all? Missing measurements The Netatmo App dashboard is not displaying any measurements? This can happen because of one of the following reason: Reason 1: Power supply is out The indoor module may not be power supplied any more. Unplug the wall-adapter and plug it back in: the indoor module should light on (blue light).

  • Page 6

    Reason 3: Wi-Fi password has changed If you have changed your Wi-Fi password, the Netatmo weather station won't be able to connect to your Wi-Fi network anymore, and upload data to your account. To fix your Station's Wi-Fi setup, just follow this link.

  • Page 7: Minimum And Maximum

    Minimum and maximum temperatures actually are the higher and lower temperatures measured during the day, from midnight to midnight. Felt-like temperature In your Netatmo Dashboard is displaying felt-like temperature. This is a computed data, obtained by adding the combined effect of moisture and wind over human perception of heat and cold.

  • Page 8

    The mean sea level pressure is also the value given by weather forecast and reports on TV or Web. How does the station knows its elevation? When you setup the Netatmo Station with your iPhone, the Netatmo App uses the iPhone GPS to localize your station and searches ground elevation.

  • Page 9

    If you blow into the station, the humidity level raises! What happens if the station gets soaked? When the weather is really humid (pouring rain...) the humidity sensor can be temporarily saturated. It usually takes a few hours to desaturate, and go back to normal. CO2 Sensor CO2 Sensor CO2 measurement...

  • Page 10

    You can visualize data and measurements directly on the Netatmo App dashboard. How does the Netatmo station measure acoustic comfort? The Netatmo weather station records the average noise level (in dB) over a 5 minutes interval, and evaluates the surrounding acoustic comfort from it.

  • Page 11: Rain Mode

    7-day forecast Forecast The Netatmo App offers a complete 7-days detailed weather forecast. It is localized according to your Netatmo Weather Station location and transmitted from our servers throught Internet and to your Netatmo App. This weather forecast data is provided by MeteoGroup.

  • Page 12

    The Rain mode gives you: the amount of rain per 3 hours period (represented by blue bars) and the probability of rain (represented as a red curve). Air Quality (USA) Air Quality (USA) Outdoor air quality index The outdoor Air Quality Index AQI is displayed on the outdoor dashboard. Complementary information By touching on the "..."...

  • Page 13

    The AQI is divided into six categories: "Good" AQI is 0 - 50. Air quality is considered satisfactory, and air pollution poses little or no risk. "Moderate" AQI is 51 - 100. Air quality is acceptable; however, for some pollutants there may be a moderate health concern for a very small number of people.

  • Page 14

    "Low" AQHI is 1 - 3. At Risk Population: Enjoy your usual outdoor activities. General Population: Ideal air quality for outdoor activities. "Moderate" AQHI is 4 - 6. At Risk Population: Consider reducing or rescheduling strenuous activities outdoors if you are experiencing symptoms. General Population: No need to modify your usual outdoor activities unless you experience symptoms such as coughing and throat irritation.

  • Page 15

    Understanding the Citeair indices Those indices have 5 levels using a scale from 0 (very low) to > 100 (very high) and are a relative measure of the amount of air pollution. They are based on 3 pollutants of major concern in Europe: particles (PM10), nitrogen-dioxyde (NO2), and ozone (O3) and will be able to take into account to 3 additional pollutants (CO, PM2.5 and SO2) where data are also available.

  • Page 16

    Understanding the Citeair index This index has 5 levels using a scale from 0 (very low) to > 100 (very high), it is a relative estimation of the amount of air pollution. It is based on 5 pollutants of major concern in Europe: particles (PM10), nitrogen dioxyde (NO2), ozone (O3), carbon monoxyde (CO) and sulfur dioxyde (SO2).

  • Page 17

    the main pollutant. Australian AQI Colors This color code scale makes it easier to understand air quality at a glance. Understanding the Australian AQI The Australian AQI is divided into six categories: "Very good" AQI is 0 - 33. "Good" AQI is 34 - 66. "Fair"...

  • Page 18

    This index is made available by the US embassy's air quality monitoring stations. Complementary information By touching on the "..." button in the air quality gauge, you can display complementary information (when available): main pollutant, hour and location of the report. AQI colors This color code scale makes it easier for anyone to understand quickly whether air pollution is reaching unhealthy levels in their communities.

  • Page 19

    Where does the outdoor AQI come from? The AQI in China is provided by the United States Embassy in Beijing. More information can be found here. Air Quality (China) Air Quality (China) Outdoor Air Pollution Index The Outdoor Air Pollution Index is displayed on the outdoor dashboard. Complementary information By touching on the "..."...

  • Page 20

    "Lightly Polluted" Air Pollution Index is 151 - 200. Slight iritations may occur, individuals with breathing or heart problems should reduce outdoor activities. "Moderately Polluted" Air Pollution Index is 201 - 250. Healthy people will be noticeably affected. People with breathing or heart problems will experience reduced endurance in activities.

  • Page 21

    When the CO2 is high, the temperature too cold or too hot, the room too dry, or too noisy, your indoor comfort index deteriorates. Notifications Notifications What are notifications? Notifications are computed by your Netatmo Weather Station and sent to your iPhone/Android. They are implemented to help you improve your environment with daily basic actions.

  • Page 22

    Those notifications are displayed your iPhone's notification centre and as badges on the Netatmo app icon. Those notifications are also stored in your Netatmo embedded events timeline. CO2 notifications When the CO2 level rises above 1000 ppm, this notification indicates the potential benefites of ventilating the room.

  • Page 23

    Navigating from dashboard to graphs You can easily access the graphs anytime by turning your iPhone in landscape mode. Navigating from events timeline to graphs When you select (touch on) a notification or a highlight in your event timeline and tilt your iPhone/Android, the corresponding section of the graph where this event took place is automatically displayed.
