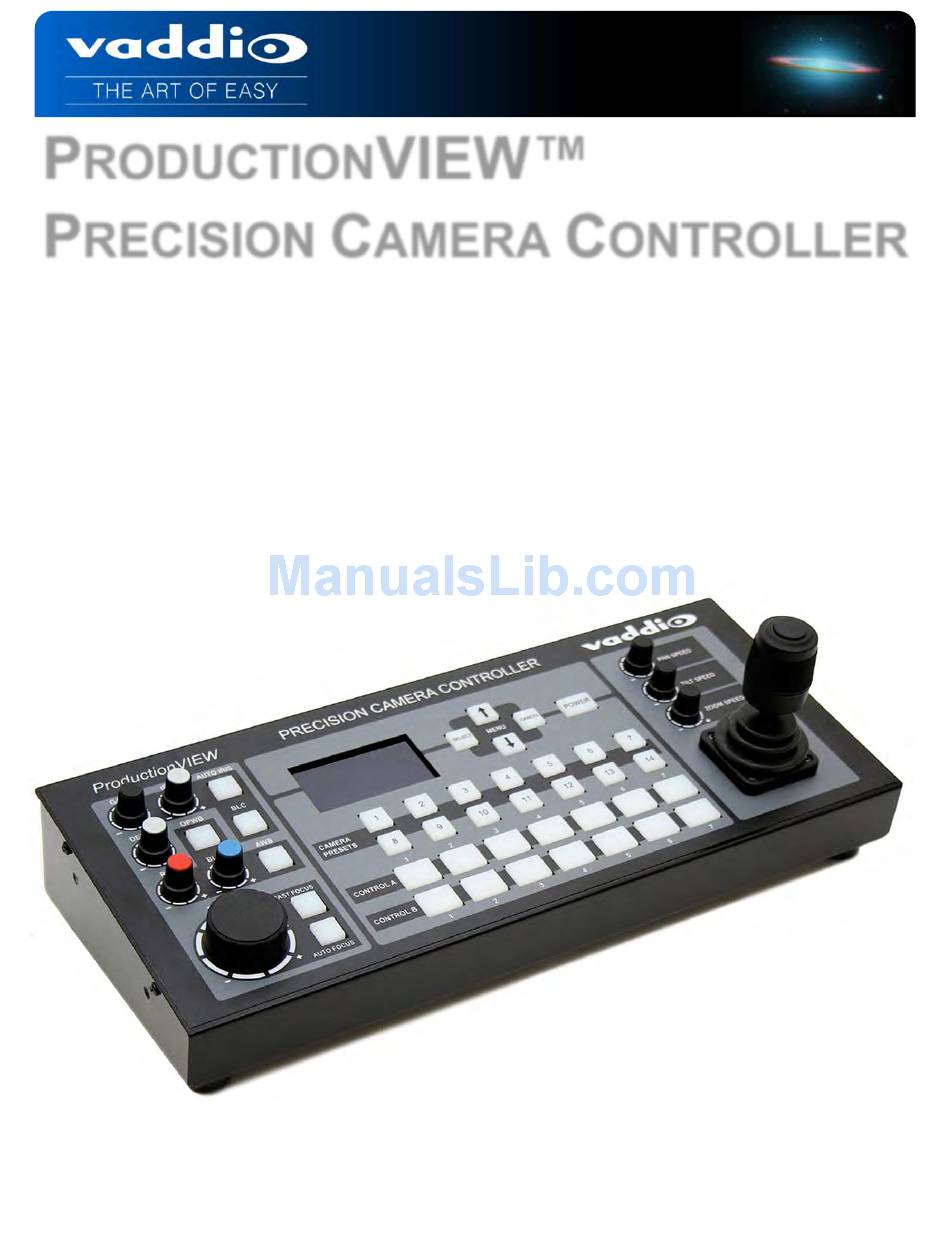

P
RODUCTION
P
RECISION
Integration Joystick, with Seven Discrete Camera Control
Ports, On-board Camera Presets, CCU Exposure and Color
Control Functions with External Control Capability
Part Number: 999-5700-000 (North America)
Part Number: 999-5700-001 (International)
©2014 Vaddio - All Rights Reserved. ProductionVIEW Precision Camera Controller - Document Number 341-770 Rev. H
Installation and User Guide
VIEW™
C
AMERA
C
ONTROLLER
Advertisement
Table of Contents
Related Manuals for VADDIO PRODUCTIONVIEW
Summary of Contents for VADDIO PRODUCTIONVIEW
- Page 1 Integration Joystick, with Seven Discrete Camera Control Ports, On-board Camera Presets, CCU Exposure and Color Control Functions with External Control Capability Part Number: 999-5700-000 (North America) Part Number: 999-5700-001 (International) ©2014 Vaddio - All Rights Reserved. ProductionVIEW Precision Camera Controller - Document Number 341-770 Rev. H...
-
Page 2: Table Of Contents
Image: Rear Panel of ProductionVIEW Precision Camera Controller ............. 5 Rear Panel I/O: ..............................5 First Time Set-up with the ProductionVIEW Precision Camera Controller: ............5 Drawings: System Configurations Examples ....................6 Operating the ProductionVIEW Precision Camera Controller: .................. 7 ProductionVIEW PRECISION CAMERA CONTROLLER Menu Structure ............ -
Page 3: Overview
Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions. -
Page 4: Image: Front Panel Of Productionview Precision Camera Controller
ProductionVIEW Precision Camera Controller Image: Front panel of ProductionVIEW Precision Camera Controller ➒ ➓ ➑ RAR ➊ ➋ ➌ ➍ ➎ ➏ ➐ Front Panel Controls: 1. Iris and Gain Controls *: Iris and gain can be adjusted from knobs for real-time control of these critical functions. -
Page 5: Image: Rear Panel Of Productionview Precision Camera Controller
First Time Set-up with the ProductionVIEW Precision Camera Controller: ProductionVIEW Precision Camera Controller was designed to be easy to use and operate right out of the box. Controls are intuitive and logical, and the pin-outs are printed on the back panel. -
Page 6: Drawings: System Configurations Examples
LINK OUT Cat-5e MASTER Camera Set #2 - Control A MASTER Camera Set #1 - Control A Camera Set #1 - Control B Camera Set #2 - Control B ProductionVIEW Precision Camera Controller Manual 341-770 Rev H Page 6 of 16... -
Page 7: Operating The Productionview Precision Camera Controller
Preset Location Storage Options This feature allows the user to store 14 camera presets in the ProductionVIEW Precision Camera Controller or have the option of storing 6 camera presets (1 through 6) in the camera and 8 presets (7 through 14) in the Precision Camera Controller for the Sony EVI series cameras and BRC-300. -
Page 8: Productionview Precision Camera Controller Menu Structure
>Port 07: (Select method – Direct Cam Ctrl or CCU) NOTE: When Vaddio Quick-Connect CCUs are used with ProductionVIEW Precision Camera Controller, CCU mode disables the CCU functions on the Precision Camera Controller, allowing the user to control these functions from the... - Page 9 (This parameter does not affect the Zoom Speed on the Joystick) System Menu >Select >Serial Input >Select >Yes or No Turns on or off serial input (default is Yes or On) ProductionVIEW Precision Camera Controller Manual 341-770 Rev H Page 9 of 16...
- Page 10 >Local >6 InCam 8 Local In “Local” mode, the ProductionVIEW stores all 14 presets internally In “6 InCam 8 Local” mode, the presets 1 through 6 will be stored in the cameras. Presets 7 through 14 will be stored in the Precision Camera Controller.
-
Page 11: Compliance And Ce Declaration Of Conformity
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 12: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 13: Rs-232 Control
Each Channel will auto-configure the input channel for video signal and control for the camera attached. Vaddio uses very simple control protocols to accomplish custom programming with the ProductionVIEW and ProductionVIEW PRECISION CAMERA CONTROLLER. The Communication Specification, API and Programming Language are listed below and definitions are listed on the next page thereafter. -
Page 14: Appendix 2: Command Structure Definitions
Seven (7) Tally Outputs - Group A, Seven (7) Tally Outputs - Group B One (1) Power Connector (Coaxial, Positive Center, 5.5mm OD x 2.5mm ID) All Vaddio HD Series Cameras, Vaddio WallVIEW Packages, Model, REVEAL & CeilingVIEW Compatible Cameras:... - Page 15 ProductionVIEW Precision Camera Controller Inside Back Cover Blank ProductionVIEW Precision Camera Controller Manual 341-770 Rev H Page 15 of 16...
- Page 16 ©2013 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice or obligation. Vaddio, ProductionVIEW, Quick-Connect, WallVIEW, EZCamera and PowerRite are registered trademarks of...
