DCR-SR58E/SR68/SR68E/
SERVICE MANUAL
Ver. 1.2 2010.02
Revised-2
Replace the previously issued
SERVICE MANUAL 9-852-736-32
with this Manual.

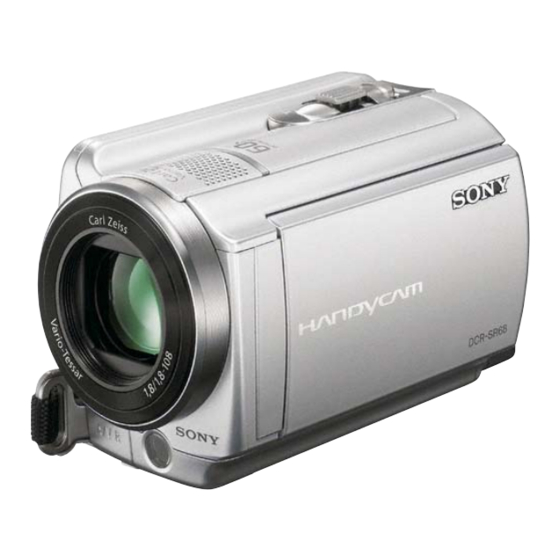

Photo: DCR-SR68/SILVER
SERVICE NOTE (Check the following note before the service.)
1-1. POWER SUPPLY DURING REPAIRS
1-2. PRECAUTION ON REPLACING THE VC-587 BOARD
1-3. USING SERVICE JIG
1-4. SELF-DIAGNOSIS FUNCTION
The components identified
Les composants identifiés par une
by mark 0 or dotted line with
marque 0 sont critiques pour la
mark 0 are critical for safety.
sécurité.
Replace only with part number
Ne les remplacer que par une
specified.
pièce portant le numéro spécifié.
DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2
9-852-736-33
SR78E/SR88/SR88E
LEVEL
US Model
Canadian Model
AEP Model
UK Model
North European Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Argentine Model
Brazilian Model
DIGITAL VIDEO CAMERA RECORDER
Ver.
Date
2
1.0
2010.01
Official Release
1.1
2010.01
Revised-1
(A1 09-388)
1.2
2010.02
Revised-2
(A2 09-437)
E Model
Sony EMCS Co.

Revision History

History
Contents
• Correction of Accessories
S. M. Revised: Page
2-8
• Correction of SPECIFICATIONS
Page
3
• Correction of SERVICE NOTE
Page
1-1
• Correction of EXPLODED VIEWS
Page 2-3,
2-8
• Correction of BLOCK DIAGRAMS
Page
4-1
• Correction of SCHEMATIC DIAGRAMS
Page
6-2
985273633.pdf
S.M. Rev.
issued
Yes
Yes
2010B0800-1
© 2010.02
Published by Tokai TEC

Advertisement

   Related Manuals for Sony DCR-SR58E

   Summary of Contents for Sony DCR-SR58E

  • Page 1: Revision History

    0 sont critiques pour la mark 0 are critical for safety. sécurité. Replace only with part number Ne les remplacer que par une specified. pièce portant le numéro spécifié. 2010B0800-1 DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2 © 2010.02 Sony EMCS Co. 9-852-736-33 Published by Tokai TEC...
  • Page 2 Maximum charge voltage: DC 8.4 V The capacity that a user can use is below. (w/h/d) including the projecting parts Output voltage: DC 7.2 V DCR-SR58E/SR68E: Approx. 79.3 GB (w/h/d) including the projecting parts Maximum charge current: 2.12 A DCR-SR68: Approx. 79.3 GB 56 ×...
  • Page 3 Ver. 1.2 2010.02 The changed portions from Ver. 1.1 are shown in blue. Model information table Model DCR-SR58E DCR-SR68 DCR-SR68E DCR-SR78E DCR-SR88 DCR-SR88E US, CND, E, CH, E, HK, US, CND, E, Destination AEP, UK AEP, UK NE/E KR, AR, BR...
  • Page 4 CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU PUBLISHED BY SONY.
  • Page 5: Service Note

    Inspect the flash memory (IC7801 on the VC-587 board). memory Internal flash memory fault Inspect the flash memory (IC7801 on the VC-587 board). Note: Start the Adjust Manual in the Adjust Station and refer to the “Destination data write”. DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2 1-1E...
  • Page 6: Repair Parts List

    • CD-786 Board • FP-1168 Flexible Board Bottom View Main Frame Assy 6 F Panel Assy 7 Cabinet R Section [Disassembly] 4 Bottom Cabinet [Exploded View] • PD-404 Board • OC-024 Board • FP-1239 Flexible Board Link ACCESSORIES DIS- ASSEMBLY DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 7: Note For Repair

    • When remove a connector, don’t pull at wire of connector. It is possible that a wire is snapped. • When installing a connector, don’t press down at wire of con- nector. It is possible that a wire is snapped. • Do not apply excessive load to the gilded flexible board. DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 8 COVER ASSY (327, L), DC (SR68 (BLUE)/ SR68E (BLUE)) SR68E (BLUE)) 4-157-242-01 DAMPER B (1), 10STYLE (Note 2) 2-635-562-31 SCREW (M1.7) (Note 1) 1-840-366-21 HDD (MK8034GAL-80GB) _MASSPRO (SR58E/ 2-599-475-31 SCREW (M1.7) (Note 1) SR68/SR68E) 1-840-367-21 HDD (MK1234GAL-120GB) _MASSPRO (SR78E/ SR88/SR88E) 4-134-206-01 GASKET (OG) DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 9 (BLUE)) 3-078-890-11 SCREW, TAPPING Screw's Cabinet's Color 4-155-833-01 WINDOW (327), VIDEO LIGHT 3-080-204-21 SCREW, TAPPING, P2 Ref. No. (Parts Color.) 4-155-821-01 FRAME (327), TOP CABINET #10 (Silver) SILVER 4-155-820-01 CUSHION (327), MICROPHONE #2 (Black) RED/BLUE 4-173-812-01 SHEET (327), (MIC) DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 10 CABINET ASSY (SERVICE ,R), MS (SERVICE) (The battery holder removed once cannot be used (SR68 (RED)/SR68E (RED)) again.) When mounting these parts, mount new battery holder A-1756-649-A CABINET ASSY (SERVICE ,L), MS (SERVICE) first and attach new lithium storage battery next. (SR68 (BLUE)/SR68E (BLUE)) DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 11 ICX690NKF-H (SR68/SR88) (Note 1) (SR58E/SR78E) IC7101 8-753-331-35 ICX691NKF-H (SR58E/SR68E/SR78E/SR88E) 4-155-770-01 HOLDER (327), LED (Note 1) X-2514-622-1 FRAME ASSY (327), MAIN 3-283-643-01 SCREW, TRIPOD 2-635-562-31 SCREW (M1.7) 1-788-861-11 OPTICAL UNIT (CK001) 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 3-080-204-21 SCREW, TAPPING, P2 DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 12 FLEXIBLE FLAT CABLE (FFC-226) 1-471-504-11 MAGNET (ND5X3.5X2.4-B) (Note 1) X-2514-585-1 HINGE Y (B) ASSY, 10 STYLE LCD901 A-1748-996-A FTS BLOCK ASSY 27STMG10 1-881-061-11 FP-1239 FLEXIBLE BOARD (Note 2) 2-635-562-31 SCREW (M1.7) 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 3-078-890-11 SCREW, TAPPING DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 13 4-170-097-11 (UKRAINIAN) 4-170-095-21 (FRENCH) 4-170-097-21 (TRADITIONAL CHINESE) 4-170-095-31 (GERMAN) 4-170-097-31 (SIMPLIFIED CHINESE) 4-170-097-41 (ARABIC) 4-170-095-41 (ITALIAN) 4-170-095-51 (DUTCH) 4-170-097-51 (PERSIAN) 4-170-095-61 (SPANISH) 4-170-097-61 (MALAY) 4-170-095-71 (PORTUGUESE) 4-170-097-71 (INDONESIAN) 4-170-095-81 (TRUKISH) 4-170-097-81 (THAI) 4-170-095-91 (GREEK) 4-170-096-11 (CZECH) 4-170-096-21 (HUNGARIAN) 4-170-096-31 (SLOVAK) DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 14 (BT7301 is not included in MS-432 complete board.) < SWITCH > < BATTERY HOLDER > S8601 1-786-914-31 SWITCH, TACTILE BH7301 1-756-615-61 HOLDER, BATTERY (Note 1) < SENSOR > < BATTERY > * SE8602 1-487-118-11 GMR SENSOR BT7301 1-756-134-12 BATTERY, STORAGE, LITHIUM (Note 1) DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2 2-9E...
  • Page 15 4 Install the hinge cover (M) and magnet. Hinge Cover (M) Assembly-2: Precaution Mounting method of D901 (LED video light) Put the marking side together on the position of figure. 11.5mm Diode (NSPL500DS) 5.7mm Magnet Bend Precaution the polarity. Unite Marking corners. DA-049 Board DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2 3-1E...
  • Page 16: Block Diagrams

    EMC_CLK0_OUT IC7801 SR58E/SR68/SR68E IORDY ATA_IORDY EMC_CLK0_IN 120GB: (9/11) DIOW- XATA_DIOW SR78E/SR88/SR88E EMC_DATA [0-31] DIOR- XATA_DIOR HDD_UNLOAD HDD_UNLOAD ONENAND EMC_ADDR [0-15] EMC_CLK1_OUT XFLASH_RST EMC_CLK1_IN XFLASH_RST OVERALL (2/2) XSYS_RST (PAGE 4-2) CAM_DD_ON : VIDEO/AUDIO SIGNAL : VIDEO SIGNAL : AUDIO SIGNAL DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 17 XCAM_LED XPHOTO_LED XPHOTO_LED IC_7501_DDR_CLK RV1001 XIC_7501_DDR_CLK ZOOM_VR_AD ZOOM_VR_AD OC-024 BOARD CONTROL SWITCH BLOCK (SK33100) CN4004 CN8601 CN8602 S001-S005 XPOWER_TACT_SW POWER KEY_AD2 BACK_LIGHT VIDEO_LIGHT SE8602 PLAY PANEL DISC_BURN OPEN/CLOSE DETECT Q4003 XPANEL_POWER_ON PANEL_O/C SWITCH S8601 FR_XRESET RESET : VIDEO/AUDIO SIGNAL DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 18 BL_L -INA D12 SWITCH OUTA C13 EP_8.5V VLDO2 B9 BATT_LI_3V VBACKUP M1 XSYS_RST EVER_3.0V XFLASH_RST VIDEOLIGHT_ON D901 Q4001, Q4002 Q2901 LED VIDEO LIGHT SWITCH SWITCH D_2.8V A_2.8V L2902 IC2901 VIDEO OUT, L2903 AUDIO I/O (1/5) L2905 AU_4.6V R2915 AU_2.8V DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 19 CONTROL SWITCH BLOCK (PS32700) SD_1.8V SD_1.8V_SDRAM SWITCH ONENAND, CN1002 SDRAM RV1001 D_2.8V (9/11) XFLASH_RST GPIO1.8V F_/RP F_INTo P11 (ZOOM) D1002 (MOVIE) IC7901 D_1.8V 256MB MOBILE DDR SDRAM D1003 R1007 D_2.8V (10/11) (PHOTO) D_3.3V R1008 D1001 EVER_3.0V EVER_3.0V BATT_LI_3V DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2 4-4E...
  • Page 20 BATTERY LEVEL 3 TERMINAL BH7301 LEVEL 3 (BATTERY HOLDER) DA-049 BOARD MS-432 BOARD (SIDE A) DA-049 BOARD J901 (SIDE B) (SIDE A) DC IN CN4005 A/V R CN4001 SP901 MS-432 BOARD (SIDE B) (LOUD SPEAKER) MIC901 (MICROPHONE UNIT) DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2 5-1E...
  • Page 21 Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Please refer to LEVEL 3 about the SCHEMATIC DIAGRAMS and PRINTED WIRING BOARDS of DA-049 and VC-587. DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 22 REG_GND CN7101 REG_GND FP-1168 FLEXIBLE BH7301 LND001-LND020 BT7301 LITHIUM PAGE 6-5 STORAGE of LEVEL2 BATTERY BATT_LI_3V Note:BT7301 is not included in MS-432 complete board(service). CD-786 BOARD MS-432 BOARD CCD IMAGER MEMORY CARD SLOT XX MARK:NO MOUNT XX MARK:NO MOUNT DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 23 PD-404 complete board. in PD-404 complete board. D_2.8V TP_SEL1 TP_Y TP_XL TP_XR N.C. TP_X TP_YU TP_YL N.C. C6401 C6402 CN6403 0.01u 0.0047u PD-404 BOARD D6401 VC-LCD CONNECTION Q6401 Q6402 DMG9640N0L DMG9640N0L XX MARK:NO MOUNT TOUCH TOUCH PANEL PANEL INTERFACE INTERFACE DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 24 LEVEL2 DA-049 EVER_3.0V (2/5) KEY_AD2 CN4004 FR_XRESET Through the Flexible Flat Cable REG_GND (FFC-226) XPOWER_TACT_SW PAGE 6-3 of LEVEL3 S8601 PANEL_O/C RESET LN8601 CHASSIS_GND OC-024 BOARD SE8602 C8602 0.1u PANEL OPEN/CLOSE DETECT XX MARK:NO MOUNT (PANEL OPEN/CLOSE DETECT) DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 25 FP-1168 FLEXIBLE BOARD VC-PD CONNECTION CD-VC CONNECTION No electrical parts are mounted No electrical parts are mounted on FP-1239 flexible board, so that on FP-1168 flexible board, so that PRINTED WIRING BOARD is omitted. PRINTED WIRING BOARD is omitted. DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 26 MSX2_INS LND056 LND027 MSX2_WP MSX2_WP LND057 LND028 XMS_ACC_LED XMS_ACC_LED LND058 LND029 ACCESS_LED_VDD ACCESS_LED_VDD LND059 LND030 BATT_LI_3V BATT_LI_3V LND060 FP-1216 FLEXIBLE BOARD VC-MS CONNECTION No electrical parts are mounted on FP-1216 flexible board, so that PRINTED WIRING BOARD is omitted. DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 27 LND072 LND033 LND073 LND034 LND074 LND035 LND075 LND036 LND076 LND037 LND077 LND038 -RESET -RESET LND078 LND039 LND040 LND080 FP-1217 FLEXIBLE BOARD VC-HDD CONNECTION No electrical parts are mounted on FP-1217 flexible board, so that PRINTED WIRING BOARD is omitted. DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 28: Control Switch Block

    (DISC BURN) (VIEW IMAGES) (LIGHT) (BACK LIGHT) POWER S005 S004 S003 S002 S001 CONTROL OC-024 SWITCH BLOCK CN8602 PAGE 6-4 of LEVEL 2 (SK33100) CONTROL SWITCH BLOCK (SK33100) is replaced as a block, so that PRINTED WIRING BOARD is omitted. DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2...
  • Page 29 Replace the battery holder (BH7301) together when replacing the lithium battery (BT7301) on the MS-432 board. (The battery holder removed once cannot be used again.) When mounting these parts, mount new battery holder first and attach new lithium battery next. DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2 : Uses unleaded solder.
  • Page 30 R6402 R6401 R6407 R6408 R6409 C6409 C6410 R6405 C6406 R6406 C6414 VD6401 CN6401 Q6401 C6402 Q6402 C6401 SE6401 C6403 1-880-147- 11 Note:SE6401 is not supplied, but it is included in in PD-404 complete board. DCR-SR58E/SR68/SR68E/SR78E/SR88/SR88E_L2 : Uses unleaded solder. 6-10E...
