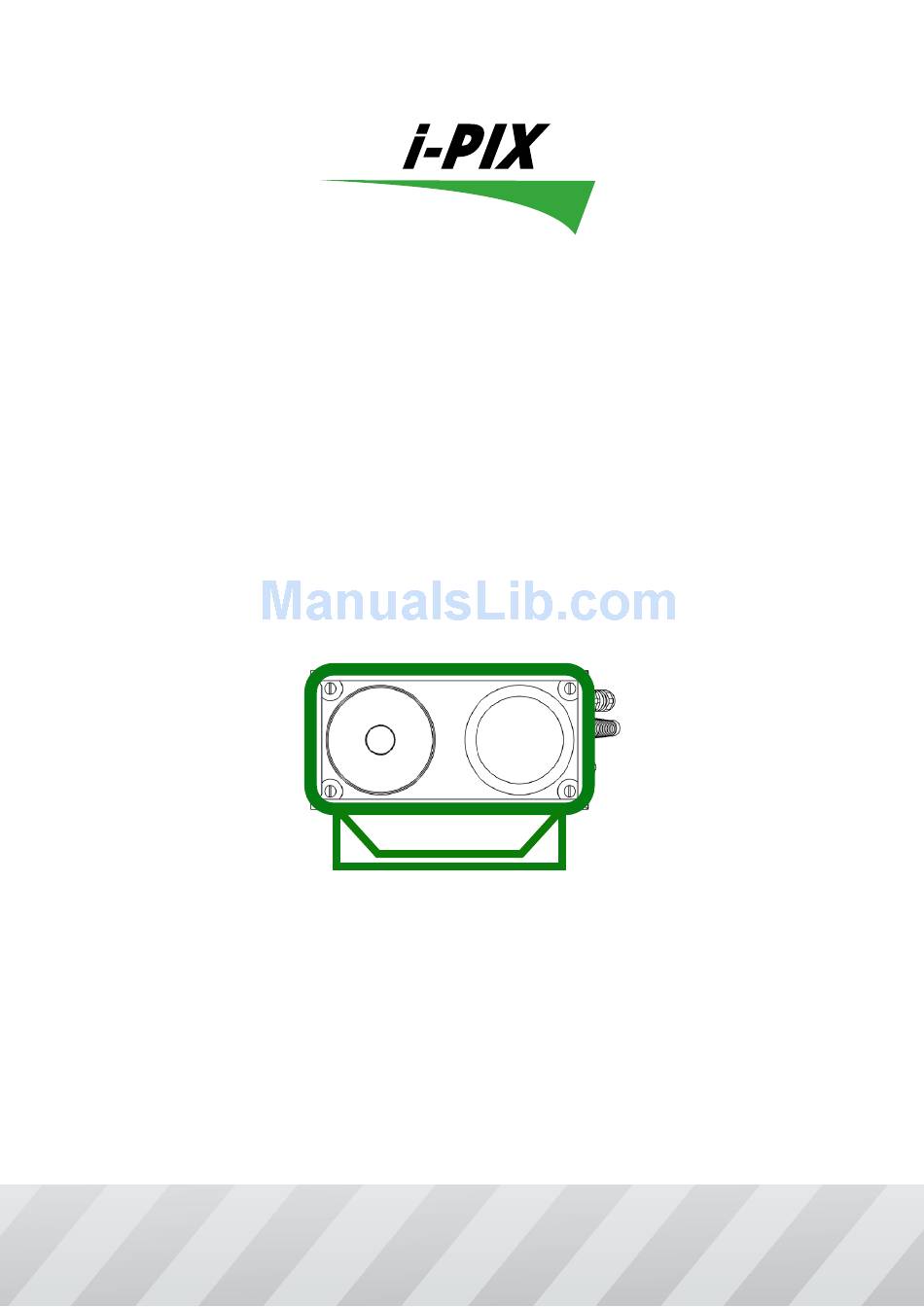

  • Page 1 User Manual i-PIX BB washlight...
  • Page 2 INTRO, RIGGING, SET UP & MODES INTRO, RIGGING, SET UP & MODES SAFETY FIRST page 3 SAFETY FIRST page 3 THE BB7 page 5 THE BB2 BB2x2 page 5 RIGGING page 6 RIGGING page 6 SET UP page 7...

  • Page 3: Page

    If you have questions about how to operate the fixture safely, please contact I-Pix. Warning! Class 2M LED product. Do not look into the beam from a distance of less than 40 cm (16 inches).
  • Page 4 Provide a minimum clearance of 0.1 m (4 in.) around fans and air vents. Do not modify the fixture Apart from I-PIX accessories do not stick filters, masks or other materials directly onto the light. PROTECTION FROM INJURY when rigging Do not hang fixtures from each other.

  • Page 5: Page

    It is the homogenized source of the three saturate colours that make our colour mixing so good. so good. The performance of these light engines to i-pix's exacting colour specifications gives a tighter tolerance and improved colour performance, which makes tungsten lighting performance from the BB 4 possible. Daylight temperatures can also be found with ease and finally a fixture that does not need a nudge from amber to compensate.

  • Page 6: Page

    BB4 USERS MANUAL - PAGE 6 BB4 USERS MANUAL - PAGE 6 BB4 USERS MANUAL - PAGE 6 BB4 USERS MANUAL - PAGE 6 BB2 USERS MANUAL BB4 USERS MANUAL - PAGE 6 BB4 USERS MANUAL - PAGE 6 BB4 USERS MANUAL - PAGE 6...

  • Page 7: Page

    Make absolutely sure both attachment points are secure BEFORE rigging the light. BB4 USERS MANUAL - PAGE 6 ALWAYS secure the lamp to the truss pipe e.t.c. with two safety bonds as shown on the previous page. BB2 USERS MANUAL BB4 USERS MANUAL - PAGE 7...

  • Page 8: Page

    PRESS When you press the button above BACK OF the legend will change to BACK ON and the backlight will remain lit CURV-LIN BACK OF constantly. BB2 USERS MANUAL BB4 USERS MANUAL - PAGE 9...
  • Page 9 3 Select appropriate operating mode The BB2 gives you a choice of ten operating modes. These modes The BB4 will gives you a choice of ten operating modes. These modes will enable you to set up the lamp in the most appropriate way for the many different jobs the lamp will be used for.
  • Page 10 MORE will change to LOCK. buttons simultaneously and the MORE will change to LOCK. PRESS PRESS BB2 USERS MANUAL BB4 USERS MANUAL - PAGE 10 PRESS PRESS To unlock the interface depress the LOCK and ADDR buttons...
  • Page 11 INTENSITY CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL INTENSITY INTENSITY INTENSITY INTENSITY INTENSITY INTENSITY INTENSITY INTENSITY INTENSITY INTENSITY CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL BB4 USERS MANUAL - PAGE 12 BB2 USERS MANUAL...
  • Page 12 - blue cell 2 ch9 - red cell 3 ch10 - green cell 3 ch11 - blue cell 3 ch12 - red cell 4 ch13 - green cell 4 ch14 - blue cell 4 BB4 USERS MANUAL - PAGE 13 BB2 USERS MANUAL...
  • Page 13 36 ch 16 bit h 8 bit 8 bit 20 ch 8 bit 20 ch 8 bit 36 ch 16 bit 36 ch 16 bit 36 ch 16 bit 36 ch 16 bit BB4 USERS MANUAL - PAGE 14 BB2 USERS MANUAL...
  • Page 14 27 ch 16 bit 14 ch 8 bit 24 ch 16 bit 14 ch 8 bit 20 ch 8 bit 20 ch 8 bit 36 ch 16 bit 36 ch 16 bit BB2 USERS MANUAL BB4 USERS MANUAL - PAGE 14...

  • Page 15: Storing A Dmx Input As A Memory

    6 When you are happy this memory has been numbered MEN 04 correctly press the STORE button wait 3 seconds and the DOWN STORE display will return to the main menu. PRESS BB2 USERS MANUAL BB4 USERS MANUAL - PAGE 16...

  • Page 16: Creating A Memory

    DOWN 0% - no strobe. In the same way if you wish to alter this value use the UP & DOWN buttons to give you the desired % value. BB2 USERS MANUAL BB4 USERS MANUAL - PAGE 17...
  • Page 17 In the same way if you wish to alter this value use the UP, DOWN buttons to give you the desired %. If you require 100% press the DOWN button. PRESS When happy with the BLUE value press the button above BLUE 000% BLUE once. DOWN BB2 USERS MANUAL BB4 USERS MANUAL - PAGE 18...
  • Page 18 If you are happy with you memory you should then MEM 04 assign it a number using the UP, DOWN buttons. DOWN STORE MEM 04 9 When happy with your memory number press STORE. DOWN STORE PRESS BB2 USERS MANUAL BB4 USERS MANUAL - PAGE 19...
  • Page 19 THE LAMP POWER YOU WILL NEED TO PROGRAMME IT AS A TWO STEP CHASE WITH BOTH MEMORIES HAVING THE SAME VALUE” MEM 02 To return to the main menu press the DMX MODE button DOWN DMX MODE PRESS BB2 USERS MANUAL BB4 USERS MANUAL - PAGE 20...
  • Page 20 Select the appropriate time (in seconds) using the UP, DOWN buttons. PRESS 5 Once you are happy with the XFADE TIME press the button above UP XFADE TIME DOWN 003s XFADE TIME once. BB2 USERS MANUAL BB4 USERS MANUAL - PAGE 21...
  • Page 21 If you leave a chase running when the light is powered down the chase will resume as soon as the light is powered back up again. ! If the chase does not run try rerecording the first step again BB2 USERS MANUAL BB4 USERS MANUAL - PAGE 22...
  • Page 22 Stand alone functions BB2 cell orientation The BB7 is able to run in a stand alone mode without any need of data from a lighting desk. The light is capable of outputting up to 20 programmable memories and 1 chase that steps through these memories.
  • Page 23 BB4 USERS MANUAL - PAGE 23 BB4 USERS MANUAL - PAGE 23 BB4 USERS MANUAL - PAGE 23 BB4 USERS MANUAL - PAGE 23 BB4 USERS MANUAL - PAGE 23 BB2 USERS MANUAL BB4 USERS MANUAL - PAGE 23...
  • Page 24 BB4 USERS MANUAL - PAGE 24 We reserve the right to improve this fixtures design. We reserve the right to improve this fixtures design. BB4 USERS MANUAL - PAGE 24 BB4 USERS MANUAL - PAGE 24 BB2 USERS MANUAL BB4 USERS MANUAL - PAGE 24...

  • Page 26: Trouble Shooting

    Please seek professional assistance if there is any doubt as to the efficacy of a remedy or of the exact nature of any encountered problem. I-pix provides the information contained herein only as a guide. No response from the light...
  • Page 27 Are you fitting right rating/type of fuse into unit? • Contact I-pix for more specific help with your problem, there may be an internal fault in the unit. • If you have the technical knowledge/skills you could look inside the unit and check the internal wiring for a lose connections/shorts and also the power supply is working with a 15v output when there is no load connected to it.
  • Page 28 ADDR 001 Then the light will return to MODE 10 ADDR 001 MODE10 36CH MORE This is a fast way of readdressing a light, that will save you a few button presses BB4 USERS MANUAL - PAGE 28 BB2 USERS MANUAL...
  • Page 29 PURPOSE - I-PIX Jan 01, 2009 WARRANTY STATEMENT I-Pix (seller) extends warranty on all the L.E.Ds in the BB4 produced by the Seller for one (1) year from original date of shipment, that the goods sold hereunder are new and free from substantive defects in workmanship and materials.

  • Page 30: Service Contact Details

    SERVICE CONTACT DETAILS Broadstone Mill Broadstone Road Houldsworth Village Cheshire SK5 7DL [Located 4 miles from Manchester airport and the city centre] Tel: 44 (0)161 443 4140 E-mail: service@i-pix.com www.i-pix.com BB4 USERS MANUAL - PAGE 30 BB2 USERS MANUAL...
