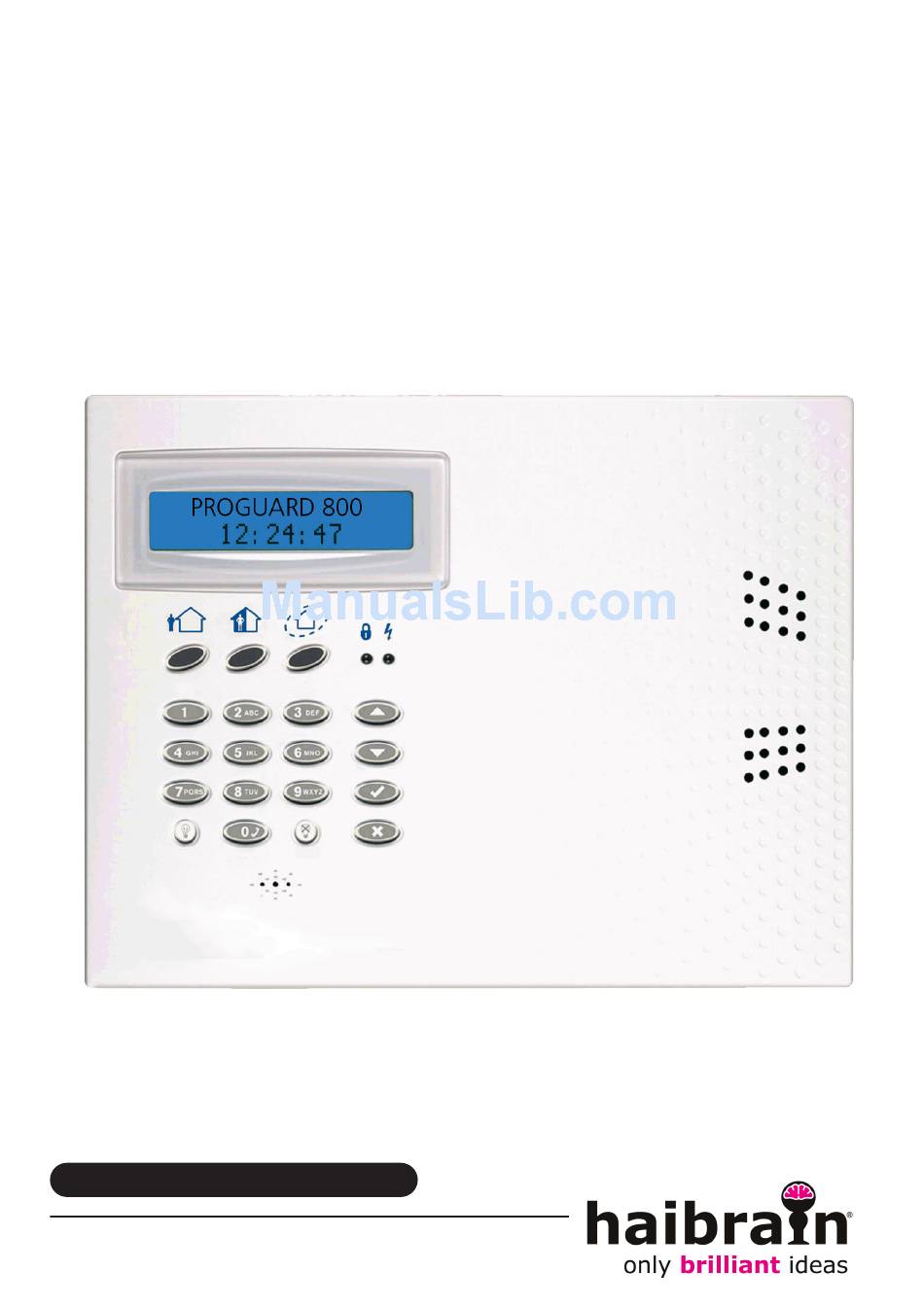

Page 1: Quick Installation Guide
PROGUARD PROGUARD800 SERIES ™ QUICK INSTALLATION GUIDE ENGLISH 20213 / 20100604 • PROGUARD800 © ALL RIGHTS RESERVED HAIBRAIN ®... - Page 2 Short installation manual If you follow the installation procedure mentioned below, you should not hear a siren. Just to be sure, we recommend you to wear hearing protection during the installation. This to prevent hearing impairment. Quick installation of your ProGuard800 set This manual is meant to install your ProGuard800 without having to read the regular installation manual completely.
- Page 3 Opening the ProGuard800 control panel Remove the ProGuard800 from its packing. Push the little pins at the bottom side of the central unit gently with a screwdriver as shown on the picture and move the screwdriver up. Remove the front of the central unit. You will see that the front is connected to the backside with two fasteners and the flat-cable of the keyboard.
- Page 4 Turning on ProGuard800 for the first time Place the battery in the panel, but do not connect it yet. Put the plug in the socket. Because the tamper contact now is open, the panel immediately generates an alarm warning. The siren is disconnected, so the sound level is very low.
- Page 5 Setting date and time Press 9 followed by 1111. Press 7 9 9. Now enter the correct time followed by 9. Now enter the correct date followed by 9. Press 8 3 times to leave the installation menu. Switching off the siren Press 9 followed by 1111.
- Page 6 Press 9 to confirm. Now you will hear a long beep. 10. If you not wish to register any other sensors, press 5 times to leave the programming menu. 11. The DS831 is now registered and is default set with an entrance delay of 30 sec. 12.
- Page 7 Now press the tamper contact of the MS845. The ProGuard800 now makes a short beeping sound and the display shows: 1.Z11 REGISTER TRANSMIT 2. Now push the tamper contact again, you will again hear a short beeping sound (the display now shows 1.Z11 REGISTER SAVE?).
- Page 8 Placing sensors Placing the DS831 The housing of the DS831 is still open after registering. If you want to mount the housing with screws you have to remove the PCB now. To remove the PCB you push the PCB removal tab and carefully lift it from its holder. Mount the back plate to the doorframe with the enclosed countersunk head screws or double sided foam tape.
- Page 9 If you tighten the screws too much, the housing will deform and you cannot get the lid back on. Fasten the screws manually. Replace the PCB with the Easy Lock and turn one quarter clock wise. Push the PCB fully upwards, so the vertical setting is at 8 Place the front.
- Page 10 Setting a private number Log in to the programming menu by pressing 9 followed by 1111 (the display now shows: MAIN MENU 1.STOP COMM.). Press 9 (the display now shows: 9.PROGRAMMING 1.DEVICES). Press 5 (the display now shows 5.COMMUNICATIONS 1.ACCOUNTS). Press 9 (the display now shows: 1.ACCOUNTS 1.CS ACCOUNT 1).
- Page 11 Press 9 (the display now shows 6.VM EVENT OPT. 1.BURGLARY). With the / keys you can step through all events and with 9 confirm your choice. ( 6 is activating, 7 is deactivating) You could also enter the number of your choice directly, followed by 9.
- Page 12 The alarm warning does not appear on the display when a panic alarm is triggered. If the Power LED is… a It means… Both AC and Battery power are disconnected. System Power is OK. Flashing (slow) Backup battery low or low battery from transmitters. Flashing (fast) AC loss.
- Page 13 Important default settings User codes You can program up to 32 different user codes in to your ProGuard800 system. A user code has four numbers. For most system functionalities you have to enter your user code. User Code USER 1 MASTER 1234 USER 32 INSTALL.
- Page 14 Entrance/exit delay The entrance/exit delay shows how much time the user has to activate or deactivate the system before an alarm warning is generated. 2.ENTRY/EXIT 1.EXIT DELAYS 1.EXIT FULL 2.EXIT PART 3.EXIT PERIMETER 2.ENTRY DELAYS 1.ENTRY FULL 2.ENTRY PART 3.ENTRY PERIM. 3.ARM ON EXIT ENABLED 4.SUPP.ENT.DELAY...
- Page 15 Home Control modules The Haibrain ProGuard800 supports the X-10 protocol. With this you can integrate a broad range of Home Control products in your Alarm system. 9 1.ON TIME #1 9 00:00 1.HA UNITS 1.HA UNIT#1 d 2.OFF TIME #1 9 00:00 d 3.SCHEDULE #1 9 ·······...
- Page 16 ZI0488B (1-09)
