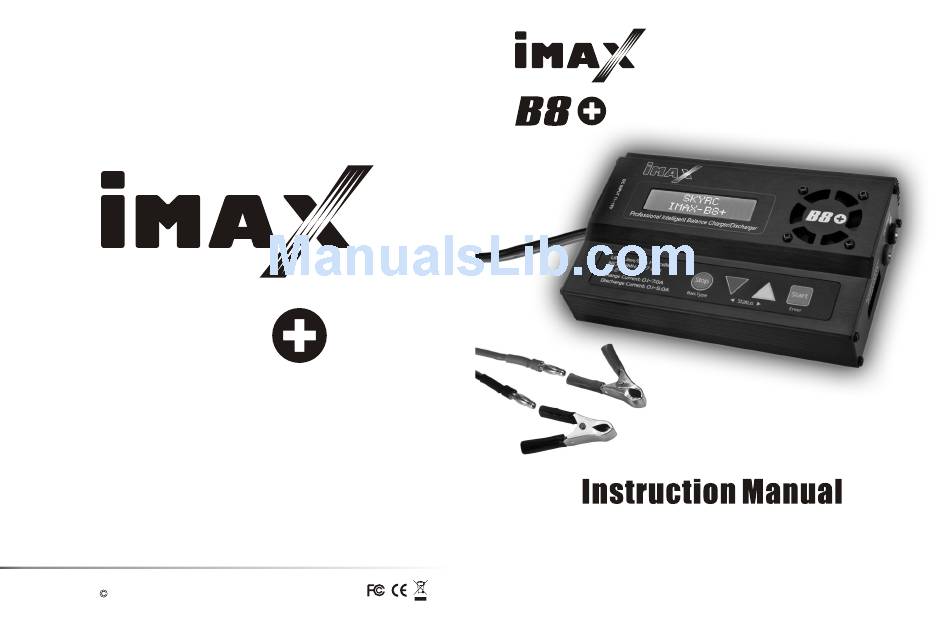

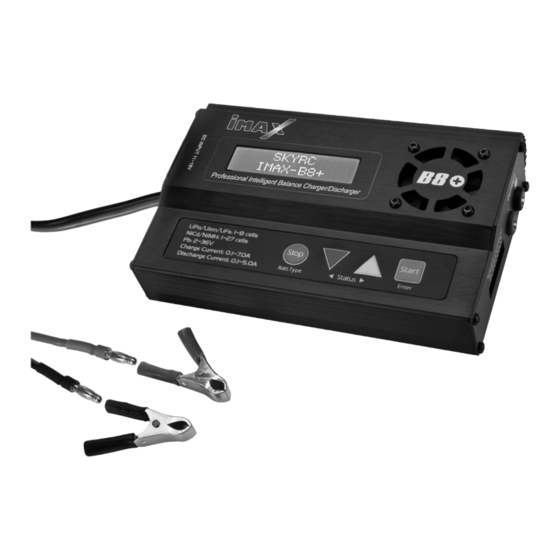

  • Page 1 LITHIUM BATTERY BALANCE CHARGER/DISCHARGER All specifications and figures are subject to change without notice. Printed in China 2009 www.skyrc.cn...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS General information..................02 Exterior of the unit..................06 Warning and safety notes................07 Program flow chat..................10 Initial parameter set up (Users set up) ............11 Lithium battery (Lilo/LiPo/LiFe) program .............14 Charging of lithium battery.................14 Balance c harging of lithium battery.............15 "FAST" charging lithium battery..............16 "STORAGE"...
  • Page 3: General Information

    Thank you for purchasing iMAX B8+ charger. You have purchased high quality Maximum Circuit Power Chart product made by SKYRC. Reliable SMD technology, outstanding performance The actual amount of charge current feeding to the battery is automatically be limited and flexibility, high level of safety features and last but not least their easy to 150 Watts, so not to exceed the charger's maximum rated charging power.
  • Page 4 General information General information Individual voltage balance for Lithium batteries inside B8+ has an individual-cell-voltage balancer inside. This does not require any extra balancer when charging Lithium batteries (Lilo/LiPo/LiFe) for cell voltage balancing. Balance individual cells on discharge B8+ also can monitor and balance individual cells of the Lithium battery pack during the discharge process.
  • Page 5: Exterior Of The Unit

    Exterior of the unit Warning and safety notes Exterior of the unit Warning and safety notes LCD screen Never leave the charger unsupervised when it is connected to its power supply. If any malfunction is observed immediately terminate the process and refer to the operation (16chr.x2lines) Charging manual.
  • Page 6 Warning and safety notes Warning and safety notes Lead. They are red, positive (+) and black, negative (-). Since the charger cannot detect Warning and safety notes the difference between the internal resistances of the battery pack, cable resistance and To avoid short-circuits between the charge lead, always connect the charge cable to the connector transfer resistance, the first requirement if the charger to work properly is that unit first and only then to the batter to be charged or discharged.
  • Page 7: Program Flow Chat

    Program flow chat Initial parameter set up (Users set up) Initial parameter set up (Users set up) B8+ will be operated with the default value of the essential user settings when it is connected to a 12V battery for the first time. The screen displays the following information in sequence and the user can change the value of parameter on each screen.
  • Page 8 Initial parameter set up (Users set up) Initial parameter set up (Users set up) This shows the trigger voltage for automatic charge You can set the trickle charge mode on or off. If it is termination of NiMH and NiCd battery. The effective on, the charger will automatically supply the trickle value ranges from 5 to 20mV per cell.
  • Page 9: Lithium Battery (Lilo/Lipo/Life) Program

    Initial parameter set up (Users set up) Balance charging lithium battery Lithium battery (LiIo/LiPo/LiFe) program Balance charging of lithium battery These programs are only suitable for charging and discharging Lithium batteries with a This function is for balancing the voltage of Lithium-polymer battery cells while charging. nominal voltage of 3.3V, 3.6V and 3.7V per cell.
  • Page 10: 'Fast' Charging Lithium Battery

    ‘FAST’ charging lithium battery ‘STORAGE’ control of lithium battery "STORAGE" control lithium battery "FAST" charging lithium battery The charging current is getting smaller as the process goes to the near end term of This is for charging or discharging Lithium battery not to be used for the time being. The Lithium battery charging.
  • Page 11: Discharging Of Lithium Battery

    Discharging of lithium battery Voltage balancing and monitoring during the discharge Discharging of lithium battery Voltage balancing and monitoring during the discharge The processor monitors the voltage of individual cells during 'storage-mode' and The value of discharge current on the left side of 'discharge' of Lithium battery pack.
  • Page 12: Nimh/Nicd Battery Program

    Discharging NiCd/NiMH battery NiMH/NiCd battery program NiMH/NiCd battery program Discharging NiCd/NiMH battery Set discharge current on the left and final voltage on These programs are for charging or discharging NiMH(Nickel-Metal-Hydride) or the right. The discharge current ranges from 0.1 to NiCd(Nickel-Cadmium) battery commonly used for R/C model applications.
  • Page 13: Charge-To-Discharge & Discharge-To-Charge Cycle Of Nimh/Nicd Battery

    Charge-to-discharge & discharge-to-charge cycle of NiMH/NiCd battery Pb(Lead-sulphuric acid) battery program Pb(Lead-sulphuric acid) battery program Charge-to-discharge & discharge-to- charge cycle of NiMH/NiCd battery This is programmed for charging Pb(lead-acid) battery with nominal voltage from 2 to 36V. Pb batteries are totally different from NiCd or NiMH batteries. They can only Set the sequence on the left and the number of deliver relatively lower current compare to their capacity, and similar restrictions cycle on the right.
  • Page 14: Discharging Pb Battery

    Discharging Pb battery Save data program The parameter value setting up in this screen does Discharging Pb battery not affect charge or discharge process. They only represent the specification of the battery. The 13-14 15-16 17-18 19-20 21-22 23-24 25-26 27-28 29-30 31-32...
  • Page 15: Load Data Program

    Load data program Various information during the process Load data program The final voltage will be reached at the end of process. This program calls back the data that was stored at "Save Data" program. To load the data, press Start/Enter key once to blink the data number field and select the number using Inc>...
  • Page 16: Warning And Error Message

    Warning and error messages Warning and error messages Warning and error messages The processor detects the voltage is lower than you set at Lithium program. Please check B8+ incorporates a various functions of protective and monitoring the system to verify the cell count of the battery pack.
  • Page 17: Recommended Accessories

    Conformity declaration Recommended accessories IMAX B8+ satisfy all relevant and mandatory EC directives and FCC Part 15 Subpart B: 2008 For EC directives: The product has been tested to meet the following technical standards: 30A DC Software Kit Temperature Sensor Cable Power Supply EH Adaptor XH Adaptor...
  • Page 18: Specifications

    Specifications Specifications Operating voltage range: 10.0~18.0Volt Circuit power: max. 150 Watts Charge current range: 0.1~7.0A Discharge current range: 0.1~5.0A Discharge circuit power: max 20 Watts Current drain for balancing Li-Po: 300mA/cell NiCd/NiMH battery cell count: 1~27 cells Lithium battery cell count: 1~8 Series Pb battery voltage: 2 to 36V Weight: 480g(Net Weight) Dimensions: 163.8X106.2X45.6mm...
