2-Spindle Grooming Mower
FD2548
Operator's Manual
!
0
310-156M
Read the Operator's manual entirely.
When you see this symbol, the
subsequent instructions and
warnings are serious - follow without
exception. Your life and the lives of
others depend on it!
© Copyright 2004 Printed
Cover photo may show optional
equipment not supplied with
standard unit.
10817
1/29/04

Advertisement

Table of Contents
loading

Related Manuals for Land Pride FD2548

Summary of Contents for Land Pride FD2548

  • Page 1 2-Spindle Grooming Mower FD2548 Operator’s Manual Read the Operator’s manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception. Your life and the lives of others depend on it! © Copyright 2004 Printed...

  • Page 2: Table Of Contents

    The parts on your 25 Series Grooming Mower have been specially designed and should only be replaced with genuine Land Pride parts. Therefore, should your Grooming Mower require replacement parts go to your Land Pride Dealer. The SAFETY ALERT SYMBOL indicates that there is a potential hazard to personal safety involved and extra safety precautions must be taken.

  • Page 3: Safety Rules

    1/29/04 Most accidents are the result of negligence and carelessness, usually caused by failure of the operator to follow simple but necessary safety precautions. The following safety precautions are suggested to help prevent such accidents. The safe operation of any machinery is a big concern to consumers and manufacturers.

  • Page 4: Safety Decals

    * Always keep safety decals clean and legible. * Replace all damaged or missing safety decals. To order new safety decals go to your Land Pride Dealer and reference part numbers as shown on page 27. * To install new safety decals: A) Clean the area the decal is to be placed.

  • Page 5: Nut & Bolt Torquing Chart

    Before operating this unit, 80-90 EP Gear Lube must be added to the gearbox(s) as indicated in the maintenance lubrication section (Page 9) of this manual. See your Land Pride Dealer for part number 821-012C Gear Lube. Your 25 Series Grooming Mower is shipped to you almost completely assembled. Remove the protective plastic wrap from the mower deck.

  • Page 6: Tractor Hook-Up

    ASSEMBLY INSTRUCTIONS (CON’T.) GRASS CHUTE ASSEMBLY - Refer to the parts illustration on page 14: 1. Loosen upper pivot bolt (#9) and remove lower thumb screw (#17). 2. Hinge chute down and install thumb screw and flat 1. Be certain that tractor draw bar will not interfere. Move draw bar ahead or remove if required.

  • Page 7: Leveling The Mower

    1/29/04 NOTE: Tractor and mower should be on level ground. 1. Set lower hitches and upper floating hitch, as shown in fig. 1 on page 5. 2. Start tractor and raise mower, watching that tractor draw bar (if not removed) does not interfere with mower. 3.

  • Page 8: Cutting Height Adjustment

    1. Using the tractor, raise the mower off the ground and support under it with secure blocking so not to let the mower drift down during maintenance. 2. Holding wheel and yoke assembly up, remove quick- lock pin from top of gauge wheel spindle. Position full length spacers and half spacer as required.

  • Page 9: Operating Instructions

    The oil should reach the plug hole. Fill if neces- sary with SAE 90 oil and retighten both plugs. DO NOT OVERFILL! Should your gearbox require service, take it to your LAND PRIDE dealer. IMPORTANT: Mower should be level when check- ing or adding oil to the gearbox! SPECIFICATIONS BLADE SPINDLES...Greasable...

  • Page 10: Maintenance

    SAE 90 oil until oil flows from side port of the gearbox. Reinstall plugs and retighten. DO NOT OVERFILL! Should your gearbox require service, take it to your LAND PRIDE dealer. IMPORTANT: Mower should be level when check- ing oil in gearbox! 2.

  • Page 11: Storage

    1/29/04 At the end of the working season or when the mower will not be used for a long period, it is good practice to clean off any dirt or grease that may have accumulated. Check the blades for wear and replace if necessary. See "Maintenance"...

  • Page 12: Chain Kit Assembly Instructions

    MOWER CHAIN KIT ASSEMBLY INSTRUCTIONS Remove tractor 3-point hitch upper link pin (#1). Install lift chains (#2) on outside surface of upper link mounting plate on tractor. Reinstall link pin and keeper. NOTE: Depending upon brand of tractor the link pin may need to be replaced with a longer pin or a bolt.

  • Page 13: Trouble Shooting

    1/29/04 PROBLEM 1. Discharge chute plugged CAUTION! NOT TRY TO CLEAN DIS- CHARGE CHUTE WHEN MOWER RUNNING. BODILY HARM MAY OC- CUR. 2. Belt slipping 3. Patches of uncut grass 4. Excessive vibration 5. Gearbox noisy 6. Blades scalping grass 7.

  • Page 14: Warranty

    Land Pride within (30) days of failure. This Warranty does not apply to any part or product which in Land Pride’s judgment shall have been misused or damaged...

  • Page 15: 48" Flat Deck Mower Deck

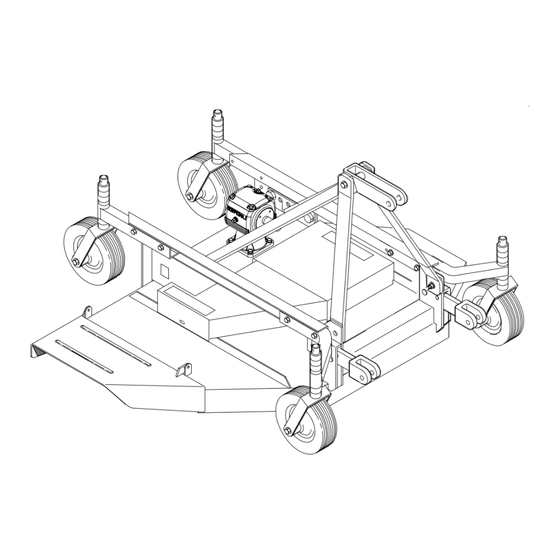

    1/29/04 FLAT DECK MOWER - DECK & COMPONENTS 10467...
  • Page 16 FLAT DECK MOWER - DECK & COMPONENTS (CON’T.) Ref. Part No. Description 310-046H 48" Mower Deck 310-071H Lower Hitch Lug 310-020S Lower Hitch Pin 805-141C Pin, Lock 5/8" x 2" Long {2 Wheel Units Only} 805-140C Pin, Pivot 3/4" x 2" Long 805-143C Pin, Hair Cotter 0.120 805-015C...

  • Page 17: Flat Deck Mower Belt Drive

    1/29/04 FLAT DECK MOWER BELT DRIVE 18642...
  • Page 18 FLAT DECK MOWER BELT DRIVE (CON’T.) Ref. Part No. Description 826-011C Gearbox - Comer 826-081C Gearbox - IEG 802-207C Bolt 5/8"-18 x 1 1/2" Long 804-022C Washer, Lock 5/8" 803-022C Nut 5/8"-18 817-050C Shaft Protector 310-331D Key 1/4" x 11/16" Long 310-041D Gear Box Spacer - Used Only With Comer Gearbox 808-076C...

  • Page 19: Comer Gearbox Assembly

    1/29/04 COMER GEARBOX (PART NO. 826-011C) 10508...
  • Page 20 Ref. Part No. Description 0.141.0330.00 Casting - Machined 8.4.1.00889 Key, parallel B 10 x 8 x 30 8.0.1.00870 Bearing 6207 8.7.0.00693 0.141.2100.00 Shaft 1 3/8" 0.141.5000.00 Gear 0.141.7100.00 Spacer 8.5.2.00131 Ring, Snap 8.5.1.00005 Ring, Snap 8.2.2.01144 Nut, Castle 8.3.2.00409 Washer, Bolt 8.5.3.00915 Ring, Snap 8.7.1.00152...

  • Page 21: Ieg Gearbox Assembly

    1/29/04 IEG GEARBOX (PART NO. 826-081C) 10891...
  • Page 22 Ref. Part No. Description 18-021 Housing 04-004 Ball Bearing #207 09-002 Plug, Pipe 1/2"-14 02-035 Input Shaft 21-012 Retaining Ring 03-036 Input Gear 30 Tooth 08-004A Gasket, Input Cap 0.25 mm 08-004B Gasket, Input Cap 0.10 mm 07-001 Washer, Lock #10 06-012 Screw, Cap #10 x 1.5 x 25 20-007...

  • Page 23: Gauge Wheel Assembly

    1/29/04 GAUGE WHEEL ASSEMBLY 18643...
  • Page 24 GAUGE WHEEL ASSEMBLY (CON’T.) Ref. Part No. Description 310-014H Gauge Wheel Arm Weldment 827-002C Spacer 1" 817-048C Bushing, Spindle 827-001C Spacer 1/2" 805-065C Pin, Wire Retaining 1/4" x 1 3/4" Long 310-149H Yoke, Gauge Wheel {Used On Mowers After Serial #59102} 310-003H Yoke, Gauge Wheel {Used On Mowers Before Serial #59101} 802-350C...

  • Page 25: Power Take-Off

    1/29/04 Ref. Part No. Description 380905 End Yoke 381908 Quick Disconnect Yoke 044439 Cross & Bearing Kit 041065 Inboard Yoke 020614 Spring Pin 054484 Inner Profile 377234 Shield Cone - 4 Rib 087279 Bearing Ring 387332 Outer Shield Tube With Cap 387266 Inner Shield Tube With Cap 377240...

  • Page 26: Options

    Ref. Part No. Description 817-049C 4" x 10" Roller 310-076H Left Hand Mount Bracket 310-190D Right Hand Mount Bracket 803-114C Nut, Lock 3/4"-16 Nylock Collar 801-043C Screw, Pan Head 3/8"-16 x 1" Long 804-013C Washer, Lock 3/8" 803-014C Nut, Hex 3/8"-16 310-077S Front Roller Package.

  • Page 27: Chain Kit

    1/29/04 Ref. Part No. Description 310-117D Chain Bracket - Lower 310-032H Lift Chain 817-057C Cap Plug OPTIONS CHAIN KIT (PART NO. 310-038S)

  • Page 28: Safety Decal Placement

    DECAL CAUTION 540 RPM DECAL DANGER PTO DRIVELINE EN DECAL 48 V-BELT INSTALLATION DECAL DANGER ROTATE BLADE DECAL DANGER THROWN OBJ CUTTER I.D. PLATE - LAND PRIDE (NOT REPLACEABLE) DECAL GREASE EVERY 25 HOURS 1/29/04 Complete safety decal package Complete decal package...

  • Page 29: Mower Decal Placement

    1/29/04 NOTES...
  • Page 30 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...
