PhysioLogic Dual Smart Inflate Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
Features:
• Smart Inflate™ Technology
• Auto Memory for 2 Users - Up to 60 Readings Each
• 3-Reading Averaging
• Time and Date Display
• WHO Blood Pressure Classification Indicator
• One-Touch Operation
• Easy-to-read Display
• BP Manager Software
• USB Data Transfer to PC
• AC Adapter

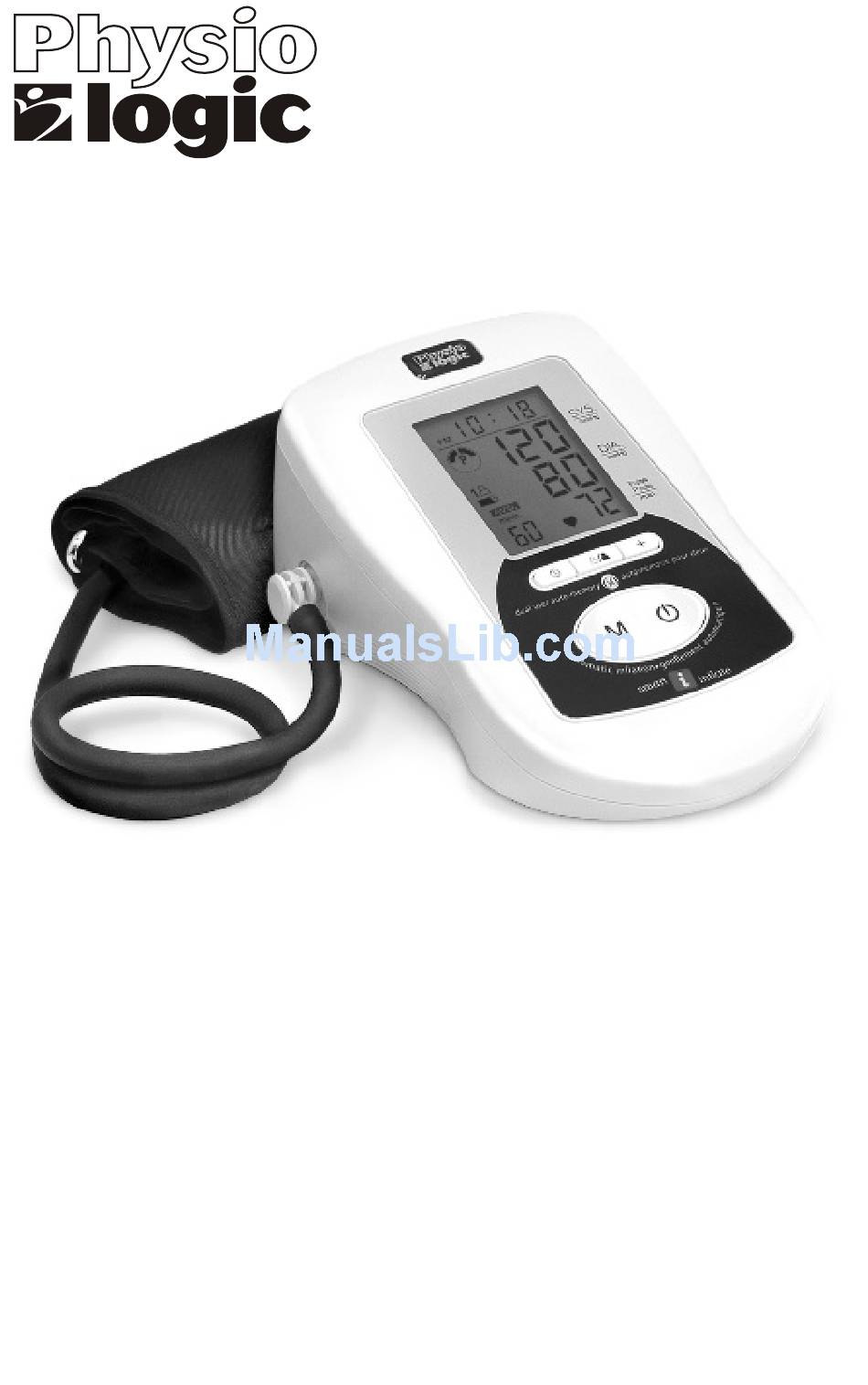

Dual Smart Inflate™
®
Blood Pressure Monitor
106-955

Advertisement

Table of Contents
loading

Related Manuals for PhysioLogic Dual Smart Inflate

Summary of Contents for PhysioLogic Dual Smart Inflate

  • Page 1 Dual Smart Inflate™ ® Blood Pressure Monitor Instruction Manual Features: • Smart Inflate™ Technology • Auto Memory for 2 Users - Up to 60 Readings Each • 3-Reading Averaging • Time and Date Display • WHO Blood Pressure Classification Indicator •...

  • Page 2: Table Of Contents

    Table of Contents Smart Inflate™ measuring technology ....3 Statement of accuracy ....... . . 3 About blood pressure .

  • Page 3: Smart Inflate™ Measuring Technology

    Smart Inflate™ Measuring Technology This Physio Logic™ monitor uses trend-setting Smart Inflate™ Technology to detect your blood pressure. With one touch of a button, it will automatically start to inflate and determine your blood pressure by analysing your pressure oscillations while inflating.

  • Page 4: Blood Pressure Standard

    Blood Pressure Standard The Joint National Committee on prevention, detection, evalua- tion, and treatment of high blood pressure has developed a blood pressure standard, according to which areas of low and high risk blood pressure are identified. This standard is a guideline as blood pressure varies among different people and different age groups...

  • Page 5: Before Taking A Measurement

    Before Taking a Measurement To help you obtain more accurate readings: • Urinate if necessary. • Remove any clothing and jewellery from your left arm. Placing the cuff on anything other than bare skin can result in an inaccurate reading. •...

  • Page 6: Name / Function Of Each Part

    Name / Function of Each Part LCD display User Switching key Date / Time - Set button Memory recall button Arm Cuff Battery compartment On / Off / Start button Air Tube and Connector AC Adaptor Jack PC Link Socket 4 x AA (LR06) size, 1.5 V Batteries (not included)

  • Page 7: Display Explanation

    Display Explanation Date / Time indicator Blood pressure classification risk Systolic pressure indicator Memory Zone Diastolic pressure Weak battery mark Pulse rate Memory sequence number Pulse mark Appears when measurement value is stored in memory or is recalled from memory Pulse Mark: Shows the pulse rate per minute.

  • Page 8: Installing Batteries

    Installing Batteries 1. Press down and lift the battery cover in the direction of the arrow to open the battery compartment. 2. Install or replace 4 “AA” 1.5 V Alkaline batteries according to the indication inside the compartment. Ensure correct polarity. 3.

  • Page 9: Recalling Memory

    Recalling Memory 1. To read memory values, select the memory zone from which you want to recall the values from. Then, press the "M" key. The memory values will be shown on the LCD display. The average measurement will be shown first and a new press of the “M” key will show the last measurement.

  • Page 10: Time Adjustment

    Time Adjustment 1. To adjust the date / time in the monitor, press the Set key The display will show a blinking number showing the month. 2. Change the month by pressing the “ ” Key. Each press will increase the number by one in a cycling manner. Press the Set again to confirm the entry, and the screen will show a blinking number representing the date.

  • Page 11: Applying The Arm Cuff

    Applying the Arm Cuff 1. Insert the cuff’s connecting tube into the unit. 2. Unwrap the arm cuff, leaving the “Index” end of the cuff through the D-ring of the cuff. 3. Put your left arm through the cuff loop. Position the artery mark ( ) at the middle of your arm above the elbow, in line with your middle finger.

  • Page 12: Taking A Measurement

    Taking a Measurement 1. Select the memory zone and press the On / Off / Start button to close the monitor. 2. Press the On / Off / Start button. All displays will appear for approximately one second before returning to “0”. 3.

  • Page 13: Blood Pressure Classification Risk Indicator

    Blood Pressure Classification Risk Indicator The World Health Organization (WHO) and National High Blood Pressure Education Program Coordinating Committee have developed a blood pressure standard, classifying blood pressure ranges into 4 stages. This unit is equipped with a blood pressure classification indicator, which promptly indicates the risk level (prehypertension / stage 1 hypertension / stage 2 hypertension) of the result after each measurement on the LCD display.

  • Page 14: Troubleshooting

    Troubleshooting Symptom: No display when the On / Off / Start button is pressed. Correction: If the batteries have run down, replace them with new alkaline batteries. If the batteries are not in the correct position, re-insert them with the correct polarities. Symptom: EE mark shown on display or the blood pressure value is displayed excessively low (high).

  • Page 15: Data Transfer To Pc

    Data Transfer to PC Data transfer accessories: ® 1. Physio Logic BP Manager software CD-Rom (PC compatible) Note: The BP Manager software must be used with Windows 2000 or XP operating systems. 2. USB cable. BP Manager software installation: Place the BP Manager CD-Rom in your computer’s CD-Rom drive and follow instructions on screen.

  • Page 16: Specifications

    Specifications Measurement method : Oscillometric Measurement range : Pressure: 40 to 250 mmHg ; Pulse: 40 to 199 beats / min. Pressure sensor : Semi conductor Accuracy : Pressure: ± 3 mmHg; Pulse: ± 5 % of reading Inflation : Pump driven Deflation : Automatic pressure release valve Memory capacity...
