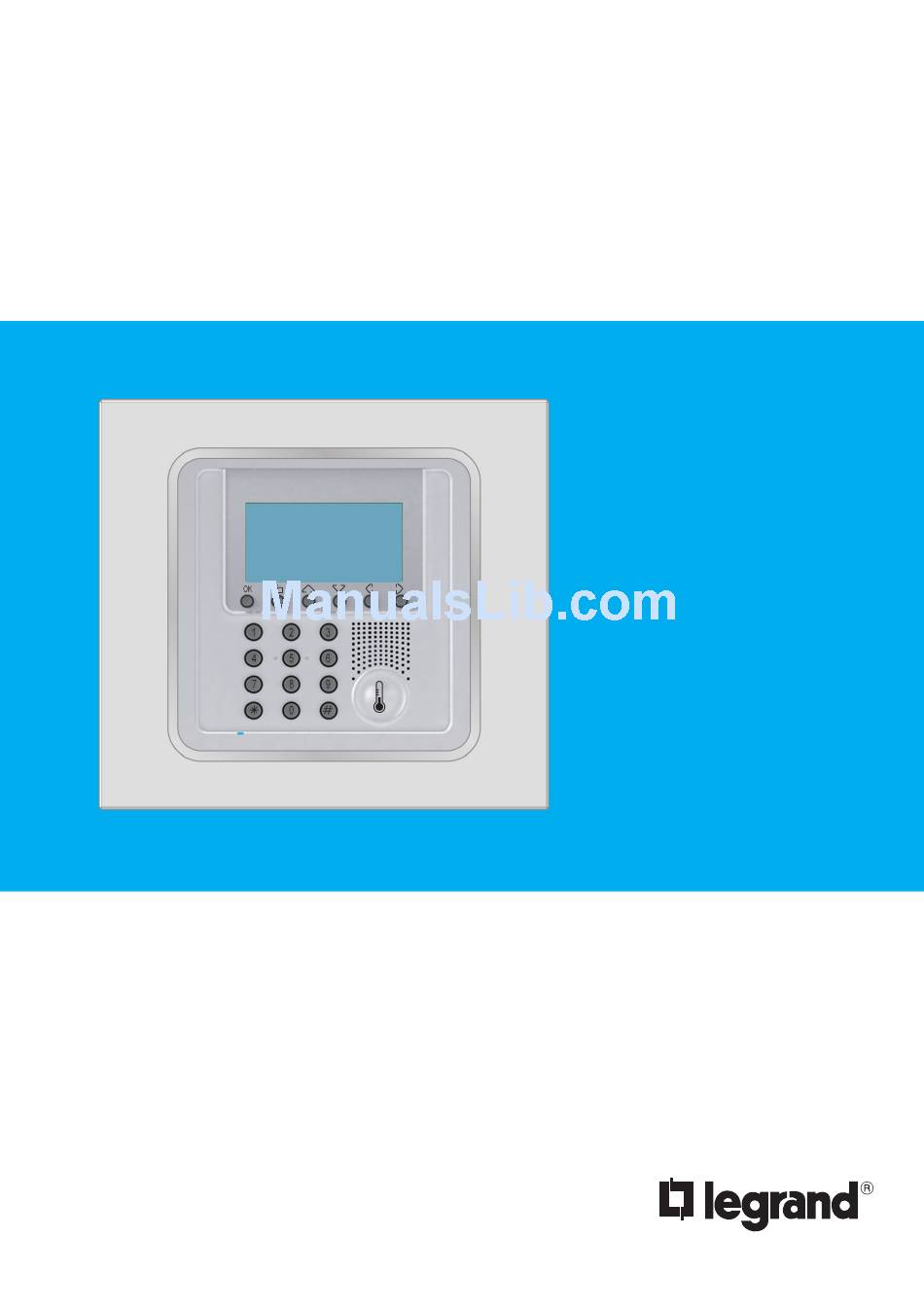

ThermoConfig
Software for the Configuration
of the 5739 18/19 Temperature Control Unit
User manual
December 08 PC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5739 18/19 and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND 5739 18/19

Summary of Contents for LEGRAND 5739 18/19

  • Page 1 ThermoConfig Software for the Configuration of the 5739 18/19 Temperature Control Unit User manual December 08 PC...

  • Page 3: Table Of Contents

    ThermoConfig Contents 1. General description ..............................4 2. Minimum system requirements ........................4 3. Selection of functions .............................. 5 4. Work area ................................... 7 4.1 “Window” System 4.2 “Control unit” Window 4. “Library profiles” Window 5. Example of a project ............................... 16 5.1 System configuration 5.2 Configuration of Weekly programs 5. Scenario configuration 5.4 Configuration of Holiday program 6. Connecting to the Control Unit ........................

  • Page 4: General Description

    ThermoConfig 1. General The ThermoConfig software is a tool that allows the user to easily and intuitively determine or change the configuration to be transferred to the Temperature control Unit 579 18/19, thereby determining description the structure of the system and the profiles of the different programs and scenarios to be performed. 2.

  • Page 5: Selection Of Functions

    Some functions are available only after making a connection between the PC and the Control Unit. Connection to the Drop-down menu Legrand website Executes connection Selection of Selection of...
  • Page 6 ThermoConfig “Tools” menu • Disconnect Enables/disables connection to Control Unit • Upload Loads the configuration present in the device • Download Downloads the configuration created in the device • Update FW Downloads the firmware update • Compare Loads the configuration present in the system in order to compare it with the project opened •...

  • Page 7: Work Area

    ThermoConfig 4. Work area The following windows are included in the ThermoConfig interface work area: “System” Window Main window “Control unit” Window Profiles “Library profiles” configuration Window window 4.1 “Window” System This window shows the tree structure of zones in the system. Tree structure of zones In the tree structure of the zones, if you click the right key of the mouse, the following operations will...
  • Page 8 ThermoConfig When a zone is selected (e.g.: Zone 1), the Zone and Temperature setup section is displayed in the main window: • Description Name of the zone (e.g. Living room) • Zone address Configurators (ZA,ZB) of the probe • Heating temperature Setup for four levels of temperature •...
  • Page 9 ThermoConfig By clicking on each Pump (e.g.: Pump No. 1), it is possible to select the type of function required (heating, cooling, heating + cooling or no function) and the activation Delays.

  • Page 10: Control Unit" Window

    ThermoConfig 4.2 “Control unit” Window This window shows the configuration parameters and the operating programs of the Control Unit. Parameters • Language Language on the display of the Control Unit • Maintenance code Code to enter the Maintenance menu of the Control Unit (default 1245) •...

  • Page 11: Library Profiles" Window

    ThermoConfig 4.3 “Library profiles” Window This window displays the profiles included in the software library. When you select the Profiles node, a window on the right will be displayed. This will allow you to select and display all profiles included in the library. •...
  • Page 12 ThermoConfig • Associate When the top part of the screen displays the detail of a weekly program or holiday program and when one or more zones are selected, associate the currently selected profile with the zones selected. • Report This creates an Excel file containing the graphs of all the profiles included in the library (option available only if Excel is installed in the PC).
  • Page 13 ThermoConfig • Import This allows you to import the profiles and the collections from an external XML file. A window will be opened in order to select the file to be imported, thus showing a list of the profiles and collections included in the file selected. This function is available even if the root node of a collection or a profile within a collection is selected.
  • Page 14 ThermoConfig Instead, the following functions will be available in the Library Profiles by using the right button of your mouse: Functions available by clicking on “Profile” • Add profile Adds a new profile to the library and starts the editing mode of the added profile •...
  • Page 15 ThermoConfig Functions available by clicking a Collection • Rename collection Renames the collection selected • Cancel collection Eliminates the collection selected Functions available by clicking a profile of a Collection • Add profile Adds a new profile to the library and starts the editing mode of the added profile •...

  • Page 16: Example Of A Project

    ThermoConfig 5. Example of a project When the configuration operations described above have been completed, a guided example will be given to create a new project referred to the following system: RADIATOR HEATING - 4 ZONES 005 80 ZONE 4 (bathroom) ZONE 3 (bedroom)

  • Page 17: System Configuration

    ThermoConfig 5.1 System configuration When the program is opened, create a zone by clicking the Add zone button. In the main window: • assign a Description to the zone (e.g. Living room) • enter the Address zone data (ZA, ZB) • set the temperature of the Heating temperature ranges Click Actuators in the tree structure of the Zones.
  • Page 18 ThermoConfig In the main window, click Actuator No. 1 and select the Heating function. Click on Type of load for heating and select ON/OFF. Click Pumps in the System window. In the main window, click Pump No. 1 and assign the Heating function.
  • Page 19 ThermoConfig Click on Heating delay to assign the activation delay of the pump. To create a new zone with the same setup, click the Copy zone button. In doing so, a new address zone having the first available address will be created. After selecting the created zone (Zone 02), it will be possible to customize the description (e.g.

  • Page 20: Configuration Of Weekly Programs

    ThermoConfig 5.2 Configuration of Weekly programs It is possible to create up to three weekly programs for each operation mode of the system (Heating and Cooling). For each program it is possible to determine different temperature profiles (0h-24h) for every day and for every zone of the system.
  • Page 21 ThermoConfig The following actions are now possible: Associate: Associates a new profile with the day and with the zones selected. • select the required profile from among those included in the library profiles and click on the Associate button It is possible to associate the same profile with other zones by simply making a multiple selection (with the Shift and Control keys) within the list of the zones.
  • Page 22 ThermoConfig Copy day: Copies the setup of the current day to one or more days. A window will appear for selecting the day. It is possible to select several days by using the Shift and Control keys. Copy program: Copies the setup of the current program to one or more weekly programs belonging to the same function (heating or cooling).
  • Page 23 ThermoConfig Identical zones: This indicates, in the list of the zones, which zones use the profile of the selected zone. Display program: Shows the synoptic panel of the profiles associated with each zone for each day of the week. The display may occur in graph mode by enabling “Display profiles graph”. By clicking on the Export button, it will be possible to export the synoptic panel in graph mode into an xls file (if Excel is installed) or in text mode (if Excel is not installed).

  • Page 24: Scenario Configuration

    ThermoConfig 5.3 Scenario configuration It is possible to create up to 16 scenarios for each operation mode of the system (Heating and Cooling) and, for each scenario, to set up different temperatures for each zone. To set up a scenario: •...

  • Page 25: Configuration Of Holiday Program

    ThermoConfig 5.4 Configuration of Holiday program Using the same configuration logic described for the weekly Program, it is possible to create, for the selected mode (Heating or Cooling), a daily profile for each zone of the system. Complete the configuration and save the Project To transfer the project to the 579 18/19 Temperature control Unit, proceed as described in the following pages.

  • Page 26: Connecting To The Control Unit

    ThermoConfig 6. Connecting to the In order to use specific functions (e.g.: Upload, Download, Diagnosis, etc.), it is necessary to connect the PC in which the ThermoConfig software is installed to the temperature control Unit in the system. Control Unit To connect •...

  • Page 27: Functions Enabled While Connecting

    ThermoConfig 7. Functions enabled 7.1 Upload while connecting The Upload function enables you to transfer all or part of the configuration of the Control Unit to the project opened in ThermoConfig. • Select Upload from the Tools menu or from the toolbar A window will appear in which it is possible to select all or part of the configuration you want to transfer.

  • Page 28: Download

    ThermoConfig 7.2 Download The Download function enables you to transfer all or part of the configuration of the project opened in ThermoConfig to the Control Unit. • Select Download from the Tools menu or from the toolbar A window will appear in which it is possible to set the date/time and select the parts of the project to be transferred to the Control Unit.

  • Page 29: System Test

    ThermoConfig It is possible to get details of the setup which is determining the incompatibility by clicking on Details or to use one of the three possible actions: • Force The configuration of the project will be downloaded anyway • Align The configuration of the project will be aligned to that of the Control Unit •...

  • Page 30: Compare 0

    ThermoConfig 7.3 Compare The Compare function enables you to display the differences between the project configuration and the configuration in the system. • Select Compare from the Tools menu The following window will appear: 7.4 Diagnosis The Diagnosis function enables you to verify the status of the single components for each zone. •...

  • Page 31: Firmware Update

    ThermoConfig 8. Firmware update The Update FW function enables you to update the Firmware of the Control Unit. The function is always enabled, even if there is no connection with the system. • Select Update FW from the Tools menu or from the toolbar The following window will appear: •...
  • Page 32 ThermoConfig • Click Download to start updating the firmware The following window will appear: > Execute the required operations and then click OK Select the maintenance menu of Slide switch the Unit and start the auto-learning Made in Italy function REMOTE Language Con gured zones...
  • Page 33 ThermoConfig During the data transfer phase, the following window will appear; it is possible to interrupt the operation by selecting Stop. When the updating operation has been completed, the following message will be displayed: To complete the procedure, follow the requested operations: 1) Remove the cable from the device 2) Press the RESET button on the Control Unit 3) Press OK to continue...
