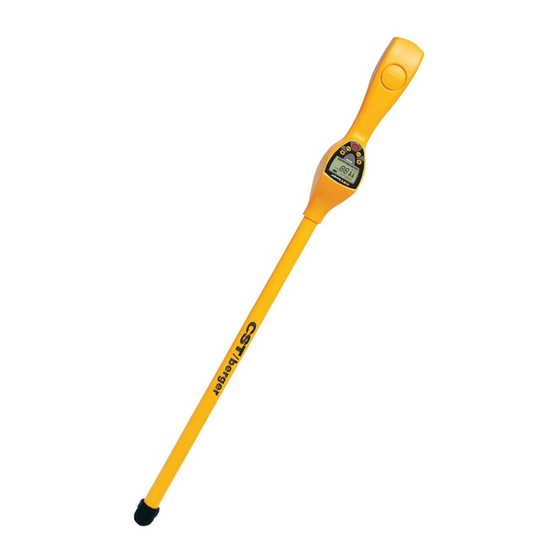

CST Magna-Trak MT200 Instruction Manual
Hide thumbs Also See for Magna-Trak MT200:

Advertisement

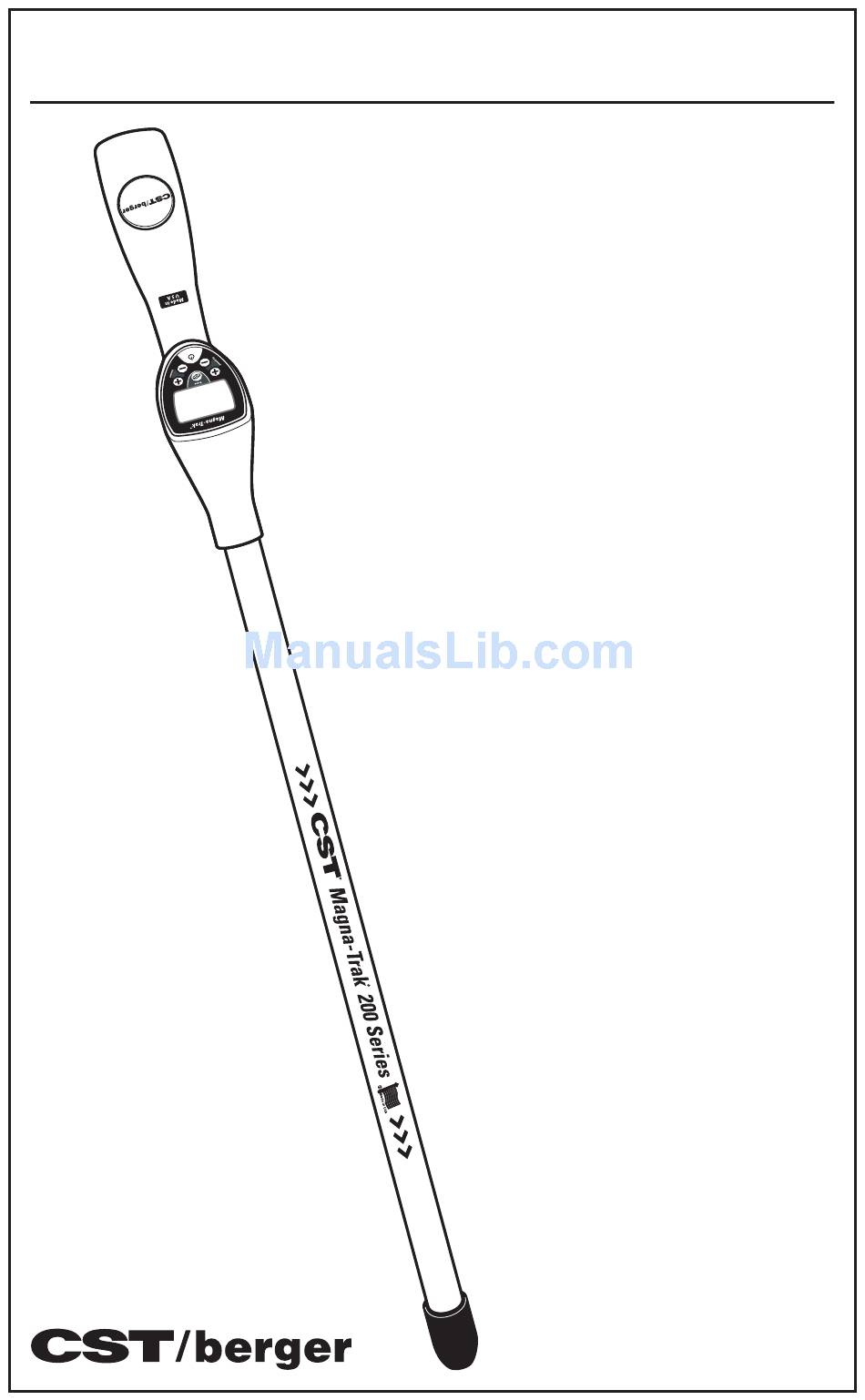

INSTRUCTION MANUAL
®
Magna-Trak
Series
Magnetic Locator
MT200 • MT202
Magna-Trak 200 Series Magnetic Locator • 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magna-Trak MT200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CST Magna-Trak MT200

  • Page 1 INSTRUCTION MANUAL ® Magna-Trak Series Magnetic Locator MT200 • MT202 Magna-Trak 200 Series Magnetic Locator • 1...
  • Page 2: Table Of Contents

    MT-202 model. Copyright© 2002-2004 CST/berger. All rights reserved The information contained herein is proprietary information of CST/berger, and is subject to change without notice. This document shall not be copied or otherwise reproduced without CST/berger's written consent.
  • Page 3: Theory Of Operation

    2. THEORY OF OPERATION The locator finds ferromagnetic objects by sensing the magnetic field radiated by the object. The locator contains two sensor coil assemblies that are precisely spaced and electronically balanced to achieve a near magnetically-balanced ≠operating condition. In a uniform magnetic field, such as the earth’s field, the two sensor coils maintain a magnetically-balanced status, because both of the coils experience the same magnetic lines of force.
  • Page 4: Specifications

    8. SPECIFICATIONS Power: Six “AA” (1 ⁄ volt) batteries Battery life: 100 hours of intermittent operation (alkaline batteries) Output: Powerful magnetic speaker with molded cover to protect from direct contact. LCD Display: Numeric digital, analog Bar-graph, power line indicator and low battery indicator feature Weight: Approximately 2.5 lbs.
  • Page 5: Features

    3. FEATURES • Rugged high-impact plastic enclosure with aluminum sensor pole • Powerful magnetic speaker with molded cover to protect speaker from direct contact of water and dust • Lightweight, comfortably balanced for easy handling • Six “AA” (1 ⁄ volt) battery operation;...
  • Page 6: Basic Operation And Description

    4. BASIC OPERATION AND DESCRIPTION 4.1 Power On/Off Switches Press “ON” once to activate the locator circuitry. Press again to turn the battery power off. 4.2 Volume and Sensitivity Control Sensitivity Setting: The sensitivity or depth range can be varied using the “UP” and”“Down”...
  • Page 7: Lcd Visual Display

    4.4 LCD Visual Display Several visual display functions, provided for ease of operation, are defined below: Digital Signal Indicator A two digit numeric display shows the signal level as related to the audio ≠signal response being heard from the speaker. At the lowest signal level, when no ferrous metal is present, a small number will be viewed (between “0”...
  • Page 8: Battery Replacement

    buried object in search of. The only option is to reduce the sensitivity until the interference from the fence is minimized. However, the locator’s sensitivity to the buried object is also minimized and usually undetectable. The Magna-Trak 202 and its “Erase” feature solves this problem by providing an Erase Button;...
  • Page 9: Field Operation

    6. FIELD OPERATION The recommended search position is a 45° angle from the earth’s surface. Scan the locator pole from side-to-side in a slow sweeping motion while walking in a steady direction. Maintain a consistent height above the ground Physical "X" Motion Locator's Electrical Response Shown Representation...
  • Page 10: Signal Response

    7. SIGNAL RESPONSE Figure 7 shows audio and LCD visual signal response to: 1: no object, 2: one small deeper metal target, and 3: a second larger and shallower metal object. The LCD display indicates both the numeric ≠digital and analog bar-graph response as the locator passes over the ground.
  • Page 11: Typical Signal Responses

    7.1 Typical Signal Responses The metal handles on the septic tank cover Signal Response will provide a usable signal to determine the location of the actual cover (Fig. 8). Fig. 8 Large metal objects may cause double Signal Response signals as indicated (Fig.
  • Page 12 255 W. Fleming Street Watseka IL 60970 USA 767441 ©2004 CST/berger Z93-19MT200 12 • Magna-Trak 200 Series Magnetic Locator (0404) CP...
