Summary of Contents for CST Magna-Trak 102

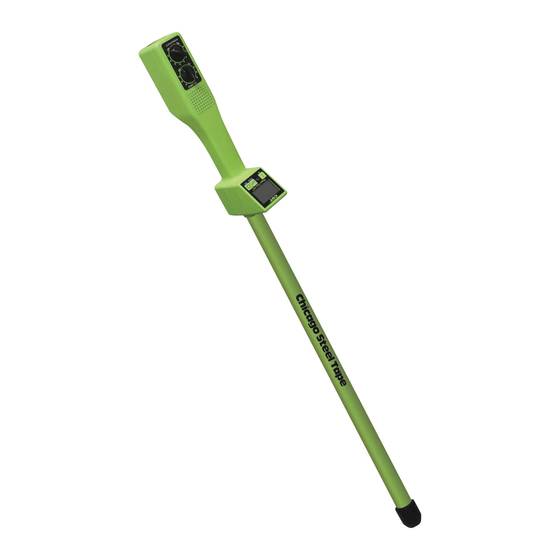

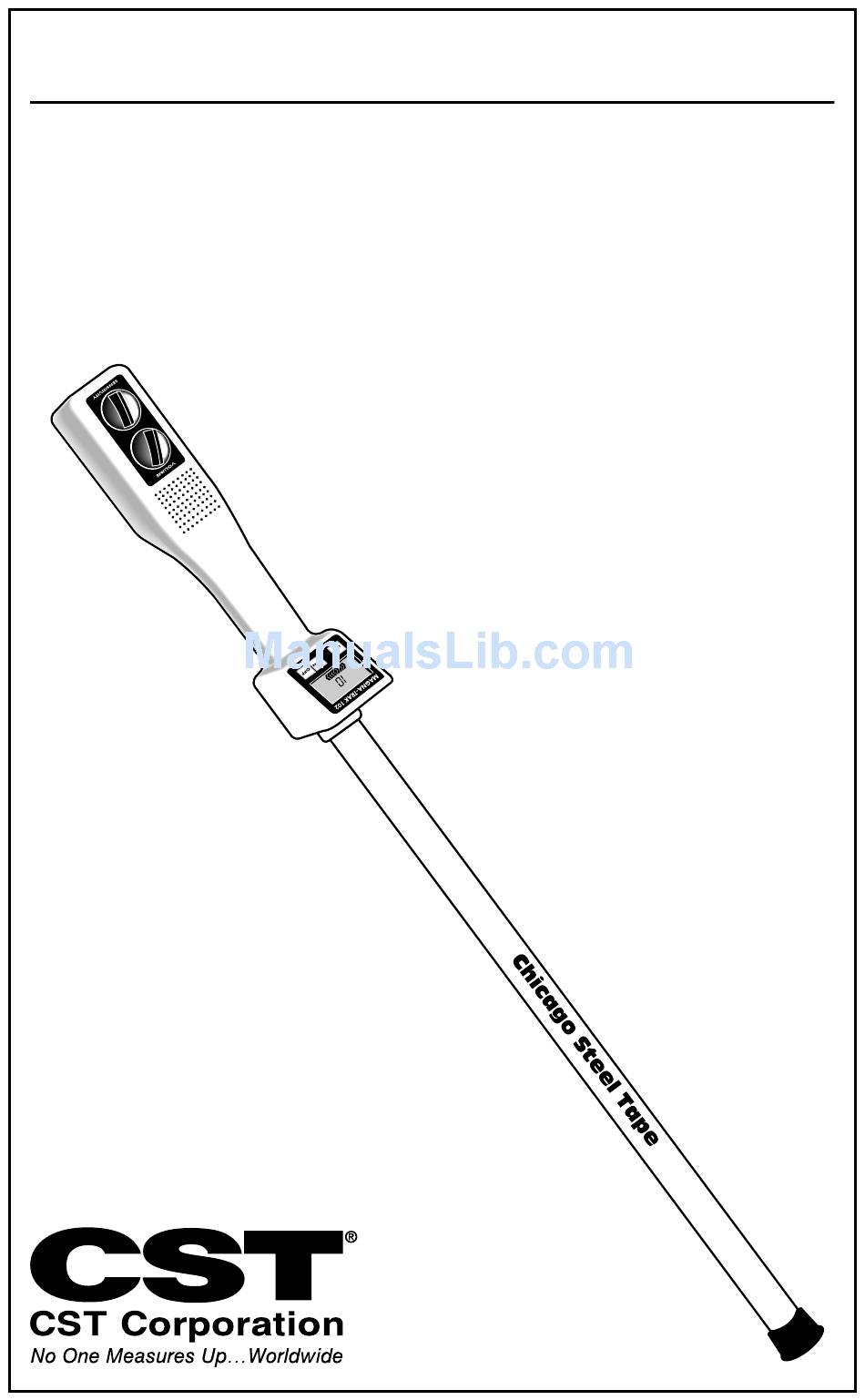

- Page 1 INSTRUCTION MANUAL ® Magna-Trak 102 Magnetic Locator...
-
Page 2: Table Of Contents
Locating Near a Steel Fence ......14 Specifications, Warranty & Service ....15 Introduction The Magna-Trak 102 magnetic locator is a flux-gate type of magnetometer which incorporates a unique patented tech- nology that enables the factory to balance the magnetic sensing coils to a finite condition. -
Page 3: Theory Of Operation
Theory of Operation The Magna-Trak 102 locator finds ferromagnetic objects by sensing the magnetic field radiated by the object. The lo- cator contains two sensor coil assemblies that are precisely spaced and electronically balanced to achieve a near magnetic balanced operating condition. In a uniform magnetic field, such as the earth’s field, the two sensor coils maintain a magnetic... -
Page 4: Features
Features 1. Instrument Control Panel a) LCD Visual Display b) Water-repellant push button switch operation 2. LCD Visual Display a) Two digit numeric signal indicator b) Expanding analog bar graph signal indicator c) “Low Battery” alert flashing indicator d) Displays “ferrous” model operation e) “Caution: Power Line”... -
Page 6: Basic Operation And Description
Basic Operation and Descriptions Power On Button: Press once to activate the locator circuitry. Simultaneously, the circuitry is automatically set to the proper audio tone. Power Off Button: Press once to turn the battery power off. Volume Control: Rotate the knob to the desired audio sound level. - Page 7 Analog Bar-Graph Signal Indicator–the bar graph corresponds directly to audio frequency by expand- ing outward from the center “diamond” as the signal increases due to magnetic metals. Low Battery Indicator–Although not visible under normal conditions the LCD will display a flashing “Low Battery” warning when the batteries fall below a predetermined voltage.
- Page 8 The new Magna-Trak 102 and its “Erase” feature solves this problem by providing an Erase button; simply press this button when the interference is annoying and the metal struc- ture is electronically erased.
- Page 9 lar area around the position of the locator in which the erase button was pressed. This circular area, referred to as the erase zone, may be affected by the magnitude of the magnetic field of the fence and the distance from the fence when the button was pressed.
-
Page 10: Field Operation
Field Operation The recommended search position is a 45 degree angle from the earth’s surface. Scan the locator pole from side-to-side in a slow sweeping motion while walking in a uniform direction. Once the object being searched is located, pinpointing the objects location can be accomplished by holding the locator vertical and sweeping it in an “X”... -
Page 11: Signal Responses
Signal Response Below is an example of audio and LCD visual signal responses to (1) no object, (2) one small deeper metal target and (3) a second larger and shallower metal object. The LCD display in- dicates both the numeric digital and analog bar-graph response as the locator passes over the ground. -
Page 12: Typical Signal Responses
Typical Signal Responses The metal handles on the septic tank cover will provide a us- able signal to determine the location of the actual cover. Signal Response The metal handles on a septic tank cover Large metal objects may cause double signals as indicated. The center of the cover is found by sweeping the locator back and forth to create a ring pattern response. -
Page 13: Signal Responses
Typical Signal Responses Water Locations: The locator can be submerged into water with the pole sec- tion to just under the plastic case. Hold the locator in a vertical position while searching to pro- duce the best results. The joints, elbows and ends will create the strongest signals. Cast iron pipe, joints, elbows, etc. -
Page 14: Locating Near A Steel Fence
Locating Near a Steel Fence Approach the fence and stop at the distance at which you wish to begin your search. While holding the locator in a vertical position, press and release the “erase” button on the membrane panel. Begin sweeping the locator side to side parallel to the fence. -
Page 15: Specifications, Warranty & Service
Nominal sensor 20 inches (50.8 cm.). Warranty The Magna-Trak 102 magnetic locator is warranted to be free from defects in materials and workmanship for a period of five years af- ter the delivery of the product to the original user. Our liability un- der this warranty is limited to replacing any defective parts, adjust- ing and servicing any instrument or, at the company’s option, re-... - Page 16 450 S. CIPS Street P .O. Box 359 Watseka, IL 60970 USA (815) 432-5237 FAX (815) 432-2417 Toll Free: (800) 435-1859 http://www.cstsurvey.com sales@cstsurvey.com Chicago Steel Tape Berger Magna-Trak® LaserMark™ Tru-Lock™ Magna-Trak 102 made in Watseka, Illinois, USA GG12961000 Rev. 2...
