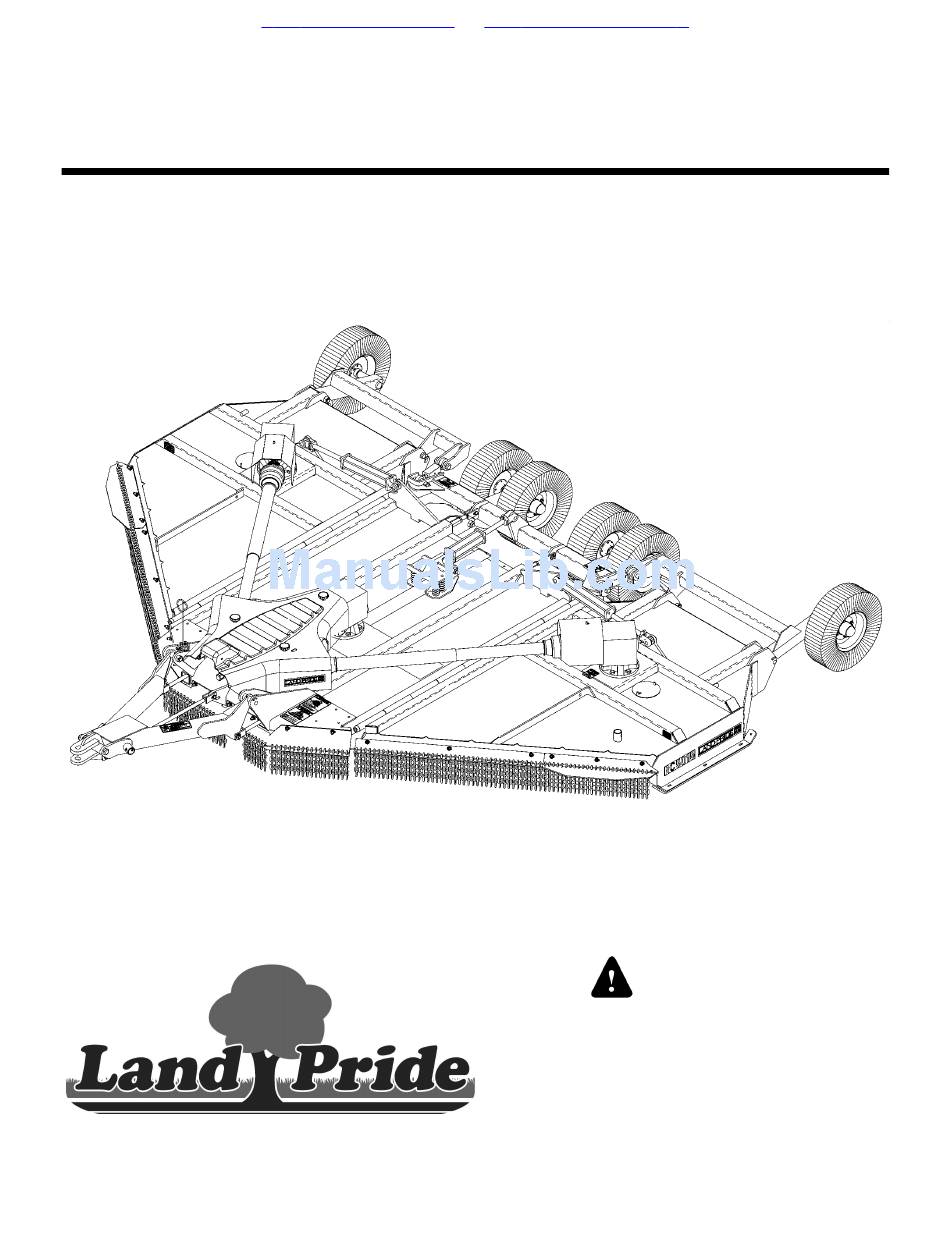

Page 1 Table of Contents Rotary Cutters RC5015, RCM5015, RC6015 & RCM6015 15678 Part Number Index Parts Manual Read the Operator's manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception. Your life and the lives of others depend on it! ©...
Page 2: Table Of Contents
© Copyright 2011. All rights reserved. Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual, Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit.
Page 3 Hydraulic Cylinder (810-624C) Red Lion...294 Hydraulic Cylinder Center (810-195C) Midway...296 Hydraulic Cylinder Center Lift (810-162C) Cross...298 Hydraulic Cylinder Center Lift (810-162C) Midway...300 Hydraulic Cylinder Wing (810-150C) Cross...302 Hydraulic Cylinder Wing (810-150C) Midway...304 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P (continued)
Page 4 Shredder Kit Comer (S/N 235492+)...326 Shredder Kit Omni (S/N 235491-)...328 Section 9: Options & Accessories...330 Baffle Shreader Kit...330 Shredder Kit Comer (S/N 235492+)...332 Shredder Kit Omni (S/N 235491-)...334 Part Number Index...336 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Part Number Index (continued) 08/31/11...
Page 5 Hydraulic Valve Selector Assessory...146 Hydraulic Valve Spool Control Accessory...148 Hydraulic Wing Lift...150 Label Placement...154 Maunal Winch Wing Deck Accessory...152 Shredder Kit Comer (S/N 235492+)...160 Shredder Kit Omni (S/N 235491-)...162 Shredder Kit Omni (S/N 235491-)...164 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P...
Page 6 Driveline Slip Clutch 540/1000 RPM (1446016) EC...252 Driveline Wing (826-185C) EC New Shielding...254 Driveline Wing (826-185C) EC Old Shielding...256 Driveline Wing (826-262C) Walterscheid (S/N 461934-)..258 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Part Number Index (continued) Driveline Wing (826-481C) Comer (S/N 461935 to 461937, 468573+)...260...
Page 7 Maunal Winch Wing Deck Accessory...318 Shredder Kit Comer (S/N 235492+)...326 Shredder Kit Comer (S/N 235492+)...332 Shredder Kit Omni (S/N 235491-)...328 Shredder Kit Omni (S/N 235491-)...334 Wing Turnbuckle and Transport Bar...180 08/31/11 Part Number Index RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P (continued)
Page 8: Section 1: Introduction
Table of Contents Part Number Index RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 9: Hardware Legend
Table of Contents Part Number Index 08/31/11 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P...
Page 10: Rc5015 & Rc6015 Series (540 Rpm)
Table of Contents Part Number Index Land Pride Section 2: Decks RC5015 & RC6015 SERIES (540 RPM) Blade Carrier Applies to RC5015, RC6015 16969 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 11 RC6015 & RCM6015 (S/N 325491-) RC6015 & RCM6015 (S/N 325492+) RC6015 & RCM6015 (S/N 325491-) As Required As Required As Required As Required RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev 1; Use up stock...
Page 12: Deck Center Section (540 Rpm) (Rc50 Series Only S/N 217473-)
Table of Contents Part Number Index Land Pride Section 2: Decks RC5015 & RC6015 SERIES (540 RPM) Deck Center Section (540 RPM) (RC50 Series Only S/N 217473-) Applies to RC5015 15338 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 13 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments Includes items 26 part no. 826-174C, 27, 33 & 34 (S/N 214514-) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev 1; Use up stock Rev. 1...
Page 14: Deck Center Section (540 Rpm) (S/N 217474+)
Table of Contents Part Number Index Land Pride Section 2: Decks RC5015 & RC6015 SERIES (540 RPM) Deck Center Section (540 RPM) (S/N 217474+) Applies to RC5015, RC6015 16924 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 15 RC6015 (S/N 325491-) RC5015 (S/N 325491-) RC5015 (S/N 325492 to 419601-) RC5015 (S/N 419602+) RC5015 RC6015 (S/N 325491-) RC6015 (S/N 325492 to 419601-) RC6015 (S/N 419602+) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev. 1...
Page 16 803-255C NUT HEX NYLOCK 1/4-20 804-007C WASHER FLAT 1/4 SAE PLT 890-005C BUSHING CYL 1 1/4 X 1 X 1 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Part Number Index Comments Revision RC6015 (S/N 635384+) (S/N 468558 to 635383) Rev.
Page 17 Part Number Index Section 2: Decks Land Pride RC5015 & RC6015 SERIES (540 RPM) Deck Center Section (540 RPM) (S/N 217474+) (continued) Applies to RC5015, RC6015 This Page Intentionally Left Blank 08/31/11 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P...
Page 18: Deck Wing Section (540 Rpm)
Table of Contents Part Number Index Land Pride Section 2: Decks RC5015 & RC6015 SERIES (540 RPM) Deck Wing Section (540 RPM) Applies to RC5015, RC6015 15340 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 19 RC6015 LH 540 RPM (S/N 325492+) RC6015 LH 540 RPM (S/N 325491-) RC6015 RH 540 RPM (S/N 325492+) RC6015 RH 540 RPM (S/N 325491-) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 not compat. w/Rev. 1.
Page 20: Part Number Index
DEFLECTOR FLAT RH. RED 826-185C PTO CAT.4 W/CLUTCH 1 3/4-20 826-481C PTO V80 X 59.3 1280NM CLUTCH 826-262C RPBY 826-481C RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Part Number Index Comments Revision (S/N 325492+) Rev. 2 not compat. w/Rev. 1. (S/N 325491-) Rev.
Page 21 Table of Contents Part Number Index Section 2: Decks Land Pride RC5015 & RC6015 SERIES (540 RPM) Deck Wing Section (540 RPM) (continued) Applies to RC5015, RC6015 This Page Intentionally Left Blank 08/31/11 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P...
Page 22: Hitch
Table of Contents Part Number Index Land Pride Section 2: Decks RC5015 & RC6015 SERIES (540 RPM) Hitch Applies to RC5015, RC6015 15351 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 23 (S/N 419602+) (S/N 419601-) S/N 509805+ S/N 509804- Includes items 10, 11, 12 & 14-through 17 Includes items 10 through 13 (S/N 419602+) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 not compat. w/Rev.1 Rev. 1...
Page 24: Wing Turnbuckle And Transport Bar
Table of Contents Part Number Index Land Pride Section 2: Decks RC5015 & RC6015 SERIES (540 RPM) Wing Turnbuckle and Transport Bar Applies to RC5015, RC6015 15488 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 25 GREASE ZERK STRAIGHT 1/4-28 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments S/N 222150+ S/N 222149- S/N 419602+ S/N 419601- RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev 1; Use up stock...
Page 26: Section 3: Axles
Table of Contents Part Number Index Land Pride Section 3: Axles RC5015 & RC6015 SERIES (540 RPM) Axle Center Dual (S/N 489025-) Applies to RC5015, RC6015 15376 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 27 (S/N 328236-) Use with #17, 18 & 19 S/N 414628+ Use #20 S/N 414628+ (S/N 414628+) (S/N 419602+) (S/N 419602+) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 not compat. w/Rev. 1. Rev. 1 Rev. 3 Rev.
Page 28: Axle Center Dual (S/N 489026+)
Table of Contents Part Number Index Land Pride Section 3: Axles RC5015 & RC6015 SERIES (540 RPM) Axle Center Dual (S/N 489026+) Applies to RC5015, RC6015 30209 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 29 822-033C BEARING CUP LM-48510 822-034C BEARING CONE LM-48548 803-017C NUT LUG 1/2-20X90DEG PLT 13/16 815-244C HUB 5-BOLT COMPLETE 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 30: Axle Center Single (S/N 489025-)
Table of Contents Part Number Index Land Pride Section 3: Axles RC5015 & RC6015 SERIES (540 RPM) Axle Center Single (S/N 489025-) Applies to RC5015, RC6015 15384 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 31 Use with #17, 18 & 19 S/N 414628+ Use with #20 S/N 414628+ (S/N 414628+) (S/N 419602+) (S/N 419602+) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 not compat. w/Rev. 1 Rev. 1 Rev. 3 Rev.
Page 32: Axle Tandem Center Deck (S/N 419602 To 489025)
Table of Contents Part Number Index Land Pride Section 3: Axles RC5015 & RC6015 SERIES (540 RPM) Axle Tandem Center Deck (S/N 419602 to 489025) Applies to RC5015, RC6015 22084 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 33 890-766C BUSHING 1.25ODX1.00IDX3.00 890-817C BUSHING 1.25ODX1.00IDX3.75 815-236C HUB 4 BOLT COMPLETE 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments Optional Optional Optional W/CUPS, ZERK & STUDS RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 34: Axle Tandem Center Deck (S/N 489026+)
Table of Contents Part Number Index Land Pride Section 3: Axles RC5015 & RC6015 SERIES (540 RPM) Axle Tandem Center Deck (S/N 489026+) Applies to RC5015, RC6015 23964 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 35 BEARING CONE LM-67048 822-020C BEARING CUP LM-67010 815-244C HUB 5-BOLT COMPLETE 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments Added Hardened Bushings Optional Optional W/ #4 Optional Optional RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 36: Axle Wing (S/N 489025-)
Table of Contents Part Number Index Land Pride Section 3: Axles RC5015 & RC6015 SERIES (540 RPM) Axle Wing (S/N 489025-) Applies to RC5015, RC6015 15352 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 37 (S/N 328237 to 419601) (S/N 328236-) Use with #16, 17 & 18 S/N 414628+ Use with #19 S/N 414628+ (S/N 414628+) (S/N 419602+) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 3 Rev. 2 Rev 1; Use up stock Rev.
Page 38: Axle Wing (S/N 489026+)
Table of Contents Part Number Index Land Pride Section 3: Axles RC5015 & RC6015 SERIES (540 RPM) Axle Wing (S/N 489026+) Applies to RC5015, RC6015 30210 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 39 822-033C BEARING CUP LM-48510 822-034C BEARING CONE LM-48548 803-017C NUT LUG 1/2-20X90DEG PLT 13/16 815-244C HUB 5-BOLT COMPLETE 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 40: Section 4: Guards
Table of Contents Part Number Index Land Pride Section 4: Guards RC5015 & RC6015 SERIES (540 RPM) Guards Center Deck (S/N 292791-) Applies to RC5015, RC6015 15410 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 41 RUBBER GUARD REAR CENTER 318-127D RUBBER GUARD CTR.RR OUTER BRKT 318-131D RUBBER GUARD FLAT BRKT. 8 816-245C RUBBER GUARD REAR CTR.OUTER 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 42: Guards Center Deck (S/N 292792 To 419601)
Table of Contents Part Number Index Land Pride Section 4: Guards RC5015 & RC6015 SERIES (540 RPM) Guards Center Deck (S/N 292792 To 419601) Applies to RC5015, RC6015 19019 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 43 RUBBER GUARD REAR CENTER 318-127D RUBBER GUARD CTR.RR OUTER BRKT 318-131D RUBBER GUARD FLAT BRKT. 8 816-245C RUBBER GUARD REAR CTR.OUTER 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 44: Guards Center Deck (S/N 419602+)
Table of Contents Part Number Index Land Pride Section 4: Guards RC5015 & RC6015 SERIES (540 RPM) Guards Center Deck (S/N 419602+) Applies to RC5015, RC6015 22135 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 45 NUT HEX WHIZ 1/2-13 PLT 890-341C CHAIN WELD 5/16 PROOF X 5 LINK 890-485C CHAIN WELD 5/16 PROOF X 3 LINK 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 46: Guards Center Deck Double Chains (S/N 292791-)
Table of Contents Part Number Index Land Pride Section 4: Guards RC5015 & RC6015 SERIES (540 RPM) Guards Center Deck Double Chains (S/N 292791-) Applies to RC5015, RC6015 15690 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 47 CG. CENTER REAR DUAL 318-107D ROUND ROD 1/4 X 31 1/2 890-393C CHAIN WELD 5/16 PROOF X 7-LINK 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 48: Guards Center Deck Double Chains (S/N 292792 To 419601)
Table of Contents Part Number Index Land Pride Section 4: Guards RC5015 & RC6015 SERIES (540 RPM) Guards Center Deck Double Chains (S/N 292792 To 419601) Applies to RC5015, RC6015 19020 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 49 318-107D ROUND ROD 1/4 X 31 1/2 890-393C CHAIN WELD 5/16 PROOF X 7-LINK 802-017C HHCS 3/8-16X1 GR5 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 50: Guards Center Deck Double Chains (S/N 419602+)
Table of Contents Part Number Index Land Pride Section 4: Guards RC5015 & RC6015 SERIES (540 RPM) Guards Center Deck Double Chains (S/N 419602+) Applies to RC5015, RC6015 22136 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 51 CHAIN WELD 5/16 PROOF X 5 LINK 890-400C CHAIN WELD 5/16 PROOF X 4 LINK 890-485C CHAIN WELD 5/16 PROOF X 3 LINK 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 52: Guards Wing Deck (S/N 292791-)
Table of Contents Part Number Index Land Pride Section 4: Guards RC5015 & RC6015 SERIES (540 RPM) Guards Wing Deck (S/N 292791-) Applies to RC5015, RC6015 15436 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 53 CG. FRONT WING INNER DUAL LH 318-176K ASSY. FRT. WG. INNER DEF. LH. 318-186D FRT. DEF. BRKT. WING INNER LH. 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 54: Guards Wing Deck (S/N 292792+)
Table of Contents Part Number Index Land Pride Section 4: Guards RC5015 & RC6015 SERIES (540 RPM) Guards Wing Deck (S/N 292792+) Applies to RC5015, RC6015 19018 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 55 ASSY. DBL. CG. FRT. WING LH. 318-343D RC5015 WING FRONT DBLCHAIN LH 318-338K ASSY. FRT. WING LH. DEF. 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 56: Section 5: Drivelines
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Center (826-478C) Comer (S/N 461935 to 461937, 468573+) Applies to RC6015 23952 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 57 COMER ROLL PIN, INNER TUBE 151.016.031.1 COMER INNER YOKE 146.264.024.1 COMER CLUTCH, COMPLETE ASSY 165.000.589 COMER TAPERED PIN SET 1 3/4 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 58: Driveline Center 540 Rpm (826-183C) Eurocardan
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Center 540 RPM (826-183C) Eurocardan Applies to RC5015, RC6015 15570 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 59 EC SPRING WASHER 6410112 EC NUT 084099 WS ZERK M8 X 1 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments Includes items 7, 8 & 9 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 60: Driveline Center 540 Rpm (826-260C) Walterscheid (S/N 461934-)
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Center 540 RPM (826-260C) Walterscheid (S/N 461934-) Applies to RC6015 16965 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 61 391708 WS FRICTION CLUTCH 702352 WS HEX BOLT M16 X 90 GR 8.8 304011 WS LOCK NUT M16 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 62: Driveline Conv. 540 Rpm (826-112C) Walterscheid (S/N 214515+)
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Conv. 540 RPM (826-112C) Walterscheid (S/N 214515+) Applies to RC5015, RC6015 18548 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 63 WS LOCK NUT M16 377442 WS SHIELD CONE - 12 RIB 826-587C SHIELD KIT, 826-112C 359474 WS REINFORCING COLLAR 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 64: Driveline Conv. 540 Rpm (826-188C) Ec New Shields
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Conv. 540 RPM (826-188C) EC New Shields Applies to RC5015 16736 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 65 WS ZERK M8 X 1 6560508 RPBY 084099 826-582C SHIELD KIT, 826-188C &826-189C 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev 1; Use up stock...
Page 66: Driveline Conv. 540 Rpm (826-188C) Ec Old Shields
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Conv. 540 RPM (826-188C) EC Old Shields Applies to RC5015 15569 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 67 EC CONICAL DOG KIT REPLACEMENT 6560508 EC GREASE ZERK 8X1 45 DEG. 1216233 EC STIFFENING RING 826-582C SHIELD KIT, 826-188C &826-189C 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 68: Driveline Cv 540 Rpm (826-117C) Walterscheid (S/N 214515 To 336516 & 388671 To 468557)
Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline CV 540 RPM (826-117C) Walterscheid (S/N 214515 to 336516 & 388671 to 468557) Applies to RC5015, RC6015 26857 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 69 304011 WS LOCK NUT M16 826-588C SHIELD KIT, 826-117C &826-181C 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments HARDENED SLEEVE NON-HARDENED SLEEVE RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev. 1...
Page 70: Driveline Cv 540 Rpm (826-181C) Ec New Shields
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline CV 540 RPM (826-181C) EC New Shields Applies to RC5015 16732 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 71 EC 10X80-DIN-1481 O/TUBE R/PIN 6280313 EC SELF THREADING SCREW 826-720C SHIELD KIT EC, 826-181C 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments Service Only RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev. 1...
Page 72: Driveline Cv 540 Rpm (826-181C) Ec Old Shields
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline CV 540 RPM (826-181C) EC Old Shields Applies to RC5015 15512 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 73 6560508 EC GREASE ZERK 8X1 45 DEG. 826-720C SHIELD KIT EC, 826-181C 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments Service only RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev. 1...
Page 74: Driveline Cv 540 Rpm (826-336C) Walterscheid (S/N 336516 To 388670)
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline CV 540 RPM (826-336C) Walterscheid (S/N 336516 to 388670) Applies to RC5015 19897 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 75 WS BOLT M16 X 80 - 8.8 020466 WS BOLT M12 X 60 - 8.8 364915 WS ASSY COLLAR KIT 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 76: Driveline Cv 540 Rpm (826-476C) Comer (S/N 468558 To 547835)
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline CV 540 RPM (826-476C) Comer (S/N 468558 to 547835) Applies to RC5015, RC6015 23947 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 77 COMER HLF FEMALE GRD W/LABEL 1422871632821 COMER HALF MALE GUARDING 180.018.393 COMER CAP OUTER TUBE, PLASTIC 165.000.628 COMER COLLER KIT 3/8 YOKE 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 78: Driveline Cv 540 Rpm (826-643C) Weasler
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline CV 540 RPM (826-643C) Weasler Applies to RC5015, RC6015 30185 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 79 WE JOINT&SHFT HALF ASM W/GUARD 92-24406 WE JOINT&TUBE HALF ASM W/GUARD 91-24406 WE GUARD SET 11-80005 WE CHAIN KIT 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 80: Driveline Cv Joint (540 Rpm) (7106622) Eurocardan
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline CV Joint (540 RPM) (7106622) Eurocardan Applies to RC5015 23994 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 81 EC OUTER TUBE HOMOKINETIC YOKE 1004227 EC PULL COLLAR KIT EVOLUTION 1004225 RPBY 1004227 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments Service Only RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev. 1...
Page 82: Driveline Cv Joint (540 Rpm) (7600602) Eurocardan
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline CV Joint (540 RPM) (7600602) Eurocardan Applies to RC5015, RC6015 15513 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 83 EC GREASE ZERK M6X1 STRAIGHT 1000608 EC OUTER TUBE YOKE 1004220 EC TWIST COLLAR KIT (TRT. END) 1000604 EC SPIDER PIN 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 84: Driveline Slip Clutch (146.264.024.1) Comer
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Slip Clutch (146.264.024.1) Comer Applies to RC6015 23957 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 85 COMER INTERMEDIATE PLATE 180.019.116.1 COMER PRESSURE PLATE 165.000.548 COMER BOLT WITH NUT M10X100 165.000.589 COMER TAPERED PIN SET 1 3/4 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 86: Driveline Slip Clutch (146.284.020.1) Comer
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Slip Clutch (146.284.020.1) Comer Applies to RC6015 23958 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 87 COMER INTERMEDIATE PLATE 180.019.116.1 COMER PRESSURE PLATE 165.000.548 COMER BOLT WITH NUT M10X100 165.000.589 COMER TAPERED PIN SET 1 3/4 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 88: Driveline Slip Clutch (383805) Walterscheid
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Slip Clutch (383805) Walterscheid Applies to RC6015 17005 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 89 WS HEX NUT M8 186397 WS BRIDGE 304011 WS LOCK NUT M16 304065 WS BOLT M16X110 DIN 931-8.8 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 90: Driveline Slip Clutch 540 Rpm (391708) Walterscheid
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Slip Clutch 540 RPM (391708) Walterscheid Applies to RC6015 16947 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 91 WS DRIVE PLATE 042459 WS DRIVE PLATE 381495 WS THRUST PLATE 043489 WS BELLEVILLE SPRING 381957 WS HEX NUT M8 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 92: Driveline Slip Clutch 540/1000 Rpm (1446016) Ec
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Slip Clutch 540/1000 RPM (1446016) EC Applies to RC5015 15521 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 93 EC BOLT & SCREW NUT KIT REPL. 330-297A SV KIT, EC SLIP CLUTCH SPRING 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments Includes nut and washer Contains 8 Springs RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 94: Driveline Wing (826-185C) Ec New Shielding
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Wing (826-185C) EC New Shielding Applies to RC5015 23996 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 95 6761480 EC BOLT 6410114 EC SCREW NUT (M14) 6412114 EC WASHER (d14) 826-581C SHIELD KIT, 826-185C 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments Includes 27,28 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 96: Driveline Wing (826-185C) Ec Old Shielding
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Wing (826-185C) EC Old Shielding Applies to RC5015 15567 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 97 6410114 EC SCREW NUT (M14) 6412114 EC WASHER (d14) 826-581C SHIELD KIT, 826-185C 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments Refer to "Axle Center Single" RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 98: Driveline Wing (826-262C) Walterscheid (S/N 461934-)
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Wing (826-262C) Walterscheid (S/N 461934-) Applies to RC6015 17004 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 99 818-552C DECAL DANGER PTO DRIVELINE 818-540C DECAL DANGER GUARD MISS 826-555C SHIELD KIT, W2300 359474 WS REINFORCING COLLAR 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 100: Driveline Wing (826-481C) Comer (S/N 461935 To 461937, 468573+)
Table of Contents Part Number Index Land Pride Section 5: Drivelines RC5015 & RC6015 SERIES (540 RPM) Driveline Wing (826-481C) Comer (S/N 461935 to 461937, 468573+) Applies to RC6015 23953 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 101 COMER TUBE W/YOKE/LUBE/MALE 1422831949821 COMER HALF FEMALE GRD W/LABEL 1422871029821 COMER HALF MALE GUARDING 180.018.393 COMER CAP OUTER TUBE, PLASTIC 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 102: Section 6: Gearboxes
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RC5015 & RC6015 SERIES (540 RPM) Gearbox 540 RPM RC5015 (826-174C) RC6015 (826-231C) OMNI Applies to RC5015, RC6015 15500 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 103 Table of Contents Section 6: Gearboxes Gearbox 540 RPM RC5015 (826-174C) RC6015 (826-231C) OMNI Applies to RC5015, RC6015 Ref . Part No. Part Description dwg15500 Drawing Image Number 826-174C GBOX RC130S 1.75-20 1:1.46 CW 826-231C GBOX RC130L 1.75-20 1:1.46 CW...
Page 104: Gearbox 540 Rpm Rc5015 (826-175C) Rc6015 (826-232C) Omni
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RC5015 & RC6015 SERIES (540 RPM) Gearbox 540 RPM RC5015 (826-175C) RC6015 (826-232C) OMNI Applies to RC5015, RC6015 15506 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 105 Table of Contents Section 6: Gearboxes Gearbox 540 RPM RC5015 (826-175C) RC6015 (826-232C) OMNI Applies to RC5015, RC6015 Ref . Part No. Part Description dwg15506 Drawing Image Number 826-175C GBOX RC130S 1.75-20 1:1.46 CCW 826-232C GBOX RC130L 1.75-20 1:1.46 CCW...
Page 106: Gearbox 540 Rpm Rc5015 (826-315C) Rc6015 (826-320C) Comer
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RC5015 & RC6015 SERIES (540 RPM) Gearbox 540 RPM RC5015 (826-315C) RC6015 (826-320C) Comer Applies to RC5015, RC6015 21167 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 107 Table of Contents Section 6: Gearboxes Gearbox 540 RPM RC5015 (826-315C) RC6015 (826-320C) Comer Applies to RC5015, RC6015 Ref . Part No. Part Description dwg21167 Drawing Image Number 826-315C GBOX RC50 1.75-20 1:1.46 CCW 826-320C GBOX RC60 1.75-20 1:1.46 CCW U0.125.0531.00...
Page 108: Gearbox 540 Rpm Rc5015 (826-315C) Rc6015 (826-320C) Eurocardan
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RC5015 & RC6015 SERIES (540 RPM) Gearbox 540 RPM RC5015 (826-315C) RC6015 (826-320C) Eurocardan Applies to RC5015, RC6015 21266 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 109 Table of Contents Section 6: Gearboxes Gearbox 540 RPM RC5015 (826-315C) RC6015 (826-320C) Eurocardan Applies to RC5015, RC6015 Ref . Part No. Part Description dwg21266 Drawing Image Number 826-315C GBOX RC50 1.75-20 1:1.46 CCW 826-320C GBOX RC60 1.75-20 1:1.46 CCW...
Page 110: Gearbox 540 Rpm Rc5015 (826-316C) Rc6015 (826-321C Comer
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RC5015 & RC6015 SERIES (540 RPM) Gearbox 540 RPM RC5015 (826-316C) RC6015 (826-321C Comer Applies to RC5015, RC6015 21171 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 111 Table of Contents Section 6: Gearboxes Gearbox 540 RPM RC5015 (826-316C) RC6015 (826-321C Comer Applies to RC5015, RC6015 Ref . Part No. Part Description dwg21171 Drawing Image Number 826-316C GBOX RC50 1.75-20 1:1.46 CW 826-321C GBOX RC60 1.75-20 1:1.46 CW U0.125.0531.00...
Page 112: Gearbox 540 Rpm Rc5015 (826-316C) Rc6015 (826-321C) Eurocardan
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RC5015 & RC6015 SERIES (540 RPM) Gearbox 540 RPM RC5015 (826-316C) RC6015 (826-321C) Eurocardan Applies to RC5015, RC6015 21267 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 113 Table of Contents Section 6: Gearboxes Gearbox 540 RPM RC5015 (826-316C) RC6015 (826-321C) Eurocardan Applies to RC5015, RC6015 Ref . Part No. Part Description dwg21267 Drawing Image Number 826-316C GBOX RC50 1.75-20 1:1.46 CW 826-321C GBOX RC60 1.75-20 1:1.46 CW...
Page 114: Gearbox Divider 540 Rpm (826-179C) Comer
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RC5015 & RC6015 SERIES (540 RPM) Gearbox Divider 540 RPM (826-179C) Comer Applies to RC5015, RC6015 19604 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 115 8.6.6.00201 CO PLUG 3/8 GAS 8.6.7.00269 CO 1/2" GAS BREATHER PLUG Notes: Oil Type 80-90W Capacity 5.5 Pints 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 116: Gearbox Divider 540 Rpm (826-179C) Omni
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RC5015 & RC6015 SERIES (540 RPM) Gearbox Divider 540 RPM (826-179C) OMNI Applies to RC5015, RC6015 15503 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 117 OMNI FLAT WASHER 140046 OMNI PLUG 1/2-14NPT,PRW/OIL LV. 200003 OMNI RETAINING RING Notes: Oil Type 80-90W Capacity 5.5 Pints 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 118: Section 7: Hydraulics
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Center Lift Applies to RC5015, RC6015 15427 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 119 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015 & RCM5015 RC6015 & RCM6015 (S/N 222462+) (S/N 222461-) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 not compat. w/Rev. 1. Rev. 1...
Page 120: Hydraulic Cylinder (810-150C) Red Lion
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Cylinder (810-150C) Red Lion Applies to RC5015 25899 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 121 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 122: Hydraulic Cylinder (810-162C) Red Lion
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Cylinder (810-162C) Red Lion Applies to RC6015 25900 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 123 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 124: Hydraulic Cylinder (810-312C) Red Lion)
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Cylinder (810-312C) Red Lion) Applies to RC6015 25902 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 125 Only Found in Kit #18 Only Found in Kit #18 Only Found in Kit #18 Only Found in Kit #18 Only Found in Kit #18 Only Found in Kit #18 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 126: Hydraulic Cylinder (810-624C) Midway
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Cylinder (810-624C) Midway Applies to RC5015 12499 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 127 RC5015 & RC6015 SERIES (540 RPM) Comments Only found in sealkit 17 Only found in sealkit 17 Only found in sealkit 17 Only found in sealkit 17 Only found in sealkit 17 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 128: Hydraulic Cylinder (810-624C) Red Lion
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Cylinder (810-624C) Red Lion Applies to RC5015 25896 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 129 Only found in seal kit #19 Only found in seal kit #19 Only found in seal kit #19 Only found in seal kit #19 Only found in seal kit #19 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 130: Hydraulic Cylinder Center (810-195C) Midway
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Cylinder Center (810-195C) Midway Applies to RC5015 12499 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 131 RC5015 & RC6015 SERIES (540 RPM) Comments Only found in sealkit 17 Only found in sealkit 17 Only found in sealkit 17 Only found in sealkit 17 Only found in sealkit 17 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2...
Page 132: Hydraulic Cylinder Center Lift (810-162C) Cross
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Cylinder Center Lift (810-162C) Cross Applies to RC6015 11421 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 133 Only available in Seal Kit (#19) Only available in Seal Kit (#19) Only available in Seal Kit (#19) Only available in Seal Kit (#19) Only available in Seal Kit (#19) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 134: Hydraulic Cylinder Center Lift (810-162C) Midway
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Cylinder Center Lift (810-162C) Midway Applies to RC6015 11421 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 135 Only available in Seal Kit (#19) Only available in Seal Kit (#19) Only available in Seal Kit (#19) Only available in Seal Kit (#19) Only available in Seal Kit (#19) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 136: Hydraulic Cylinder Wing (810-150C) Cross
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Cylinder Wing (810-150C) Cross Applies to RC5015 15572 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 137 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 138: Hydraulic Cylinder Wing (810-150C) Midway
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Cylinder Wing (810-150C) Midway Applies to RC5015 15572 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 139 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 140: Hydraulic Cylinder Wing (810-312C) Cross
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Cylinder Wing (810-312C) Cross Applies to RC6015 15572 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 141 Only found in seal kit 20. Only found in seal kit 20. Only found in seal kit 20. Only found in seal kit 20. Only found in seal kit 20. RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 142: Hydraulic Cylinder Wing (810-312C) Midway
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Cylinder Wing (810-312C) Midway Applies to RC6015 15242 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 143 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 As Required RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 144: Hydraulic Independent Wing Control Accessory
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Independent Wing Control Accessory Applies to RC5015, RC6015 25519 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 145 HYDRAULIC WING CONTROL ASSY. 811-315C AD 9/16MJIC 811-394C CP 3/4FORB MALE QD POPPET TYPE 811-633C HH3/8R1 162 3/4MORB 9/16 FJIC 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 146: Hydraulic Valve Selector Assessory
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Valve Selector Assessory Applies to RC5015, RC6015 19893 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 147 AD 1/2FNPTS 3/4MORB 810-152C SELECTOR VALVE 3-WAY 2 POS 811-088C AD 3/4MORB 3/4MJIC 811-360C HH3/8R2 60 1/2MNPT 3/4FJIC 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 148: Hydraulic Valve Spool Control Accessory
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Valve Spool Control Accessory Applies to RC5015, RC6015 11196 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 149 EL 3/4MJIC X 3/4MNPT 811-008C EL 1/2MNPT 1/2FNPTS 811-360C HH3/8R2 60 1/2MNPT 3/4FJIC 810-402C CROSS SEAL KIT 2V0010 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 150: Hydraulic Wing Lift
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Hydraulic Wing Lift Applies to RC5015, RC6015 15426 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 151 HH3/8R1 162 3/4MORB 9/16 FJIC 811-394C CP 3/4FORB MALE QD POPPET TYPE 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015 & RCM5015 RC6015 & RCM6015 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 152: Maunal Winch Wing Deck Accessory
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RC5015 & RC6015 SERIES (540 RPM) Maunal Winch Wing Deck Accessory Applies to RC5015, RC6015 25515 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 153 WASHER FLAT 5/8 USS PLT 890-671C BRAKE WINCH DLB2000 890-679C WINCH HANDLE 12" DBL2000 890-680C WINCH CABLE AND HOOK 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 154: Section 8: Labels
Table of Contents Part Number Index Land Pride Section 8: Labels RC5015 & RC6015 SERIES (540 RPM) Label Placement Applies to RC5015, RC6015 17564 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 155 (S/N 223428+) (S/N 223428+) (S/N 223714+) (S/N 292551+) Beige Unit Green & Red Unit RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 3 not compat. w/Rev. 1. Rev. 3 not compat. w/Rev. 1. Rev. 2 not compat. w/Rev. 1.
Page 156 Applies to RC5015, RC6015 Ref . Part No. Part Description 818-552C DECAL DANGER PTO DRIVELINE 818-680C DECAL IMPORTANT - SLIP CLUTCH 838-588C FOLDING CUTTER SPEED WARNING RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Part Number Index Comments Revision Section 8: Labels 08/31/11...
Page 157: Section 9: Options & Accessories
Table of Contents Part Number Index Section 8: Labels Land Pride RC5015 & RC6015 SERIES (540 RPM) Label Placement (continued) Applies to RC5015, RC6015 This Page Intentionally Left Blank 08/31/11 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P...
Page 158: Section 9: Options & Accessories
Table of Contents Part Number Index Land Pride Section 9: Options & Accessories RC5015 & RC6015 SERIES (540 RPM) Baffle Shreader Kit Applies to RC5015, RC6015 20659 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 159 RC5015 & RC6015 SERIES (540 RPM) Comments (Shown)318-311A OMNI 5015 318-395A COMER 5015 318-436A OMNI 6015 (Shown) Center Deck Right Hand Deck Left Hand Deck (Shown) Center Deck Right Hand & Left Deck RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 160: Shredder Kit Comer (S/N 235492+)
Table of Contents Part Number Index Land Pride Section 9: Options & Accessories RC5015 & RC6015 SERIES (540 RPM) Shredder Kit Comer (S/N 235492+) Applies to RC5015, RC6015 23949 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 161 CUTTER BLADE 1/2X4X23 CCW 820-170C CUTTER BLADE 1/2X4X23 CW 820-216C CUTTER BLADE 1/2X4X28.5 FLAT 820-217C CUTTER BLADE 1/2X4X22.5 FLAT 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 162: Shredder Kit Omni (S/N 235491-)
Table of Contents Part Number Index Land Pride Section 9: Options & Accessories RC5015 & RC6015 SERIES (540 RPM) Shredder Kit Omni (S/N 235491-) Applies to RC5015 23950 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 163 CUTTER BLADE 1/2X4X23 CCW 820-170C CUTTER BLADE 1/2X4X23 CW 820-216C CUTTER BLADE 1/2X4X28.5 FLAT 820-217C CUTTER BLADE 1/2X4X22.5 FLAT 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 164: Shredder Kit Omni (S/N 235491-)
Table of Contents Part Number Index Land Pride Section 9: Options & Accessories RC5015 & RC6015 SERIES (540 RPM) Shredder Kit Omni (S/N 235491-) Applies to RC6015 23951 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 165 CUTTER BLADE 1/2X4X23 CCW 820-170C CUTTER BLADE 1/2X4X23 CW 820-216C CUTTER BLADE 1/2X4X28.5 FLAT 820-217C CUTTER BLADE 1/2X4X22.5 FLAT 08/31/11 Part Number Index RC5015 & RC6015 SERIES (540 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 166: Rcm5015 & Rcm6015 Series (1000 Rpm)
Table of Contents Part Number Index Land Pride Section 2: Decks RCM5015 & RCM6015 SERIES (1000 RPM) Blade Carrier Applies to RCM5015, RCM6015 16969 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 167 RC6015 & RCM6015 (S/N 325491-) RC6015 & RCM6015 (S/N 325492+) RC6015 & RCM6015 (S/N 325491-) As Required As Required As Required As Required RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev 1; Use up stock...
Page 168: Deck Center Section (1000 Rpm) (Rcm50 Series Only S/N 217473-)
Table of Contents Part Number Index Land Pride Section 2: Decks RCM5015 & RCM6015 SERIES (1000 RPM) Deck Center Section (1000 RPM) (RCM50 Series Only S/N 217473-) Applies to RCM5015 15338 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 169 RCM5015 & RCM6015 SERIES (1000 RPM) Comments Includes items 26 part no. 826-177C, 27, 33 & 34 (S/N 214515 TO 217473) (S/N 214514-) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev 1; Use up stock Rev. 3 Rev.
Page 170: Deck Center Section (1000 Rpm) (S/N 217474+)
Table of Contents Part Number Index Land Pride Section 2: Decks RCM5015 & RCM6015 SERIES (1000 RPM) Deck Center Section (1000 RPM) (S/N 217474+) Applies to RCM5015, RCM6015 16924 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 171 RCM6015 (S/N 325491-) RCM5015 (S/N 325491-) RCM5015 (S/N 325492 to 419601-) RCM5015 (S/N 419602+) RCM5015 RCM6015 (S/N 325491-) RCM6015 (S/N 325492 to 419601-) RCM6015 (S/N 419602+) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev. 1...
Page 172 803-255C NUT HEX NYLOCK 1/4-20 804-007C WASHER FLAT 1/4 SAE PLT 890-005C BUSHING CYL 1 1/4 X 1 X 1 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Part Number Index Comments Revision RCM6015 1 3/4 - 20 (S/N 488897+) Rev.
Page 173 Part Number Index Section 2: Decks Land Pride RCM5015 & RCM6015 SERIES (1000 RPM) Deck Center Section (1000 RPM) (S/N 217474+) (continued) Applies to RCM5015, RCM6015 This Page Intentionally Left Blank 08/31/11 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P...
Page 174: Deck Wing Section (1000 Rpm)
Table of Contents Part Number Index Land Pride Section 2: Decks RCM5015 & RCM6015 SERIES (1000 RPM) Deck Wing Section (1000 RPM) Applies to RCM5015, RCM6015 15340 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 175 RCM5015 RH (S/N 325492+) RCM5015 RH (S/N 325491-) RCM6015 LH (S/N 325492+) RCM6015 LH (S/N 325491-) RCM6015 RH (S/N 325492+) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 not compat. w/Rev. 1. Rev. 1 Rev. 2 not compat. w/Rev. 1.
Page 176 826-185C PTO CAT.4 W/CLUTCH 1 3/4-20 826-481C PTO V80 X 59.3 1280NM CLUTCH 826-262C RPBY 826-481C RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Part Number Index Comments Revision RCM6015 RH (S/N 325491-) (S/N 325492+) Rev. 2 not compat. w/Rev. 1.
Page 177 Table of Contents Part Number Index Section 2: Decks Land Pride RCM5015 & RCM6015 SERIES (1000 RPM) Deck Wing Section (1000 RPM) (continued) Applies to RCM5015, RCM6015 This Page Intentionally Left Blank 08/31/11 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P...
Page 178: Hitch
Table of Contents Part Number Index Land Pride Section 2: Decks RCM5015 & RCM6015 SERIES (1000 RPM) Hitch Applies to RCM5015, RCM6015 15351 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 179 (S/N 419602+) (S/N 419601-) S/N 509805+ S/N 509804- Includes items 10, 11, 12 & 14-through 17 Includes items 10 through 13 (S/N 419602+) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 not compat. w/Rev.1 Rev. 1...
Page 180: Wing Turnbuckle And Transport Bar
Table of Contents Part Number Index Land Pride Section 2: Decks RCM5015 & RCM6015 SERIES (1000 RPM) Wing Turnbuckle and Transport Bar Applies to RCM5015, RCM6015 15488 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 181 GREASE ZERK STRAIGHT 1/4-28 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments S/N 222150+ S/N 222149- S/N 419602+ S/N 419601- RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev 1; Use up stock...
Page 182: Section 3: Axles
Table of Contents Part Number Index Land Pride Section 3: Axles RCM5015 & RCM6015 SERIES (1000 RPM) Axle Center Dual (S/N 489025-) Applies to RCM5015, RCM6015 15376 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 183 (S/N 328236-) Use with #17, 18 & 19 S/N 414628+ Use #20 S/N 414628+ (S/N 414628+) (S/N 419602+) (S/N 419602+) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 not compat. w/Rev. 1. Rev. 1 Rev. 3 Rev.
Page 184: Axle Center Dual (S/N 489026+)
Table of Contents Part Number Index Land Pride Section 3: Axles RCM5015 & RCM6015 SERIES (1000 RPM) Axle Center Dual (S/N 489026+) Applies to RCM5015, RCM6015 30209 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 185 822-033C BEARING CUP LM-48510 822-034C BEARING CONE LM-48548 803-017C NUT LUG 1/2-20X90DEG PLT 13/16 815-244C HUB 5-BOLT COMPLETE 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 186: Axle Center Single (S/N 489025-)
Table of Contents Part Number Index Land Pride Section 3: Axles RCM5015 & RCM6015 SERIES (1000 RPM) Axle Center Single (S/N 489025-) Applies to RCM5015, RCM6015 15384 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 187 Use with #17, 18 & 19 S/N 414628+ Use with #20 S/N 414628+ (S/N 414628+) (S/N 419602+) (S/N 419602+) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 not compat. w/Rev. 1 Rev. 1 Rev. 3 Rev.
Page 188: Axle Tandem Center Deck (S/N 419602 To 489025)
Table of Contents Part Number Index Land Pride Section 3: Axles RCM5015 & RCM6015 SERIES (1000 RPM) Axle Tandem Center Deck (S/N 419602 to 489025) Applies to RCM5015, RCM6015 22084 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 189 890-766C BUSHING 1.25ODX1.00IDX3.00 890-817C BUSHING 1.25ODX1.00IDX3.75 815-236C HUB 4 BOLT COMPLETE 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments Optional Optional Optional W/CUPS, ZERK & STUDS RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 190: Axle Tandem Center Deck (S/N 489026+)
Table of Contents Part Number Index Land Pride Section 3: Axles RCM5015 & RCM6015 SERIES (1000 RPM) Axle Tandem Center Deck (S/N 489026+) Applies to RCM5015, RCM6015 23964 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 191 BEARING CONE LM-67048 822-020C BEARING CUP LM-67010 815-244C HUB 5-BOLT COMPLETE 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments Added Hardened Bushings Optional Optional W/ #4 Optional Optional RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 192: Axle Wing (S/N 489025-)
Table of Contents Part Number Index Land Pride Section 3: Axles RCM5015 & RCM6015 SERIES (1000 RPM) Axle Wing (S/N 489025-) Applies to RCM5015, RCM6015 15352 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 193 (S/N 328237 to 419601) (S/N 328236-) Use with #16, 17 & 18 S/N 414628+ Use with #19 S/N 414628+ (S/N 414628+) (S/N 419602+) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 3 Rev. 2 Rev 1; Use up stock Rev.
Page 194: Axle Wing (S/N 489026+)
Table of Contents Part Number Index Land Pride Section 3: Axles RCM5015 & RCM6015 SERIES (1000 RPM) Axle Wing (S/N 489026+) Applies to RCM5015, RCM6015 30210 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 195 822-033C BEARING CUP LM-48510 822-034C BEARING CONE LM-48548 803-017C NUT LUG 1/2-20X90DEG PLT 13/16 815-244C HUB 5-BOLT COMPLETE 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 196: Section 4: Guards
Table of Contents Part Number Index Land Pride Section 4: Guards RCM5015 & RCM6015 SERIES (1000 RPM) Guards Center Deck (S/N 292791-) Applies to RCM5015, RCM6015 15410 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 197 RUBBER GUARD REAR CENTER 318-127D RUBBER GUARD CTR.RR OUTER BRKT 318-131D RUBBER GUARD FLAT BRKT. 8 816-245C RUBBER GUARD REAR CTR.OUTER 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 198: Guards Center Deck (S/N 292792 To 419601)
Table of Contents Part Number Index Land Pride Section 4: Guards RCM5015 & RCM6015 SERIES (1000 RPM) Guards Center Deck (S/N 292792 To 419601) Applies to RCM5015, RCM6015 19019 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 199 RUBBER GUARD REAR CENTER 318-127D RUBBER GUARD CTR.RR OUTER BRKT 318-131D RUBBER GUARD FLAT BRKT. 8 816-245C RUBBER GUARD REAR CTR.OUTER 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 200: Guards Center Deck (S/N 419602+)
Table of Contents Part Number Index Land Pride Section 4: Guards RCM5015 & RCM6015 SERIES (1000 RPM) Guards Center Deck (S/N 419602+) Applies to RCM5015, RCM6015 22135 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 201 NUT HEX WHIZ 1/2-13 PLT 890-341C CHAIN WELD 5/16 PROOF X 5 LINK 890-485C CHAIN WELD 5/16 PROOF X 3 LINK 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 202: Guards Center Deck Double Chains (S/N 292791-)
Table of Contents Part Number Index Land Pride Section 4: Guards RCM5015 & RCM6015 SERIES (1000 RPM) Guards Center Deck Double Chains (S/N 292791-) Applies to RCM5015, RCM6015 15690 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 203 CG. CENTER REAR DUAL 318-107D ROUND ROD 1/4 X 31 1/2 890-393C CHAIN WELD 5/16 PROOF X 7-LINK 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 204: Guards Center Deck Double Chains (S/N 292792 To 419601)
Table of Contents Part Number Index Land Pride Section 4: Guards RCM5015 & RCM6015 SERIES (1000 RPM) Guards Center Deck Double Chains (S/N 292792 To 419601) Applies to RCM5015, RCM6015 19020 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 205 318-107D ROUND ROD 1/4 X 31 1/2 890-393C CHAIN WELD 5/16 PROOF X 7-LINK 802-017C HHCS 3/8-16X1 GR5 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 206: Guards Center Deck Double Chains (S/N 419602+)
Table of Contents Part Number Index Land Pride Section 4: Guards RCM5015 & RCM6015 SERIES (1000 RPM) Guards Center Deck Double Chains (S/N 419602+) Applies to RCM5015, RCM6015 22136 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 207 CHAIN WELD 5/16 PROOF X 5 LINK 890-400C CHAIN WELD 5/16 PROOF X 4 LINK 890-485C CHAIN WELD 5/16 PROOF X 3 LINK 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 208: Guards Wing Deck (S/N 292791-)
Table of Contents Part Number Index Land Pride Section 4: Guards RCM5015 & RCM6015 SERIES (1000 RPM) Guards Wing Deck (S/N 292791-) Applies to RCM5015, RCM6015 15436 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 209 CG. FRONT WING INNER DUAL LH 318-176K ASSY. FRT. WG. INNER DEF. LH. 318-186D FRT. DEF. BRKT. WING INNER LH. 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 210: Guards Wing Deck (S/N 292792+)
Table of Contents Part Number Index Land Pride Section 4: Guards RCM5015 & RCM6015 SERIES (1000 RPM) Guards Wing Deck (S/N 292792+) Applies to RCM5015, RCM6015 19018 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 211 ASSY. DBL. CG. FRT. WING LH. 318-343D RC5015 WING FRONT DBLCHAIN LH 318-338K ASSY. FRT. WING LH. DEF. 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 212: Section 5: Drivelines
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Center (826-478C) Comer (S/N 461935 to 461937, 468573+) Applies to RCM5015, RCM6015 23952 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 213 COMER ROLL PIN, INNER TUBE 151.016.031.1 COMER INNER YOKE 146.264.024.1 COMER CLUTCH, COMPLETE ASSY 165.000.589 COMER TAPERED PIN SET 1 3/4 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 214: Driveline Center 1000 Rpm (826-184C) Eurocardan
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Center 1000 RPM (826-184C) Eurocardan Applies to RCM5015 15497 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 215 EC SPRING WASHER 6410112 EC NUT 6560508 EC GREASE ZERK 8X1 45 DEG. 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments Includes items 7, 8 & 9 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 216: Driveline Center 1000 Rpm (826-261C) Walterscheid.216
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Center 1000 RPM (826-261C) Walterscheid Applies to RCM6015 26867 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 217 391359 WS FRICTION CLUTCH 702352 WS HEX BOLT M16 X 90 GR 8.8 304011 WS LOCK NUT M16 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 218: Driveline Conv. 1000 Rpm (826-189C) Ec New Shields
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Conv. 1000 RPM (826-189C) EC New Shields Applies to RCM5015 16736 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 219 EC TWIST COLLAR KIT (TRT. END) 6560508 EC GREASE ZERK 8X1 45 DEG. 826-582C SHIELD KIT, 826-188C &826-189C 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 220: Driveline Conv. 1000 Rpm (826-189C) Ec Old Shields
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Conv. 1000 RPM (826-189C) EC Old Shields Applies to RCM5015 26862 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 221 EC CONICAL DOG KIT REPLACEMENT 6560508 EC GREASE ZERK 8X1 45 DEG. 1215735 EC STOP RING 826-582C SHIELD KIT, 826-188C &826-189C 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 222: Driveline Conv. 1000 Rpm (826-247C) Walterscheid (S/N 214515+)
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Conv. 1000 RPM (826-247C) Walterscheid (S/N 214515+) Applies to RCM5015, RCM6015 18549 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 223 WS HEX BOLT M16 X 90 GR 8.8 304011 WS LOCK NUT M16 826-603C SHIELD KIT, 826-247C 359474 WS REINFORCING COLLAR 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 224: Driveline Cv 1000 Rpm (826-118C) Walterscheid (S/N 214514-)
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline CV 1000 RPM (826-118C) Walterscheid (S/N 214514-) Applies to RCM5015, RCM6015 12382 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 225 702352 WS HEX BOLT M16 X 90 GR 8.8 304011 WS LOCK NUT M16 826-591C SHIELD KIT, 826-118C 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 226: Driveline Cv 1000 Rpm (826-182C) Ec New Shields.226
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline CV 1000 RPM (826-182C) EC New Shields Applies to RCM5015 26866 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 227 EC 10X80-DIN-1481 O/TUBE R/PIN 6280313 EC SELF THREADING SCREW 826-592C SHIELD KIT, 826-182C &826-244C 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments Service Only RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev. 1...
Page 228: Driveline Cv 1000 Rpm (826-182C) Ec Old Shields
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline CV 1000 RPM (826-182C) EC Old Shields Applies to RCM5015 26861 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 229 6560508 EC GREASE ZERK 8X1 45 DEG. 826-720C SHIELD KIT EC, 826-181C 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments Service Only RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev. 1...
Page 230: Driveline Cv 1000 Rpm (826-244C) 1 3/8-21 Walterscheid (S/N 214515 To 468225)
Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline CV 1000 RPM (826-244C) 1 3/8-21 Walterscheid (S/N 214515 to 468225) Applies to RCM5015, RCM6015 14067 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 231 WS HEX BOLT M16 X 90 GR 8.8 304011 WS LOCK NUT M16 826-592C SHIELD KIT, 826-182C &826-244C 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 232: Driveline Cv 1000 Rpm (826-245C) 1 3/4-20 Walterscheid (S/N 488896-)
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline CV 1000 RPM (826-245C) 1 3/4-20 Walterscheid (S/N 488896-) Applies to RCM5015, RCM6015 26858 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 233 702352 WS HEX BOLT M16 X 90 GR 8.8 304011 WS LOCK NUT M16 826-593C SHIELD KIT, 826-245C 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 234: Driveline Cv 1000 Rpm (826-477C) 1 3/8-21 Comer (S/N 468226 To 547835)
Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline CV 1000 RPM (826-477C) 1 3/8-21 Comer (S/N 468226 to 547835) Applies to RCM5015, RCM6015 23948 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 235 COMER HALF FEMALE GRD W/LABEL 1422871642821 COMER HALF MALE GUARDING 180.018.393 COMER CAP OUTER TUBE, PLASTIC 165.000.628 COMER COLLER KIT 3/8 YOKE 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 236: Driveline Cv 1000 Rpm (826-499C) 1 3/4-20 Comer (S/N 488897+)
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline CV 1000 RPM (826-499C) 1 3/4-20 Comer (S/N 488897+) Applies to RCM5015, RCM6015 23960 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 237 COMER HALF FEMALE GRD W/LABEL 1422871642821 COMER HALF MALE GUARDING 180.018.393 COMER CAP OUTER TUBE, PLASTIC 165.000.629 COMER YOKE KIT COLLAR 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 238: Driveline Cv Joint (1000 Rpm) (7106632) Eurocardan
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline CV Joint (1000 RPM) (7106632) Eurocardan Applies to RCM5015 23995 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 239 EC OUTER TUBE HOMOKINETIC YOKE 1004227 EC PULL COLLAR KIT EVOLUTION 1004225 RPBY 1004227 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments Service Only RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev. 1...
Page 240: Driveline Cv Joint (1000 Rpm) (7600621) Eurocardan
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline CV Joint (1000 RPM) (7600621) Eurocardan Applies to RCM5015 15513 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 241 1000608 EC OUTER TUBE YOKE 1004220 EC TWIST COLLAR KIT (TRT. END) 1000604 EC SPIDER PIN 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments Optional Yoke RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 242: Driveline Slip Clutch (146.264.024.1) Comer
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Slip Clutch (146.264.024.1) Comer Applies to RCM5015, RCM6015 23957 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 243 COMER INTERMEDIATE PLATE 180.019.116.1 COMER PRESSURE PLATE 165.000.548 COMER BOLT WITH NUT M10X100 165.000.589 COMER TAPERED PIN SET 1 3/4 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 244: Driveline Slip Clutch (146.284.020.1) Comer
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Slip Clutch (146.284.020.1) Comer Applies to RCM5015, RCM6015 23958 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 245 COMER INTERMEDIATE PLATE 180.019.116.1 COMER PRESSURE PLATE 165.000.548 COMER BOLT WITH NUT M10X100 165.000.589 COMER TAPERED PIN SET 1 3/4 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 246: Driveline Slip Clutch (383805) Walterscheid
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Slip Clutch (383805) Walterscheid Applies to RCM6015 17005 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 247 WS HEX NUT M8 186397 WS BRIDGE 304011 WS LOCK NUT M16 304065 WS BOLT M16X110 DIN 931-8.8 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 248: Driveline Slip Clutch 1000 Rpm (1406016) Eurocardan
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Slip Clutch 1000 RPM (1406016) Eurocardan Applies to RCM5015 15523 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 249 EC COMPLETE BOLT 330-297A SV KIT, EC SLIP CLUTCH SPRING 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments (S/N) (S/N) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 Rev 1; Use up stock...
Page 250: Driveline Slip Clutch 1000 Rpm (391359) Walterscheid
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Slip Clutch 1000 RPM (391359) Walterscheid Applies to RCM6015 16966 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 251 WS DRIVE PLATE 381495 WS THRUST PLATE 043489 WS BELLEVILLE SPRING 045560 WS BELLEVILLE SPRING 381957 WS HEX NUT M8 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 252: Driveline Slip Clutch 540/1000 Rpm (1446016) Ec
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Slip Clutch 540/1000 RPM (1446016) EC Applies to RCM5015 15521 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 253 EC BOLT & SCREW NUT KIT REPL. 330-297A SV KIT, EC SLIP CLUTCH SPRING 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments Includes nut and washer Contains 8 Springs RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 254: Driveline Wing (826-185C) Ec New Shielding
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Wing (826-185C) EC New Shielding Applies to RCM5015 23996 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 255 6761480 EC BOLT 6410114 EC SCREW NUT (M14) 6412114 EC WASHER (d14) 826-581C SHIELD KIT, 826-185C 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments Includes 27,28 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 256: Driveline Wing (826-185C) Ec Old Shielding
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Wing (826-185C) EC Old Shielding Applies to RCM5015 15567 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 257 6410114 EC SCREW NUT (M14) 6412114 EC WASHER (d14) 826-581C SHIELD KIT, 826-185C 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments Refer to "Axle Center Single" RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 258: Driveline Wing (826-262C) Walterscheid (S/N 461934-)
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Wing (826-262C) Walterscheid (S/N 461934-) Applies to RCM5015, RCM6015 17004 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 259 818-552C DECAL DANGER PTO DRIVELINE 818-540C DECAL DANGER GUARD MISS 826-555C SHIELD KIT, W2300 359474 WS REINFORCING COLLAR 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 260: Driveline Wing (826-481C) Comer (S/N 461935 To 461937, 468573+)
Table of Contents Part Number Index Land Pride Section 5: Drivelines RCM5015 & RCM6015 SERIES (1000 RPM) Driveline Wing (826-481C) Comer (S/N 461935 to 461937, 468573+) Applies to RCM5015, RCM6015 23953 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 261 COMER TUBE W/YOKE/LUBE/MALE 1422831949821 COMER HALF FEMALE GRD W/LABEL 1422871029821 COMER HALF MALE GUARDING 180.018.393 COMER CAP OUTER TUBE, PLASTIC 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 262: Section 6: Gearboxes
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RCM5015 & RCM6015 SERIES (1000 RPM) Gearbox 1000 RPM RCM5015 (826-176C) RCM6015 (826-233C) OMNI Applies to RCM5015, RCM6015 15601 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 263 OMNI BEARING CONE, 32012 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RCM5015 RCM6015 RCM5015 (826-176C) RCM6015 (826-233C) RCM5015 (826-176C) RCM6015 (826-233C) RCM5015 (826-176C) RCM6015 (826-233C) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 264: Gearbox 1000 Rpm Rcm5015 (826-177C) Rcm6015 (826-234C) Omni
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RCM5015 & RCM6015 SERIES (1000 RPM) Gearbox 1000 RPM RCM5015 (826-177C) RCM6015 (826-234C) OMNI Applies to RCM5015, RCM6015 15510 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 265 OMNI BEARING CONE, 32012 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RCM5015 RCM6015 RCM5015 (826-177C) RCM6015 (826-234C) RCM5015 (826-177C) RCM6015 (826-234C) RCM5015 (826-177C) RCM6015 (826-234C) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 266: Gearbox 1000 Rpm Rcm5015 (826-178C) & (826-175C) Rcm6015 (826-235C) Omni
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RCM5015 & RCM6015 SERIES (1000 RPM) Gearbox 1000 RPM RCM5015 (826-178C) & (826-175C) RCM6015 (826-235C) OMNI Applies to RCM5015, RCM6015 15511 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 267 OMNI BEARING CONE, 32012 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RCM5015 RCM6015 RCM5015 (826-178C) RCM6015 (826-235C) RCM5015 (826-178C) RCM6015 (826-235C) RCM5015 (826-178C) RCM6015 (826-235C) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 268: Gearbox 1000 Rpm Rcm5015 (826-317C) Rcm6015 (826-322C) Comer
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RCM5015 & RCM6015 SERIES (1000 RPM) Gearbox 1000 RPM RCM5015 (826-317C) RCM6015 (826-322C) Comer Applies to RCM5015, RCM6015 21167 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 269 CO CROWN GEAR Z18 M7.8 Notes: Oil Type 80-90W Capacity 10 Pints 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RCM5015 RCM6015 RCM5015 (826-317C) RCM6015 (826-322C) RCM5015 (826-317C) RCM5015 (826-317C) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 270: Gearbox 1000 Rpm Rcm5015 (826-317C) Rcm6015 (826-322C) Eurocardan
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RCM5015 & RCM6015 SERIES (1000 RPM) Gearbox 1000 RPM RCM5015 (826-317C) RCM6015 (826-322C) Eurocardan Applies to RCM5015, RCM6015 21266 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 271 Notes: Oil Type 80-90W Capacity 10 Pints 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RCM5015 RCM6015 RCM5015 (826-317C) RCM6015 (826-322C) RCM 5015 (826-317C) RCM 6015 (826-322C) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 272: Gearbox 1000 Rpm Rcm5015 (826-318C) Rcm6015 (826-323C) Comer
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RCM5015 & RCM6015 SERIES (1000 RPM) Gearbox 1000 RPM RCM5015 (826-318C) RCM6015 (826-323C) Comer Applies to RCM5015, RCM6015 21167 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 273 CO CROWN GEAR Z22 M7.8 Notes: Oil Type 80-90W Capacity 10 Pints 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RCM5015 RCM6015 RCM5015 (826-318C) RCM6015 (826-323C) RCM5015 (826-318C) RCM6015 (826-323C) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 274: Gearbox 1000 Rpm Rcm5015 (826-318C) Rcm6015 (826-323C) Eurocardan
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RCM5015 & RCM6015 SERIES (1000 RPM) Gearbox 1000 RPM RCM5015 (826-318C) RCM6015 (826-323C) Eurocardan Applies to RCM5015, RCM6015 21266 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 275 Notes: Oil Type 80-90W Capacity 10 Pints 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RCM5015 RCM6015 RCM5015 (826-318C) RCM6015 (826-323C) RCM 5015 (826-318C) RCM 6015 (826-323C) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 276: Gearbox 1000 Rpm Rcm5015 (826-319C) Rcm6015 (826-324C) Comer
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RCM5015 & RCM6015 SERIES (1000 RPM) Gearbox 1000 RPM RCM5015 (826-319C) RCM6015 (826-324C) Comer Applies to RCM5015, RCM6015 21171 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 277 CO CROWN GEAR Z18 M7.8 Notes: Oil Type 80-90W Capacity 10 Pints 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RCM5015 RCM6015 RCM5015 (826-319C) RCM6015 (826-324C) RCM5015 (826-319C) RCM6015 (826-319C) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 278: Gearbox 1000 Rpm Rcm5015 (826-319C) Rcm6015 (826-324C) Eurocardan
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RCM5015 & RCM6015 SERIES (1000 RPM) Gearbox 1000 RPM RCM5015 (826-319C) RCM6015 (826-324C) Eurocardan Applies to RCM5015, RCM6015 21267 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 279 Notes: Oil Type 80-90W Capacity 10 Pints 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RCM5015 RCM6015 RCM5015 (826-319C) RCM6015 (826-324C) RCM 5015 (826-319C) RCM 6015 (826-324C) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 280: Gearbox Divider 1000 Rpm (826-180C) Comer
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RCM5015 & RCM6015 SERIES (1000 RPM) Gearbox Divider 1000 RPM (826-180C) Comer Applies to RCM5015, RCM6015 26958 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 281 8.6.6.00201 CO PLUG 3/8 GAS 8.6.7.00269 CO 1/2" GAS BREATHER PLUG Notes: Oil Type 80-90W Capacity 2 Pints 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 282: Gearbox Divider 1000 Rpm (826-180C) Omni
Table of Contents Part Number Index Land Pride Section 6: Gearboxes RCM5015 & RCM6015 SERIES (1000 RPM) Gearbox Divider 1000 RPM (826-180C) OMNI Applies to RCM5015, RCM6015 15504 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 283 OMNI FLAT WASHER 140046 OMNI PLUG 1/2-14NPT,PRW/OIL LV. 200003 OMNI RETAINING RING Notes: Oil Type 80-90W Capacity 5.5 Pints 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 284: Section 7: Hydraulics
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Center Lift Applies to RCM5015, RCM6015 15427 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 285 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015 & RCM5015 RC6015 & RCM6015 (S/N 222462+) (S/N 222461-) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2 not compat. w/Rev. 1. Rev. 1...
Page 286: Hydraulic Cylinder (810-150C) Red Lion
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Cylinder (810-150C) Red Lion Applies to RCM5015 25899 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 287 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 288: Hydraulic Cylinder (810-162C) Red Lion
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Cylinder (810-162C) Red Lion Applies to RCM6015 25900 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 289 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 Only Found in Kit #20 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 290: Hydraulic Cylinder (810-312C) Red Lion)
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Cylinder (810-312C) Red Lion) Applies to RCM6015 25902 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 291 Only Found in Kit #18 Only Found in Kit #18 Only Found in Kit #18 Only Found in Kit #18 Only Found in Kit #18 Only Found in Kit #18 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 292: Hydraulic Cylinder (810-624C) Midway
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Cylinder (810-624C) Midway Applies to RCM5015 12499 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 293 RCM5015 & RCM6015 SERIES (1000 RPM) Comments Only found in sealkit 17 Only found in sealkit 17 Only found in sealkit 17 Only found in sealkit 17 Only found in sealkit 17 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 294: Hydraulic Cylinder (810-624C) Red Lion
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Cylinder (810-624C) Red Lion Applies to RCM5015 25896 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 295 Only found in seal kit #19 Only found in seal kit #19 Only found in seal kit #19 Only found in seal kit #19 Only found in seal kit #19 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 296: Hydraulic Cylinder Center (810-195C) Midway
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Cylinder Center (810-195C) Midway Applies to RCM5015 12499 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 297 RCM5015 & RCM6015 SERIES (1000 RPM) Comments Only found in sealkit 17 Only found in sealkit 17 Only found in sealkit 17 Only found in sealkit 17 Only found in sealkit 17 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 2...
Page 298: Hydraulic Cylinder Center Lift (810-162C) Cross
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Cylinder Center Lift (810-162C) Cross Applies to RCM6015 11421 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 299 Only available in Seal Kit (#19) Only available in Seal Kit (#19) Only available in Seal Kit (#19) Only available in Seal Kit (#19) Only available in Seal Kit (#19) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 300: Hydraulic Cylinder Center Lift (810-162C) Midway
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Cylinder Center Lift (810-162C) Midway Applies to RCM6015 11421 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 301 Only available in Seal Kit (#19) Only available in Seal Kit (#19) Only available in Seal Kit (#19) Only available in Seal Kit (#19) Only available in Seal Kit (#19) RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 302: Hydraulic Cylinder Wing (810-150C) Cross
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Cylinder Wing (810-150C) Cross Applies to RCM5015 15572 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 303 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 304: Hydraulic Cylinder Wing (810-150C) Midway
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Cylinder Wing (810-150C) Midway Applies to RCM5015 15572 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 305 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 306: Hydraulic Cylinder Wing (810-312C) Cross
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Cylinder Wing (810-312C) Cross Applies to RCM6015 15572 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 307 Only found in seal kit 20. Only found in seal kit 20. Only found in seal kit 20. Only found in seal kit 20. Only found in seal kit 20. RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 308: Hydraulic Cylinder Wing (810-312C) Midway
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Cylinder Wing (810-312C) Midway Applies to RCM6015 15242 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 309 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 Only found in seal kit 19 As Required RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 310: Hydraulic Independent Wing Control Accessory
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Independent Wing Control Accessory Applies to RCM5015, RCM6015 25519 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 311 HYDRAULIC WING CONTROL ASSY. 811-315C AD 9/16MJIC 811-394C CP 3/4FORB MALE QD POPPET TYPE 811-633C HH3/8R1 162 3/4MORB 9/16 FJIC 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 312: Hydraulic Valve Selector Assessory
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Valve Selector Assessory Applies to RCM5015, RCM6015 19893 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 313 AD 1/2FNPTS 3/4MORB 810-152C SELECTOR VALVE 3-WAY 2 POS 811-088C AD 3/4MORB 3/4MJIC 811-360C HH3/8R2 60 1/2MNPT 3/4FJIC 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 314: Hydraulic Valve Spool Control Accessory
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Valve Spool Control Accessory Applies to RCM5015, RCM6015 11196 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 315 EL 3/4MJIC X 3/4MNPT 811-008C EL 1/2MNPT 1/2FNPTS 811-360C HH3/8R2 60 1/2MNPT 3/4FJIC 810-402C CROSS SEAL KIT 2V0010 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 316: Hydraulic Wing Lift
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Hydraulic Wing Lift Applies to RCM5015, RCM6015 15426 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 317 HH3/8R1 162 3/4MORB 9/16 FJIC 811-394C CP 3/4FORB MALE QD POPPET TYPE 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015 & RCM5015 RC6015 & RCM6015 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 318: Maunal Winch Wing Deck Accessory
Table of Contents Part Number Index Land Pride Section 7: Hydraulics RCM5015 & RCM6015 SERIES (1000 RPM) Maunal Winch Wing Deck Accessory Applies to RCM5015, RCM6015 25515 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 319 WASHER FLAT 5/8 USS PLT 890-671C BRAKE WINCH DLB2000 890-679C WINCH HANDLE 12" DBL2000 890-680C WINCH CABLE AND HOOK 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 320: Label Placement
Table of Contents Part Number Index Land Pride Section 8: Labels RCM5015 & RCM6015 SERIES (1000 RPM) Label Placement Applies to RCM5015, RCM6015 17564 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 321 (S/N 223428+) (S/N 223428+) (S/N 223714+) (S/N 292551+) Beige Unit Green & Red Unit RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision Rev. 3 not compat. w/Rev. 1. Rev. 3 not compat. w/Rev. 1. Rev. 2 not compat. w/Rev. 1.
Page 322 Applies to RCM5015, RCM6015 Ref . Part No. Part Description 818-552C DECAL DANGER PTO DRIVELINE 818-680C DECAL IMPORTANT - SLIP CLUTCH 838-588C FOLDING CUTTER SPEED WARNING RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Part Number Index Comments Revision Section 8: Labels 08/31/11...
Page 323 Table of Contents Part Number Index Section 8: Labels Land Pride RCM5015 & RCM6015 SERIES (1000 RPM) Label Placement (continued) Applies to RCM5015, RCM6015 This Page Intentionally Left Blank 08/31/11 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P...
Page 324: Baffle Shreader Kit
Table of Contents Part Number Index Land Pride Section 9: Options RCM5015 & RCM6015 SERIES (1000 RPM) Baffle Shreader Kit Applies to RCM6015 20659 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 325 RCM5015 & RCM6015 SERIES (1000 RPM) Comments (Shown)318-311A OMNI 5015 318-395A COMER 5015 318-436A OMNI 6015 (Shown) Center Deck Right Hand Deck Left Hand Deck (Shown) Center Deck Right Hand & Left Deck RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 326: Shredder Kit Comer (S/N 235492+)
Table of Contents Part Number Index Land Pride Section 9: Options RCM5015 & RCM6015 SERIES (1000 RPM) Shredder Kit Comer (S/N 235492+) Applies to RCM6015 23949 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 327 CUTTER BLADE 1/2X4X23 CCW 820-170C CUTTER BLADE 1/2X4X23 CW 820-216C CUTTER BLADE 1/2X4X28.5 FLAT 820-217C CUTTER BLADE 1/2X4X22.5 FLAT 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 328: Shredder Kit Omni (S/N 235491-)
Table of Contents Part Number Index Land Pride Section 9: Options RCM5015 & RCM6015 SERIES (1000 RPM) Shredder Kit Omni (S/N 235491-) Applies to RCM6015 23951 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 329 CUTTER BLADE 1/2X4X23 CCW 820-170C CUTTER BLADE 1/2X4X23 CW 820-216C CUTTER BLADE 1/2X4X28.5 FLAT 820-217C CUTTER BLADE 1/2X4X22.5 FLAT 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 330: Baffle Shreader Kit
Table of Contents Part Number Index Land Pride Section 9: Options & Accessories RCM5015 & RCM6015 SERIES (1000 RPM) Baffle Shreader Kit Applies to RCM5015 20659 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 331 RCM5015 & RCM6015 SERIES (1000 RPM) Comments (Shown)318-311A OMNI 5015 318-395A COMER 5015 318-436A OMNI 6015 (Shown) Center Deck Right Hand Deck Left Hand Deck (Shown) Center Deck Right Hand & Left Deck RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 332: Shredder Kit Comer (S/N 235492+)
Table of Contents Part Number Index Land Pride Section 9: Options & Accessories RCM5015 & RCM6015 SERIES (1000 RPM) Shredder Kit Comer (S/N 235492+) Applies to RCM5015 23949 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 333 CUTTER BLADE 1/2X4X23 CCW 820-170C CUTTER BLADE 1/2X4X23 CW 820-216C CUTTER BLADE 1/2X4X28.5 FLAT 820-217C CUTTER BLADE 1/2X4X22.5 FLAT 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 334: Shredder Kit Omni (S/N 235491-)
Table of Contents Part Number Index Land Pride Section 9: Options & Accessories RCM5015 & RCM6015 SERIES (1000 RPM) Shredder Kit Omni (S/N 235491-) Applies to RCM5015 23950 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P 08/31/11...
Page 335 CUTTER BLADE 1/2X4X23 CCW 820-170C CUTTER BLADE 1/2X4X23 CW 820-216C CUTTER BLADE 1/2X4X28.5 FLAT 820-217C CUTTER BLADE 1/2X4X22.5 FLAT 08/31/11 Part Number Index RCM5015 & RCM6015 SERIES (1000 RPM) Comments RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Land Pride Revision...
Page 336: Part Number Index
117, 283 050013 ... 117, 283 050014 ... 117, 283 050015 ... 117, 283 1006065 ... RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Part Number Index Page Part Number Page 103, 105, 263, 1006220 ... 95, 97, 219, 221,...
Page 337 318-048K ... 41, 197 135, 139, 143, 318-052L ... 23, 179 301, 305, 309 318-053L ... 23, 179 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P (continued) Part Number Page 318-054L ... 23, 179 318-055L ... 25, 181 318-057K ...
Page 338 318-400H ... 318-309D ... 159, 161, 163, 318-401H ... 165, 325, 327, 318-435H ... 329, 331, 333, 318-436A ... RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Part Number Index (continued) Page Part Number 159, 325, 331 318-568H ... 145, 311 318-568H81 ...
Page 339 25, 27, 31, 33, 197, 199, 201, 37, 181, 183, 203, 205, 207, 187, 189, 193 209, 211, 325, RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P (continued) Part Number Page 802-235C ... 13, 15, 23, 25, 27, 31, 169, 171, 179, 181, 183, 802-258C ...
Page 340 147, 313 810-162C ... 119, 123, 133, 814-266C ... 135, 285, 289, 299, 301 810-167C ... 149, 315 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P Part Number Index (continued) Page Part Number 139, 141, 305, 814-267C ... 137, 141, 303, 814-268C ...
Page 341 ... 25, 181 dwg26958 ... dwg30185 ... dwg30209 ... 29, 185 dwg30210 ... 39, 195 RC5015, RCM5015, RC6015 & RCM6015 Rotary Cutters 318-047P (continued) Part Number Page N/A ... 121, 123, 125, 129, 143, 287, 289, 291, 295, U0.125.0531.00 ...
Page 342 Great Plains Manufacturing, Inc. Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...

This manual is also suitable for:

Rc6015 Rcm5015 Rcm6015

Land Pride RC5015 Parts Manual

Section 1: Introduction

Rc5015 & Rc6015 Series (540 Rpm)

Section 2: Decks

Section 3: Axles

Section 4: Guards

Section 5: Drivelines

Section 6: Gearboxes

Section 7: Hydraulics

Section 8: Labels

Section 9: Options & Accessories

Rcm5015 & Rcm6015 Series (1000 Rpm)

Section 2: Decks

Rpm)

Section 3: Axles

Section 4: Guards

Section 5: Drivelines

Section 6: Gearboxes

Section 7: Hydraulics

Section 8: Labels

Section 9: Options

Quick Links

Related Manuals for Land Pride RC5015

Summary of Contents for Land Pride RC5015
