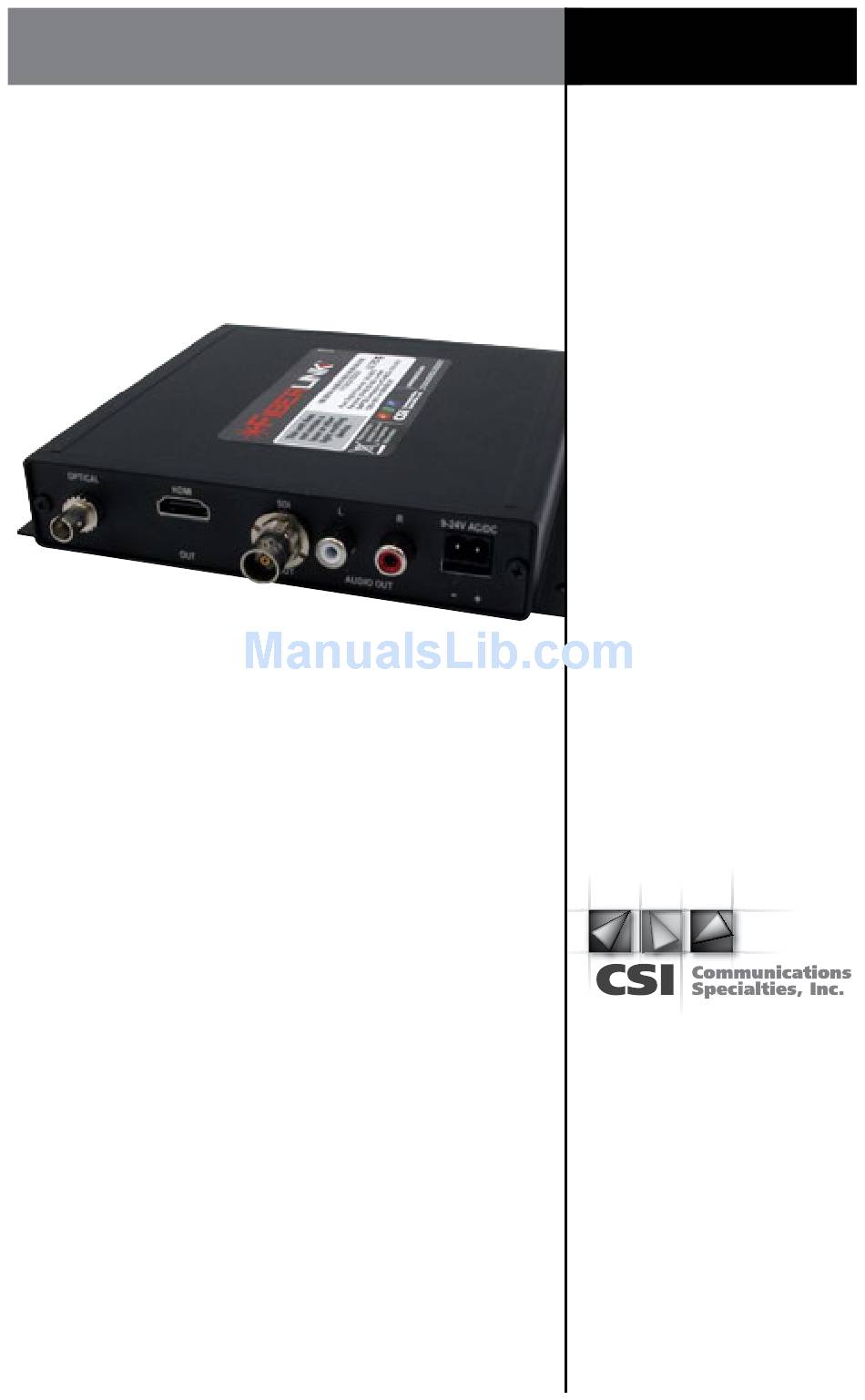

The Fiberlink 3353 Series converts
broadcast quality 3G/HD/SD-SDI
transmitted over one single mode
or multimode fiber to HDMI with
or without embedded audio.
World Headquarters
55 Cabot Court
Hauppauge, New York 11788 USA
Tel:
(631) 273-0404
Fax: (631) 273-1638
info@commspecial.com
Asia
Communications Specialties Pte Ltd
100 Beach Road
#22-09 Shaw Tower
Singapore 189702
Tel:
+65 6391 8790
Fax: +65 6396 0138
csiasia@commspecial.com
commspecial.com
Advertisement
Table of Contents
Related Manuals for Fiberlink 3353 Series
Summary of Contents for Fiberlink 3353 Series
- Page 1 User’s Manual Communications Specialties’ Fiberlink® 3353 The Fiberlink 3353 Series converts broadcast quality 3G/HD/SD-SDI transmitted over one single mode or multimode fiber to HDMI with or without embedded audio. Fiberlink® 3353 Series 3G/HD/SD-SDI to HDMI Optical Receiver World Headquarters 55 Cabot Court...
-
Page 2: Table Of Contents
Accessories and Related Products ........12 Page 2 Fiberlink® 3353 Series User’s Manual... -
Page 3: Welcome
3353 Series is used to convert 3G/HD/SD-SDI with or without embedded audio transmitted over a single fiber optic core to HDMI. The Fiberlink 3353 Series is compatible with single mode or multimode fiber. The 3353 is also compliant with SMPTE 297-2006 for seamless interoperability with other SMPTE 297-2006 devices. -
Page 4: Technical Specifications
RGB or YCrCb as negotiated with display Resolutions Supported All 3G/HD/SD-SDI formats from standard definition to 1080p/60 3G/HD/SD-SDI Output Standard, Follows fiber optic input HDCP Compliant Yes. SDI signals, by definition, are not encrypted Page 4 Fiberlink® 3353 Series User’s Manual... -
Page 5: Optical Input
Alignment Jitter < 0.2 UI at 270 Mbps; < 0.2 UI at 1.485 Gbps; < 0.3 UI at 2.97 Gbps with color bar signal Re-clocking At 270 Mbps, 1.485 Gbps & 2.97 Gbps Fiberlink® 3353 Series User’s Manual Page 5... -
Page 6: Installation Instructions
The Fiberlink® 3353 Series of fiber optic transmission systems are ready for immediate use and do not require any special tools. However, an Optical Power Meter, such as the Fiberlink® 6615, can be useful in determining optical loss budgets during your systems design and maintenance. -
Page 7: Audio Pair Selection
Audio Pair Selection | LED Indicators Fiberlink® 3353 Series Audio Pair Selection The Fiberlink® 3353 Series has a rotary dial switch that allows you to select which audio pair to output. The chart below describes the operation of the rotary switch positions: Rotary Switch Positions... -
Page 8: Application Diagrams
Fiber Cable Fiber Cable 3355 Rx 1080p Displays with DVI input using Audio Channel Pair 2 Scan Do® HD DVI or Analog RGB to 3G/HD/SD-SDI Scan Converter Fiber Fiber Cable Cable 3353 Rx Page 8 Fiberlink® 3353 Series User’s Manual... -
Page 9: Operating Pointers
Next, be certain that the input and output signal connections are correct. An optical power meter, such as the Fiberlink® 6615, a visible light source, such as the Fiberlink® 6610, and a Three Wavelength Light Source, such as the Fiberlink® 6620, can greatly assist and expedite troubleshooting of fiber optic transmission systems and are recommended tools all installers should have available. -
Page 10: Maintenance And Repairs
Please see the Troubleshooting section of this manual for additional information. An optical power meter, such as the Fiberlink® 6615, a visible light source, such as the Fiberlink® 6610, and a Three Wavelength Light Source, such as the Fiberlink® 6620, can greatly assist and expedite troubleshooting of fiber optic transmission systems and are recommended tools all installers should have available. -
Page 11: Warranty
100 Beach Road #22-09 Shaw Tower Singapore 189702 Tel: +65 6391 8790 Fax: +65 6396 0138 RMA numbers can also be obtained from our web site: commspecial.com Please have your serial number available. Fiberlink® 3353 Series User’s Manual Page 11... -
Page 12: Accessories And Related Products
6620. Fiberlink® 6620 Three Wavelength Light Source The Fiberlink® Three Wavelength Light Source offers a laser output at wavelengths of 1310 and 1550 nm and VCSEL output at 850 nm, allowing for convenient, on-site testing of fiber networks during construction and maintenance procedures. - Page 13 Fiberlink® 3360 3G/HD/SD-SDI & 4 Pair AES Audio Series The Fiberlink® 3360 Series allows you to transmit 3G, HD or SD-SDI as per SMPTE 424M-2006, 292 and 259 with the ability to embed up to 8 channels (4 pairs) of AES/EBU digital audio.
- Page 14 Fiberlink® 3353 Series Page 14 Fiberlink® 3353 Series User’s Manual...
- Page 15 Fiberlink® 3353 Series Fiberlink® 3353 Series User’s Manual Page 15...
- Page 16 Fax: +65 6396 0138 csiasia@commspecial.com commspecial.com ©2010 Communications Specialties, Inc. All Rights Reserved. Fiberlink and the starburst logo are registered trademarks of Communications Specialties, Inc. CSI and the triangle designs are trademarks of Communications Specialties, Inc. P/N 128871 Rev. C If y ©2005 Spectra Vision Productions, Inc.
