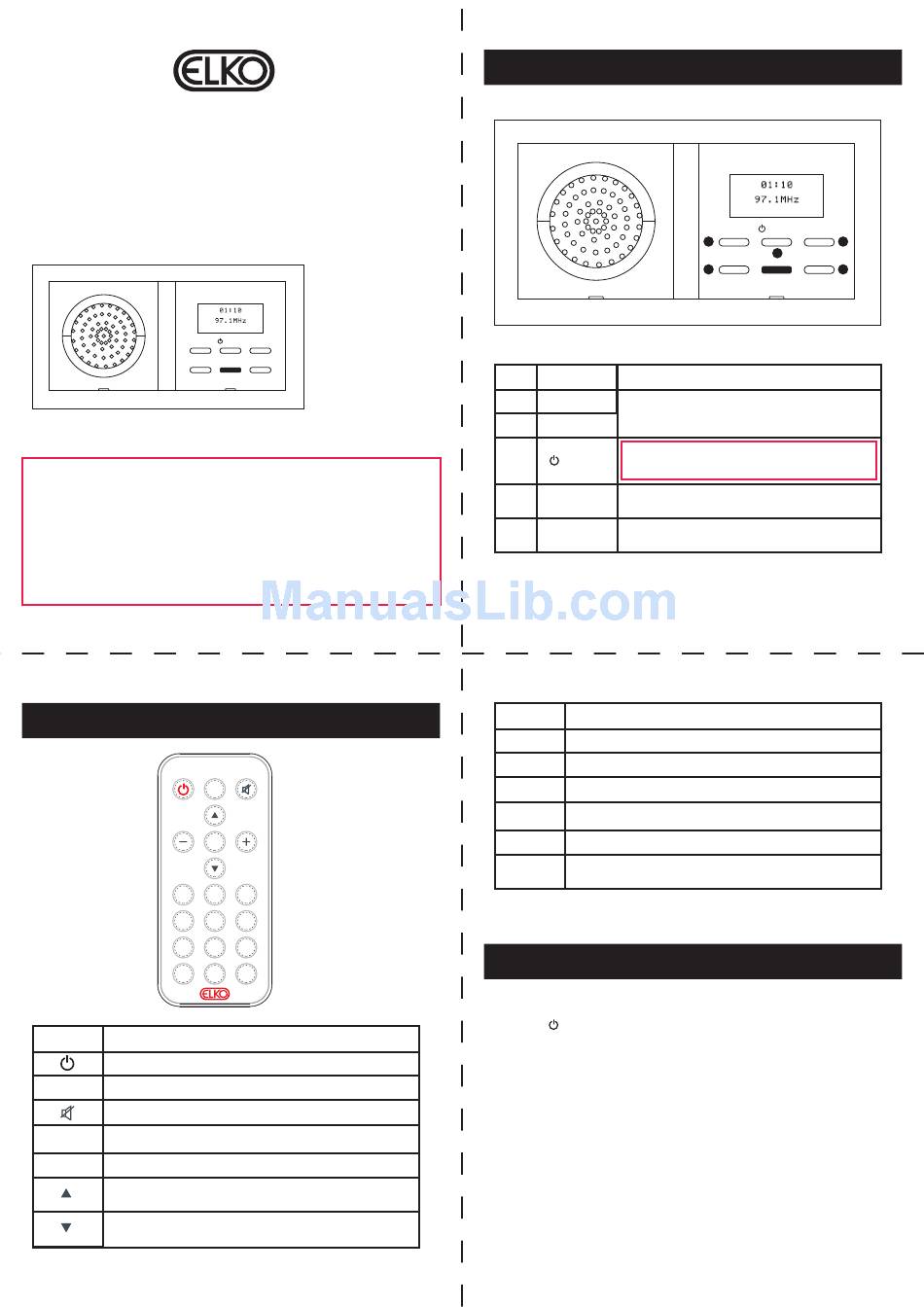

Elko Bluetooth/DAB+/DAB/FM radio Instruction Manual

Instruction Manual

ELKO Bluetooth/DAB+/DAB/FM radio and speaker mounting box.
Thank you for purchasing this product, please read this manual
thoroughly before operating the unit, and keeps it for future
reference.
VOL+
VOL-
Technical specification
Bluetooth/DAB+/DAB/FM radio
Dimension (LxW):157 x 86mm
Mounting depth 35mm
Output power:2W RMS Mono or 1x2W Stereo speaker out select
Mono or Stereo
Connections
-Terminal for 110~230VAC
-3.5mm Jack stereo Line out
Remote control
VOL
MENU
PRESET
3
6
Control
Description
Press to turn unit on/off
Select Bluetooth/DAB/FM function
MODE
Press to mute the audio output
VOL+ Press to increase the output volume
VOL- Press to decrease the output volume
Press to scroll up through menu items.
Press to enter text.
Press to scroll down through menu items.
Press to enter text.
/MODE CH+
CH-
1
MODE
SELECT
VOL
SCAN INFO
1 2
4 5
7 8
3
Location of controls
No.
Control
1
VOL+
Press to adjust volume level
2 VOL-
Press and hold to activate on/off function
/ MODE
3
Press to for a while select Bluetooth/DAB/FM function
4 Repeatedly press to upward view options
CH+
5 CH- Repeatedly press to downward view options
Control
Description
SELECT Press to confirm your selection of a menu option
MENU Press to return to the main menu
SCAN DAB scan or FM scan up
INFO Press this button to toggle the radio info
PRESET Press and hold to activate preset function, while press to recall
1~8
Press to recall a preset radio station
Bluetooth Pairing Process
Pairing from control panel
1. Press on front panel to switch the source to Bluetooth
/ MODE
Mode.
2. Turn on the Device Bluetooth connect. Select the Bluetooth
domain name [ELKO Radio].
3. There is No password required. After the "Beep" sound tone,
the system is successfully connected, If you need to enter
password, input "0000" to your audio device for pairing.
Pairing from remote control
1. Press MODE on remote control to switch the source to
Bluetooth Mode.
2. Turn on the Device Bluetooth connect. Select the Bluetooth
domain name [ELKO Radio].
VOL+ /MODE CH+
1 4
3
VOL- CH-
2 5
Description
2
4
