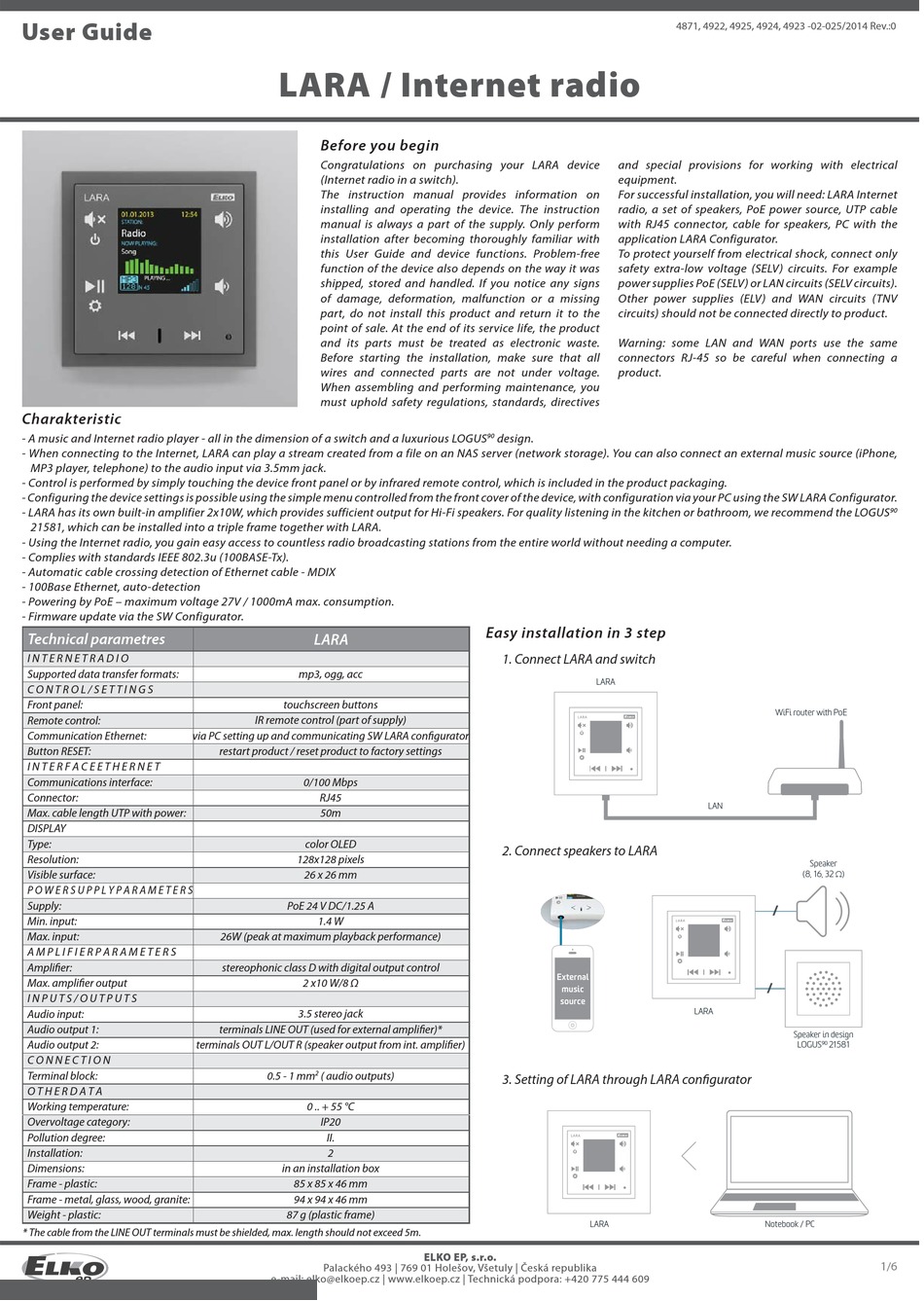

User Guide
Charakteristic
- A music and Internet radio player - all in the dimension of a switch and a luxurious LOGUS
- When connecting to the Internet, LARA can play a stream created from a file on an NAS server (network storage). You can also connect an external music source (iPhone,
MP3 player, telephone) to the audio input via 3.5mm jack.
- Control is performed by simply touching the device front panel or by infrared remote control, which is included in the product packaging.
- Configuring the device settings is possible using the simple menu controlled from the front cover of the device, with configuration via your PC using the SW LARA Configurator.
- LARA has its own built-in amplifier 2x10W, which provides sufficient output for Hi-Fi speakers. For quality listening in the kitchen or bathroom, we recommend the LOGUS
21581, which can be installed into a triple frame together with LARA.
- Using the Internet radio, you gain easy access to countless radio broadcasting stations from the entire world without needing a computer.
- Complies with standards IEEE 802.3u (100BASE-Tx).
- Automatic cable crossing detection of Ethernet cable - MDIX
- 100Base Ethernet, auto-detection
- Powering by PoE – maximum voltage 27V / 1000mA max. consumption.
- Firmware update via the SW Configurator.

Technical parametres

I N T E R N E T R A D I O
Supported data transfer formats:
C O N T R O L / S E T T I N G S
Front panel:
Remote control:
Communication Ethernet: via PC setting up and communicating SW LARA confi gurator
Button RESET:
I N T E R F A C E E T H E R N E T
Communications interface:
Connector:
Max. cable length UTP with power:
DISPLAY
Type:
Resolution:
Visible surface:
P O W E R S U P P L Y P A R A M E T E R S
Supply:
Min. input:
Max. input:
A M P L I F I E R P A R A M E T E R S
Amplifi er:
Max. amplifi er output
I N P U T S / O U T P U T S
Audio input:
Audio output 1:
Audio output 2:
C O N N E C T I O N
Terminal block:
O T H E R D A T A
Working temperature:
Overvoltage category:
Pollution degree:
Installation:
Dimensions:
Frame - plastic:
Frame - metal, glass, wood, granite:
Weight - plastic:
* The cable from the LINE OUT terminals must be shielded, max. length should not exceed 5m.
LARA / Internet radio

Before you begin

Congratulations on purchasing your LARA device
(Internet radio in a switch).
The instruction manual provides information on
installing and operating the device. The instruction
manual is always a part of the supply. Only perform
installation after becoming thoroughly familiar with
this User Guide and device functions. Problem-free
function of the device also depends on the way it was
shipped, stored and handled. If you notice any signs
of damage, deformation, malfunction or a missing
part, do not install this product and return it to the
point of sale. At the end of its service life, the product
and its parts must be treated as electronic waste.
Before starting the installation, make sure that all
wires and connected parts are not under voltage.
When assembling and performing maintenance, you
must uphold safety regulations, standards, directives
LARA
mp3, ogg, acc
touchscreen buttons
IR remote control (part of supply)
restart product / reset product to factory settings
0/100 Mbps
RJ45
50m
color OLED
128x128 pixels
26 x 26 mm
PoE 24 V DC/1.25 A
1.4 W
26W (peak at maximum playback performance)
stereophonic class D with digital output control
2 x10 W/8 Ω
3.5 stereo jack
terminals LINE OUT (used for external amplifi er)*
terminals OUT L/OUT R (speaker output from int. amplifi er)
0.5 - 1 mm 2 ( audio outputs)
0 .. + 55 °C
IP20
II.
2
in an installation box
85 x 85 x 46 mm
94 x 94 x 46 mm
87 g (plastic frame)
Palackého 493 | 769 01 Holešov, Všetuly | Česká republika
e-mail: elko@elkoep.cz | www.elkoep.cz | Technická podpora: +420 775 444 609
90
design.

Easy installation in 3 step

1. Connect LARA and switch
LARA
2. Connect speakers to LARA
External
music
source
3. Setting of LARA through LARA confi gurator
LARA
ELKO EP, s.r.o.
4871, 4922, 4925, 4924, 4923 -02-025/2014 Rev.:0
and special provisions for working with electrical
equipment.
For successful installation, you will need: LARA Internet
radio, a set of speakers, PoE power source, UTP cable
with RJ45 connector, cable for speakers, PC with the
application LARA Configurator.
To protect yourself from electrical shock, connect only
safety extra-low voltage (SELV) circuits. For example
power supplies PoE (SELV) or LAN circuits (SELV circuits).
Other power supplies (ELV) and WAN circuits (TNV
circuits) should not be connected directly to product.
Warning: some LAN and WAN ports use the same
connectors RJ-45 so be careful when connecting a
product.
WiFi router with PoE
LAN
/ /
/ /
LARA
Notebook / PC
90
Speaker
(8, 16, 32 )
Speaker in design
90
LOGUS 21581
