Haier HBS800 Service Manual

Haier HBS800 Service Manual

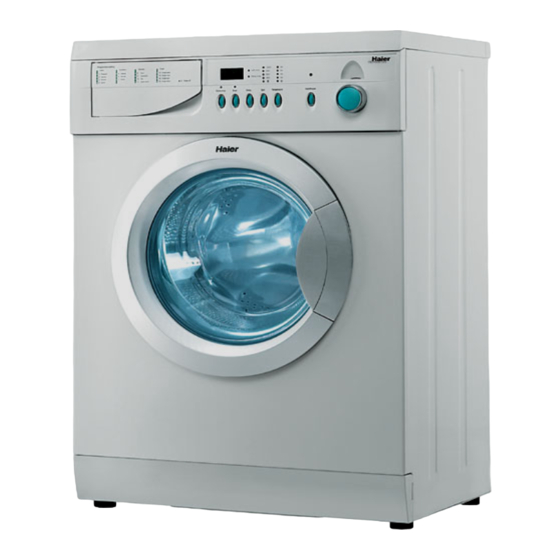

Haier hbs800/1000txv front load washing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

FRONT LOADING WASHING MACHINE
Features£º
300mm diameter porthole, door may be open at a 180 degrees.
Class-A energy-saving; Homocentric tubs with higher energy efficiency
Multi-gear speed controller
Unique gasket design featuring no residual water hidden inside
Delay time adjustive
Large wash load capacity 5kg
Serial Number:
SMHBS800TXV01
Front Load Washing Machine

Service Manual

Version: 1.00
Suited model:
HBS800/1000TXV
Edition: 2006-3
Model:
HBS800/1000TXV

Advertisement

Table of Contents
loading

Related Manuals for Haier HBS800

Summary of Contents for Haier HBS800

  • Page 1: Service Manual

    Front Load Washing Machine Model: HBS800/1000TXV FRONT LOADING WASHING MACHINE Service Manual Suited model: HBS800/1000TXV Features£º 300mm diameter porthole, door may be open at a 180 degrees. Class-A energy-saving; Homocentric tubs with higher energy efficiency Multi-gear speed controller Unique gasket design featuring no residual water hidden inside...

  • Page 2: Table Of Contents

    Front Load Washing Machine Model:HBS800/1000TXV Contents 1. Contents----------------------------------------------------------------------------------------1 2. Product code illumination and series introduction-----------------------------------2 3. Features ---------------------------------------------------------------------------------------3 4. Specification ----------------------------------------------------------------------------------4 5. Matters Needing Attention----------------------------------------------------------------6 6. Installation ------------------------------------------------------------------------------------9 7. Net dimension -------------------------------------------------------------------------------11 8. Names of the parts-------------------------------------------------------------------------12 9. Operational Functions --------------------------------------------------------------------13 10.

  • Page 3: Product Code Illumination And Series Introduction

    Front Load Washing Machine Model:HBS800/1000TXV PRODUCT CODE ILLUMINATION AND SERIES INTRODUCTION Model code rule description Model identification£º 800 T X V A£ºSerial code B£ºMax spin speed C£ºTemprature adjustive D£º Stainless steel drum E£º Spin speed adjustive Examples£º HBS1000TXV It represents HBS series appearanc e £¬ with big window¡¢ 180¡ã opening window¡¢1000rpm spin speed.Spin speed is adjustive from 0 to 1000rpm£¬temprature is also adjustive.

  • Page 4: Features

    Front Load Washing Machine Model:HBS800/1000TXVE FEATURES ¡ñ300mm diameter porthole, door may be open at a 180 degrees. Facilitate view of wash process, facilitate unloading and easy to use with large port. ¡ñ Multi-gear speed controller According to different costuming£¬you can slect corresponding spin speed.

  • Page 5: Specification

    Front Load Washing Machine Model:HBS800/1000TXV SPECIFICATION washing machines 2005.11 HBS1000TXV HBS800TXV Last update Product identification Description of appliance Washing machine Washing machine Type of appliance(FS = standing, BI = built-in Supplier own brand Haier Haier Supplier bar code Commercial Brand / Model...
  • Page 6 Front Load Washing Machine Model:HBS800/1000TXV Removable compartment for liquid detergent Delay timer (from - to) 1-24 1-24 Self cleaning suds pump Water inlet hose cold water / hot water Water drain hose / -support l / l l / l Adjustable feet n°...

  • Page 7: Matters Needing Attention

    Front Load Washing Machine Model:HBS800/1000TXV Matters Needing Attention ¡ñ Safety 2. Hold the plug and not the electric cable .A separate earthed socket is required for the power supply. The washing machine must be when unplugging the washing machine. positioned so that the plug is accessible.

  • Page 8: During Use

    Front Load Washing Machine Model:HBS800/1000TXV Matters Needing Attention 9.The carpet must not obstruct the ventilation 8.The washing machine should not be install- openings in the base of the washing machine. ed outdoors or in a damp place. In the event of water leakage or splashes allow the machine to dry naturally.
  • Page 9 Front Load Washing Machine Model:HBS800/1000TXV Matters Needing Attention 3. Do not place heavy, heating source or wet 4. Do not hot wash foam rubber or sponge-like materials. articles on the top of the washing machine. 5. Before washing, do up zippers, buttons and 6.

  • Page 10: Installation

    Front Load Washing Machine Model:HBS800/1000TXV Installation ¡ñ Remove all the packing materials (including the foam base) to prevent vibration during use, as shown in Fig. 1. Upon opening of the package, water drops may be seen on the plastic bag and the porthole. This is normal phenomenon resulting from water test in the factory.

  • Page 11: Joining The Inlet Hose To The Washing Machine

    Front Load Washing Machine Model:HBS800/1000TXV Installation Joining the Inlet Hose to the Washing Machine Water inlet hose out 1. Connect the nut on the inlet hose to the connector on the water valve. 2. Tighten the nut to secure the hose...

  • Page 12: Net Dimension

    Front Load Washing Machine Model:HBS800/1000TXV NET DIMENSION height: 850mm / width: 595mm / depth:395mm Page 11...

  • Page 13: Names Of The Parts

    Front Load Washing Machine Model:HBS800/1000TXV Names of the parts Base board Page 12...

  • Page 14: Operational Functions

    Front Load Washing Machine Model:HBS800/1000TXV HBS800TXV Page 13...
  • Page 15 Front Load Washing Machine Model:HBS800/1000TXV Functions Page 14...

  • Page 16: Program Description Table

    Front Load Washing Machine Model:HBS800/1000TXV 800rpm 800rpm 800rpm 800rpm 800rpm 800rpm 800rpm 800rpm 800rpm 800rpm Page 15...

  • Page 17: Error Display And Troubleshooting

    Front Load Washing Machine Model:HBS800/1000TXV Error Display and Troubleshooting HBS800TXV Error message:Door is not properly shut 20s after program is started. Troubleshooting: Pushing the door to Check Whether Door Shut the door properly. is properly shut or not 220-240v Cut off the power and then turn on again.
  • Page 18 Front Load Washing Machine Model:HBS800/1000TXV Error message:Temperature sensor is not properly connected or damaged (display at the end of a program). Troubleshooting: Cut off power and measure the resistance NTC exist open circuit .Replace it of temperature sensor by multimeter, is it between 5-14k ¦¸...
  • Page 19 Front Load Washing Machine Model:HBS800/1000TXV Error message:The required water level is not reached within 8 min Troubleshooting: Check if water is leaking from washer Readjust or replace the broken parts bottom. inlet pipe. drain pipe or other pipe connection Open the tap or wait for normal water pressure to use Check if tap is closed or water pressure is too low (usual between0.2 -1 MPa)
  • Page 20 Front Load Washing Machine Model:HBS800/1000TXV Error message. Motor overheat protection or is damaged. Troubleshooting: Cut off power and check if motor wires Reconnect well are connected well Put the motor in normal temperature about Measure if resistance of motor winding by ten minutes, and then test again.
  • Page 21 Front Load Washing Machine Model:HBS800/1000TXV Error message. Water level exceeds protective value. Troubleshooting: Clean water switch hose and air Check if water switch hose and air collector collector are jammed Pull out water switch inserts and turn on power, then set wash mode. While water...
  • Page 22 Front Load Washing Machine Model:HBS800/1000TXV HBS series Examination & T roubleshooting Failure:Display nothing Troubleshooting: Repair power supply Measure the power supply ,is it exists 220V-240V AC voltage£¿ Press the power switch Is power switch on? 220-240V Press power switch and check the voltage Make sure power supply cable assembly is between two pins of power switch.
  • Page 23 Front Load Washing Machine Model:HBS800/1000TXV Failure:no draining Troubleshooting: Adjust the height of drain pipe to Is the height of drain pipe too high? 80-100 cm Turn filter anticlockwise£¬ o pen and check if Clean and tighten filter clockwise. filter is jammed...
  • Page 24 Front Load Washing Machine Model:HBS800/1000TXV Failure:water leaking Troubleshooting: Check if water is leaking from the inlet pipe Readjust it. or the tap Replace drain pipe Is drain pipe broken£¿ Remove clothes Check if there is foreign material nipped between cushion of sight window and...

  • Page 25: Wiring Circuit

    Front Load Washing Machine Model:HBS800/1000TXV Wiring Circuit Page 24...

  • Page 26: Exploded View And List Of Parts

    Front Load Washing Machine Model:HBS800/1000TXV Exploded view Page 25...
  • Page 27 Front Load Washing Machine Model:HBS800/1000TXV P art specializ ed code Name of part in English QT Y 00215100000200 fastening bolt 0020600062 front fastening washer of porthole gasket 0020300137 prothole gasket 0020600063 back fastening washer of porthole gasket 0020102410 front flange of tub...
  • Page 28 Front Load Washing Machine Model:HBS800/1000TXV Page 27...
  • Page 29 Front Load Washing Machine Model:HBS800/1000TXV N o. P a rt specialized code Name of part in English QT Y door glass outer frame 0020202301 door catch 0020202021 hook 0020102508 Shaft of hook 00215200024102 catch spring 0020102723 door shield 0020200717 door glass...
  • Page 30 Front Load Washing Machine Model:HBS800/1000TXV Sincere Forever Industrial Park, No.1, Haier Road Haier 266101, Qingdao, China http://www.haier.com Page 29...

This manual is also suitable for:

Hbs1000txv
