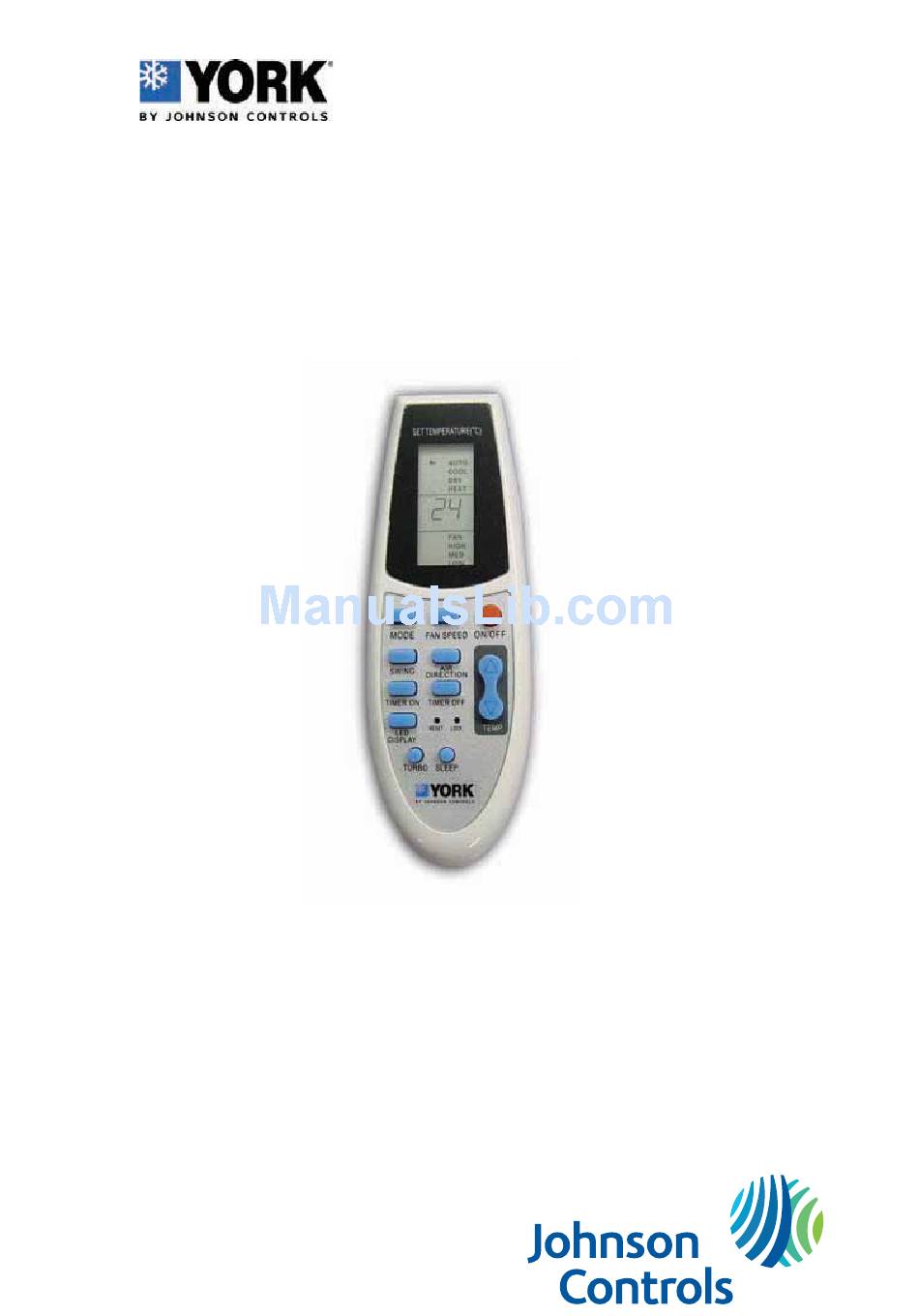

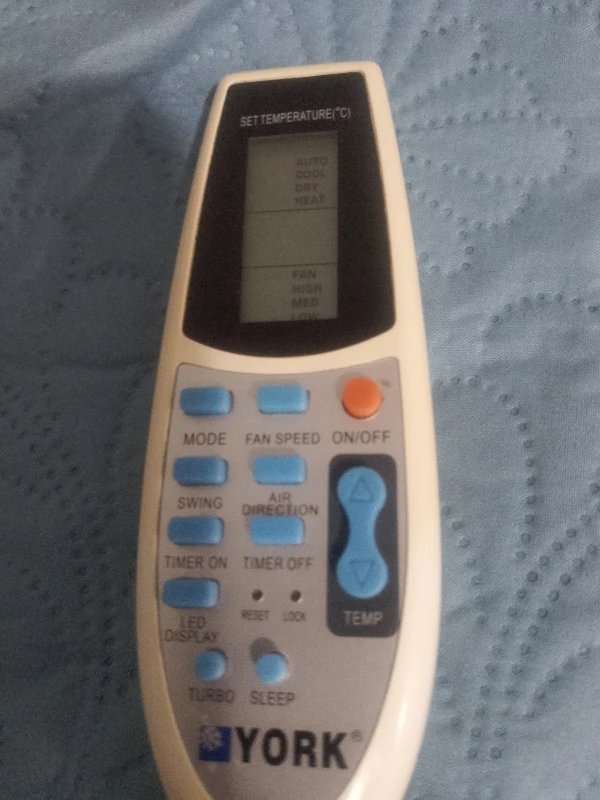

- Page 1 OWNER’S MANUAL AIR CONDITIONER REMOTE CONTROLLER ILLUSTRATION Thank you very much for purchasing our air conditioner. Please read this owner’s manual carefully before using your air conditioner.
-
Page 2: Table Of Contents
CONTENTS Specifications ....................1 Features of remote controller ................1 Indicators on remote controller ................3 Handling the remote controller ................4 Automatic operation ..................5 Cooling/Heating/Fan only operation ..............6 Drying operation ....................6 Timer operation ....................7 Cautions ......................9 Performance Features 1. Operating Mode: AUTO, COOL, DRY, HEAT, and FAN . 2. -
Page 3: Specifications
Speci cations Model R91/BGE, R91/BGCE, R91A/BGE, R91/BGCE Rated Voltage 3.0V Lowest Voltage of CPU 2.0V Emitting Signal Reaching Distance 8m (when using 3.0 voltage, it gets 11m) Environment -5°C ~ 60°C T emperature Range Features of remote controller SET TEMPERATURE AUT O COO L HEA T... - Page 4 Features of remote controller MODE Select Button: Each time you push the button, a mode is selected in a sequence that goes from AUTO, COOL, DRY, HEAT, and FAN, as the following figure indicates: AUTO COOL HEAT NOTE: FAN SPEED Button: This button is used for setting Fan Speed in the sequence that goes from AUTO, LOW, MED to HIGH, then back to AUTO.
-
Page 5: Indicators On Remote Controller
= TEMP Button 5 : Press the button to increase the indoor temperature setting. ~ TEMP Button ∞ : Press the button to decrease the indoor temperature setting. LOCK Button: Push this button to lock all the current settings, push again to cancel the LOCK function. -
Page 6: Handling The Remote Controller
Handling the remote controller Location of the remote controller • Keep the remote controller where its signals can reach the receiver of the indoor unit. (A distance of 8m is allowed.) • When you select the timer operation, the remote controller automatically transmits a signal to the indoor unit at the speci ed time. -
Page 7: Automatic Operation
Automatic operation When you set the air conditioner in AUTO mode, it will automatically select cooling, heating SET TEMPERATURE (cooling only type without), or fan only operation AUTO depending on what t emperat ure you have COOL selected and the room temperature. HEAT Once you select t he operat ing mode, t he operating conditions are saved in the unit’s... -
Page 8: Cooling/Heating/Fan Only Operation
Cooling Heating an onl operation Start Ensure unit is plugged and power is available. S ET TEMPERATURE The OPERATION lamp on the display panel of the indoor unit starts ashing. AU TO COOL DR Y 1. Mode select button (MODE) HE AT Press to select COOL, HEAT (Not applicable to cooling only models), or FAN. -
Page 9: Timer Operation
Timer operation TIMER ON button can set the auto-on time of the unit. TIMER OFF button can set the auto-off time of the unit. To set the starting time 1. Push the TIMER ON button, then the remote controller shows TIMER ON, the last set time for the starting operation and the signal “h”... - Page 10 Timer operation Set the starting & stopping time 1. Push the TIMER ON button, the remote controller SET TEMPERATURE will show TIMER ON, the last set time for START operation and the signal “h” will be shown on the AU TO COO L LCD display area.
-
Page 11: Cautions
Cautions 1. When replacing batteries, do not use old batteries or different type batteries. Otherwise it may cause the remote controller to malfunction. 2. If you do not use the remote controller for a few weeks or more, remove the batteries. - Page 12 2008 Johnson Controls, Inc. www.johnsoncontrols.com Form NO.035M70011-002 Johnson Controls reserve the right to change product features without prior notice.
