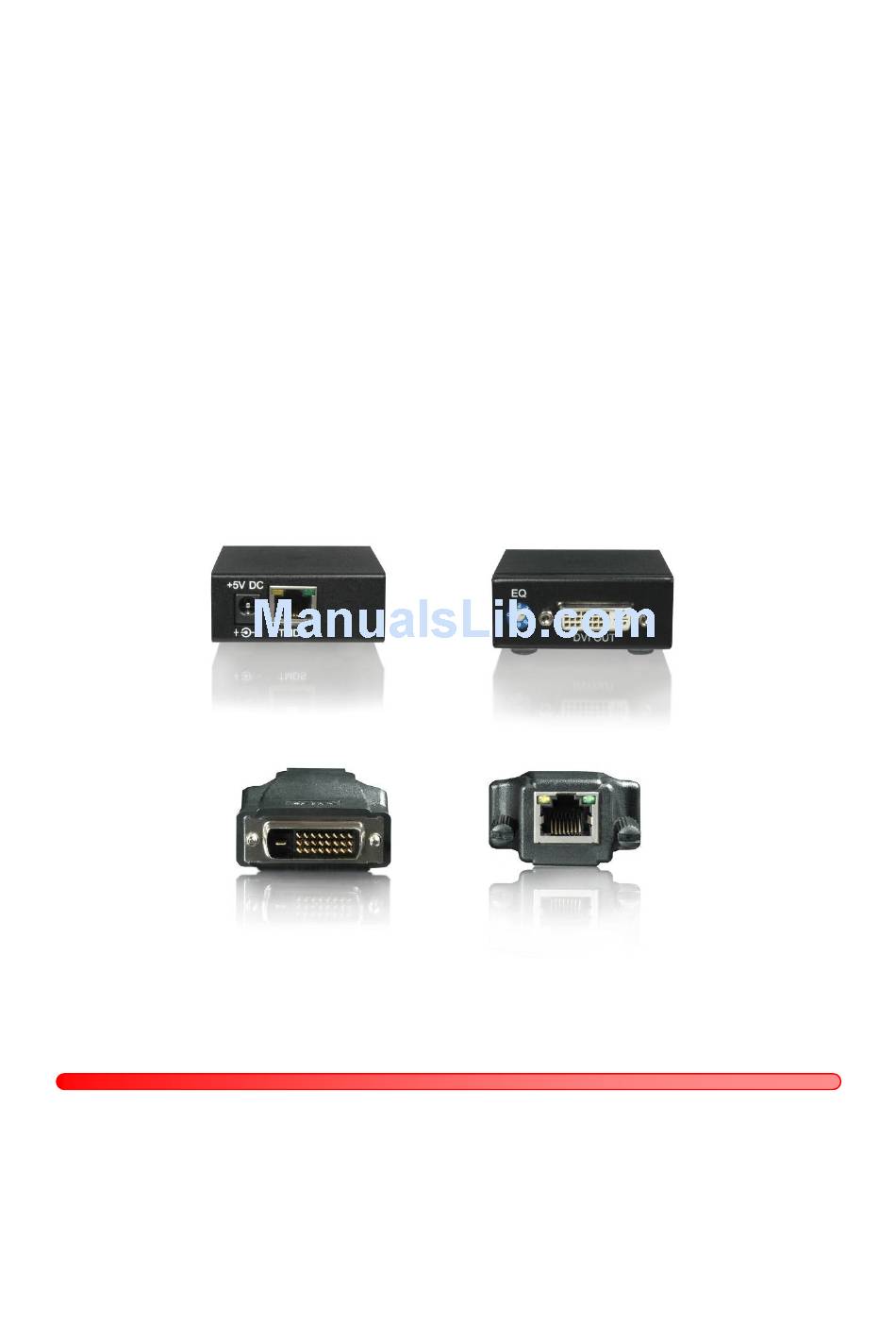

- Page 1 DVI over CAT5e Extender AS‐28 User Manual Ascale Enterprise Co., Ltd. www.ascale.com.tw ...
- Page 2 Safety and Notice The AS‐28 DVI over CAT5e Extender has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the AS‐28 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. Follow all instructions and warnings marked on this unit. Do not attempt to service this unit yourself, except where explained in this manual. Provide proper ventilation and air circulation and do not use near water. Keep objects that might damage the device and assure that the placement of this unit is on a stable surface. Use only the power adapter and power cords and connection cables designed for this unit. Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning. 1 ...
- Page 3 Introduction The AS‐28 DVI over CAT5e Extender extends your PC DVI transmission distance up to 60m (200ft) with resolution 1024x768@60Hz. With AS‐28, users can transmit high quality digital video of PC applications through one cost effective CAT‐5/5e to the remote monitor or projector, instead of using short and expensive DVI cables. With embedded EDID inside the adapter, your PC will continue to send the digital video even when the monitor is not connected. The user can then disconnects the monitor, place it in a remote location and reconnect it without rebooting the operating system. The AS‐28 includes two units: transmitting and receiving units. The transmitting unit is connected to your PC DVI output and the receiving unit is connected to the monitor. While successfully connected, the two LED lights on the RJ‐45 connector will blink. The transmission distance between the sending (AS‐28‐TX) and receiving units (AS‐28‐RX) can be up to 60m (200ft) at XGA (1024x768@60Hz) and 30m (100ft) at UXGA (1600x1200@60Hz). With compact size, AS‐28 is the most cost effective choice for bringing your impressive digital video to the remote display. DVI PC DVI display/projector CAT‐5e cable AS‐28‐RX AS‐28‐TX 2 ...
- Page 4 Features DVI v1.1 compliant Handy DVI‐D to RJ‐45 Adaptor with programmable EDID feature Extends the transmission distance from the sources up to 60m (200ft) at XGA (1024x768@60Hz) and 30m (100ft) at UXGA (1600x1200@60Hz) Minimize the cable skew by adjustable 8‐level equalization control knob Supports 1080i/1080p HDTV resolutions & VESA standards Receiving unit can learn EDID information for DVI/HDMI enabled display device Package Contents 1x AS‐28‐TX (TX: transmitting unit) 1x AS‐28‐RX (RX: receiving unit) 1x 5V2A power adapter 1x User Manual Technical Specifications Video Bandwidth: 1.65 Gbps (DVI 1.1) Input TMDS signal: 1.2 volts (peak‐to‐peak) DVI‐D Connector (digital only) RJ‐45 Connector: 2 indication LEDs Dimensions: 70mm x 60mm x 25mm (2.8"x2.4"x1") (L x W x H) Weight: 119g (4.2oz) 3 ...
- Page 5 Panel Descriptions Front View — Receiving Unit AS‐28‐RX DVI OUT DVI Out: Connect to a DVI display with a DVI M‐M cable here. EQ: Adjust the 8‐level equalization control knob to the received HDMI signals. 0 – 7 = strongest – weakest. It is recommended to switch from 7 to 0 to find the optimal visual experience. Rear View — Receiving Unit AS‐28‐RX +5V DC TMDS TMDS: Plug in a CAT5/5e/6 cable that needs to be linked to the TMDS connector of the Transmitter. +5V DV: Connect to 5V DC power supply. 4 ...
