ELITE Handheld Leaf Blower
PRODUCT SPECIFICATIONS
36 Volt high energy Li-Ion
45 Minute Charger
100 ~ 240 V AC, 60/50 Hz
42 V DC
CEC6600
CESC8000
12 Lbs
8 Lbs
1
Instruction Manual
E 420
Advertisement
Table of Contents
Related Manuals for Core E 420
Summary of Contents for Core E 420
-
Page 1: Product Specifications

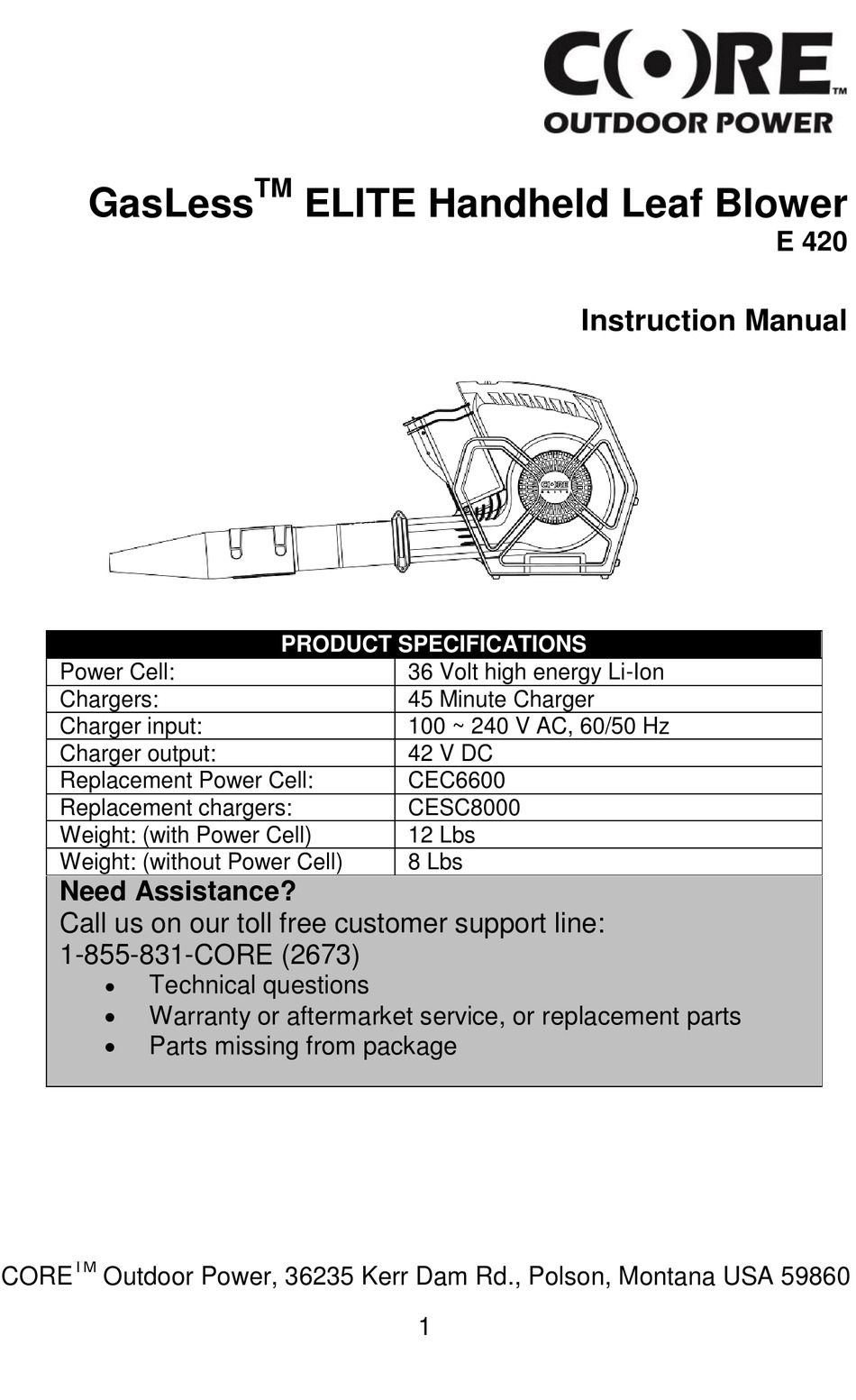

GasLess ELITE Handheld Leaf Blower E 420 Instruction Manual PRODUCT SPECIFICATIONS Power Cell: 36 Volt high energy Li-Ion Chargers: 45 Minute Charger Charger input: 100 ~ 240 V AC, 60/50 Hz Charger output: 42 V DC Replacement Power Cell: CEC6600... -
Page 2: Table Of Contents
TABLE OF CONTENTS Product specifications ………….…………………………………………… Table of contents ……………………………………………………………. General safety warnings …………………………………………………… 3–4 Eye and facial, hearing & body protection ………………………………. 3–4 Electrical safety ……………………………………………………………… Product safety notices – Owner’s registration …………………………… General power tool safety warnings ……………………………………… 5–7 Work area safety ……………………………………………………………. -
Page 3: General Safety Warnings
GENERAL SAFETY WARNINGS CAUTION: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. This instruction manual includes the following: General Safety Rules Specific Safety Rules and Symbols ... -
Page 4: Electrical Safety
NOTICE: Please register your Leaf Blower, Power Cells and Power Cell chargers online at WWW.COREOUTDOORPOWER.COM in order to permit the receiving of product safety notices from CORE™ Outdoor Power for potential future safety guidance communications and / or safety product recalls. -
Page 5: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Do not expose power tools, the GENERAL POWER TOOL SAFETY charger or Power Cells to rain or wet WARNINGS conditions. Water entering the tool, chargers or Power Cells will increase WARNING: Read all safety the risk of electric shock. warnings and all instructions. -
Page 6: Personal Safety
GENERAL POWER TOOL SAFETY WARNINGS General Power Tool Safety Warnings – Do not force the tool. Use the correct Personal Safety – cont’d tool for the application. The correct power tool will do the job better and safer when used at the rate for which it Use personal protective equipment. -
Page 7: Service
Ordinary glasses ARE NOT such as scarves, neckties, jewelry, safety glasses. To reduce the risk of flared or cuffed pants, loose-fitting shirts injury to your face CORE Outdoor or jackets, unconfined long hair or Power recommends that you also wear... - Page 8 WARNING: Do not use this blower for sweeping hearing protection. Core debris that may contain hard objects, recommends the use of e.g. pebbles, stones, sticks, glass, hearing protection (e.g. ear plugs or ear metal, etc.
- Page 9 SPECIFIC SAFETY RULES If the materials have the potential to be WARNING: Breathing asbestos hazardous, do not use the blower, or dust with silica in its composition may instead, utilize other safe clean up contain hazardous crystalline silica. procedures and disposal procedures. If Silica is a fundamental component of you are suspicious that you have been sand, quartz, brick, clays, granite and...
- Page 10 SPECIFIC SAFETY RULES WARNING: WARNING: Never insert a When blowing very foreign object (e.g. screwdriver, stick, dusty materials in extremely dry etc.) into the nozzle, air exhaust tube or conditions for long periods of time, the intake fan screen. Any foreign static electricity may build up and article that becomes lodged in the air discharge without warning.
-
Page 11: Power Cell And Charger Safety Instructions
Only use a CORE imposed upon it, has been overheated, Outdoor Power CESC8000 standard or is cracked, crushed, deformed or charger to charge the CORE punctured. If a Power Cell has Outdoor Power CEC6600 Power Cell. sustained damaged, (as per above, or... - Page 12 POWER CELL & CHARGER SAFETY INSTRUCTIONS WARNING: For air, vessel and ground transport Leakage from the purposes, Lithium ion Power Cells are Power Cell may occur under extreme usage, charging or temperature classified as Class 9 Hazardous Goods, conditions, or if the Power Cell is subject to ICAO Technical Instructions damaged, crushed or punctured.
-
Page 13: Power Cell Recycling
Outdoor Power away from charger ventilation openings, CESC8000 standard charger to charge Power Cell retaining cavity and output any batteries other than a CORE terminals. Outdoor Power CEC6600 Power Cell. Charging other batteries may cause the Do NOT charge the Power Cell when... -
Page 14: Symbols
SYMBOLS WARNING: Some of the following symbols may appear on the Leaf Blower, Power Cell or Power Cell chargers, or this manual. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this tool. Volts Read the manual Amperes... -
Page 15: Know Your Leaf Blower
KNOW YOUR LEAF BLOWER ACCESSORIES AVAILABLE ACCESSORIES Before using any accessory, carefully read the instructions or the owner’s WARNING: Use only manual for the accessory. accessories that are recommended See chart below for this gasless leaf blower. Follow the instructions that accompany the WARNING: If any part is missing accessories. -
Page 16: Contents
CONTENTS CONTENTS LEAF BLOWER COMPONENTS DESCRIPTION Carefully unpack the leaf blower and Leaf blower compare the contents against the Depending upon if a Leaf Blower kit "LEAF BLOWER COMPONENTS" chart was purchased, one or more Power at right. Cells and/or one of the following chargers may be included: Power Cell 45 Minute Standard... -
Page 17: Assembly And Operating
ASSEMBLY AND OPERATING CHARGING THE POWER CELL Instructions for charging the Power Cell are packed with the charger. Please read all safety warnings and charging instructions. INSTALLING THE NOZZLE The nozzle must be attached to the blower air tube to maximize the air flow and to allow you to direct the air flow. -
Page 18: Motor Control Switches
ASSEMBLY AND OPERATING MOTOR CONTROL SWITCHES To start the tool, push the blower slide switch (1) forward (Fig. 2). NOTE: When blowing heavier materials such as large leaves or wet grass, slide the switch forward and hold the blower slide switch to “Boost”. The higher speed will produce increased air flow for moving the heavier materials. -
Page 19: Installing The Power Cell
INSTALLING THE POWER CELL Once the Power Cell has been fully charged and you are ready to start blowing, you will have to install the Power Cell (1) into the leaf blower(3). Insert the Power Cell with "CORE” (2) facing forward (Fig. 3). -
Page 20: Operating Position
ASSEMBLY AND OPERATING INSTALLING THE POWER CELL – cont’d Slide the Power Cell into the matching cavity (3). NOTE: Make sure you push the Power Cell fully into the cavity. The locking latch will click when the Power Cell is properly installed. -
Page 21: Cleaning The Air Intake
ASSEMBLY AND OPERATING CLEANING THE AIR INTAKE It is important to provide unrestricted air flow into the blower fan. Check the air intake screen often to make sure it is clean and not restricting the incoming air. WARNING: Remove the Power Cell from the blower before cleaning debris from the bower intake screen. -
Page 22: Maintenance
MAINTENANCE GENERAL POWER CELL REMOVAL AND PREPARATION FOR RECYCLING WARNING: When servicing, use only original equipment replacement To preserve our natural resources, parts. The use of any other parts may please recycle or dispose of Power create a hazard or cause product Cells properly. -
Page 23: Replacement Parts
Blower. Any attempt to repair or replace electrical parts on this Leaf Blower may create a safety hazard unless repairs are performed by a qualified technician. For more information, call the Toll-free Helpline, at 1-855-831-CORE (2673). Key # Part Name... -
Page 24: Warranty
WARRANTY CORE™ Outdoor Power - Limited Product Warranty Statement for E 420 Core GasLess™ ELITE Blower and Accessories Sold Only in the 48 Contiguous United States of America and Canada, effective January 1, 2014. Page 1 of 5 CORE™ Outdoor Power provides to the original purchaser [for first purchaser other than for purposes of resale] or the person to whom it was originally purchased as a gift, a limited product warranty that CORE™... - Page 25 Should operational problems or failure occur, the product should not be used, but rather delivered as is to a CORE™ Outdoor Power Authorized Service Center for warranty service.
- Page 26 WARRANTY CORE™ Outdoor Power - Limited Product Warranty Statement for E 420 Core GasLess™ ELITE Blower and Accessories Sold Only in the 48 Contiguous United States of America and Canada, effective January 1, 2014. Page 3 of 5 Commercial Application ...
- Page 27 WARRANTY CORE™ Outdoor Power - Limited Product Warranty Statement for E 420 Core GasLess™ ELITE Blower and Accessories Sold Only in the 48 Contiguous United States of America and Canada, effective January 1, 2014. Page 4 of 5 Rental Application – cont’d...
- Page 28 WARRANTY CORE™ Outdoor Power - Limited Product Warranty Statement for E 420 Core GasLess™ ELITE Blower and Accessories Sold Only in the 48 Contiguous United States of America and Canada, effective January 1, 2014. Page 5 of 5 IN NO EVENT WILL CORE™ OUTDOOR...
-
Page 29: Warranty Service
Power Cell. Your local authorized CORE™ Outdoor Power products dealer should be able to readily assess which, if any, of the three CORE™ Outdoor Power GasLess™ Blower system’s components is non-functional [that is, either: A) Your Power Cell: B) Your Power Cell charger: C) Your Gasless™... - Page 30 If after first ruling out the prospect of a non-functional or defective CORE™ Power Cell, or Power Cell charger, [as per above], the problem is thus determined to require service repair of the GasLess™...
- Page 31 The recommended freight couriers for delivery to a CORE™ Outdoor Power Authorized Service Center are either, FedEx, UPS, US Postal Service or Canada Post. CORE™ Outdoor Power will not be responsible for lost shipments or product damage during transit to the CORE™...
- Page 32 Conversely, if a consumer purchases a service part and installs it themselves, the consumer then assume all liability for the repairs. Any repairs not made by CORE™ Outdoor Power’s Authorized Service Center will void the continuance of the warranty on the product.
-
Page 33: Factory Service Request Form
CORE™ Outdoor Power Authorized Service Request Form Date:_______________________ Company or Institution Name [if applicable] _____________________________________________ Name of Purchaser [or name of contact person for Company or Institutionally- owned product] ________________________________________________ Physical Return Delivery Address [Note: we are unable to deliver to PO boxes]:... - Page 34 CORE™ Outdoor Power Authorized Service Request Form – cont’d Tool or accessory Model Number: _______________________________ Tool or accessory Serial Number: _______________________________ Type of usage [mark with an X] Personal Home Use ______ Commercial / Institutional Use ______ Rental Tool Use ______...
