AudioControl The Epicenter Plus Owner's Manual page 5

A GUIDED TOUR OF The Epicenter Plus
The Outside
1. Auxiliary Input: This RCA connection can accept any two-channel audio
signal that comes from secondary source devices like an iPod, MP3 player, or
Satellite radio. To activate this input, you need to tap the dash control and The
Epicenter Plus will switch between the main inputs and this auxiliary input. The
LED indicator above the "Aux Input" will identify when this input is being used.
2. Speaker-level Inputs: If you would like to use The Epicenter Plus with a
factory-installed source you will be happy to know that it is equipped with Au-
dioControl's high impedance speaker-level inputs. These inputs should get their
signals from the full-range speaker-level outputs of your factory-installed source
unit or amplifier. If your source unit has front, rear, and subwoofer speaker-level
outputs, then you may need to use an AudioControl LC6i, LC7 or LC8 to sum
these signals together.
3. Audio Pre-Amp Inputs: The pre-amp inputs of The Epicenter Plus use a
balanced input circuit to help minimize induced noise. They are also designed
to handle very high signal voltages up to 15 volts!! When these inputs are
activated, the "Main Inputs" LED will be Red. When using these inputs you will
want to provide The Epicenter Plus with a full range signal.
Î

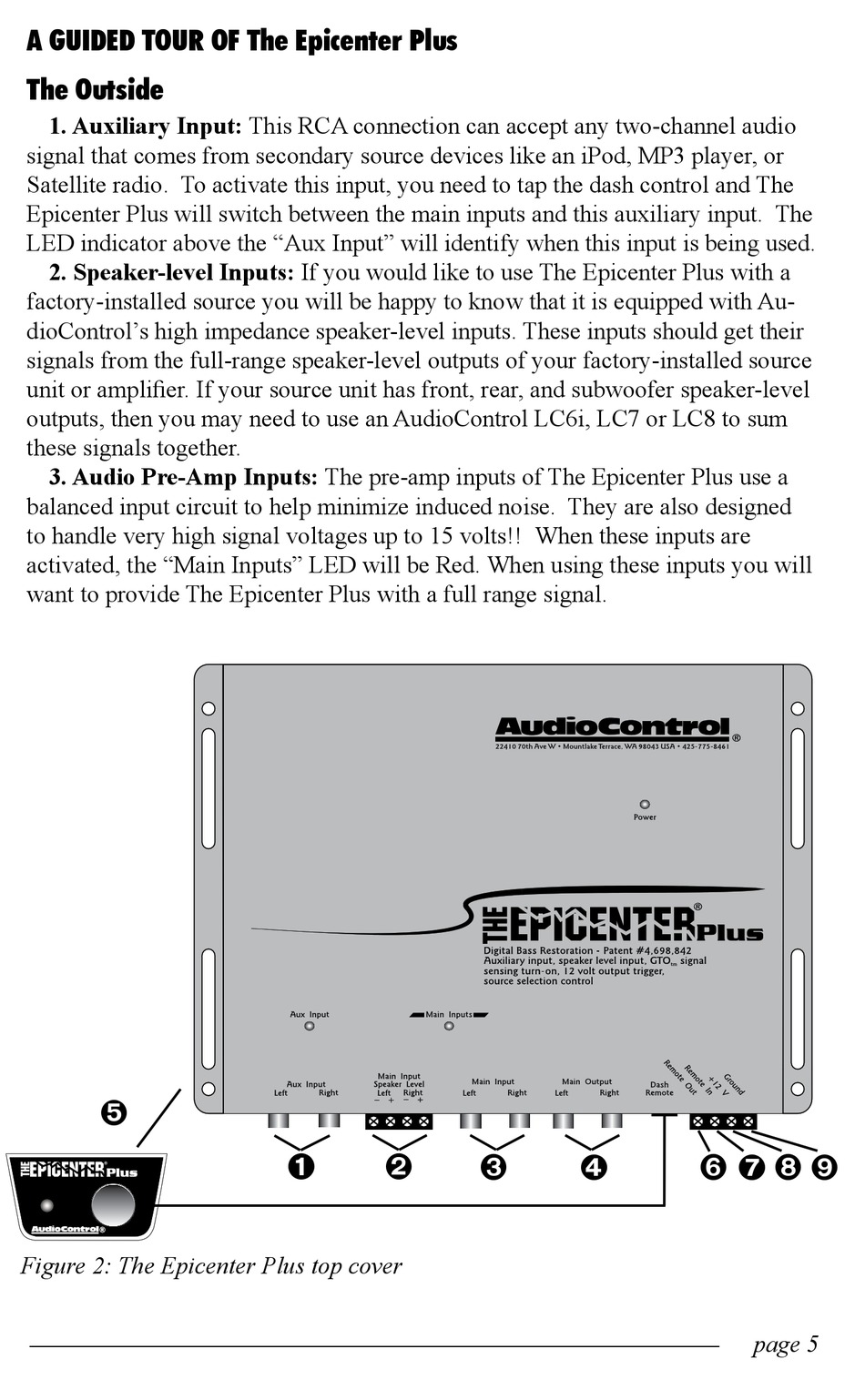

Figure : The Epicenter Plus top cover
Ê Ë Ì Í Ï Ð Ñ Ò
