- Page 2 Contact us: Competitive Edge Dynamics P.O. Box 486, Orefield, PA 18069-0486 Phone: (610) 366-9752 Fax: (610) 366-9680 Email: info@cedhk.com www.cedhk.com Europe Double-Alpha Academy B.V. Elzenweg 33b 5144MB Waalwijk Netherlands Phone: +31 416 660 464 Fax: +31 416 392 040 Email: info@doublealpha.biz www.doublealpha.biz...
- Page 3 CED7000PRO User Manual V1.0...
-
Page 4: Table Of Contents
Table of Contents Introduction............1 Overview and keypad layout........2 Auxiliary jacks............3 Battery & charging...........3 Caring for your device..........4 Menu navigation............4 Menu..............5 Mode Run timer............6 Match...............7 Steel challenge..........11 Stop watch............12 Repetitive............13 Spy..............14 Rate of fire............15 Simple mode...........15 Settings Auto start............16 Alarm clock............16 Time &... - Page 5 Clear all par............23 Single par............23 Par series............24 Multi par............24 Auto par............25 RO tools 3min countdown..........26 5min countdown..........26 Custom countdown..........26 Export/Import Export data file..........26 Import data file..........27 CED7000PRO PC Application........27 Updating the firmware.........30 Data Transfer............30 WinMSS.............31 Warranty..............33 www.ced7000pro.com...........34...
-
Page 6: Introduction
Introduction Congratulations on purchasing the CED7000PRO Shot Activated Timer, the most advanced timer in the market. The CED7000PRO is packed full of features never before available on a Shot Timer. This timer includes full match scoring capabilities, Steel- Challenge scoring, upload and download of data, and a... -
Page 7: Overview And Keypad Layout

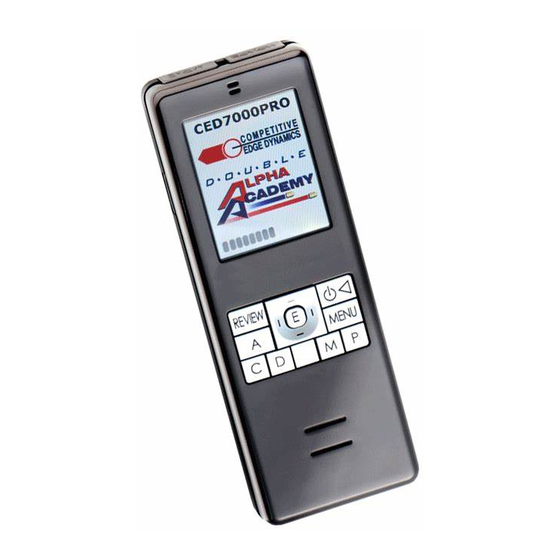

Overview and keypad layout The CED7000PRO features a full color LCD screen which displays a wide range of information on a single screen without the need to flip back and forth to view the rel- evant data. The most important information is displayed in bold and in some cases in a different color to make them easier to read. -
Page 8: Auxiliary Jacks
It also allows for updating the timer’s operating software. • Check www.ced7000pro.com to ensure your timer is running the latest software version. The left Auxiliary port is used for an external micro- phone or an external activation button. -
Page 9: Caring For Your Device
1. Select Menu -> Settings -> Auto Shut Off. 2. Select 10min (or off). 3. Press “E”. Battery indicator The battery indicator consists of 7 levels, from empty to full. Make sure you charge your CED7000PRO Timer when the battery indicator shows red. -
Page 10: Menu Navigation
Caring for your device • To prevent corrosion, thoroughly dry and clean the mini-USB port and the surrounding area before charg ing or connecting to a computer • Do not store the device where prolonged exposure to extreme temperatures can occur •... -
Page 11: Run Timer
Back button The back button will take you back one step in the menu hierarchy. If the back button is pressed while in the main menu, the timer will switch back to either Run Timer, Match or Steel-Challenge modes, depending which one was used last. -
Page 12: Match
The Match mode Menu -> Mode -> Match The CED7000PRO can function as a complete IPSC/ USPSA scoring system to run any size match. A match can be created directly within the Timer by manually creating stages and shooters or by downloading a match created online at www.ced7000pro.com or by using... - Page 13 21. Press Back to go back to previous menu * Shooter ID ranges from 1 to 1500. Note You can create a match using your personal computer either through WinMSS or via www.ced7000pro.com More on this on the respective chapters.
- Page 14 Important! When creating a match in WinMSS and importing to the timer, you must assign all shooters to squads number 1 and up. Do not place shooters in squad 0 or unassigned, as the timer cannot handle that. Run Match 1.
- Page 15 ** Holding down any scoring button for 1.5 seconds (A, C or D) will auto-complete all hits to the value of the button pressed down. So if you hold down the A button, all hits will be auto-completed as A’s to the total number of hits required on the stage.
-
Page 16: Steel Challenge
Menu -> Mode -> Steel-Challenge Using your CED7000PRO, you can create and run a Steel -Challenge training or match. The CED7000PRO has all the 8 stages of the Steel-Chal- lenge set up and ready to go, and it supports all major Steel-Challenge Divisions. -
Page 17: Stop Watch
The CED7000PRO provides this function with its built-in Stopwatch mode. When selected, the CED7000PRO timer acts as a Stop- watch. When in this mode, both the microphone and buzzer on the timer are disconnected and will not func- tion. -
Page 18: Repetitive
Menu -> Mode -> Repetitive This feature of the CED7000PRO is ideal for PPC, UIT, Police, & Military qualification type courses where a series of simulated “exposures” at fixed intervals are required. -
Page 19: Spy
the buzzer (and 5 volt impulse if in use) will beep for 0.3 seconds indicating the end of the “Face” period, and the beginning of the “Edge” period. After the selected EDGE time expires, the sequence will start again, and continue doing so until it has completed the full amount of repeats that have been pre-set into the timer. -
Page 20: Rate Of Fire
3. Press Start to begin recoding your ROF. Menu -> Mode -> Simple Mode The advanced features of the CED7000PRO Timer can be turned off by choosing “Simple Mode”. In this mode, the timer will only run as a simple shot timer with the option to change Delay, Par and the microphone’s sensitivity. -
Page 21: Settings Auto Start
Menu -> Settings -> Auto start The CED7000PRO is designed to prevent accidental loss of results. In order to re-activate the Start button, the Review button must be pressed at least once. The user can override this function by setting the Auto Start to On. -
Page 22: Backlight
RF wireless remote transmitter, which has an unobstructed broadcast range of up to 50 yards, to com- municate with a CED BigBoard or CED Time Keeper. To link a “CED7000PRO-RF” Timer to one of these devices, do the following: 1. -
Page 23: Sound
Then enter the same number into either the CED Big- Board or CED Time Keeper to be linked with. Once com- pleted, the CED7000PRO Timer will transmit recorded times instantly to the linked unit as they are recorded on the timer. The CED Time Keeper will also display the number of shots and the split times as well. -
Page 24: Max Match Size
3. Press “E” to confirm or Back to cancel Beep -> Silent The CED7000PRO Timer can be used for Cowboy Fast Draw and other applications where a visual start instead of sound is required. In selecting this function, the CED-... -
Page 25: Shot Counter
Did you ever wonder how many rounds you shot in a practice session or over a certain period of time? The CED7000PRO can count the accumulated number of shots the timer picked up either on a specific date or over time. Both variables, the Session Counter and the Total Counter can be reset if needed. -
Page 26: Clear Memory
2. Select Yes/No 3. Press “E” to confirm or Back to cancel Menu -> Settings -> Self Check The CED7000PRO incorporates a self-diagnostic test program enabling the user to check systematically if the timer is functioning properly. This provides additional... -
Page 27: Firmware Version
3. Press “E” to confirm or Back to cancel Menu -> Settings -> Firmware Version The CED7000PRO is a software driven timer and as such there may be firmware updates from time to time, to incorporate new features. The firmware version indi- cates which firmware the Timer is currently running. -
Page 28: Clear All Par
1. Select Menu -> Delay 2. Select the desired Delay type by pressing the up and down arrow buttons 3. Press “E” or confirm or Back to go back Note 1. To set Custom delay, move right with the right arrow button and set the required custom delay then press “E”... -
Page 29: Par Series
A Par Series is a set of single Pars put together in a sequence, each of which is activated by a separate press on the Start button. The CED7000PRO allows for a maximum of 20 Par Series to be programmed in. -
Page 30: Auto Par
1. Select Menu -> Par -> Multi Par 2. Set the desired Par time using the arrow buttons. 3. Press Start to activate or Back to go back Note The user has to set Multi Par N before Multi Par N+1 can be set. -
Page 31: Ro Tools 3Min Countdown
3. Press “E” to confirm 4. Press Start to begin countdown Menu -> Export/Import -> Export Data File The CED7000PRO Timer can export its entire database - strings, matches and Steel-Challenge along with all shooters’ information to an external file which can later be processed by external software, like WinMSS or our website ced7000pro.com. -
Page 32: Import Data File
4. Wait a few seconds until the process is complete 5. Press Back to return to menu CED7000PRO PC Application The CED7000PRO PC Application allows you to easily import and export data to and from your timer. The soft- ware can be downloaded from www.ced7000pro.com/ downloads. - Page 33 - ASP .NET framework version 4 or above (the software will install this if does not exist on the user’s machine) - This software is not MAC compatible. Application screenshots Note that the status displays: Timer not connected since the CED7000PRO is not yet connected to the PC.
- Page 34 Upon successful timer connection to the PC, the status changes to Ready: The application has three main sections: 1. CED7000PRO a. Export Data From Timer b. Import Data To Timer c. Update Firmware 2. WinMSS a. Download Data From WinMSS b.
-
Page 35: Updating The Firmware
Data Transfer You can create an IPSC match/training session or a Steel-Challenge match/training session using www. ced7000pro.com. The data transfer allows you to easily download or upload the data to and from your timer. Export: 1. On the Timer: select Menu -> Export/Import and click Export. -
Page 36: Winmss
WinMSS The CED7000PRO can be link to WinMSS to import and export data using our CED7000PRO PC Application. Us- ers can now create a match on WinMSS and download it to one or more timers as a complete match or only selected stages to each timer. - Page 37 5. On the CED7000PRO application select Download Data From WinMSS 6. Choose the folder you just saved the WinMSS data in 7. Click OK 8. Click the safely un-plug button once finished transferring the data to the timer! 9. On the timer - select Menu -> Export/Import ->...
-
Page 38: Warranty
WinMSS is now updated with all recorded results from your timer/s. Warranty If your CED7000PRO breaks due to defective parts or workmanship, we will replace it for you within the first two years. This warranty does not cover any failures at- tributable to abuse, mishandling, failing to follow operat- ing instructions, alterations, or accident. -
Page 39: Www.ced7000Pro.com
CED- 7000PRO timer. In addition to product and accessory in- formation and video tutorials, it features a comprehen- sive FAQ section and a download page where you will find the latest firmware files to download to your timer.
