Hsumao PROGRAMMABLE ELLIPTICAL TRAINER User Manual page 6

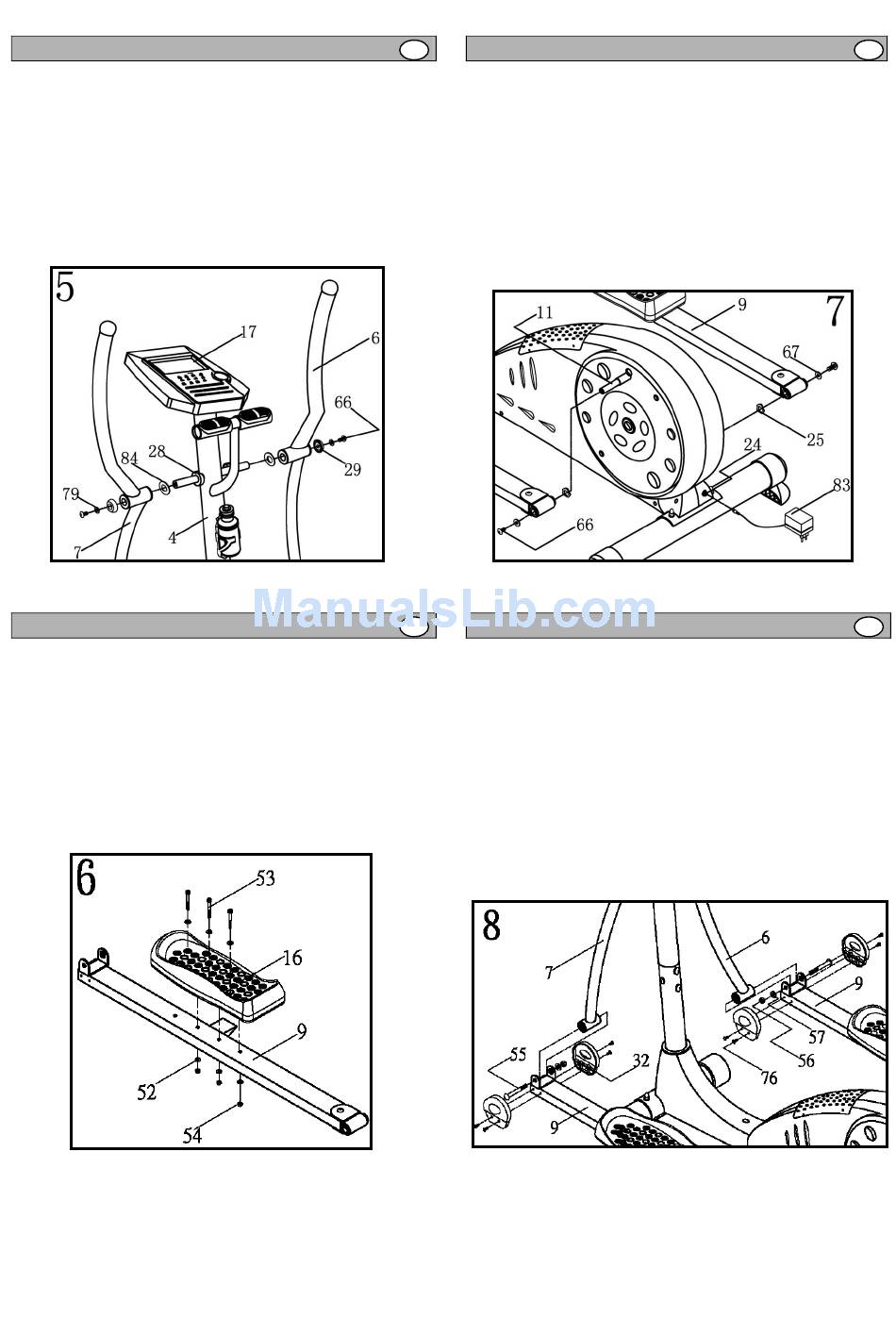

Step 5
1. Attach right swing bar (6) to axle at side of handlebar
post (4) with sleeve (28) & washer (84), secure with 1
cap (29), washer (79) & hex.bolt (66).
2. Do the same for the left swing bar (7).
Step 6
1. Attach the right pedal (16) to pedal bar (9) secure with
3 x carriage bolt (53), 6 x washer (52) and 3 x nut (54)
tightly.
2. Do the same for the left pedal bar (9).
Step 7
GB
1. Attach the end of the right pedal bar (9) to axle of
cross bar (11) with washer (25). Secure with 1 x allen
head bolt (66) with washer (67) tightly.
2. Do the same for the left pedal bar (9).
3. Attach adaptor (83) to DC wire (24) at back of main
frame (1).
Step 8
GB
1. Attach the end of right swing bar (6) to the right front
of pedal bar (9), secure with 1x carriage bolt (55),
washer (57) with nut (56) tightly. Cover with 2 x
protector (32) to the right front end of pedal bar (9),
secure with 4 screws (76).
2. Do the same for the left swing bar (7) and Left pedal
bar (9).
- 6 -
