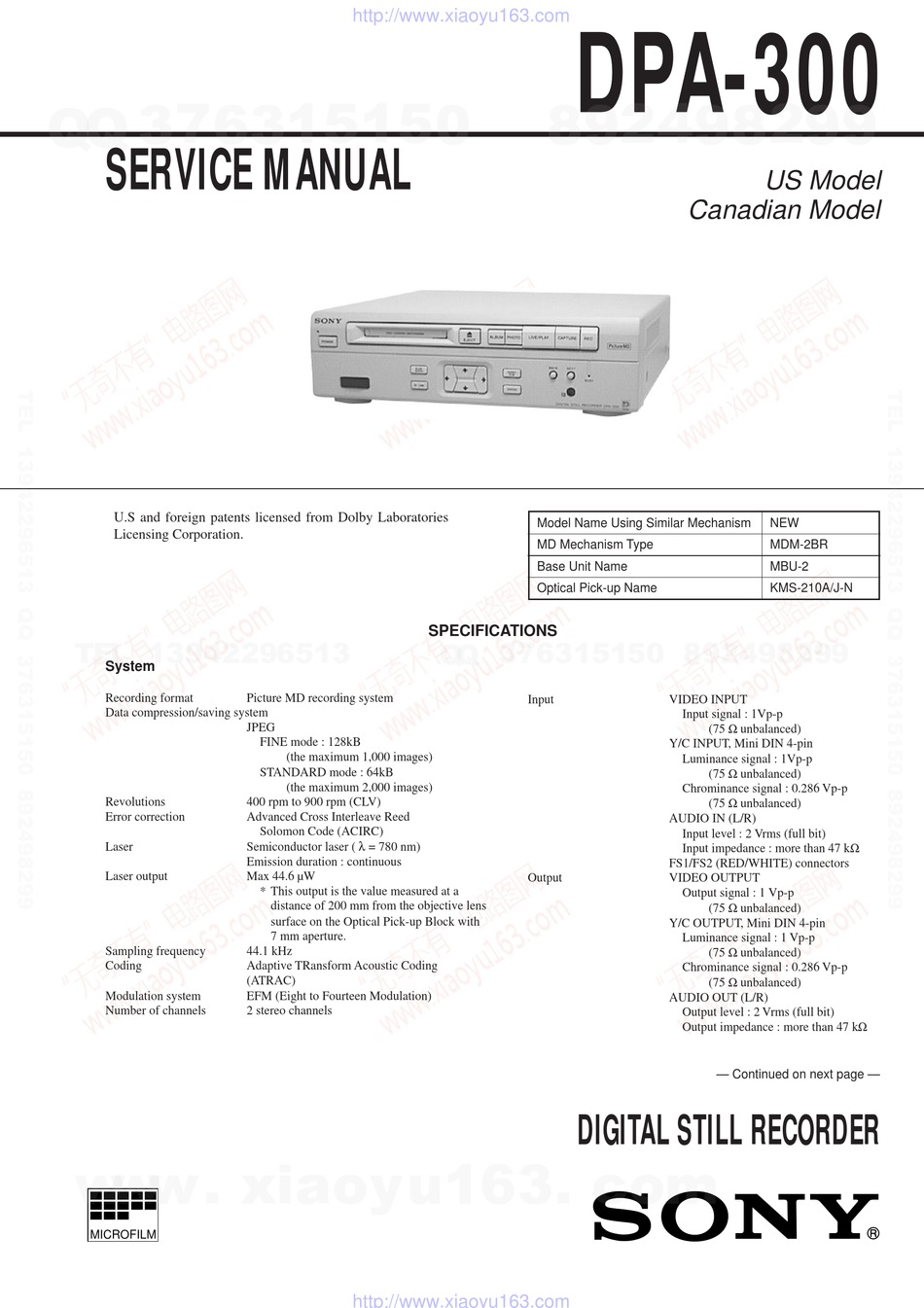

SERVICE MANUAL
U.S and foreign patents licensed from Dolby Laboratories
Licensing Corporation.
TE
L 13942296513
System
Recording format
Data compression/saving system
Revolutions
Error correction
Laser
Laser output
Sampling frequency
Coding
Modulation system
Number of channels
www
.
MICROFILM
http://www.xiaoyu163.com
Picture MD recording system
JPEG
FINE mode : 128kB
(the maximum 1,000 images)
STANDARD mode : 64kB
(the maximum 2,000 images)
400 rpm to 900 rpm (CLV)
Advanced Cross Interleave Reed
Solomon Code (ACIRC)
Semiconductor laser ( λ = 780 nm)
Emission duration : continuous
Max 44.6 µW
* This output is the value measured at a
distance of 200 mm from the objective lens
surface on the Optical Pick-up Block with
7 mm aperture.
44.1 kHz
Adaptive TRansform Acoustic Coding
(ATRAC)
EFM (Eight to Fourteen Modulation)
2 stereo channels
x
ao
u163
y
i
http://www.xiaoyu163.com
DPA-300
2 9
8
Model Name Using Similar Mechanism
MD Mechanism Type
Base Unit Name
Optical Pick-up Name
Q Q
SPECIFICATIONS
3
6 7
1 3
1 5
Input
Output

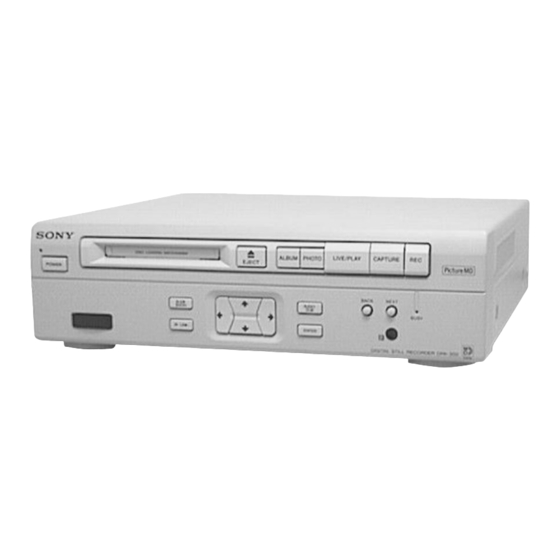

DIGITAL STILL RECORDER
co
.
9 4
2 8
US Model
Canadian Model
NEW
MDM-2BR
MBU-2
KMS-210A/J-N
0 5
8
2 9
9 4
2 8
VIDEO INPUT
Input signal : 1Vp-p
(75 Ω unbalanced)
Y/C INPUT, Mini DIN 4-pin
Luminance signal : 1Vp-p
(75 Ω unbalanced)
Chrominance signal : 0.286 Vp-p
(75 Ω unbalanced)
AUDIO IN (L/R)
Input level : 2 Vrms (full bit)
Input impedance : more than 47 kΩ
FS1/FS2 (RED/WHITE) connectors
VIDEO OUTPUT
Output signal : 1 Vp-p
(75 Ω unbalanced)
Y/C OUTPUT, Mini DIN 4-pin
Luminance signal : 1 Vp-p
(75 Ω unbalanced)
Chrominance signal : 0.286 Vp-p
(75 Ω unbalanced)
AUDIO OUT (L/R)
Output level : 2 Vrms (full bit)
Output impedance : more than 47 kΩ
— Continued on next page —
