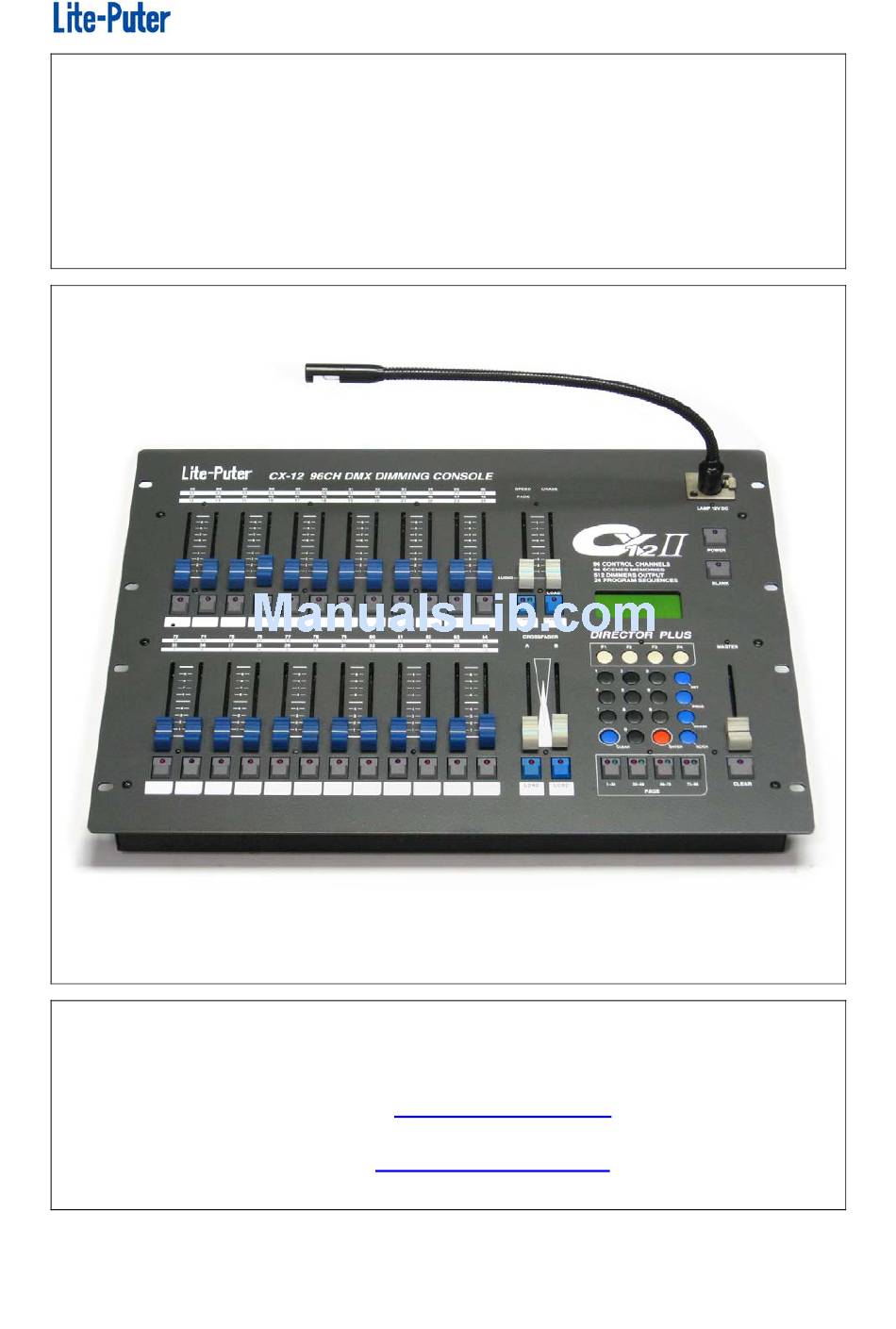

- Page 1 ISO 9001 CERTIFIED www.liteputer.com.tw CX-12II DMX 96 Control Channel Dimming Controller 【User Manual】 Lite-Puter Enterprise Co., Ltd. Website: www.liteputer.com.tw E-mail: sales@liteputer.com.tw Lite-Puter www.bluelight.at CX-12 [EUM-E]...
-
Page 2: Table Of Contents
CHAPTER 8. SET FUNCTION 8-1 LCD display / system default setting ..............17 8-2 output memory card loading / saving ..............18 8-3 Channel patch setting / warm up setting ............19 8-4 Lock / Unlock setting ..................21 Lite-Puter www.bluelight.at CX-12 [EUM-E]... -
Page 3: Feature
ISO 9001 CERTIFIED www.liteputer.com.tw Chapter 1. CX-12II Feature & Function Feature Digital signal output 96 control channel, and able to control up to CH97 – CH512 by patch 4 set of PATCH editing function 96 set of scenes pre-set ( 24 set of scenes able to save on every single page function ) -
Page 4: Dimension
ISO 9001 CERTIFIED www.liteputer.com.tw 1-3 Dimension Lite-Puter www.bluelight.at CX-12 [EUM-E]... -
Page 5: Chapter 2. Specification
ISO 9001 CERTIFIED www.liteputer.com.tw CHAPTER 2. CX-12II SPECIFICATION 2-1 Introduction of control panel (1.) VR1 ~ VR24 VR ....... VR1 ~ VR24 (2.) P1 ~ P24 hot key...... P1 ~ P24 function 1 ：The LED on function key display the channel status ( In channel mode ) function 2：In SCENE mode, for SCENE selection... -
Page 6: The Feature Function Of Rear Panel
(28.)0 ~ 9........0 ~ 9 (29.)CLR........Clear 2-2 REAR PANEL ( 1) Power switch ( 2) Power In + Fuse ( 3) goosenecks power switch ( 4) DMX 512 output ( 5) memory card ( 6) audio input Lite-Puter www.bluelight.at CX-12 [EUM-E]... -
Page 7: Chapter 3. Power Switch
(1.) Turn off the power switch on front panel Battery recharging mode ★ (2.) Turn off the power switch on rear panel Battery un-recharge, 7 days duration of save data maintains only ★ Remark：The using status will keeping on after power off Lite-Puter www.bluelight.at CX-12 [EUM-E]... -
Page 8: Chapter 4. Channel
24】to set CH. 73 ~ 96 of brightness value. PAGE START CH73 CHASE FADE ON F1/2：FADE ON/OFF p.s. when on page function, the VR should be adjust to 0 value, and move the VR key to get the new dimming value Lite-Puter www.bluelight.at CX-12 [EUM-E]... -
Page 9: Modification Of Brightness Of Control Channel
1】key to CH01=50 to change the setting. 4-3 setting delete adjust 【VR 1 ~ VR 24】and【MASTER VR】key to the bottoms “0”, and press the CLEAR key on below of ”MASTER VR” key to delete. Lite-Puter www.bluelight.at CX-12 [EUM-E]... -
Page 10: Chapter 5. Scene
ARE YOU SURE ?F1 SAVE SCENE STEP-6 for further SC2 --- SC96 setting, please refer to the setting procedure of above Each【PAGE】 24 set of SCENE setting available 4 PAGE able to store 96 set of scene Lite-Puter www.bluelight.at CX-12 [EUM-E]... -
Page 11: Scene 1
STEP-6 Press【ENTER】to confirmed the scene loading 5-2-2 use【SC/CH】key for SCENE loading (FLASH status) 【PAGE】LED ● → SCENE mode 【PAGE】LED ● → CHANNEL mode STEP-1 Set all dimming value to 0%. (refer to 4-3 ) STEP-2 Adjust the【MASTER VR】key STEP-3 Press【PAGE 1】 Lite-Puter www.bluelight.at CX-12 [EUM-E]... - Page 12 STEP-3 Press【PAGE 1】 STEP-4 press【SC/CH】to select SCENE mode (LED light on RED on PAGE key ) STEP-5 Adjust【VR 1】key to for SCENE loading 【1】 5-2-1 or 5-2-2： SCENE speed loading 【2】 5-2-3：Adjust the VR key for dimming function Lite-Puter www.bluelight.at CX-12 [EUM-E]...
-
Page 13: Chapter 6. Sequence
F1 / 2/ 3/ 4=1/ + / - /E SEQU.STEP01=S - - STEP-5 according to the STEP-3 procedures, to continues the SCENE setting, and press【F4】key to complete the editing, and press【ENTER】to save SELECT [01...24] SAVE SEQUENCE01 Lite-Puter www.bluelight.at CX-12 [EUM-E]... -
Page 14: Sequence Modify
F3: Edit F2: Save F4: Clear STEP-5 Press【F3】key for Sequence setting CHASE Loading 6-3-1 CHASE loading ： to load the 1 set of chase ※ CHASE number = SEQUENCE number STEP-1 press【CHASE】key SELECT 01…24 CHASE: OFF Lite-Puter www.bluelight.at CX-12 [EUM-E]... -
Page 15: Chase Fade On/Off Setting
CHASE FADE ON F1/2:FADE ON/OFF STEP-2 press【F1】key, to enter CHASE FADE ON MODE. press【F2】key, to enter CHASE FADE OFF MODE. CHS=FL SPEED=FL CHS=FL SPEED=FL Step=01 Step=01 CHASE FADE ON CHASE FADE OFF F1/2:FADE ON/OFF F1/2:FADE ON/OFF Lite-Puter www.bluelight.at CX-12 [EUM-E]... -
Page 16: To Stop The Chase Execution
ISO 9001 CERTIFIED www.liteputer.com.tw 6-5 to stop the CHASE execution function 1. Press twice【CHASE】key to stop function 2. Adjust the【CHASE FADER VR】key to the “ 0% “ value to stop Lite-Puter www.bluelight.at CX-12 [EUM-E]... -
Page 17: Chapter 7. A/B Cross Faders Switching
According to the setting procedures of above, use the【A CROSS FADER VR】key for further setting 7-3 To pause the A / B CROSS FADER Adjust the 【A CROSS FADER VR】key to the “0%” value, and press【LOAD】key to pause / stop Lite-Puter www.bluelight.at CX-12 [EUM-E]... -
Page 18: Lcd Display / System Default Setting
STEP-4 and press 【F1】 for brightness of LCD background lighting, press 【F1】 again to save. F1 : Backlight F2 : Concen 8-1-2 LCD contrast adjustment STEP-4 refer to STEP-4,press【F2】key to adjust the contrast of LCD, and press 【F2】again to confirmed. F1 : Backlight F2 : Concen Lite-Puter www.bluelight.at CX-12 [EUM-E]... -
Page 19: Output Memory Card Loading / Saving
8-2 External memory card save / load STEP-1 Press【SET】 F1 : Setup F3 : Patch F2 : Xio F4 : Lock STEP-2 and press【F2】 press【F1】for external memory loading F1 : Read press【F2】for external memory saving F2 : Save Lite-Puter www.bluelight.at CX-12 [EUM-E]... -
Page 20: Channel Patch Setting / Warm Up Setting
F1/ 2 / 3 / 4=1/ + / - /d DIMMER001<=CH01 press【F4】DIM address selection STEP-5 Press【F4】，for DIM staring address press【F1】DIMMER097 1:97 2:193 3:289 press【F2】DIMMER193 DIMMER001<= press【F3】DIMMER289 STEP-6 Press【F1】for DIMMER097<=CH-- F1/ 2 / 3 / 4=1/ + / - /d DIMMER097<=CH-- Lite-Puter www.bluelight.at CX-12 [EUM-E]... - Page 21 STEP-2 and press【F3】 F3:DMXin F2:DMXo F4:Wrmup STEP-3 and press【F4】 1.【F1】: to select all channel warm up setting 2.【F2】: SCENES loading F1 : ALLCh F2 : LoadSc F4 :Clr 3.【F4】: to delete the last step scene setting Lite-Puter www.bluelight.at CX-12 [EUM-E]...
-
Page 22: Lock / Unlock Setting
STEP-3 press【F1】，to lock【PROG】key Enter 4 digit number, or enter “6248” of default LOCK PROGRAM: password setting PASSWORD : 0000 STEP-4 press【ENTER】key to confirmed the setting 8-4-2 unlock press【SET】,and press 4 digit number of password【XXXX】and press【ENTER】 to unlock Lite-Puter www.bluelight.at CX-12 [EUM-E]...
