Lex Lightning Dualex II User Manual page 2

Congratulations on purchasing your new lighting effect
from Lexlighting. Reading through this manual will ensure
trouble free and long life operation of the unit.
Features:
- 96 High Brightness LED's (Red, Green & Blue)
- Sound To Light (Inbuilt Microphone)
- Full DMX
- Master/Slave Mode (up to 4 slaves)
- Digital Settings Display
- Package Spec: D400cm W310cm H230cm
- Package Weight: 3kg Approx
Contents:
- Light Unit Dualex II
- IEC Mains Cable UK Plug
- Hanging Bracket
- User Manual

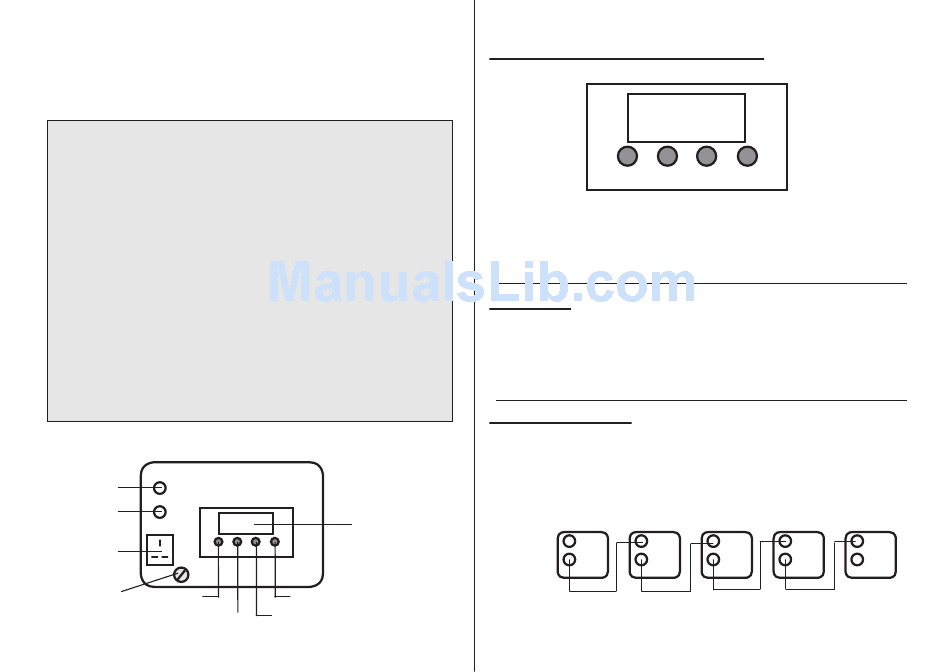

DMX IN
DMX OUT
IEC Power
Input
Fuse
Mode Button
Enter Button
Digital Display
Down Button
Up Button
Sound to Light (Music Trigger Mode)
To put your fixture in sound-to-light mode:
G-1-
MODE ENTER
Press the MODE button until the first letter in the display shows "G".
Then using the UP and DOWN buttons, select "G-1-" and press
the ENTER button. Your light is now in sound to light and will run
through Programmed chases (patterns) one by one, activated by
sound using the built in Microphone.
Auto Mode
Auto mode will run through the programmed chases (patterns) one
by one regardless of any sound input. As above, simply Press the
MODE button until "G" is displayed. Using the UP and DOWN but-
tons select "G-2-" and press the ENTER button. Your light is now
in AUTO Mode. Selecting "G-3-" will stop the Auto Chase Mode.
Master/Slave Mode
Your Dualex allows you to connect it to other Dualex units (max 4
slaves) to create a stunning in-sync light show. This is achieved by
linking XLR cables(sold seperatley) from each fixture using the DMX
IN and DMX OUT ports. Please observe the diagram below.
MASTER
SLAVE 1
IN IN
Dualex's
OUT OUT
Display Settings G-1- s-1-
The above example shows the master units mode set on Sound Ac-
tive. The 4 slaves will now also be sound active and be in-sync with
the master.
UP DOWN
SLAVE 2 SLAVE 3 SLAVE 4
IN IN IN
OUT OUT OUT
s-2- s-3- s-4-
