Siddons Solarstream ALL-IN-ONE HEAT PUMP WATER HEATER Installation Manual

Siddons solarstream all-in-one heat pump water heater

INSTALLATION GUIDE

ALL-IN-ONE HEAT PUMP WATER HEATER

To be read in conjunction with the Owner's Manual

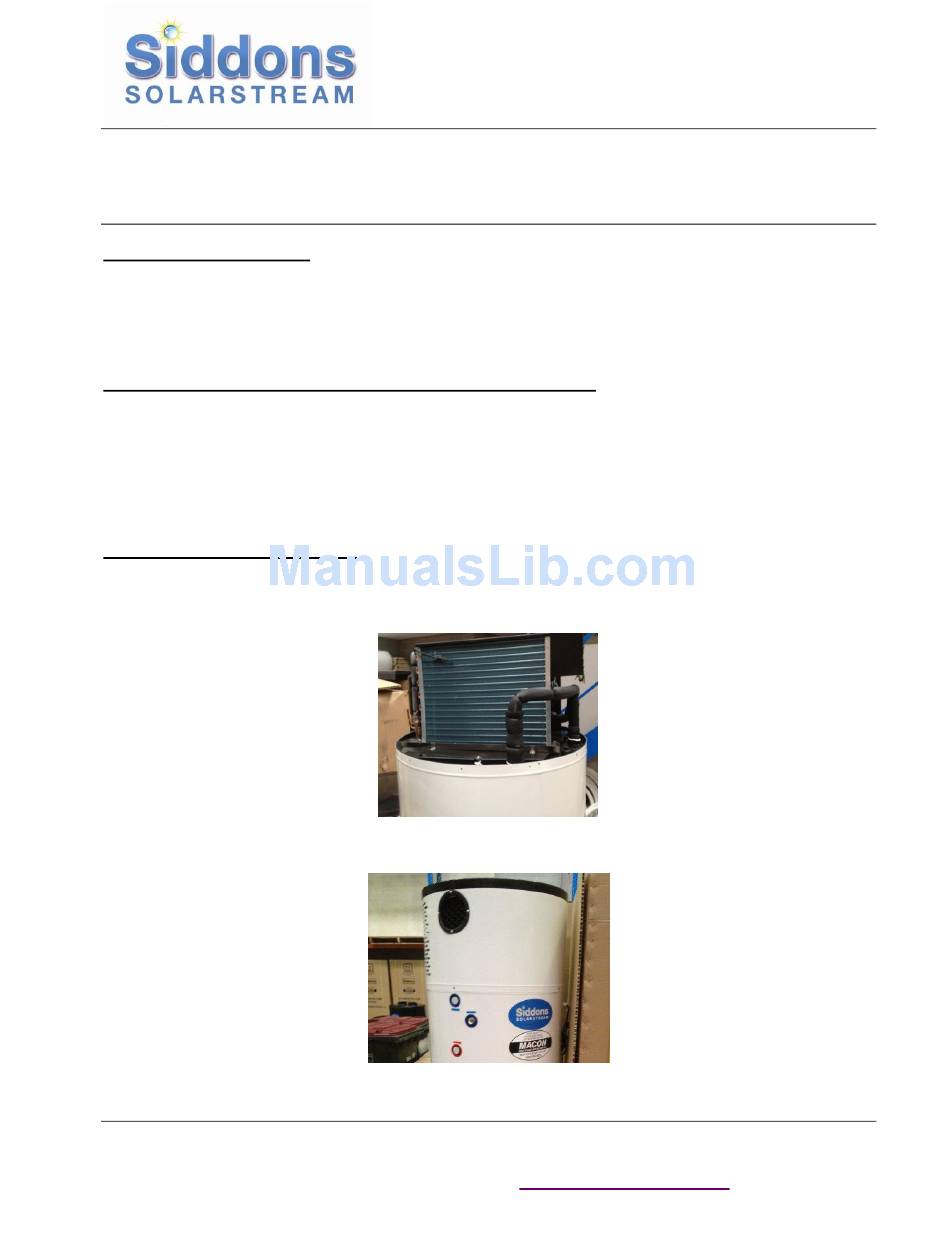

Clearance of unit from wall

The All-in-one heat pump water heater can sit hard up against the wall (does not need to sit 500mm away

from it) provided that the air inlet and outlet grills are pointing away from or adjacent to the wall. Also you

should ensure that the Siddons Solarstream label is still visible because behind this label underneath the

heat pump lid you will find the digital controller.

To ensure accessibility to the heat pump components under the lid in the event of servicing in the future,

make sure there is at least 600mm above the top on the heat pump, and if it is hard against the wall,

remove the screw adjacent to the wall fastening the heat pump lid to the water heater. The remaining three

screws will be sufficient to hold the lid securely. The parameters of the controller are pre-set to deliver hot

water at 60 deg C. There are also diagnostic parameters on this controller that can be accessed in the

event of an operating fault.

Please note the air inlet is through the grill to the evaporator fin coil. Site the unit so the air can blow out into

clear space.

The Air outlet is through the round vent.

Unit 147/45 Gilby Rd., Mt. Waverley VIC 3149 | Australia

Phone: 03 9543 9882 | Fax:

03 8676 1702

| ABN: 83 116 459 119

PO Box: N46, Armadale North VIC 3143 |

www.siddonssolarstream.com

Table of Contents

Do you have a question about the ALL-IN-ONE HEAT PUMP WATER HEATER and is the answer not in the manual?

Page 1 Clearance of unit from wall The All-in-one heat pump water heater can sit hard up against the wall (does not need to sit 500mm away from it) provided that the air inlet and outlet grills are pointing away from or adjacent to the wall. Also you should ensure that the Siddons Solarstream label is still visible because behind this label underneath the heat pump lid you will find the digital controller.
Page 2 Warning label regarding hydrogen gas Please disregard this warning as it is only applicable to the use of anodes in mild steel hot water tanks which are not used with this stainless steel (316 grade) storage tank. One-way valve The one-way valve supplied with this unit is not required if you have purchased a QIK kit where the Duo valve has a one-way stop valve and isolating valve combination.
