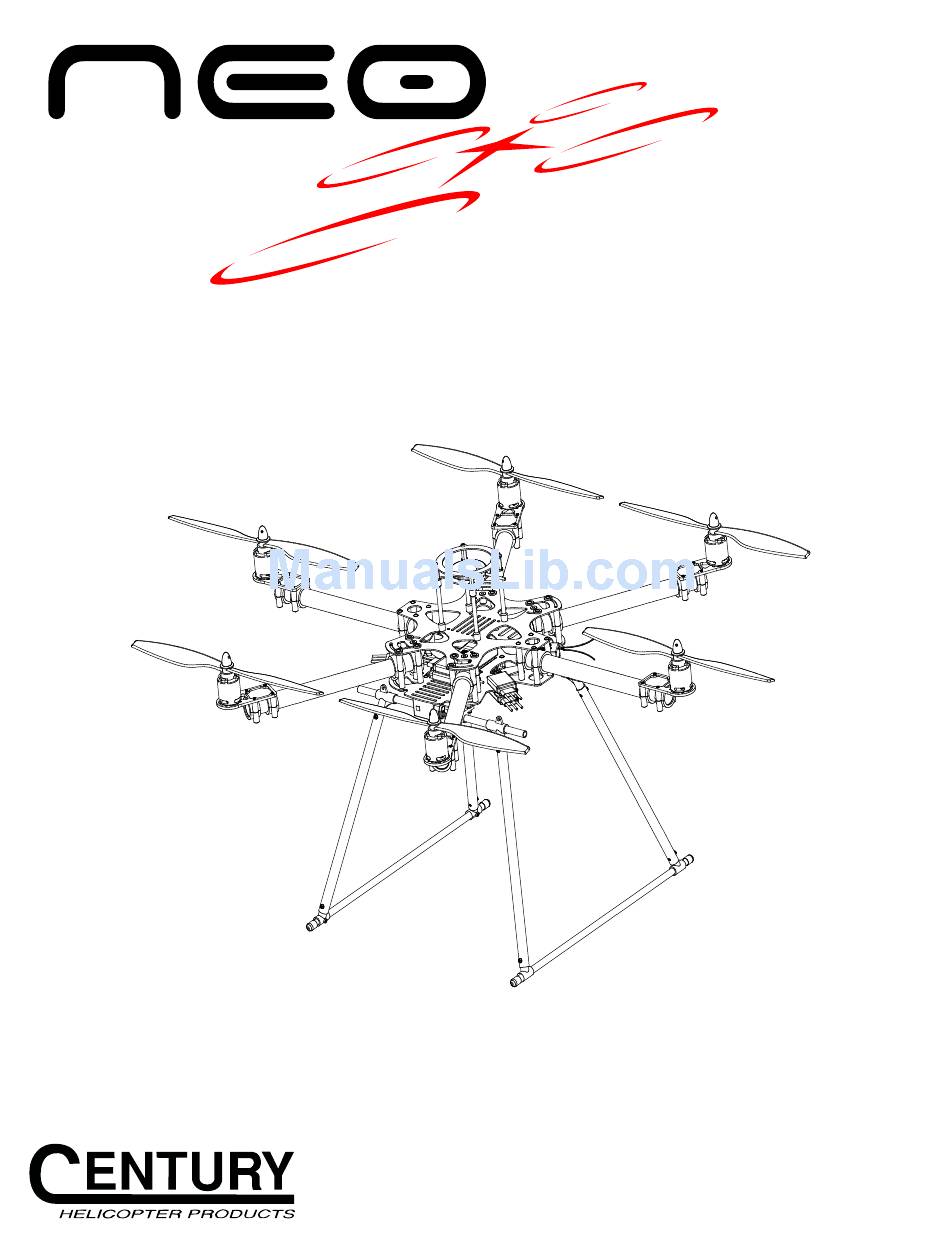

- Page 1 800C 940C Version 1.00 © 2013 Century Helicopter Products - All rights reserved.
-
Page 2: Flight Checklist
Thank you for purchasing the all new NEO 940C/800C class of multi-rotor aircraft. By incorporating the latest designs and the possibilty of running on blade sizes from 15” to 17” propellers, the lifting capabilities and stability of the NEO 940C / 800C are unmatched. - Page 3 NEO 940C & 800C AMA RULES & REGULATIONS General 1. Model aircraft will not be flown: (a) In a careless or reckless manner. (b) At a location where model aircraft activities are prohibited. 2. Model aircraft pilots will: (a) Yield the right of way to all man carrying aircraft.
-
Page 4: Arm Assembly
寸螺旋桨 Century 4108 Motor (X4108 马达) CNMR4108A CNMR6001 Black Motor Mounting Plate( 黑色马达固定板 ) CNMR6003 L=13mm Aluminum Tube Holder(13mm铝管固定座) NEO 800C: 300 Carbon Tube(300mm CNMR6006C 长黑色铝管) CNM3x6BHCS CNMR6006D NEO 940C: 370 Carbon Tube(370mm 长金色铝管) CNM3x30BHCS Button Head Cap Screw ( 圆头内六角螺丝)M3x30... - Page 5 NEO 940C & 800C ARM ASSEMBLY L=22mmAluminum Tube Holder(22mm Description Part # CNMR6024A1C Top & Bottom Plate 940C/800C CNM3x30BHCS Button Head Cap Screw( 圆头内六角螺丝)M3x30 CNM3x8BHCS CNMR6008A1 Flush Head Cap Screws( 斜头内六角螺丝)M3x6 CNMR6008A1 Moveable Aluminum Tube Holder (22mm 铝管固定座 ) CNM3x30BHCS CNMR6008A1 3x10x1.5 Nylon washer(3x10x1.5 尼龙垫片)
- Page 6 NEO 940C & 800C GPS SAVER CNM3x6BHCS Description Part # CNMR6010C 65mm Aluminum Post (65mm 铝柱 CNM3x6BHCS Button Head Cap Screw ( 圆头内六角螺丝)M3x6 CNMR6010C M3x8 Nylon Screws(3x8 尼龙螺丝) CNMR6010C GPS Protection Board (GPS保护板) CNM3x8 CNMR6010C L=15mm Hex Nylon Column(15mm 长六角尼龙柱) CNMR6010C GPS Saver Plate ( GPS固定板)
- Page 7 NEO 940C & 800C DISTRIBUTION BOARD ASSEMBLY Solder the ESC’s as shown to the distribution board included with your NEO multirotor. Make sure the Positive (Red +) wire and the Negative (Black -) are correctly connected. (ARF VERSION ONLY) (Optional item)
-
Page 8: Landing Gear Assembly
NEO 940C & 800C LANDING GEAR ASSEMBLY Description Part # Lower Right T Joint (右下脚架) CNMR6015 CNMR6016A Aluminum Strut 260 mm (260 mm 铝管 ) Upper Right T Joint (右上脚架) CNMR6015 CNMR6017A Landing Gear Cross Boom 265mm ( 265mm 管 ) - Page 9 NEO 940C & 800C LANDING GEAR AND ELECTRONICS CNM3X8ST Part # Description Self-tapping Screw (脸捣 ) CNM3X8ST (Optional item) (Optional item) (Optional item) (ARF Version Only) (Optional item) Description Part # GPS Module (Optional) MultiRotor Controller (Optional)( 主控器) 8 ch Receiver 2.4G (Optional) Multi Rotor Speed Control ( 马达调速器)
- Page 10 NEO 940C & 800C BUILD PHOTOS (USING NEO 600 AS EXAMPLE) Assemble the arms as shown on page 4. Assemble the lower frame plate and alumi- Install the distributing panel hex posts on the num threaded arm mounts. (Quadcopter NEO UPPER frame plate.
- Page 11 NEO 940C & 800C BUILD PHOTOS (USING NEO 600 AS EXAMPLE) Assemble the GPS saver cage together, Attach the upper frame plate along with “GPS The 1/4” camera mount hole indicates the front of and install on top of the upper frame plate.
- Page 12 1740-C Junction Ave. San Jose, CA. 95112 U.S.A. www.centuryheli.com...
