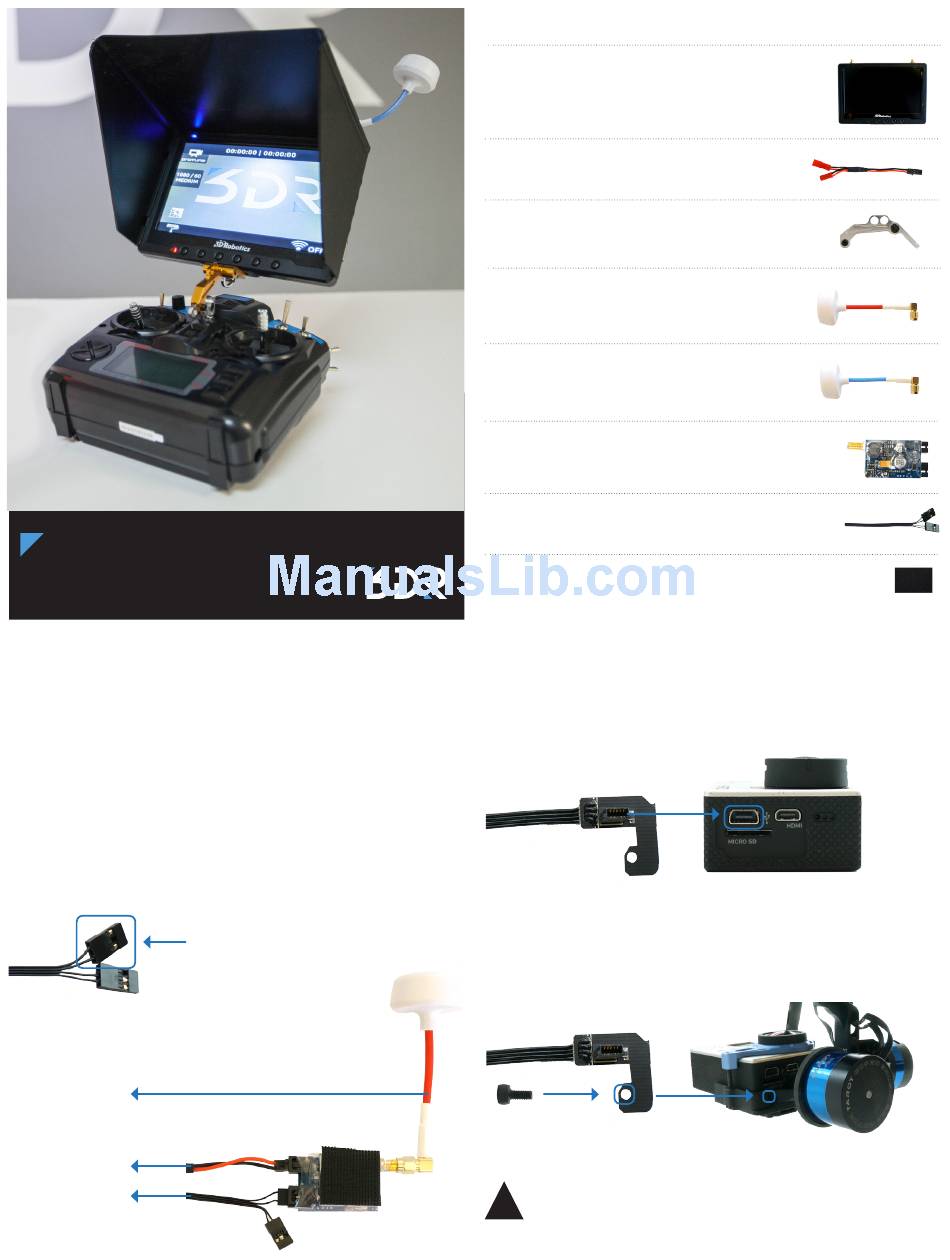

3DR LiveView User Manual

LiveView Kit for GoPro
™
User Guide
Transmitter Assembly
Attach a velcro strip to the flat side of the video transmitter to prepare it
to mount to the copter. Connect the air antenna (red) to the transmitter.
The transmitter has two ports: a two-wire port and a three-wire
port. Connect the black connector on the splitter cable to the
transmitter's two-wire port. The transmitter's three-wire port will
connect to the GoPro video cable. On the end of the GoPro video
cable with two connectors, select the connector with the more
widely-set wires. Orient the connector with the metal pins facing in
the same direction as the velcro, and connect to the transmitter's
three-wire port.
GoPro video cable
Antenna
Splitter cable
GoPro video cable
Select the connector
with the larger space
between the two wires.
Complete transmitter wiring
Parts
Monitor
Splitter cable
Mounting bracket
Air antenna
Ground antennas (2)
Video transmitter
GoPro video cable
Mounting velcro
GoPro HERO Assembly
For X8+, use the GoPro video cable pre-installed onto the vehicle.
For other vehicles, use the GoPro video cable provided with this kit.
Connect the micro-USB end of the cable to the GoPro's micro-USB port.
GoPro video cable to GoPro HERO wiring
Insert the mounting screw provided with the cable through the cable
plate and attach to the hole in the gimbal marked below. This will secure
the cable to the gimbal.
Secure cable to gimbal
Important note: Make sure that the WiFi on your GoPro is
!
turned OFF at all times when in use with your copter. The WiFi
signal can interfere with the copter's radio communication and
cause unexpected behavior.
