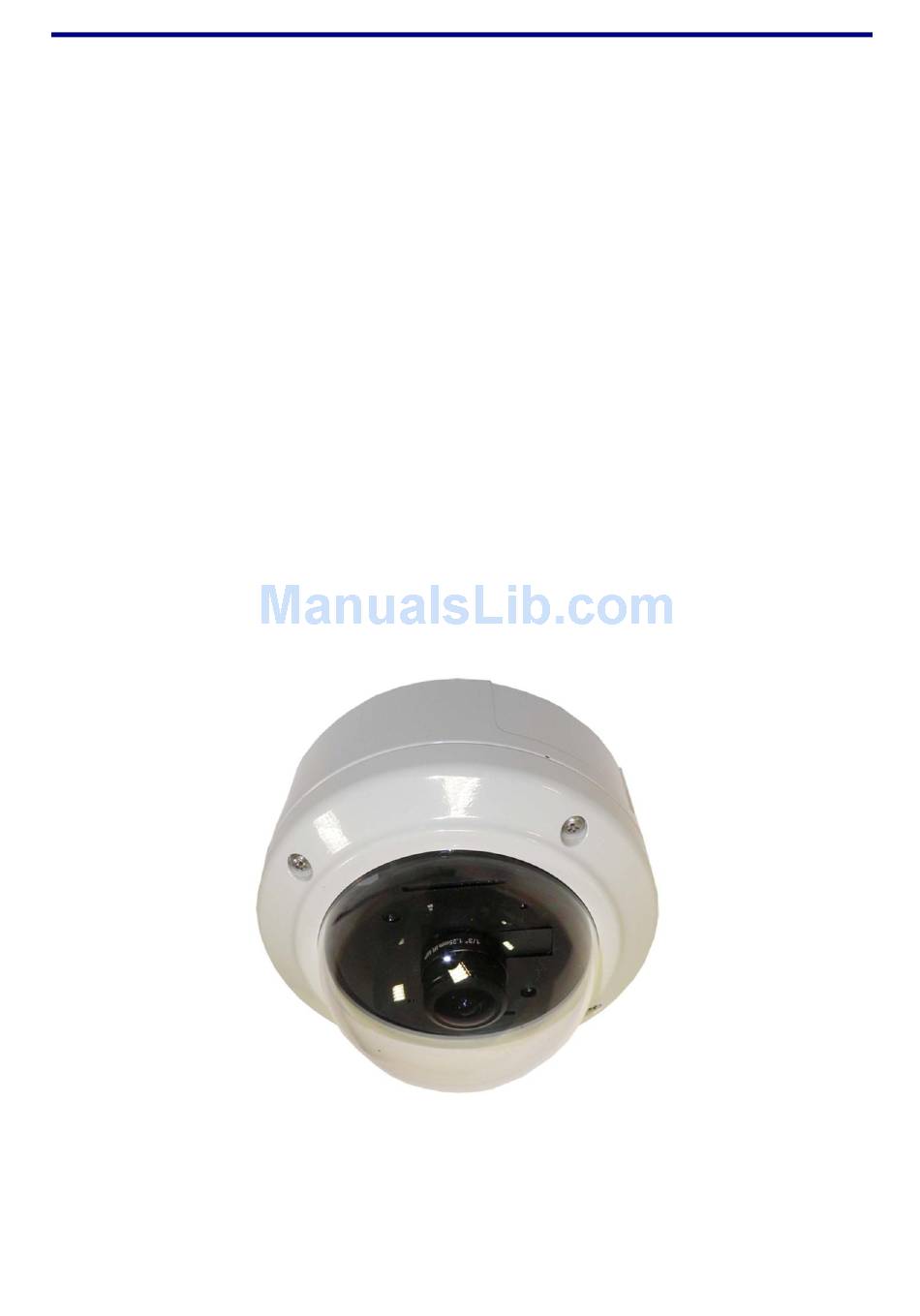

- Page 1 ND637 User’s Manual ND637E User’s Manual H.264 High Profile 2M Fish-Eye Panoramic Vandal Dome Camera Version: 1.0 Date: 06/15/2011...
-
Page 2: Table Of Contents
ND637 User’s Manual Contents Notices ................................2 Introduction ..............................3 Installation ..............................4 Using the Web UI ............................12 1. Live View ............................13 2. Video ..............................16 General ............................16 External Video Source ......................... 20 3. Camera ............................. 21 General ............................ -
Page 3: Notices
ND637 User’s Manual Notices This user manual is intended for administrators and users of the ND637 Network Camera, including instructions for using and managing the camera on your network. The use of surveillance devices may be prohibited by law in your country. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use. -
Page 4: Introduction
The hardware base panorama video processing ability can provide user multiple video mode include source image, double broad view, triple mode view and quad view. The PoE function (ND637E) is good for flexible installation. Further functions include two-way audio and micro SD card support for local storage application. -
Page 5: Installation
ND637 User’s Manual Installation 1. Hardware Connection 1. Prepare a PC with Ethernet link to the network 2. Connect LAN port (RJ45) of the camera to a network switch/hub 3. Connect power jack 4. Ensure the power adaptor specification matches the power system (110V or 220V) and connect the adaptor to the outlet 5. -
Page 6: Software Installation
ND637 User’s Manual 2. Software Installation The following software is necessary for the proper display and use of the ND637 from the Web site. The software will be taken from the Software Package CD. IP Installer The IP Installer is used to locate and configure network cameras and video servers on the LAN. This utility is useful for conveniently configuring the network settings of the device, or for finding a device once the network settings have been modified. -
Page 7: Network Configuration
ND637 User’s Manual 3. Network Configuration IP Installer is a utility that provides an easier, more efficient way to configure the IP address and network settings of the devices. It even provides a convenient way to set the network settings for multiple devices simultaneously using the batch setting function. - Page 8 ND637 User’s Manual Click the [Device Search] to search the device in the LAN. From the list, select the device with the MAC Address that corresponds to the ND637 that is to be configured. The MAC Address is identical to the unit’s S/N (Serial Number). Double click the select item to open the Property Page or right click the item to select the [Single Device Setting]...
- Page 9 ND637 User’s Manual Modify the network settings of the camera After filling in the properties, click [Set] button to complete the configuration settings.
- Page 10 ND637 User’s Manual Click the [Batch Device Setting] to set several devices. Language support for Chinese, English and Spanish.
- Page 11 ND637 User’s Manual Open the Web-based UI of the selected camera To access the Web-based UI of the selected unit, run the [Open Web] on the select item For first time user, there will be a prompt to install the ActiveX control. Confirm the installation as it is required to view the video stream and some operations.
- Page 12 ND637 User’s Manual If the device has been configured correctly, the default Web browser will open to the home page of the selected device Verify and Complete the Installation from Your Browser When browsing the Home Page at the first time with the Microsoft Internet Explorer , you must temporarily lower your security settings to perform a one-time-only installation of the ActiveX component onto your workstation, as described below:...
-
Page 13: Using The Web Ui
ND637 User’s Manual Using the Web UI Start your Web browser and enter the URL or IP address in the Address field. The Home page of the camera is now displayed. -
Page 14: Live View
ND637 User’s Manual 1. Live View Video format Bit rate IP address of the camera Resolution Frame Rate Button Description Click for more general/advance camera settings Select languages among English, traditional Chinese and simplify Chinese Select display mode to view the different type of the video layout. Check actual size to view the actual size (resolution) of the image Applied as one of the trigger conditions... - Page 15 ND637 User’s Manual Button Description Full screen Listen the audio input from local end Talk function Record instant live video Snapshot the image...
- Page 16 ND637 User’s Manual Configuration Pages List Video General Advance External Video Source Camera General Advance Event Event Server Motion Detection I/O ports Event Configuration Schedule General Storage Network General ...
-
Page 17: Video
ND637 User’s Manual 2. Video General OSD Setting: Enable OSD to display camera name and date/time on the image. The PTZ function will display in Broad view, Quad view, Quad with source view, Double view and Triple view of Ceiling Mount. Click on the PTZ icon, the web will popup the control panel to control e-PTZ function of ND637. - Page 18 ND637 User’s Manual Broad view PTZ control panel: 1. Step: Setting the speed of Pan function. (1~10) 2. Pan Arrow: Click to control Pan function. 3. Move the control panel. 4. Close the control panel.
- Page 19 ND637 User’s Manual Quad view & Quad with source view PTZ control panel: 1. Ch：Select the channel. (1~4) & (2~4) 2. Step：Setting the speed of Pan/Tilt function. (1~10) 3. Pan Tilt Arrow：Click to control Pan/Tilt function. 4. Zoom：Digital zoom in/out. (1~10) 5.
- Page 20 ND637 User’s Manual Advanced Stream 1 Setting: RTSP Path: It is the stream ID used for RTSP client streaming connection, such as VLC player. (default v00) Resolution: 1600x1200, 800x600, 640x480. Video Mode: Choose between variable bit rate (VBR) and constant bit rate (CBR) VBR->...
-
Page 21: External Video Source
ND637 User’s Manual External Video Source This page is provided to configure and keep other video links (from specified video models) that will be applied in the web access of the current camera unit, for instance, the application of video conference. To add an external video link, click “Add…”... -
Page 22: Camera
ND637 User’s Manual 3. Camera General... - Page 23 ND637 User’s Manual Camera General Setting: Brightness: the luminance of image view. Hue: refer to pure color, it can modify the different display of specific color such as red, green or blue. Saturation: intensity of a specific color. ...
-
Page 24: Advance
ND637 User’s Manual Advance White balance: Adjustment to compensate for different environments in terms of light source, user can choose auto/hold/sunny/coludy/indoor so that ND637 can determine the correct color compensation due to different light environment. Be noted that hold indicate that the parameter will apply default setting. - Page 25 ND637 User’s Manual Infrared (IR) Cut Filter: The default is automatically switched according to light intensity. Enable indicate the filter is enable to cut IR light to make sure the color is correct, Disable indicate the filter is disable and allow the infrared (such as IR LED illuminator) to enter the camera to execute low lux surveillance application, Day / Night Threshold: The threshold to change Day or Night mode, default is 20 lux, it indicate that when the lux is lower than 20 lux, the camera will automatically change to night mode and allow...
- Page 26 ND637 User’s Manual 3. Quad with source view: 4. Triple view: Ceiling Mount: Choose Ceiling mount, Go back to live view, there are 6 kinds of video layout to choose from; Original view, Broad view, Quad view, Quad with source view, Double view and Triple view.
- Page 27 ND637 User’s Manual 3. Quad view: 4. Quad with source view: 5. Double view: 6. Triple view:...
- Page 28 ND637 User’s Manual Table Mount: Choose Table mount, Go back to live view, there are 2 kinds of video layout to choose from; Original view and Double view 1. Original view: 2. Double view:...
-
Page 29: Event
ND637 User’s Manual 4. Event... -
Page 30: Event Server
ND637 User’s Manual Event Server Click on the [Add FTP] to expand FTP server setting. FTP Server: Name: Give a name for the FTP server Network Address: Input the network address of the FTP server Upload Path: Choose the desired upload path for events ... - Page 31 ND637 User’s Manual Click on the [Add HTTP] to expand HTTP server setting. HTTP Server: Name: Give a name for the HTTP server URL: Input the network address of the HTTP server Username / Password: Input the username and password of the HTTP Click [Remove] to delete selected event servers.
-
Page 32: Motion Detection
ND637 User’s Manual Motion Detection To add a motion detection area: 1. Click on [Add] to set up a detection area. (Set up panel will be expanded) - Page 33 ND637 User’s Manual 2. Give a name to this window area. 3. Select the trigger level and sensitivity for this detection window. (0~100, low~high) 4. Select color for detection window. 5. Draw detection window on the image.
- Page 34 ND637 User’s Manual 6. Once everything is done, click on [Save] to save the configuration made. Configured detection window will be displayed in motion detection list. (Circled in blue) Note: 1. Maximum number of detection window is 10. 2. Motion Detection windows need to be modified if users changed video layout.
-
Page 35: I/O Ports
ND637 User’s Manual I/O Ports This model supports 1 photo-coupled relay inputs and 1 relay outputs, see “I/O Terminal Connectors” for detail pin description and application. The tab shows the status of them; with external trigger/alarm devices. -
Page 36: Event Configuration
ND637 User’s Manual Event Configuration 1. To add an event trigger, click on [Add] and setup panel will be expanded. 2. Give a name to this event. 3. Set the time interval between each trigger. 4. Set the time period for the trigger. Choose “Always” or “During time between” or “Never”. 5. -
Page 37: Schedule
ND637 User’s Manual 5. Schedule General Define the day (specified by days of a week) and time (specified by each single hour) for that will be recording during the scheduled period. Note that only video data will be recorded. User can select which video stream should be recorded, and the size of each sliced file. -
Page 38: Storage
ND637 User’s Manual Storage Display the storage information, includes disk size info, type and status. The warning message shows when recording is on process; Micro SD card should not be removed during the recording process. -
Page 39: Network
ND637 User’s Manual 6. Network General Device IP configuration, includes DHCP and Static IP setting. “Enable ARP/Ping” enable device to accept ARP or ping packets from the network. Disable this option may provide extra security from intentional ping. -
Page 40: Advanced
ND637 User’s Manual Advanced Enable or configure other network functions. NTP: Configure a NTP (Network Time Protocol) server, so that the device system date and time can be synchronized with a specified Time Server or DHCP server. HTTP: set the HTTP port that will be applied for Web UI access. RTSP: set the RTSP (Video) port for video data transmission. -
Page 41: Smtp (E-Mail)
ND637 User’s Manual SMTP (E-Mail) Configure an email host in the device that will send email on behalf of the configured email account in a circumstance like sending an email notice to a specified mail address (Event Configuration). Complete the Mail Server, Server Port, Authentication information (if required) and the sender email address. -
Page 42: Ddns
ND637 User’s Manual DDNS Dynamic DNS configuration; the network device can be assigned with a host name by registering this service (Internet access required). Host Name: Assigned name that will be used for access to the device User Name/Password: Account authentication for logging to this service Update Time: Periodically, the device updates its access info to sever in the configured time. -
Page 43: System
ND637 User’s Manual 7. System Information Lists of System and Network configurations... -
Page 44: User
ND637 User’s Manual User Login users for Web access and operations; authentication required. The Check box is for anonymous logging on to the live view page. Logging for further configurations will still require user name and password. -
Page 45: Date & Time
ND637 User’s Manual Date & Time System date/time configuration. Options of synchronizing with PC and NTP server are provided for automatic adjustment. -
Page 46: Server Maintenance
ND637 User’s Manual Server Maintenance This page provides tool for system maintenance; Reboot and Load default settings, as well as functionalities of launching upgrade process, backup/restore user settings and language defines. -
Page 47: Log Service
ND637 User’s Manual Log Service Most system operations and / or process will be kept in a log system. The link provides the review of these records. -
Page 48: Customize
ND637 User’s Manual 8. Customize This page provides the function of adjusting the look of live view page. There are two types of layout settings; use default look or use custom settings. Use Default Look: the default layout of live/configuration pages. Use Defined Links: Web link(s) will be presented on the live page when enabled. - Page 49 ND637 User’s Manual Use Custom Settings: The modifications allowed are change of Background / Text Color, Background picture, Title, Description, Logo and etc.
-
Page 50: Faq
ND637 User’s Manual I/O Terminal Connector - Pin Assignment Function COMMON RELAY_NO DGND DIGI input DGND Load default Restore Factory Default To restore factory default, please follow the steps: Unplug the power jack to turn off the camera Short pin 5 and pin 6 with a wire Plug in the power jack to turn on the camera.
