HDC6LITE Extender User Manual 60m HDBaseT With Bi-directional IR www.pro2.com.au... - Page 2 Pro.2 HDC6LITE Extenders extend HDMI signal up to 60metres and support bi-directional IR function. Pro.2 HDC6LITE Extender is able extend HDMI signal over just one 100 Ohm Cat.5e/Cat.6 cable with no signal compression. They support Full HD 1080p, 4Kx2K resolution and 3D.

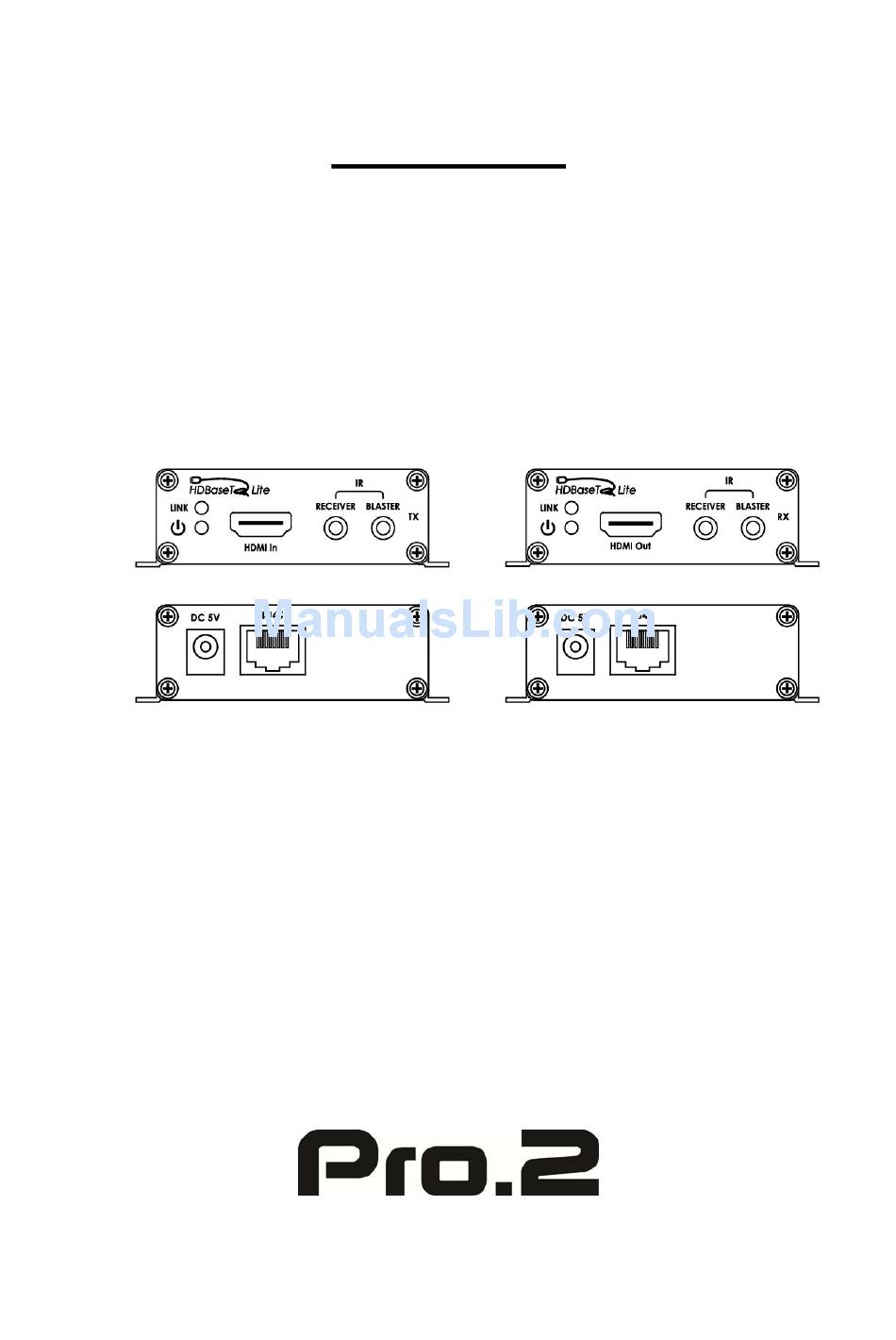

- Page 3 PANEL LAYOUT Transmitter (TX) Receiver (RX) PANEL DESCRIPTION 1. Link LED This LED indicator will flash once Cat.6 cable has been properly connected between the Transmitter and Receiver unit. Once both devices are connected and powered up this LED will stop flashing and stay on to indicate successful connection between Transmitter and Receiver.
- Page 4 CONNECTING AND OPERATING Connect one HDMI Cable between the HDMI output port of source device and the HDMI input port of Transmitter unit (5 metres Max) Connect one HDMI Cable between the HDMI input port of display device and the HDMI output port of Receiver unit.
