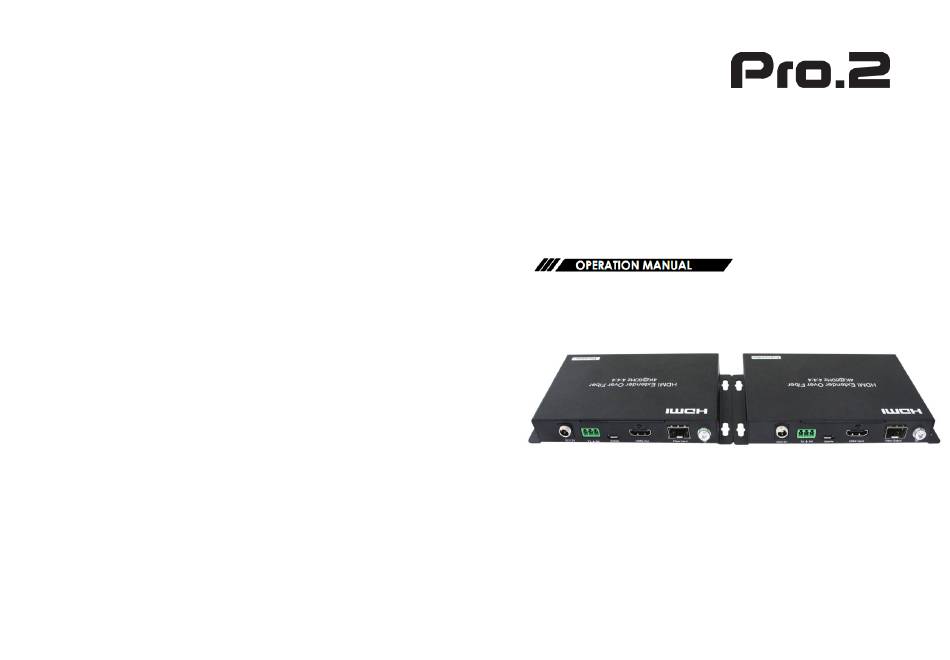

- Page 1 60KM HDMI2.0 Extender Over Fiber 4K@60hz YUV4:4:4, HDR Model: HDMIFIB18G...
- Page 2 Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. TABLE OF CONTENTS Features Package Contents Specifications Panel Descriptions EDID Introduction...
-
Page 3: Packing Contents
Operating Instructions PACKING CONTENTS 1). Main Unit. HDMI Extender Over Fiber 2). DC12V 1A Power Supply X2 3). Operating Instructions *The Unit Without Modules SPECIFICATIONS -5 to +40℃(+23 to +95℉) Operating Temperature Range Operating Humidity Range 5 to 90%RH (No Condensation) Video Input(Transmitter) 1xHDMI Type A, 19-pin, female Video Output(Receiver) -
Page 4: Panel Descriptions
Operating Instructions Operating Instruction PANEL DESCRIPTIONS Transmitter Panel ① HDMI In/Out indicator ② LINK TX/RX indicator ③ Power indicator ④ EDID Reset ⑤ Power input ⑥ RS232 input ⑦ Upgrade USB port ⑧ HDMI input ⑨ Fiber output ⑩ Grounding EDID Introduction 1. - Page 5 Operating Instructions Operating Instructions Receiver Panel Connecting and Operating 1. Assemble modules with single/multi mode, single/duplex fiber to the HDMI Extender.(4Kx2K requires 10G module) 2. Connect the HDMI input source to input port of the Transmitter of the Fiber Extender by HDMI cable. (Max. 3M for 4K@60Hz, YUV 4:4:4, 8bit-HDR).
- Page 6 Operating Instructions Operating Instructions 7. Click “connect” powered off the host Then restart it, the chipset’s Micro USB Upgrade Firmware Operation Step specification will show. 1. Copy the upgrade files in the PC from the CD. 2. Powered on the Extender. 3.
