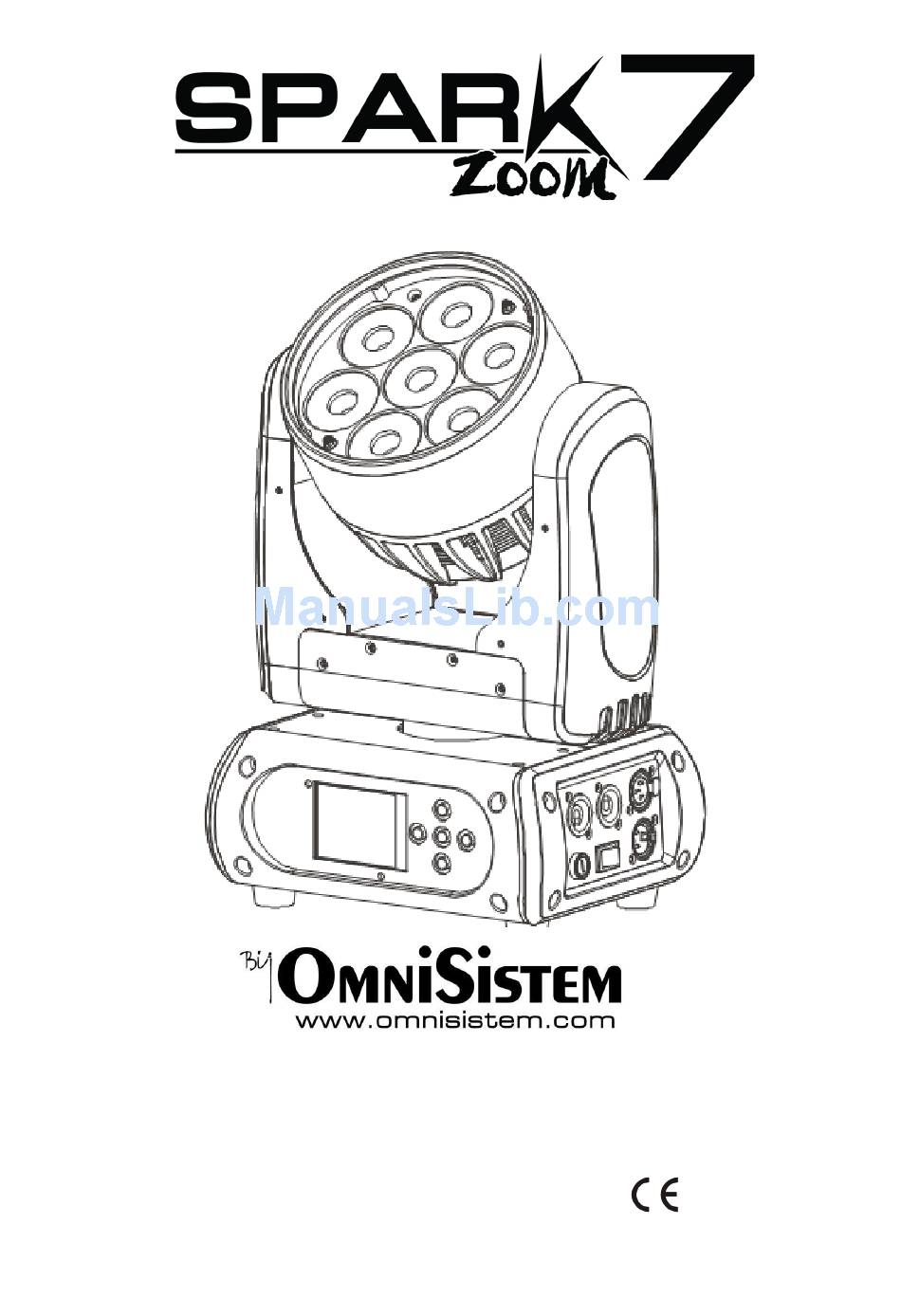

- Page 1 Tel: 253-395-9500 Fax: 253-395-9494 6403 South 208 Street, Kent, WA 98032 KEEP THIS MANUAL FOR FUTURE NEEDS 1 of 25...
-
Page 2: Safety Instructions
Download the latest version of the user manual from the OmniSistem website. For your own safety, please read this user manual carefully before you initially start the product. INTRODUCTION Thank you for choosing an OmniSistem product. OmniSistem is a wholesaler of a large variety of lighting, sound, ... - Page 3 (Safety Instructions Continued) ● If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched ...
-
Page 4: Operating Procedures
OPERATING PROCEDURES This device is a moving head light for creating decorative effects. This product is only allowed to be operated with an alternating voltage of 100240V, 50/60 Hz and was designed for indoor use only. This device is designed for professional use, e.g. on stages, in clubs, bars, theatres, etc. Lighting effects are not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. Do not shake the device. Avoid brute force when installing or operating the device. Never lift the fixture by holding it at the projector head, as the mechanics may be damaged. Always hold the fixture at the transport handles. When choosing the installation spot, please make sure that the device is not exposed to extreme heat, moisture or dust. There should not be any cables lying around. Please make sure that the unit cannot be touched or bumped. This device must never be operated or stockpiled in surroundings where water splash, rain, moisture or fog may harm the device. Moisture or very high humidity can reduce the insulation and lead to mortal electrical shocks. When using smoke machines, make sure that the device is never exposed to the direct smoke jet and is installed in a distance of 0.5 meters between smoke machine and device. The room must only be saturated with an amount of smoke that the visibility will always be more than 10 meters. The ambient temperature must always be between 15°C and +45°C. Keep away from direct heat (particularly in cars) and heaters. The relative humidity must not exceed 50% with an ambient temperature of 45° C. This device must only be operated in an altitude between 20 and 2000 m over sea level. Never use the device during thunderstorms. Over voltage could destroy the device. Always disconnect the device during thunderstorms. This symbol determines the minimum distance from lighted objects. The minimum distance between light output and the illuminated surface must be more than this value. The device must only be installed on a nonflammable surface. In order to safeguard sufficient ventilation, leave 50cm of free space around the device. The housing must never touch surrounding surfaces or objects. ... -
Page 5: Product Features And Specifications
PRODUCT FEATURES & SPECIFICATIONS Light ● Light source: 7 x OSRAM 15W 4in1 RGBW LEDs ● Lamp life: 60,000 hours ● Luminous Flux: 3200 lumen, 6000 lux @ 2.5 m ● Control: Remote on/off via DMX ● Ballast: switching mode power supply ● Beam angle: 10° to 60° X/Y ● Pan: 630° (2.5 sec) or 540° (2 sec), Tilt: 265° (1.8 sec) ● 16bit resolution ● Auto repositioning ● 3phase motor for fast and quiet movement Features ● DMX channels: 15/24/14/16 ● Fast, smooth, and silent movement ● RGBW Color Mixing ● Zoom 10° to 60° ● Full range 0100% dimmer ● Various strobe ●... - Page 6 OVERVIEW Head LED Base (5) Wireless indicator Display Microphone Left button Down button (10) Enter button (11) Up button (12) Right button (13) Fuse holder (14) Power input (15) Power switch ...
-
Page 7: Installation
INSTALLATION Rigging The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for 1 ... - Page 8 The unit can be placed directly on the stage floor or rigged in any orientation on a truss without altering its operation characteristics (see the drawing). The fixture base enables mounting in two ways. For overhead use (mounting height >100cm), always install an appropriate safety bond. Please note: for overhead rigging in public or industrial areas, a series of safety instructions in this manual need to be followed. The operator must inform themselves on the current safety instructions and consider them. The manufacturer cannot be made liable for damages caused by incorrect installations or insufficient safety precautions! Install the safety bond by inserting the quick link in the hole on the bottom of the base. Pull the safety bond over the trussing system. Insert the end in the quick link and tighten the fixation screw. The maximum drop distance must never exceed 20cm. A safety bond which already holds the strain of a fall or which is defective must not be used again. ...
- Page 9 1. Omega Holder 2. Clamp 3. Safety Cable 4. Quick Lock Fastener Screw the clamp via a M12 screw and nut onto the Omega holder. Insert the quicklock fasteners of the Omega holder into the respective holes on the bottom of the device. Tighten the quicklock fasteners fully clockwise. 9 of 25...
-
Page 10: Dmx-512 Connection / Connection Between Fixtures
DMX512 connection / connection between fixtures Please note, the starting address depends upon which controller is being used. Only use a DMX cable and 3pin XLR plugs and connectors in order to connect the controller with the fixture or one fixture with another. Occupation of the XLR connection: If you are using controllers during your show, you can connect the DMX output of the controller directly with the ... -
Page 11: Connection With The Mains
Connection with the Mains Connect the device to the power source with the enclosed power supply cable. The configuration of the connection cables is as follows: Cable International Brown Live L Blue Neutral N Yellow/Green Ground Ground needs to be connected! If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3mm at every pole has to be included in the permanent electrical installation. The device must only be connected with an electric installation carried out in compliance with the IEC standards. ... -
Page 12: Dmx Protocol
Note: After switching on, the device will automatically detect whether DMX512 data is received or not. If there is no data received at the DMX input, the display will flash. This situation can occur if: ● the XLR plug (cable with DMX signal from controller) is not connected with the input of the device. ● the controller is switched off or defective, if the cable or connector is defective or the signal wires are swapped in the input connector. Note: It’s necessary to insert the XLR termination plug (with 120 Ohm) in the last lighting in the link in order to ensure proper transmission on the DMX data link. DMX Protocol 8bit 16bit Name Function Pan Coarse 0-255 Pan Fine Pan Fine 0-255 Tilt Tilt Coarse 0-255 Tilt Fine Tilt Fine 0-255 Movement Speed Fast to Slow 0-255... - Page 13 32-223 224-25 Shutter Shutter Closed 0-31 No Function (Shutter Open) 32-63 Strobe Effect (Slow to Fast) 64-95 No Function (Shutter Open) 96-127 Pulse Effect in Sequences 128-15 No Function (Shutter Open) Random Strobe Effect (Slow to Fast) 160-19 No Function (Shutter Open) 192-22 224-25 Dimmer...
-
Page 14: Control Board
215-25 0-27 28-255 Virtual Color 2 Color Bounce: (Only on Color Blackout Bounce) Green Blue White Red=0, Green=Up, Blue=Full, White=0 5-46 Red=0, Green=Full, Blue=Down, White=0 47-88 Red=Up, Green=Full, Blue=0, White=0 89-130 Red=Full, Green=Down, Blue=0, White=0 131-17 Red=Full, Green=0, Blue=Up, White=0 Red=Down, Green=0, Blue=Full, White=0 173-21 215-25... - Page 15 program, or perform a reset. Main Menu The main menu is accessed by pressing Enter until the display is lit. Browse through the menu by pressing the ...
- Page 16 Tilt Reverse ① On/Off Tilt Reverse Pan Degree ① 630/540 Choose Pan Degree Encoders ① On/Off Encoder Wheel On/Off Pan/Tilt Mode ① Stand/Smooth Choose Pan/Tilt Mode UI Set Mic Sens. ③ 0~99%, 60% Sensitivity of Mic No Signal ① Close/Hold/Auto/Music Mode When No Signal Temperature C/F ① Fahrenheit/Celsius Temperature F° or C° Fans Mode ① Auto/High Fan Auto or High Hibernation ① OFF, 01M~99M, 15M Sleep Time Backlight ① 01~60M, 02M Backlight Time Flip Display ① On/Off Reverse Display 180° Display Bright ③ 00~31, 10 Brightness Setting Brand Show ① On/Off Show Branding Key Lock ① On/Off Key Lock On/Off Language ① En/简/繁/Fr/Sp Language Select Users (DMX Channel User Mode ① Mode) Standard Standard DMX Mode Extended Extended DMX Mode ...
- Page 17 Scenes Record ScXX=>ScXX Auto Input Scenes Connect DMX Address Setting With this function you can adjust the desired DMX address via the Control Board. Select “DMX Address“ by pressing Up or Down. Press the Enter button then adjust the DMX address by pressing Up or Down. Press the Enter button to confirm. Light Max Temperature With this function you can set the inside temperature at which the projector will automatically switch the lamp ...
- Page 18 TILT Reverse With this function you can reverse the tilt movement. PAN Degree With this function you can select the pan degree. 1. Select “PAN degree” by pressing Up or Down. 2. Press the Enter button, the display shows “540”. 3. Press Up or Down to select the desired degree between “540” and “630”. 4. Press the Enter button to confirm. Automatic PAN/TILT calibration With the function "Encoders" you can calibrate the pan/tilt movement to the correct starting position. Adjust PAN/TILT speed With this function you can define the pan/tilt speed. You can select one of two different modes. UI Set Mic Sensitivity With this function, you can select the desired microphone sensitivity between 0% and 99 %. 1. Select “Mic Sens” by pressing Up or Down. 2. Press the Enter button. 3. Press Up or Down to select the desired sensitivity. 4. Press the Enter button to confirm. No DMX Status With the function "No Signal", you can set different modes if there is no DMX signal. 1.
- Page 19 activated, the keys will be automatically locked as soon as you exit the menu. In order to deactivate or temporarily deactivate the key lock function, press UPDOWNLEFTRIGHTENTER to regain access to the menu commands. Users User mode With this function you can create user defined channel orders. Edit User With this function you can adjust the preset user defined channel order. Calibration With this function, you can calibrate and adjust the effect wheels to their correct positions. The password for this function is “050“. Fixture ID RDM With this function you can call up various submenus via RDM. This device is RDM ready. RDM stands for "Remote Device Management" and makes remote control of devices connected to the DMX bus possible. ANSI E1.202006 by ESTA specifies the RDM standard as an extension of the DMX512 protocol. Manual settings like adjusting the DMX starting address are no longer needed. This is especially useful when the device is installed in a remote area. RDM is integrated in DMX without influencing the connections. The RDM data is transmitted via the standard XLR poles 1 and 2 — new DMX cables are not necessary. RDM ready and conventional DMX devices can be operated in one DMX line. The RDM protocol sends its own packages in the DMX512 data feed and does not influence conventional devices. If DMX splitters are used and RDM control is to be used, these splitters must support RDM. ...
- Page 20 DEVICE_MODEL_DESCRIPTION 0x0080 MANUFACTURER_LABEL 0x0081 DEVICE_LABEL 0x0082 FACTORY_DEFAULTS 0x0090 SOFTWARE_VERSION_LABEL 0x00C0 Category DMX512 Setup DMX_PERSONALITY 0x00E0 DMX_PERSONALITY_DESCRIPTION 0x00E1 DMX_START_ADDRESS 0x00F0 SLOT_INFO 0x0120 SLOT_DESCRIPTION 0x0121 Category _Sensors SENSOR_DEFINITION 0x0200 SENSOR_VALUE 0x0201 Category _Power/Lamp Settings 0x04xx DEVICE_HOURS 0x0400 Category Display Settings DISPLAY_INVERT 0x0500 Category _Configuration PAN_INVERT 0x0600 TILT_INVERT ...
- Page 21 selection "Alone" means stand alone mode and "Master" that the device is defined as master. Music With this function you can run the internal program in soundcontrolled mode. The selection "Alone" means stand alone mode and "Master" that the device is defined as master. Select Chase for Auto Program With this function you can select the program for the Program Run. Edit Chase With this function you can edit the internal programs. Edit scenes With this function you can edit the scenes of the internal programs. Rec. Controller The device features an integrated DMX recorder that allows you to transmit the programmed scenes from your ...
-
Page 22: Error Messages
Program selection for Edit Program 1. Select “Edit Chase” by pressing Up or Down. 2. Press the Enter button to confirm. 3. Select “Edit Chase” by pressing Up or Down. 4. Press the Enter button to confirm. 5. Press Up or Down to select the desired program. With this function you can edit specific scenes into a specific program. -
Page 23: Cleaning And Maintenance
For example, when the display shows “Err channel PAN”, it means there is some error in the horizontal movement (PAN), controlchannel 1. If there are some errors on several channels at the ... -
Page 24: Replacing The Fuse
There are no serviceable parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers. Replacing the Fuse Only replace the fuse by a fuse of same type and rating. Procedure: Step 1: Remove the fuse holder on the rear panel. Step 2: Remove the old fuse from the fuse holder. Step 3: Install the new fuse in the fuse holder. Step 4: Replace the fuse holder in the housing. Should you need any spare parts, please use genuine parts. If the power supply cable of this device becomes damaged, it needs to be replaced with a special power supply cable available at your dealer. Should you have further questions, please contact your dealer TECHNICAL SPECIFICATIONS Power Supply: 100240V AC, ~50/60 Hz Power Consumption: 115W DMX Control Channels: 15/24/14/16 DMX512 Connection: 3pin XLR Sound Control: Builtin Microphone Light Source: 7 x OSRAM 15W 4in1 RGBW ... - Page 25 Min.distance to lighted object: 0.3 m Fuse: T 2A, 250V Please note: All information is subject to change without prior notice. 05.14.2014 25 of 25...
