TFA 31.1133.01 User Manual

Technical measurement inspection

A verification of the measurement accuracy of the infrared thermometer is usually not nessesary.
For devices which are used for medical application, current medical regulations stipulate a
verification and a calibration control after 2 years. The Board of Weights and Measures can carry
out this verification for a fee.
The legal basis for distribution in the EU
The manufacturer has been certified by TÜV Rheinland Product Safety GmbH according to
DIRECTIVE 93/42 / EEC of 14 June 1993 concerning medical devices. The thermometer complies
with the requirements of EN 12470-5:2003-09 and EN 60601-1: 20013-12.

Waste disposal

This product has been manufactured using high-grade materials and components which can be
recycled and reused.
Never dispose of empty batteries and rechargeable batteries in household waste.
As a consumer, you are legally required to take them to your retail store or to an
appropriate collection site depending on national or local regulations in order to protect
the environment.
The symbols for the heavy metals contained are: Cd=cadmium, Hg = mercury; Pb=lead
This instrument is labelled in accordance with the EU Waste Electrical and Electronic
Equipment Directive (WEEE).
Please do not dispose of this instrument in household waste. The user is obligated to take end-of-
life devices to a designated collection point for the disposal of electrical and electronic equipment,
in order to ensure environmentally-compatible disposal.
Infrared-thermometer 31.1133.01 (identical to SC 58)

Technical data

Measurable objects: Forehead and objects
Measuring distance: 1 to 3 cm to the object to be measured
Measuring time: approx. 1 second
Measurement resolution: 0,1°C (0,1°F)
Units: °C/°F
Measuring range: Forehead: 32,2°C - 43,3°C (90°F - 110°F)
Objects: 0°C - 90°C (32°F - 194°F)
Display "L"/"H" outside the measuring range
Measurement accuracy: Forehead: +/- 0,2°C (+/-0,4°F), Objects: +/- 1°C (+/-2°F)
Operating conditions: 10°C - 40°C (50°F - 104°F). 15 - 95% rel. humidity
Storage conditions: 10°C - 40°C (50°F - 104°F). 15 - 95% rel. humidity
Energy source: 1 x CR2032
Battery life: approx. 1.000 measurements
Dimensions: 59 x 22 x 61mm
Weight: 25g (inclusive battery)
Explanation of symbols
SCALA Electronic GmbH
Ruhlsdorfer Straße 95
D-14532 Stahnsdorf - Germany
Vertrieben durch
TFA Dostmann GmbH & Co.KG
Zum Ottersberg 12
D-97877 Wertheim - Germany

Introduction

Thank you for purchasing this infrared thermometer.
To use all features of this device correctly, please read these instructions carefully before first use.
Keep this manual in a safe place for future reference.

Intended use

This infrared thermometer can be used to measure the body temperature on the forehead from
32.2 °C to 43.3 °C or the surface temperature of an object from 0 °C to 90 °C.
The thermometer is a infrared based non-contact measurement device. The intended use is based
on the contactless determination of the body temperature of children and adults. It's intended both
for home as well as for medical use.
In addition to body temperature, the device can measure the surface temperature of an object or
the ambient air in a room.

Requirements

The device can only be used with an Android or an Apple iOS smartphone. It is necessary to either
download a free app from the App Store or Google Play Store.

Special features

The measurement results are displayed within a few seconds
After the device is disconnected from the smartphone, it turns off automatically.
The app offers a lot of features such as voice output, history data, graph view and much more...

Safety information

1. Read the entire manual before using the device.
2. The device is delivered in non-sterile condition. Please clean the device before the
measurement.
3. Stop using the device when it indicates a malfunction or when it is operating abnormally.
4. Children should not use the device without adult support.
5. Do not place the unit on scratchy surfaces.
6. Do not place the device on open wounds.
Keep batteries out of the reach of children. If a battery is swallowed, contact a doctor
•
Rev. 22/12/2014/GB
immediately. Do not throw batteries in a fire because they may explode.
Store the sensor in the included storage box when you are not using it.
•

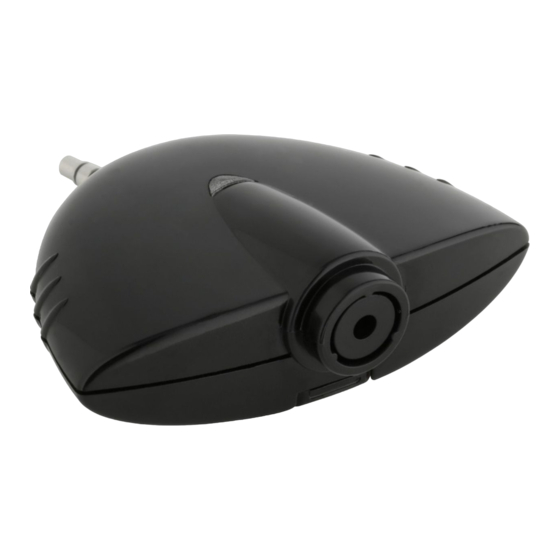

Infrared-Thermometer 31.1133.01
For non-contact measurement
of body temperature on the forehead.
User manual
A manual off switch on the device is not necessary.
