Summary of Contents for Seismic Audio PWS-15

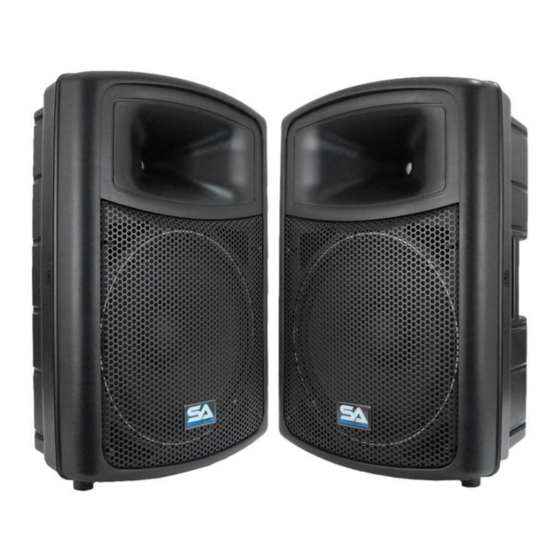

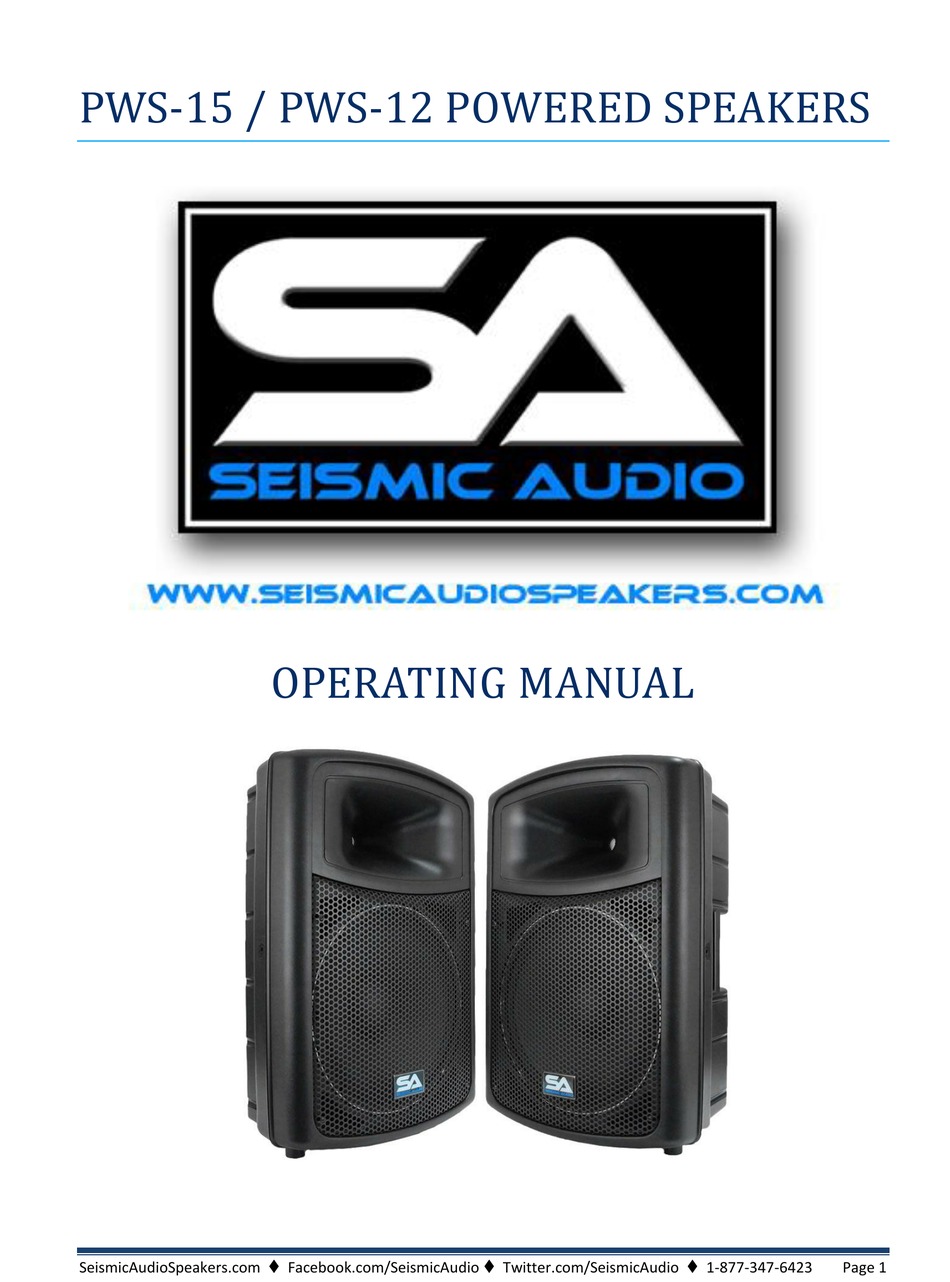

- Page 1 PWS-15 / PWS-12 POWERED SPEAKERS OPERATING MANUAL SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 1...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Caution: To reduce the risk of electrical shock, do not remove the cover (or back). No user serviceable This symbol, wherever it appears, alerts you parts inside; refer to servicing to to the presence of uninsulated dangerous voltage inside the enclosure voltage that may qualified personnel. - Page 3 PWS-15 Specs: MODEL PWS-15 CONTENTS 15" Molded Full Range PA/DJ Active Speaker CONDITION APPLICATION Main / PA Loudspeaker / Monitor ACTIVE/PASSIVE Active / Powered WOOFER 15" Loudspeaker WOOFER SPECS 50 oz Magnet and 3" Voice Coil TWEETER/HORN Titanium Compression Driver with...
- Page 4 PWS-12 Specs: MODEL PWS-12 CONTENTS 12" Molded Full Range PA/DJ Active Speaker CONDITION APPLICATION Mains / PA Loudspeaker / Monitors ACTIVE/PASSIVE Active / Powered WOOFER 12" Loudspeaker WOOFER SPECS 50 oz Magnet and 3" Voice Coil TWEETER/HORN Titanium Compression Driver with Wide Dispersion Horn POWER 500 Watts RMS...
- Page 5 PWS-15 and PWS-12 Amplifier Controls: XLR 3-Pin Female Input XLR 3-Pin Male Output 1 / 4 “ Female Line Input 1 / 8 “ Female Line Input for MP3 Gain Control Knob Treble Control Knob Mids Control Knob Bass Control Knob...
- Page 6 Replacement Amplifier for PWS-15 PWS-12 Amplifier / Model: PWS12Amp Replacement Amplifier for PWS-12 Non Powered Speaker – Model: NPS-15 & NPS-12 Non Powered Version of Molded Speaker for use with PWS-15 and PWS-12 SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 6...
- Page 7 CBulb – Model: CBulb Replacement Fuse for PWS-15 and PWS-12 Crossover AmpBulb – Model: AmpBulb Replacement Fuse for PWS-15 and PWS-12 Amplifier Replacement Speaker – Model: Richter15 Replacement Speaker for PWS-15 Replacement Speaker – Model: Richter12 Replacement Speaker for PWS-12 Speaker Covers –...
- Page 8 Speaker Cable – Model: SATRXL-M25 XLR 3-pin Male to TRS ¼” Male Balanced cable, 25 ft long. Speaker Cable – Model: SAXLX-25 XLR 3-pin Male to XLR 3-pin Female Balanced cable, 25 ft long. Speaker Cable – Model: SATRX-25 ¼” TRS Male to ¼” TRS Male Balanced cable, 25 ft long. Splitter Cable –...
-
Page 9: Connection Example
This example shows how to connect two PWS-15 or PWS-12 speakers to a standard Mixer. This application requires (2) XLR 3 pin male to female cables. Seismic Audio offers these cables. The model number is: SAXLX-25. To start, take the female end of the first cable and insert it into the output jack labeled MAIN OUT LEFT on your mixing board. - Page 10 Daisy Chaining Signal from one PWS Amp to another PWS Amp This example shows how to connect two PWS-15 or PWS-12 speakers to a standard Mixer using one MAIN OUT jack on your mixer. By choosing this method, it will free up one main out jack on the mixing board and allow the PWS speakers to be Daisy Chained.
- Page 11 MP3 line input on the PWS speaker and plug the other end into any device that accepts the 1/8” headphone connection. See Seismic Audio Part # SA-iE25 for 1/8” cable. Example cable: SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 11...
- Page 12 Connection Example 4 Use the Seismic Audio cable: SAXFRM-2x5 to plug your DJ Controller or any other RCA output device into the XLR inputs of the PWS speakers. Adding Powered Sub Woofers to a PWS speaker can be done easily by inserting a...
- Page 13 Passive Speaker NPS-15 Non-Powered Speaker The PWS-15 and PWS-12 have the option to power a passive speaker. The passive speaker needs to be rated at 8 ohm and close to the same spec ratings as the powered speaker. To connect a passive speaker to the PWS;...
-
Page 14: Frequently Asked Questions
Can you run a subwoofer off of the “Speakon Active Output” jack? Answer: The PWS-15 was designed to power another 15” PA speaker that has equal power watt ratings. This statement is true for the PWS-12. It is not recommended to run another speaker that is rated more power or is larger than the PWS ratings.
