Summary of Contents for Seismic Audio SA-15MT-PW

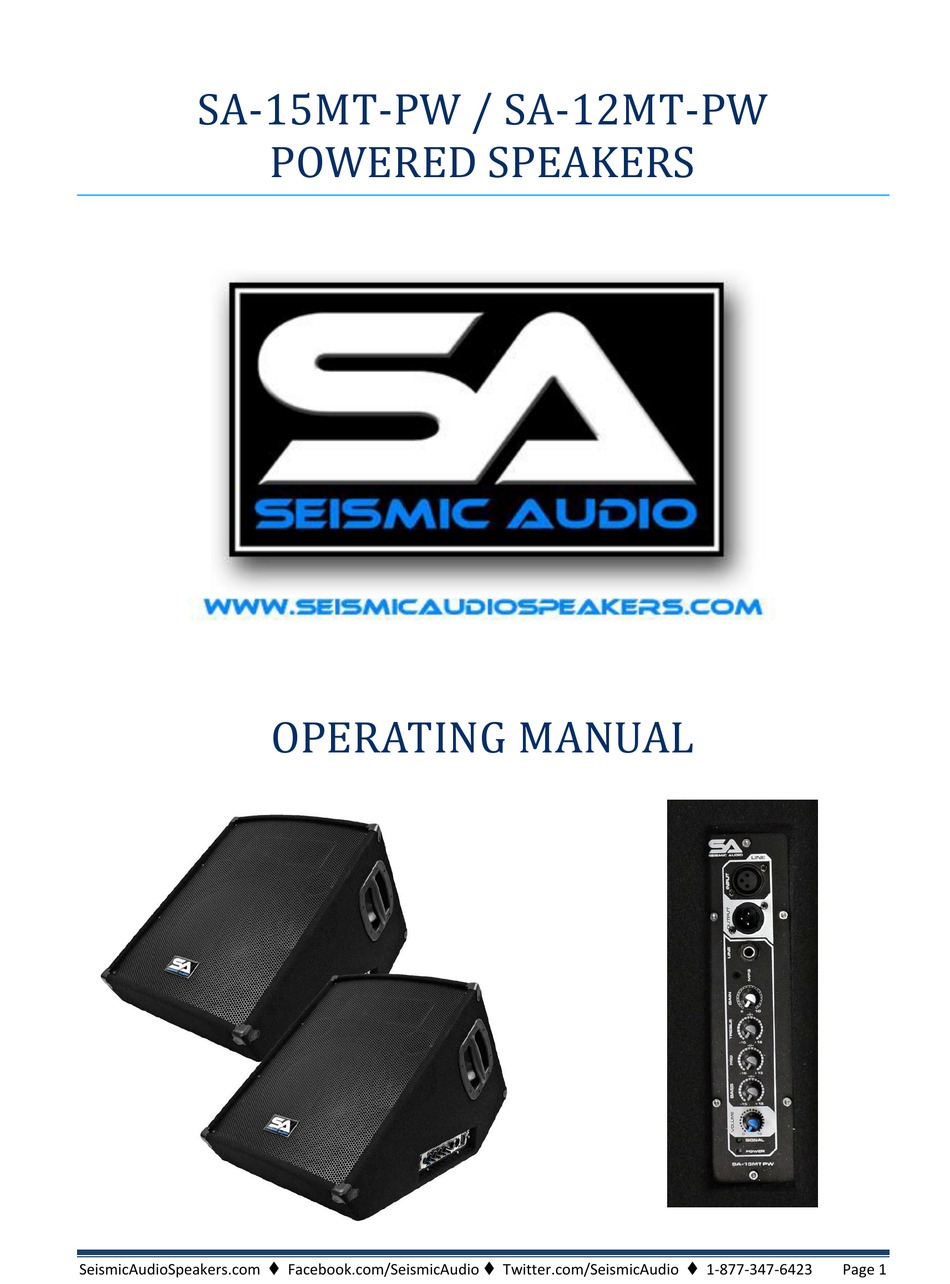

- Page 1 SA-15MT-PW / SA-12MT-PW POWERED SPEAKERS OPERATING MANUAL SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 1...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Caution: To reduce the risk of electrical shock, do not remove the cover (or back). No user serviceable This symbol, wherever it appears, alerts you parts inside; refer servicing to to the presence of uninsulated dangerous voltage inside the enclosure voltage that may qualified personnel. -
Page 3: Specifications
SA-15MT-PWSpecs: Specifications Model SA-15MT-PW (Pair) Contents Pair of Powered 2-Way 15" Wedge Floor/Stage Monitors Condition Application PA Floor Monitors | Live Sound | Stage | Studio Monitors Connector(s) Two Line Input/Output - XLR Female / Male XLR 3.5 mm Input for MP3, iPod, iPhone, iPad... - Page 4 SA-12MT-PW Specs: Specifications Model SA-12MT-PW (Set of 2) Contents Pair of Powered 2-Way 12" Wedge Floor/Stage Monitors Condition Application PA Monitors | DJ Monitors | Live Sound | Stage Connector(s) Two Line Input/Output - XLR Female / Male XLR 3.5 mm Input for MP3, iPod, iPhone, iPad Volume Controls Master Volume Control Tweeter / Horn...
- Page 5 SA-15MT-PW and SA-12MT-PW Amplifier Controls: XLR 3-Pin Female Input XLR 3-Pin Male Output 1 / 4 “ Female Line Input 1 / 8 “ Female Line Input for MP3 Gain Control Knob Treble Control Knob Mids Control Knob Bass Control Knob...
-
Page 6: Connection Example
Microphone Cables (Male to Female) This example shows how to connect two SA-15MT-PW or SA-12MT-PW speakers to a standard Mixer. This application requires (2) XLR 3 pin male to female cables. Seismic Audio offers these cables. The model number is: SAXLX-25. - Page 7 OUT jack on your mixer. By choosing this method, it will free up one main out jack on the mixing board and allow the PWS speakers to be Daisy Chained. This application requires (2) XLR 3 pin male to female cables. Seismic Audio offers these cables.
- Page 8 Connection Example 3 Connecting a SA-15MT-PW or SA- 12MT-PT speaker to any headphone jack device using a 1/8” to 1/8” cable Insert a 1/8” cable into the MP3 line input on the SA speaker and plug the other end into any device that accepts the 1/8”...
- Page 9 Connection Example 4 Use the Seismic Audio cable: SAXFRM-2x5 to plug your DJ Controller or any other RCA output device into the XLR inputs of the SA speakers. Adding Powered Main Speakers to any SA-MT-PW speaker can be done easily by...
-
Page 10: Frequently Asked Questions
Frequently Asked Questions How do I daisy chain other powered or active speakers? Answer: You can daisy chain other powered speakers by using the XLR inputs and XLR outputs on the SA-MT speakers. Why is my second SA-MT speaker not working? I have one SA-MT speaker connected to my mixer with a ¼”... - Page 11 Features and specifications are subject to change without notice. Seismic Audio Speakers, LLC 4440 Malone Road Memphis, TN 38118 901-363-6030 SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 11...
