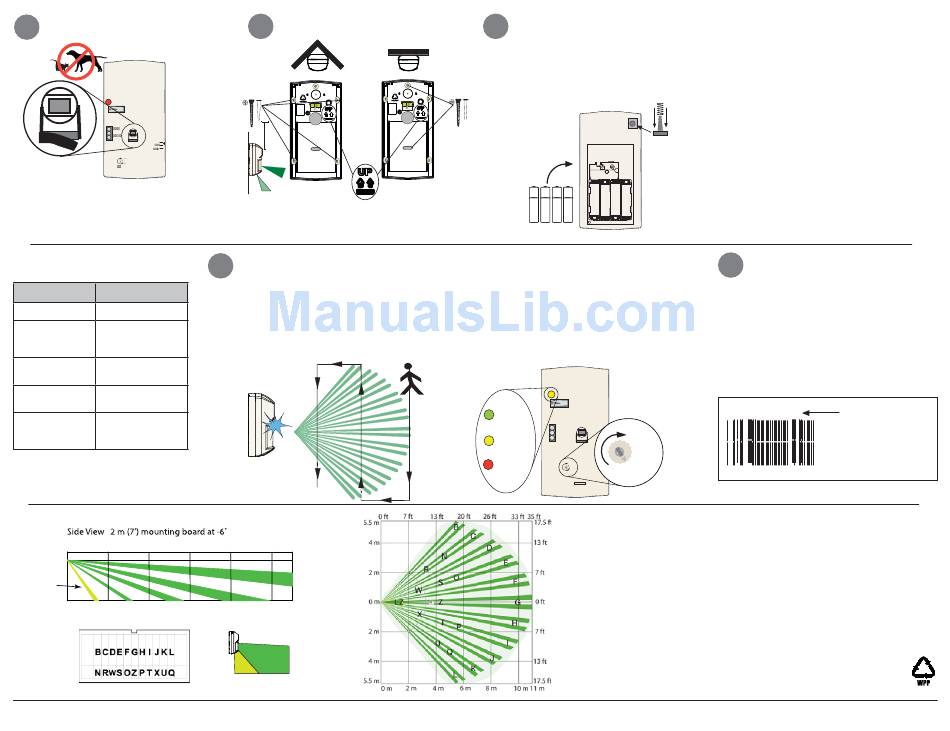

Uncover the Look Down Lens
In non-pet applications only, If look-down
is desired, peel away the look-down mask.
Do not remove the clear plastic lens.
Microwave or PIR
W-X R-U, Z
© 2012 Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, NY 14450
Mount the Detector Base
The Wall Tamper cannot be used in
corner mount installations or when
using the swivel bracket
Walk test the detector.
Perform this test at the time of installation and monthly thereafter. To ensure contin-
ual daily operation, the end user should be instructed to walk through the far end of
the coverage pattern. This ensures an alarm output prior to arming the system.
Remove and replace the cover to start a 90-sec Walk Test Mode.
During this Test Mode, any activity in the sensor's coverage pattern will cause a trans-
mitted alarm and LED activation. Each alarm will also extend the Test Mode.
Watch for the yellow LED to indicate the edges of the Microwave pattern. Adjust as
Install the Battery
The batteries are not installed in
the detector when it is shipped.
When installing the batteries it is
necessary to observe proper polar-
ity or the sensor may not function.
+ + + +
- - -
Set the adjustment
as low as possible
for proper catch
eliminates the PIR
portion of the
coverage and has no
effect on the
The protective zone
is the area where the
PIR and Microwave
If the Wall Tamper is desired, gently
press the spring onto the tapered shaft.
Do not force it down onto the shaft. As
you place the unit onto its base, be sure
the spring extends through the knock-out
to the wall.
When the batteries are installed, wait at
least 5 min before activating the Walk
Test Mode. The LED will stop ﬂ ashing
when the detector is ready to test (the
sensor requires "lack of motion" to stabi-
lize on startup). Refer to LED Conditions
Insert security screws after testing to
prevent covers from separating.
Program the control panel.
There is a two-part ID sticker lo-
cated on the
housing of the RF835E. You will
need the number on this sticker to
program the Detector into the
control panel. Refer to your panel's
Programming Guide for program-
ming information on wireless type
Countries of Intended Use:
These poducts are intended for use in
the following countries within the Euro-
pean Union and in countries outside the
RF835E Austria, Belgium, Denmark, Fin-
land, Greece, Luxembourg, Netherlands,
Norway, Spain, and Sweden.
RF835E-C United Kingdom, Ireland, and
Reading Bosch Security Systems, Inc.
Product Date Codes
For Product Date Code information, refer to the
Bosch Security Systems, Inc. Web site at:
F01U254570| 03 | 2012.11 | 2
