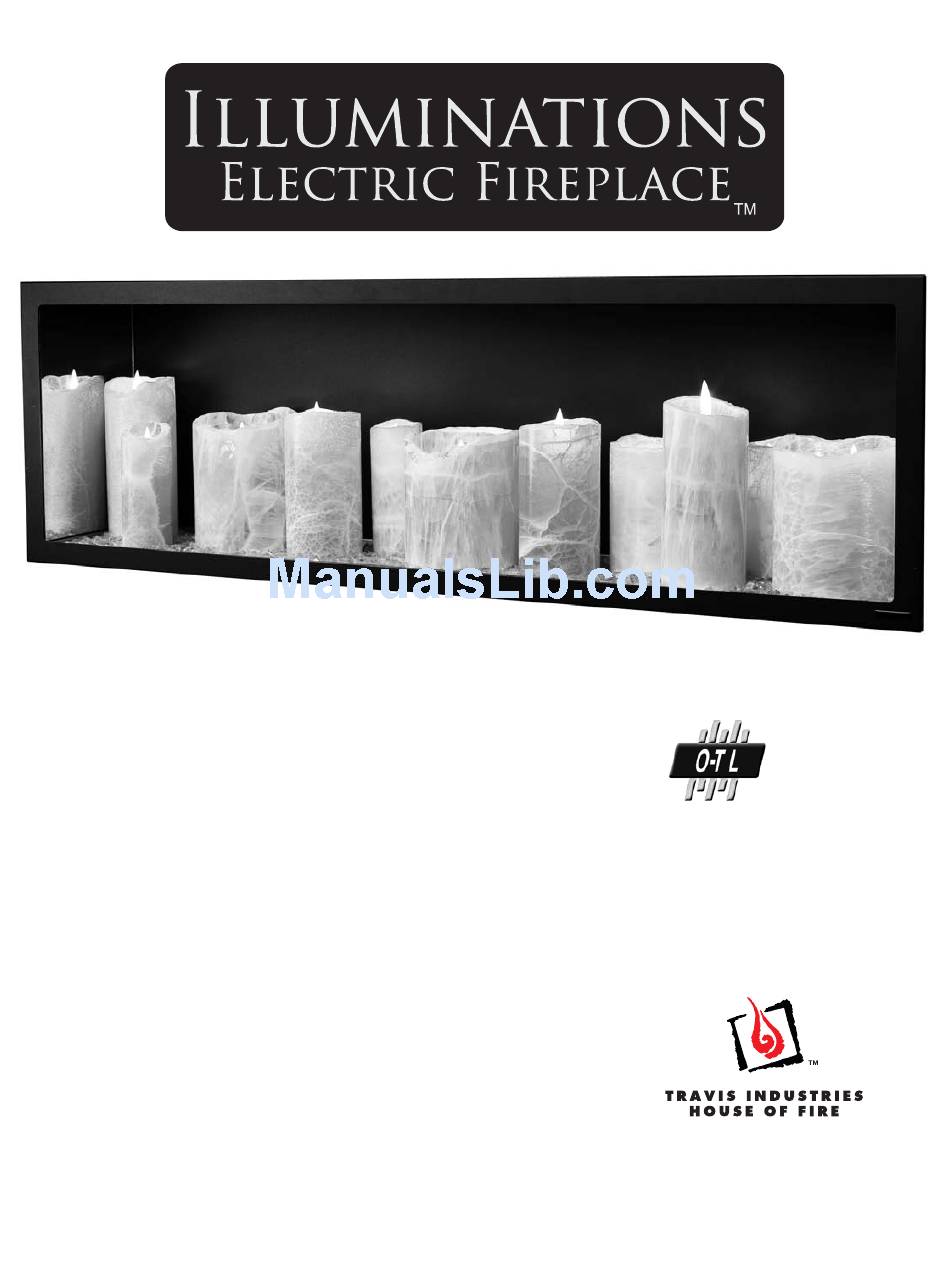

Tested and Listed by
4915 Illuminations
OMNI-Test Laboratories, Inc.
Electric Fireplace™
Beaverton, Oregon
Report # 028-F-88-2
Listed to UL 65, CSA 22.2 #12,
and CSA 22.2 # 250
Owner's Manual
Installer:
After installation give this manual to the home-
owner and explain operation of this fireplace.
www.travisproducts.com
© Copyright 2009, T.I.
$10.00
100-01207_000
4081229
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Advertisement
Table of Contents
Related Manuals for Illuminations Electric Fireplace 4915
Summary of Contents for Illuminations Electric Fireplace 4915
- Page 1 Tested and Listed by 4915 Illuminations OMNI-Test Laboratories, Inc. Electric Fireplace™ Beaverton, Oregon Report # 028-F-88-2 Listed to UL 65, CSA 22.2 #12, and CSA 22.2 # 250 Owner’s Manual Installer: After installation give this manual to the home- owner and explain operation of this fireplace.
-
Page 2: Introduction Overview
Introduction Overview This manual details the installation requirements for the 4915 Illuminations fireplace. Listing Details This appliance was listed by OMNI Test Labs to UL 65, CSA 22.2 #12, and CSA 22.2 # 250 - report # 028-F-88-2. The listing label is affixed to the appliance. -
Page 3: Table Of Contents
Table of Contents Introduction Operation Overview ................2 Facing ................16 Listing Details ..............2 Maintenance Safety Precautions Maintenance ............... 16 Safety Precautions .............. 4 Warranty Features and Specifications Warranty ................17 Installation Options .............. 6 Electrical Specifications............6 Index Dimensions ................. -
Page 4: Safety Precautions
Safety Precautions • USE ONLY WITH TRAVIS INDUSTRIES 250-01435 LUMINAIRE (BULB) • SUITABLE FOR DAMP LOCATIONS. NOT SUITABLE FOR WET LOCATIONS. • FIREPLACE MUST BE MOUNTED IN A LEVEL POSITION WITH SOCKETS FACING UPWARDS. THIS LUMINAIRE MUST BE MOUNTED OR SUPPORTED INDEPENDENTLY OF AN OUTLET BOX. FOR USE IN NON-FIRE-RATED INSTALLATIONS ONLY. -
Page 5: Features And Specifications
Features and Specifications Installation Options • Residential or Mobile Home • Flush or Recessed Face • One-Sided or See-Through Electrical Specifications VOLTS 120 VOLTS AC AMPS 0.4 AMPS WATTS 44 WATTS HERTZ BULBS* (4 WATTS EACH) * USE ONLY WITH TRAVIS INDUSTRIES 250-01435 LUMINAIRE (BULB) Dimensions Adjustable from 0"... -
Page 6: Installation
Installation (for qualified installers only) Packing List • • Wall Switch with Plate Junction Box (with receptacle, romex clamp and cover) • • Bulb Pack Optional Remote Additional Items Required • Glass Frame (SKU 95000964) NOTE: Two glass frames are required for double-sided installations. •... -
Page 7: Framing Dimensions - One-Sided Configuration
Installation (for qualified installers only) Framing Dimensions – One-Sided Configuration • The following framing dimensions are for one-sided installations. The framing (or insulation) may contact the sides and back of the fireplace. NOTE: The depth of the enclosure may be altered to accommodate facing depth. The 8” dimension below is based upon ½”... -
Page 8: Framing Dimensions - Two Sided Configuration
Installation (for qualified installers only) Framing Dimensions – Two Sided Configuration • The following framing dimensions are for one-sided installations. The framing (or insulation) may contact the sides and back of the fireplace. NOTE: The depth of the enclosure may be altered to accommodate facing depth. The 7-1/4” dimension below is based upon ½”... -
Page 9: Nailing Brackets
Installation (for qualified installers only) Nailing Brackets • Nailing brackets are provided on the exterior of the fireplace to secure the fireplace to the framing (see Figure 4). If using ½” facing (i.e.: drywall), use the standoff closest to the face of the fireplace (see Figure 4 item “a”). -
Page 10: Electrical Connection
Installation (for qualified installers only) Electrical Connection • The electrical line to the grounded receptacle inside the fireplace must be installed by a qualified installer and must meet all local codes. • Make sure the circuit breaker is shut off prior to working on any electrical lines. •... -
Page 11: Facing Examples
Installation (for qualified installers only) Facing Examples • This appliance is designed to allow for drywall (or other combustible facing) to contact the sides and top of the fireplace. The facing examples below are included to aid the design and installation of this fireplace. - Page 12 Installation (for qualified installers only) Facing Examples (continued) Facing – 2-Sided, Flush on Both Sides Facing – 2-Sided, Flush & Wood-Trim FRONT BACK FRONT BACK Wood Trim Face Face NOTE: Additional Face Face framing is added after installation to support drywall.
-
Page 13: Steps For Finalizing The Installation
Installation (for qualified installers only) Steps for Finalizing the Installation Listed below are the steps needed to finalize the installation of the fireplace. Take care when finalizing the fireplace to not allow dust or other debris to enter the firebox. We recommend finalizing the installation after all construction work has been completed. -
Page 14: Light Bulb Installation
Installation (for qualified installers only) Light Bulb Installation Carefully remove the 11 light bulbs from the packaging and install into the sockets following the directions below. WARNING: Do not over-tighten the bulbs when screwing them in. The base of the bulb is fragile and may break if over-tightened. -
Page 15: Glass Frame Removal And Installation
Installation (for qualified installers only) Glass Frame Removal and Installation WARNING: Do not strike or slam the glass. 1. Remove and discard the four side glass brackets on the glass frame (see Figure 6, item “a”). Attach the mounting brackets included with this kit to the back of the glass frame, using the nuts removed earlier - make sure the brackets are installed with the notch on the lower side of the bracket (see Figure 6, item “b”). -
Page 16: Operation
Operation and Maintenance Operation Use the included wall switch or remote to turn the fireplace on and off. Maintenance WARNING: Clean the mirror only with soap and water. Windex® or other glass cleaners will damage or cloud the acrylic surface of the mirror. The glass frame may be dusted and cleaned with soap and water. -
Page 17: Warranty Warranty
5 Year Limited Warranty Register your TRAVIS INDUSTRIES, INC. Limited 5 Year Warranty online at traviswarranty.com, or complete the enclosed Warranty card and mail it within ten (10) days of the appliance purchase date to: TRAVIS INDUSTRIES, INC., 4800 Harbour Pointe Blvd. SW, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants this electric appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows: Check with your dealer in advance for any costs to you when arranging a warranty call. -
Page 18: Index
Index Index Additional Items Required ........... 6 Crushed Glass Installation ..........14 Cylinder Installation ............. 14 Dimensions ................. 6 Electrical Connection ............10 Electrical Specifications ............6 Facing Examples ..............11 Fireplace Placement Requirements ........6 Framing Dimensions – One-Sided Configuration ......7 Framing Dimensions –...
