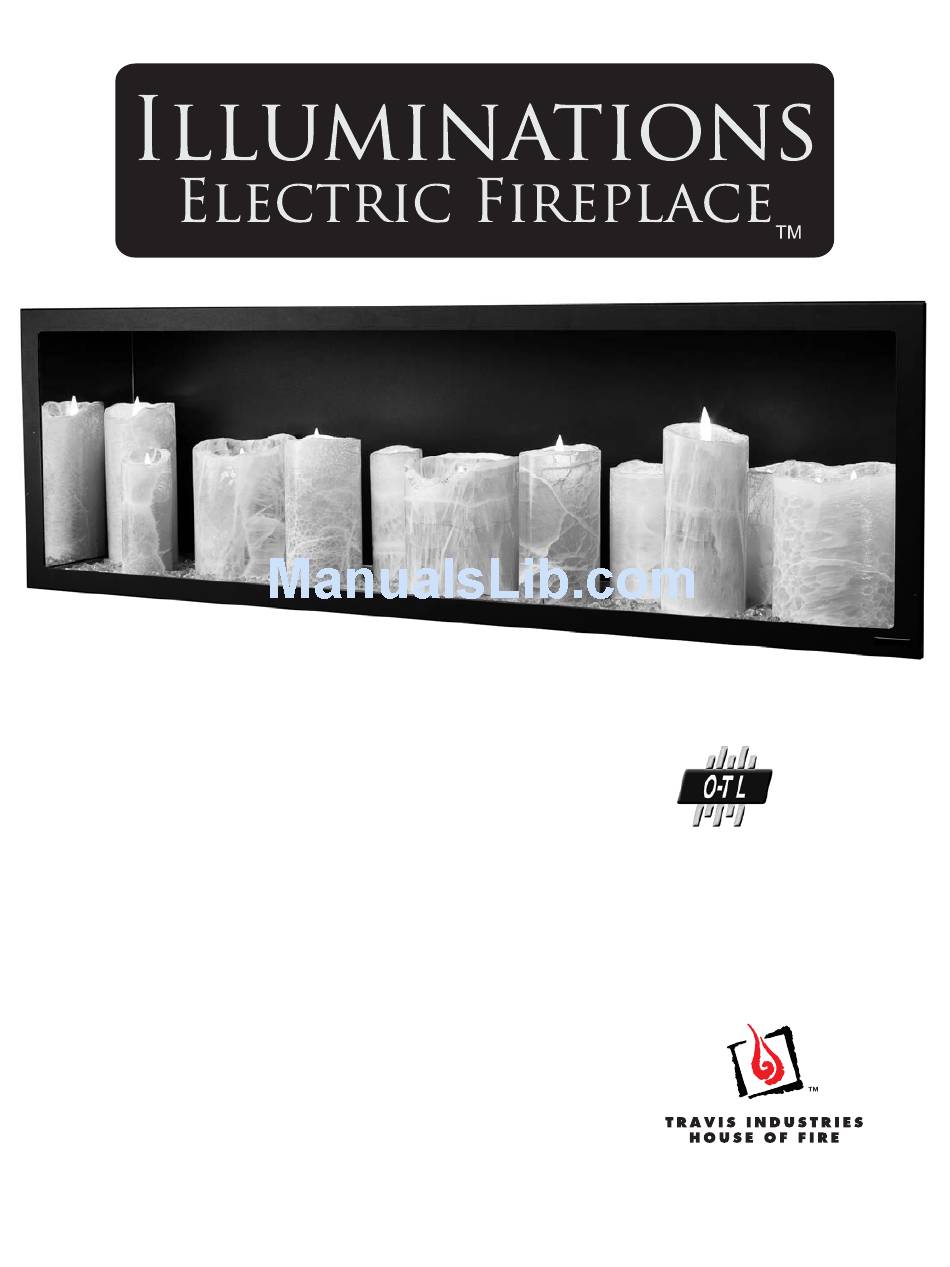

4915 Illuminations LED
Electric Fireplace™
Owner's Manual
Installer:
After installation give this manual to the home-
owner and explain operation of this fireplace.
© Copyright 2010, T.I.
$10.00
100-01207_002
Tested and Listed by
OMNI-Test Laboratories, Inc.
Beaverton, Oregon
Report # 028-F-88-2
Listed to UL 65, CSA 22.2 #12,
and CSA 22.2 # 250
www.travisproducts.com
4100310
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Advertisement
Table of Contents
Related Manuals for Illuminations Electric Fireplace 4915 Illuminations LED
Summary of Contents for Illuminations Electric Fireplace 4915 Illuminations LED
- Page 1 Tested and Listed by 4915 Illuminations LED OMNI-Test Laboratories, Inc. Electric Fireplace™ Beaverton, Oregon Report # 028-F-88-2 Listed to UL 65, CSA 22.2 #12, and CSA 22.2 # 250 Owner’s Manual Installer: After installation give this manual to the home- owner and explain operation of this fireplace.
-
Page 2: Introduction Overview
65, CSA 22.2 #12, and CSA 22.2 # 250 - report # 028-F-88-2. The listing label is affixed to the appliance. A copy is shown to the right. IAS (ICBO) Approval This appliance was listed by OMNI Test Labs – IAS (ICBO) # TL-130. © Travis Industries 4100310 100-01207_002... -
Page 3: Table Of Contents
Facing Examples ..............11 Steps for Finalizing the Installation ........13 Mirror Preparation ............... 13 Light Bulb Installation ............14 Cylinder Installation ............. 14 Crushed Glass Installation ..........14 Glass Frame Removal and Installation........ 15 © Travis Industries 4100310 100-01207_002... -
Page 4: Safety Precautions
Do not place anything inside the fireplace except the included candles, cylinders, and crushed glass from Travis Industries. • If any candle or other component becomes damaged or burns out, replace only with Travis Industries replacement components. • Do not throw this manual away. This manual has important operating and maintenance instructions that you may need at a later time. -
Page 5: Features And Specifications
Electrical Specifications VOLTS 120 VOLTS AC AMPS 0.1 AMPS WATTS 16.5 WATTS HERTZ BULBS* (1.5 WATTS EACH) * USE ONLY WITH TRAVIS INDUSTRIES 250-01890 LUMINAIRE (BULB) Dimensions Adjustable from 0" Side View to 1/2" Overall Dimensions 1/2" 3/8" 2-1/4" 1/2"... -
Page 6: Installation
If installed on an exterior wall, the wall must be insulated to meet local requirements (use insulation board if necessary). • The fireplace glass frame must be removable after installation. We recommend the frame be installed overlapping the facing to better facilitate removal. Travis Industries 4100310 100-01207_002... -
Page 7: Framing Dimensions - One-Sided Configuration
½” drywall in a fully recessed installation. • The electrical line should be routed through the bottom of the framing, 27-1/2” from the left side of the enclosure (see Figure 2, item “a”). 18-1/4" 8" 48-1/4" Figure 2 © Travis Industries 4100310 100-01207_002... -
Page 8: Framing Dimensions - Two Sided Configuration
½” drywall on each side. • The electrical line should be routed through the bottom of the framing, 27-1/2” from the left side of the enclosure (see Figure 3, item “a”). 18-1/4" 7-1/4" 48-1/16" Figure 3 Travis Industries 4100310 100-01207_002... -
Page 9: Nailing Brackets
NOTE Keep the front and back panel in place while installing. This will help insure the fireplace is square. 1/2" Facing TOP VIEW Framing Fireplace Nailing Bracket Drywall TOP VIEW Framing 7/8" to 1" Facing Nailing Bracket Fireplace Drywall Tile 7/8" Figure 4 © Travis Industries 4100310 100-01207_002... -
Page 10: Electrical Connection
(Figure 5 item “e”). An optional remote control is included (Figure 5 item “f”). If you wish to use the remote, plug the remote into the receptacle and the candle tray into the remote. Figure 5 Travis Industries 4100310 100-01207_002... -
Page 11: Facing Examples
Drywall Drywall Facing – Flush Single-Sided with Tile Facing – Single-Sided with Wood Trim FRONT BACK FRONT BACK Wood Trim Face Face Wood Trim Tile Drywall Drywall © Travis Industries 4100310 100-01207_002... - Page 12 Facing – 2-Sided, Flush on Both Sides Facing – 2-Sided, Flush & Wood-Trim FRONT BACK FRONT BACK Wood Trim Face Face NOTE: Additional Face Face framing is added after installation to support drywall. Wood Trim Drywall Drywall Drywall Drywall Travis Industries 4100310 100-01207_002...
-
Page 13: Steps For Finalizing The Installation
ADDITIONAL INSTALLATION OPTIONS In some cases the fireplace may be installed with the back panel facing the room. In these cases the mirror and/or front and back panels may be reversed to achieve the correct configuration. © Travis Industries 4100310 100-01207_002... -
Page 14: Light Bulb Installation
After the candles are properly aligned, pour two bags (5 pounds) of crushed glass onto the firebox floor. Use a glove to carefully even out the glass on the firebox floor, making sure it is evenly distributed. Travis Industries 4100310... -
Page 15: Glass Frame Removal And Installation
Figure 6 2. Attach the glass frame to the fireplace by inserting the tabs on the mounting brackets into the slots on the fireplace (see Figure 7). Magnets hold the mounting brackets in place. Figure 7 © Travis Industries 4100310 100-01207_002... -
Page 16: Operation
The glass frame may be dusted and cleaned with soap and water. Do not scrub the painted surfaces of the glass frame – the metallic paint may blur or show slight scuffing. Travis Industries 4100310 100-01207_002... -
Page 17: Warranty Warranty
Travis Industries has the option of either repairing or replacing the defective component. If your dealer is unable to repair your appliance’s defect, he may process a warranty claim through TRAVIS INDUSTRIES, INC., including the name of the dealership where you purchased the appliance, a copy of your receipt showing the date of the appliance’s purchase, and the serial number on your appliance. -
Page 18: Index
Overview ................2 Packing List ................. 6 Recommended Installation Procedure ........ 6 Safety Precautions .............. 4 Steps for Finalizing the Installation........13 Unpacking the Fireplace ............. 6 Warranty ................17 Wiring the Junction Box ............10 Travis Industries 4100310 100-01207_002...
