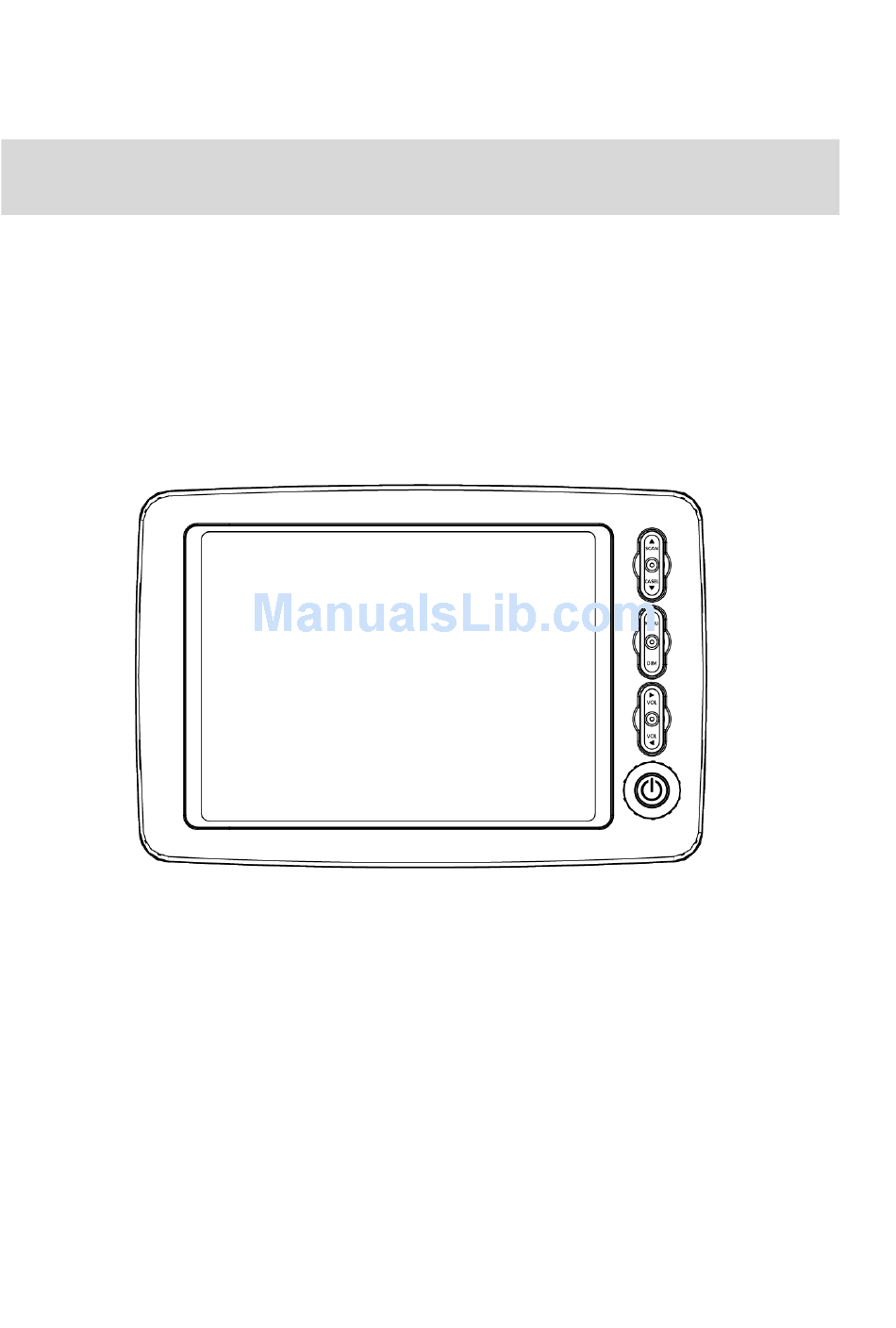

- Page 1 USER’s GUIDE MANUAL 5” Digital TFT LCD Monitor Model : MTB5300D...
- Page 2 I. Contents / Warning I. Contents / Warning I. Contents / Warning --------------------------------------------------- II. Front Feature / Accessory ---------------------------------------------------- III. Operation ---------------------------------------------------- 3 – 5 IV. Wiring Connection ----------------------------------------------------- V. Technical Specification ----------------------------------------------------- WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN To reduce the risk of electric shock, do not remove the cover (or back).
- Page 3 II. Front Feature & Accessory ◈ Front Feature ① SCAN (UP) ② CA. SEL (DOWN) ③ MENU ④ Dimmer ⑤ VOLUME DOWN ⑦ VOLUME UP ⑧ POWER ◈ Accessory Camera Input Cable Fan Type Stand User’s Guide...
-
Page 4: Operation
III. Operation 1. Menu Control Key 1) Power Key • The Power LED indicates the RED Color at the Power OFF (Stand-By Mode). • The Power LED indicates the GREEN Color at the Power ON. • The LAST MEMORIZED CHANNEL displays when the POWER turns ON (Factory Default). 2) Menu Key •... -
Page 5: Power On/Off
2. How to set up the MENU Function 1) Function • POWER ON/OFF ON: When ACC is On, the display is On automatically. OFF: The display is On by pressing power button manually. • Language : 6 Language (ENGLISH/GERMAN/FRENCH/ITALIAN/SPANISH/DUTCH) - Locate the cursor at Language by SCAN and/or CA.SEL key. - Select the desired language by Volume -/+ key. - Page 6 – Press the SCAN and/or CA.SEL Key, adjust the Color by the Volume -/+ Key. *Factory Default: 50 • TINT – Press the SCAN and/or CA.SEL Key, adjust the Brightness by the Volume -/+ Key. *Factory Default: 50 3) Camera •...
- Page 7 trigger is disengaged and it is set up from 0 to 9 seconds from 0 to 9 seconds by Volume - /+ Keys. *Factory Default : 3 seconds • CA3 TRIGGER – Press the SCAN and/or CA.SEL Key, adjust the displaying time of the camera 3 after the trigger is disengaged and it is set up from 0 to 9 seconds from 0 to 9 seconds by Volume -/+ Keys.
- Page 8 *How to adjust the Parking Guide Line User can adjust the Guide Line in accordance with the Vehicle’s Width as follows. • The Guide Line (Parking Line) is displayed when the trigger signal is engaged. • Select the Left or Right Line by the SCAN/CA.SEL key. •...
-
Page 9: Wiring Diagram
VI. Wiring Diagram... -
Page 10: Technical Specification
VI. Technical Specification Display Panel 5” Digital TFT LCD Panel Resolution 640 x RGB x 480 pixels Brightness 250cd/㎡ Screen mode 4 : 3 Screen View Angle Top:50° Bottom:70° Left:70° Right:70° Automatic Screen On Rear View Image via Reversing gear signal or Auto power Housing Aluminum Die-casting Normal/Mirror Image with Adjustable Guide Line...
