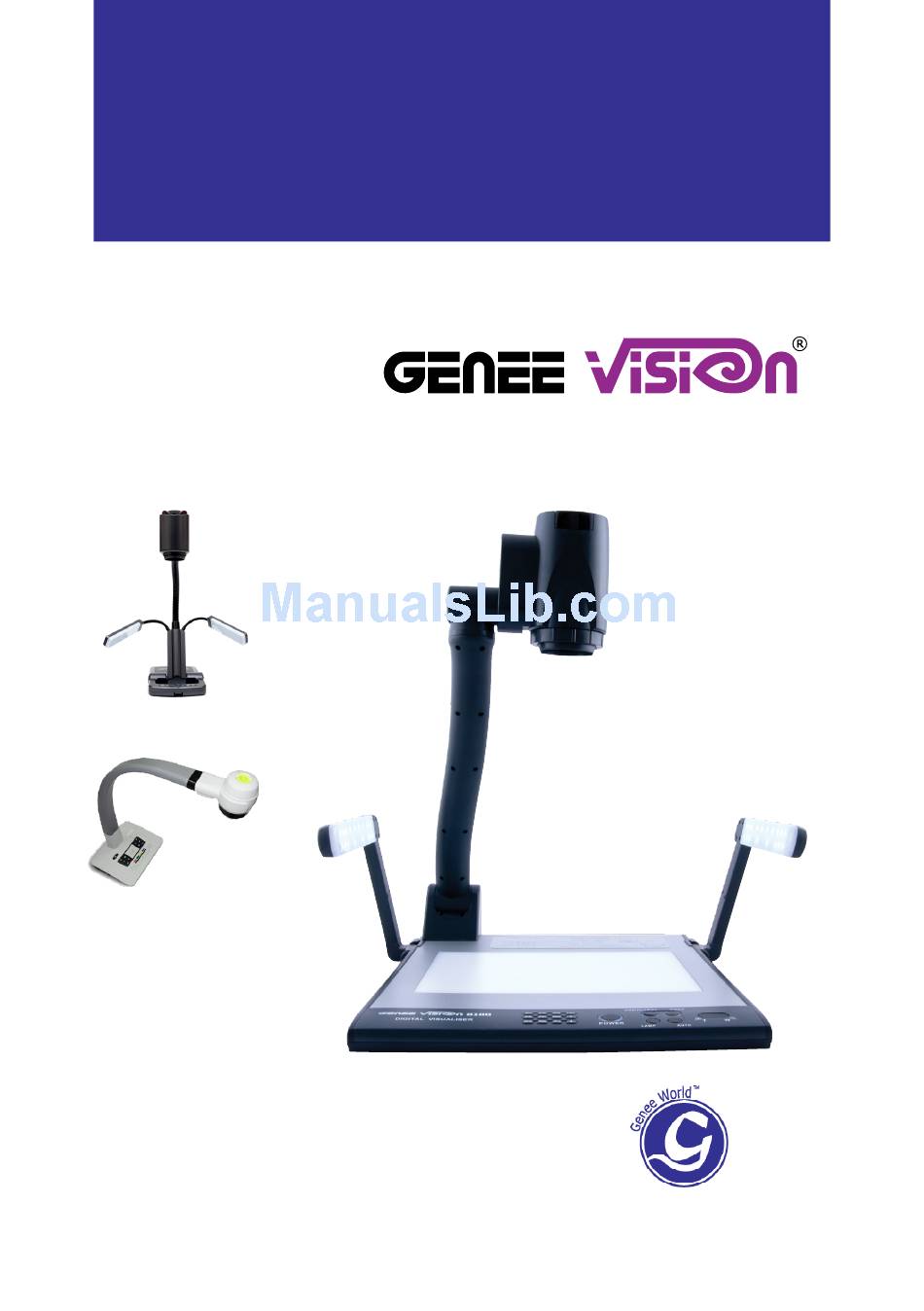

- Page 1 Quick set up guide Visualisers Leaders in learning technology...
- Page 2 Quick set up guide for Genee Vision visualisers 3100HD • 4100HD • 8100HD • 9100HD...
- Page 3 Quick guide contents Now that you have received your visualiser you will want to get started straight away. Visualisers can be used independently through a direct connection to a projector or monitor screen, or can be linked to a computer to integrate with software applications and interactive screens. Over the next few pages you will be shown how to connect and operate your visualiser.
-
Page 4: Package Contents
Package contents Visualiser units Remote control Software CD (stored in base of unit) Power supply 3.5mm jack to Composite adapter stereo phono A/V phono RS232 to PS2 sockets cable S-VHS cable cable mains RS232 cable A-A lead serial cable male-male HDMI Cable... - Page 5 Connectivity identification Side panels GV3100HD Rear panel GV4100HD Rear panel GV8100HD/9100HD Side panel GV8100HD/9100HD...
-
Page 6: Connecting To A Projector
Connecting to a projector You can simply use your visualiser as a presentation tool with a single (VGA of HDMI) connection to a projector or display screen: ‘12V IN’ socket ‘Projector’ ‘RGB in’ socket socket VGA lead (direct to projector, screen or wall plate socket) Projector... -
Page 7: Using The Features
Using the features The visualisers have built-in functions that can be operated either from the control panel buttons or from the remote control. CCD | PC1 | PC2 S-VIDEO | VIDEO Buttons and remotes may vary on different models Button functions on the GV8100HD/9100HD visualiser/remote POWER Control the visualiser On/Off CCD/PC1/PC2... - Page 8 Switching projector inputs By linking your visualiser to a PC or laptop you can switch projector inputs using the ‘CCD/PC1/PC2’ button on the unit’s control panel. CCD/PC1/PC2 button This integrates seamlessly with an interactive whiteboard and only requires a second VGA lead: When you press the CCD/PC1/PC2 button it will change from blue to green and the computer desktop...
-
Page 9: Loading The Software
USB lead. The set-up wizard will take you through the process. lead VideoCap and Genee Toolbar are programs that will give you live camera windows and whiteboard tools on your desktop, allowing you to annotate over them or capture in common image and video formats that can be incorporated into different applications. - Page 10 Check that the supplied USB lead is connecting the visualiser to your computer iii. Open either the VideoCap or Genee Toolbar software to get a live video window (you may have to select the USB 2861 camera if there is a choice).
- Page 11 Support Free technical helpline Tel: 0870 386 1900 Option 4 Email: technical@geneeworld.com Website: www.geneeworld.com UK warranty: Extended 5 years on registration International warranty: available on request Other products available to use with your visualiser: Carry case Security cable...
- Page 12 Leaders in learning technology Genee World Sales Tel: 0870 386 1900 PO Box 3256 Fax: 0870 405 0188 Wolverhampton Email: enquiries@geneeworld.com WV3 0LA Web: www.geneeworld.com...
